ef/el fuel pressure regs?



Page 1 of 2 [ 16 posts ] Go to page 1, 2  Next


 Post subject: ef/el fuel pressure regs?
Posted: Mon Aug 09, 2010 8:14 pm
Parts Gopher
Offline

Age: 29

Posts: 89

Joined: 30th Jan 2009

Ride: EF Injected Gas T5 Convert

Location: Trafalgar
VIC, Australia

Hi all
I went to the wreckers the other day and picked out a ef/el xr6 300kpa fuel pressure reg for my new motor, only thing is that once home i worked out that the xr6 mounts totally different to the standard rail i already have?? so are the fuel rails different from std to xr6? or is it because i may hav got it from a el and trying to mount it to a ef rail? and or au regs and rails better again to the ef/el i hav done a fair bit of work to my new motor (no 9sec track burner) but alot better then standard so maybe my efforts are goin the wrong way just lookin to improve it overall but keep costs down.

Any ideas??

STADIC
Top
 Profile


 Post subject: Re: ef/el fuel pressure regs?
Posted: Mon Aug 09, 2010 8:17 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

post up a pic.. as ef/el std and xr fuel rails are the same..
eb is different and au is different aswell..
Top
 Profile


 Post subject: Re: ef/el fuel pressure regs?
Posted: Mon Aug 09, 2010 8:49 pm
Parts Gopher
Offline

Age: 29

Posts: 89

Joined: 30th Jan 2009

Ride: EF Injected Gas T5 Convert

Location: Trafalgar
VIC, Australia

how do you add images off the desktop i hav taken them off the my phone?
Top
 Profile


 Post subject: Re: ef/el fuel pressure regs?
Posted: Mon Aug 09, 2010 9:59 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

when you reply to the post there is an add attachment under the text box, click on it and a browse
box will drop down..
then browse your files and add the file to your post
Top
 Profile


 Post subject: Re: ef/el fuel pressure regs?
Posted: Mon Aug 09, 2010 10:07 pm
Getting Side Ways
Offline

Age: 27

Posts: 584

Joined: 4th Apr 2010

Ride: AU falcon

Location: toongabbie
VIC, Australia

was the regulator taken off an EB or ED xr6? because they are different



_________________

Au factory 5sp, rolling on 20'z, full custom extractors, redback cat and back. has a new motors, only 27,000ks

Welcome to Toongabbie motorsports :P

Top
 Profile


 Post subject: Re: ef/el fuel pressure regs?
Posted: Mon Aug 09, 2010 10:58 pm
Parts Gopher
Offline

Age: 29

Posts: 89

Joined: 30th Jan 2009

Ride: EF Injected Gas T5 Convert

Location: Trafalgar
VIC, Australia

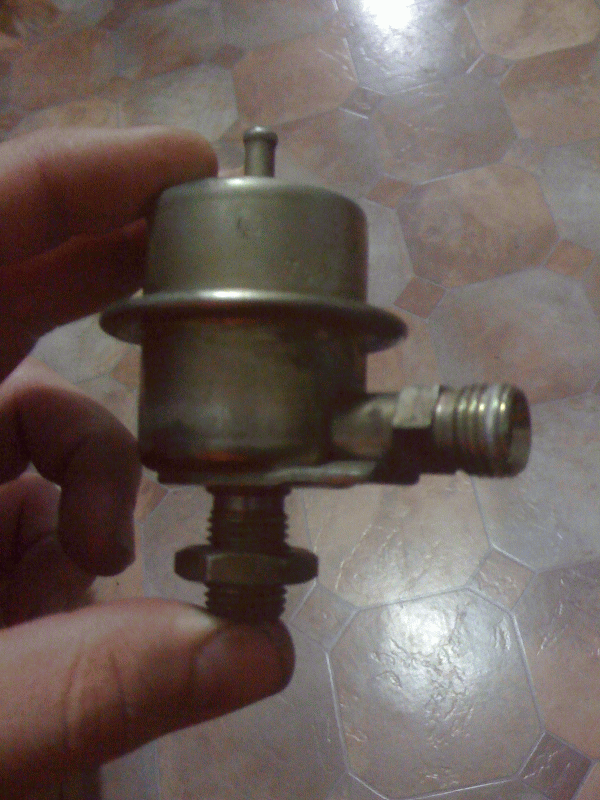

ef xr6
Attachment:
fuel pressure reg xr6.gif
fuel pressure reg xr6.gif [ 332.77 KiB | Viewed 136 times ]

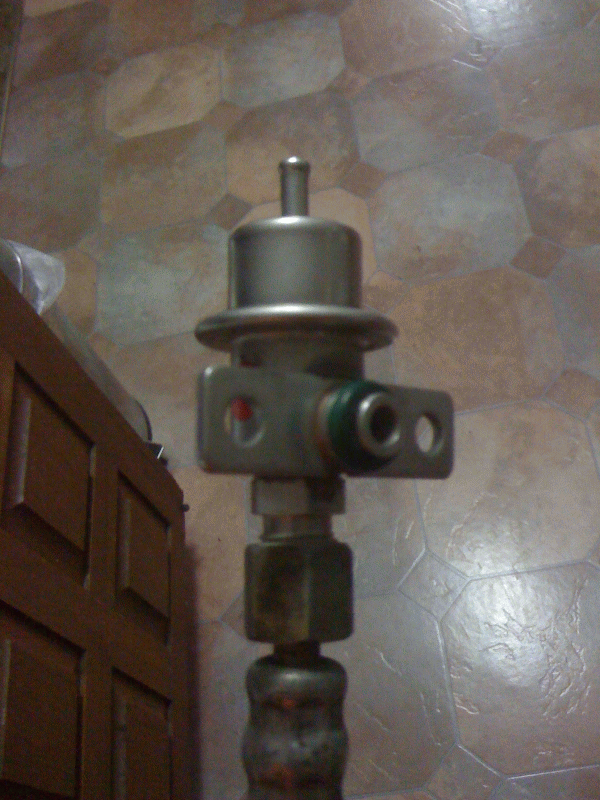

std
Attachment:
fuel pressure reg std.gif
fuel pressure reg std.gif [ 321.21 KiB | Viewed 188 times ]

as you can see there completely different the xr6 mounts with the o-ring on the end of the rail and the std one mount by a nut and seat syle on its own off shoot pipe from the rail?
Top
 Profile


 Post subject: Re: ef/el fuel pressure regs?
Posted: Tue Aug 10, 2010 12:37 am
Fordmods Junkie
Offline
User avatar

Posts: 11738

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

that is bloody odd :?. I have an EL and it was a direct swap from a standard to an XR one...sorry I can't be of much help there.

Has the fuel rail been replaced before?



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: ef/el fuel pressure regs?
Posted: Tue Aug 10, 2010 1:26 am
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Top pic is a reg from a Broadband manifold (BBM) - fitted to EF/EL's.
Bottom pic is a reg from a log manifold - fitted to EB/ED's.

Fuel rails are similar - injectors are interchangeable, but the fuel reg mounting is different, as are the regs.

Someone confirm ???



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: ef/el fuel pressure regs?
Posted: Tue Aug 10, 2010 2:15 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 1634

Joined: 8th Jul 2007

Gallery: 21 images

Ride: EL F100 CAPRI XR EF

Power: 234 rwkw

Location: brighton
SA, Australia

Top
 Profile


 Post subject: Re: ef/el fuel pressure regs?
Posted: Tue Aug 10, 2010 8:17 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

the bottom one is ea/ed...
Top
 Profile


 Post subject: Re: ef/el fuel pressure regs?
Posted: Tue Aug 10, 2010 8:27 am
Getting Side Ways
Offline
User avatar

Age: 24

Posts: 422

Joined: 10th Jul 2009

Gallery: 7 images

Ride: Black EB 5 Speed EL Front End

Location: Bundaberg
QLD, Australia

thats a bit weird if the bottom one is the one off your EF.



_________________


Top
 Profile


 Post subject: Re: ef/el fuel pressure regs?
Posted: Tue Aug 10, 2010 8:45 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

can you post a pic of your manifold and fuel rail..

im curious as to wtf is a ea/ed reg is doing on an ef???
Top
 Profile


 Post subject: Re: ef/el fuel pressure regs?
Posted: Tue Aug 10, 2010 3:36 pm
Fordmods Junkie
Offline
User avatar

Posts: 11738

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

Could it be due to it being a duel fuel car? (as per his ride description).

Only other explanation is someone had replaced it with an earlier E-series fuel rail.



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: ef/el fuel pressure regs?
Posted: Tue Aug 10, 2010 8:00 pm
Parts Gopher
Offline

Age: 29

Posts: 89

Joined: 30th Jan 2009

Ride: EF Injected Gas T5 Convert

Location: Trafalgar
VIC, Australia

Well.......

i looked at my own car today and its the same as the xr6 one so no probs there but the rail the other one came with a ef motor and BBM i got from a mate cant remember if it was all together anyway i will just hav to strip my rail off my current motor when i do the swap to my new motor just wanted to set it all up before i did the change over never mind but now we have a idea whats goin on

thanks to all that made the effort to help work it out

STADIC
Top
 Profile


 Post subject: Re: ef/el fuel pressure regs?
Posted: Thu Aug 26, 2010 6:00 pm
Getting Side Ways
Offline

Age: 40

Posts: 524

Joined: 15th Aug 2010

Ride: Territory SX TX

Location: Townsville
QLD, Australia

My EB Fairmonts fuel reg is different again, similar to the top one in the photos, but doesnt have a screw thread, it is like the old hose over stalk style filters from years ago.
