 Post subject: Re: EF fairmont smartlock bypass
Posted: Mon Jan 03, 2011 6:16 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

As Troyman has stated, there should be two Red with Blue Trace wires going into the BEM/Smartlock Module. One of them comes from the Ignition switch, the other goes to the starter motor. All you do is join them together to bypass the BEM.

BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: EF fairmont smartlock bypass
Posted: Wed Jan 05, 2011 9:20 pm
Smokin em up
Offline

Age: 28

Posts: 226

Joined: 8th May 2007

Ride: EF Falcon

Location: Sydney
NSW, Australia

I've got 1 red wire with a white trace and another with a yellow which is for the airbag, I don't have any blue wires at all do you think that they might've changed the wire colours before bcm
Top
 Profile


 Post subject: Re: EF fairmont smartlock bypass
Posted: Wed Jan 05, 2011 11:23 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

There are multiple plugs in the BCM. Are you sure you are looking at the correct one?

BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: EF fairmont smartlock bypass
Posted: Thu Jan 06, 2011 9:34 am
Smokin em up
Offline

Age: 28

Posts: 226

Joined: 8th May 2007

Ride: EF Falcon

Location: Sydney
NSW, Australia

Ef only has 1 EB and Ed have multiple
Top
 Profile


 Post subject: Re: EF fairmont smartlock bypass
Posted: Thu Jan 06, 2011 9:50 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

both ef diagrams i have show the wires as red/dark blue..
Top
 Profile


 Post subject: Re: EF fairmont smartlock bypass
Posted: Sun Feb 06, 2011 10:14 am
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 3805

Joined: 22nd Apr 2007

Gallery: 5 images

Ride: DENTED UP OLD AUT WAGON

Location: Wellington
New Zealand

TROYMAN wrote:
both ef diagrams i have show the wires as red/dark blue..

BenJ wrote:
As Troyman has stated, there should be two Red with Blue Trace wires going into the BEM/Smartlock Module. One of them comes from the Ignition switch, the other goes to the starter motor. All you do is join them together to bypass the BEM.BenJ

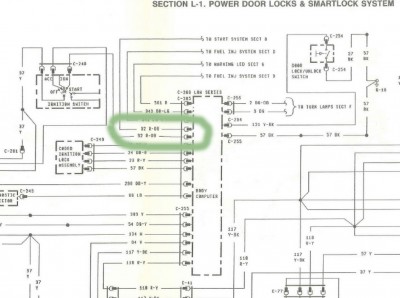

You mean these two wires labelled RED with DARK BLUE on the circuit diagram that I just viewed from the post previously? You just right click and open in new tab or ZOOM IN or whatever tickles your fancy and there they are. It's not that tricky. They are probably the same damn circuit diagram that Troyman has.

Glad to have been useful. :lol:





Attachments:
File comment: HELP
wiring-lasttime.jpg [ 146.64 KiB | Viewed 699 times ]
