EL V8 ECU wiring diagram



Page 1 of 3 [ 44 posts ] Go to page 1, 2, 3  Next


 Post subject: EL V8 ECU wiring diagram
Posted: Fri Nov 23, 2007 11:50 am
Oompa Loompa
Offline

Posts: 41

Joined: 8th Jun 2005

Location: Adelaide
SA, Australia

Hi,

Does anyone have a wiring diagram... ie what pin is what for the ECU in an EL XR8???

I'm trying to wire in a wolf 3D and would really like some assistance in the pin-outs in the stock ECU..

I'd rather use the factory loom instead of running a whole new one.

Thanks,

Damian
Top
 Profile


Posted: Wed Jan 02, 2008 5:55 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 1093

Joined: 29th Nov 2004

Gallery: 15 images

Ride: BA Ford Fairlane V8

Location: Lower Hunter Valley
NSW, Australia

BUMP!!! Also are the V8 EECIV and V very similar with their pinouts ie number of pins and positions?



_________________

Interested in a fair go for the Hunter-New England area of NSW?

Top
 Profile


Posted: Thu Jan 03, 2008 11:07 am
Stock as a Rock
Offline

Posts: 119

Joined: 4th Jun 2006

Gallery: 5 images

Location: Palmerston North
Oustide Australia

In my manual I have the wiring for the fuel injection on EF & EL being the same. The TCM side is different.

Give me a couple of days and I will scan the pages for you. I take it you have the 104 pin plug.
Top
 Profile


Posted: Thu Jan 03, 2008 2:35 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5583

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

banarcus wrote:
BUMP!!! Also are the V8 EECIV and V very similar with their pinouts ie number of pins and positions?
No, vastly different - 60 pin V 104 pin. You should be able to use an EF 6 cyl ECU plug and relocate wiring over (that is, cut and splice).
KiwiDazza wrote:
In my manual I have the wiring for the fuel injection on EF & EL being the same.
The ECU pinouts are nearly the same - electric fan pin outs are different, maybe some others too.
KiwiDazza wrote:
Give me a couple of days and I will scan the pages for you. I take it you have the 104 pin plug.
I won't have access to a copier for a few weeks, so you'll most likely post first.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Fri Jan 04, 2008 5:11 am
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 1093

Joined: 29th Nov 2004

Gallery: 15 images

Ride: BA Ford Fairlane V8

Location: Lower Hunter Valley
NSW, Australia

You blokes are legends. Cheers.



_________________

Interested in a fair go for the Hunter-New England area of NSW?

Top
 Profile


Posted: Fri Jan 04, 2008 11:27 am
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5583

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Well we haven't delivered yet . . . . :P



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Fri Jan 04, 2008 2:45 pm
Stock as a Rock
Offline

Posts: 119

Joined: 4th Jun 2006

Gallery: 5 images

Location: Palmerston North
Oustide Australia

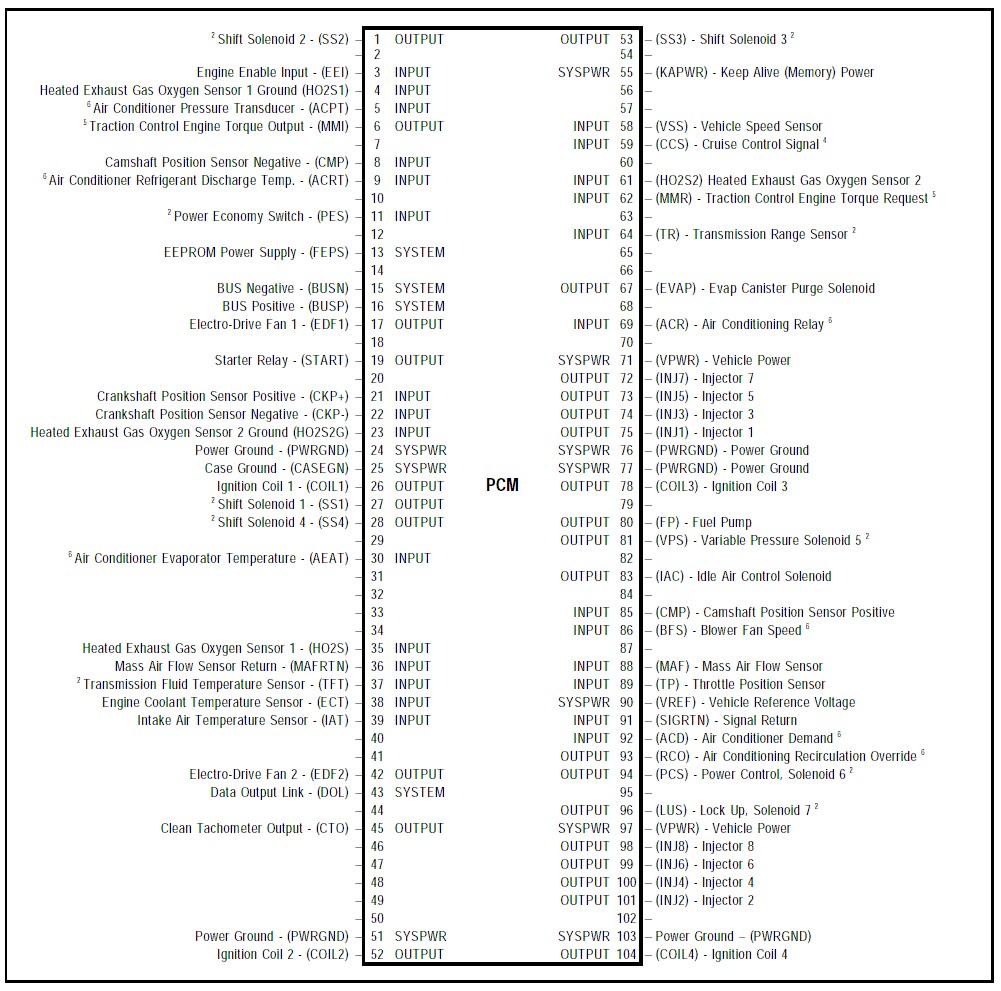

I have found this diagram on the PC and remember using it when I wired in the xr8 to the muz. It is from an AU but from what I can remember the pins were the same, apart from cam/crank sensor which my one didn't have.

Will get around to scanning in some wiring diagrams if you need them.

ON my other document I have..
Pin Description
2 Diagnostics STO
3 Enable Engine Input
4 Oxygen Sensor Ground
10 Air Con Clutch
17 Engine cooling fan relay 1
23 ignition ground
24 power ground
25 case ground
30 air con evap air temp sensor
34 trans temp link
35 hego sensor 1
36 MAF ground
38 engine coolant temp sensor
39 intake air temp sensor
41 air con clutch
42 engine cooling fac relay 2
43 data output link to TCM & instrument
45 tacho signal
46 engine cooling fan relay 4
47 EGR solenoid
48 ignition diag monitor
49 dizzy PIP
50 Spark Ou (Spout)
51 power ground
55 keep alive power
58 VSS input
61 HEGO sensor 2
64 auto trans range selector/ Neutral drive switch
65 EGR valve position sensor
66 Diagnostics STI
67 Canister purge solenoid
68 engine cooling fan 3
69 air con relay
71 main efi relay power
72 fuel injector 7
73 fuel injector 5
74 fuel injector 3
75 fuel injector 1
76 power ground
77 power ground
80 fuel pump control
83 idle air control valve
86 a/c heater blower fan
88 MAF sensor signal
89 Throttle position sensor
90 ref voltage
91 sensor ground
93 air con recirculation override
97 main efi relay power
98 fuel injector 8
99 fuel injector 6
100 fuel injector 4
101 fuel injector 2
103 power ground.


I probably have more written down in my project book. if you get stuck on a particular pin I can dig it up.

Do you need the pin outs for the auto TCM?

Hope this helps!





Attachments:
AUPCM8.jpg [ 270.97 KiB | Viewed 1141 times ]
Top
 Profile


Posted: Fri Jan 04, 2008 4:19 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3763

Joined: 25th Nov 2004

Gallery: 6 images

Ride: EFII 5.8 NOS TerroristGhia

Power: 274 rwkw

Location: Sydney Australia
NSW, Australia

AU has integrated TCM so will be different for auto inputs
Brett



_________________

The Terrorist ED Retired due to RUST.
The TerrosistGhia, EF Ghia 351 EFI 5 Speed.
Millennium Falcon, Sleeper EL DOHC 6 Speed Manual EFI LPG
Member#1131
I didn't Vote for Multiculturalism, DID YOU!!!

Top
 Profile


Posted: Fri Jan 04, 2008 6:16 pm
Stock as a Rock
Offline

Posts: 119

Joined: 4th Jun 2006

Gallery: 5 images

Location: Palmerston North
Oustide Australia

Ah, hence the solenoid control pin outs on the diagram.
Top
 Profile


Posted: Fri Jan 04, 2008 8:05 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 1093

Joined: 29th Nov 2004

Gallery: 15 images

Ride: BA Ford Fairlane V8

Location: Lower Hunter Valley
NSW, Australia

Thanks again. This has been very helpful. I have more questions though. Is there much of a difference between ED engine bay looms and those found in EF-ELs? The only difference would be the airbag wires dont you think?



_________________

Interested in a fair go for the Hunter-New England area of NSW?

Top
 Profile


Posted: Sat Jan 05, 2008 8:34 am
Stock as a Rock
Offline

Posts: 119

Joined: 4th Jun 2006

Gallery: 5 images

Location: Palmerston North
Oustide Australia

I'm unable to help you there as I only needed the wiring for EF and I have a solid steering wheel as an airbag!
Top
 Profile


Posted: Sat Jan 05, 2008 11:47 am
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5583

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

banarcus wrote:
Thanks again. This has been very helpful. I have more questions though. Is there much of a difference between ED engine bay looms and those found in EF-ELs? The only difference would be the airbag wires dont you think?
Add electric fans in there also. EF/EL's run electric cruise control. The ABS systems were different ED-EF/EL, Bendix then Bosch (although you'll probably retain the earlier Bendix system.
Otherwise they were both SEFI and TFI/coil ignition, so shouldn't be overly different.
Only other thing I'm not sure, did the V8's follow the I6's for knock sensors, i.e. ED No, EF/EL yes.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Sat Jan 05, 2008 2:25 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 1093

Joined: 29th Nov 2004

Gallery: 15 images

Ride: BA Ford Fairlane V8

Location: Lower Hunter Valley
NSW, Australia

Oh yes, oops I forgot about those thermo fans. I wont have to worry about the knock sensor as the Windsors have many noises/harmonics that it would drown a knock sensor silly. Seeing the cruise is different, I'll get the EF cruise too. I've got my hands on a EF-EL V8 wiring diagram although it's a crappy ellery one. Having a look through it, one thing that looks the same is the wiring for the climate control setups between the ED and EF so I might be on a winner there.



_________________

Interested in a fair go for the Hunter-New England area of NSW?

Top
 Profile


Posted: Sat Jan 05, 2008 9:29 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5583

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

All the peripherals are interchangeable for the Climate control, except for the dash units - the cabin temp sensor is integrated inside the EF/EL CC unit.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Tue Jan 08, 2008 10:05 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 1093

Joined: 29th Nov 2004

Gallery: 15 images

Ride: BA Ford Fairlane V8

Location: Lower Hunter Valley
NSW, Australia

Ok, I went crazy on an EF Fairmont 4.0L today and I got the entire dash with the cluster, trip computer and climate control. I managed to get the console and steering column mainly for the updated electronic cruise control. I got the cruise module and engine bay loom which goes from the rear of the dash(near fuse box) routes underneath drivers front guard and under coolant bubble tank. It then wraps around the front of the car to the ABS pump and relays for the thermo fans. I can say that the ABS, cruise control and the airbag are all independant from the EECV as there are no direct imput/outputs.

Question: Where does the ABS control module hide on an EF?
Question: Does the green BEM have Smartlock built in?



_________________

Interested in a fair go for the Hunter-New England area of NSW?

Top
 Profile
