 Post subject: FORD 60 Pin EA/EB/ED/EL to EMS wiring
Posted: Wed Mar 09, 2011 3:53 pm
Getting Side Ways
Offline
User avatar

Posts: 627

Joined: 5th Dec 2009

Gallery: 2 images

Ride: GREEN ED XR6

Power: 249 rwkw

Location: CENTRAL WEST QLD
QLD, Australia

Hi Guys I have tried for the last few weeks to wire in my EMS 4424 V4 ecu to me ED falcon, But still wont run, I can get it to run on the stock ECU, but wont run soon as the EMS is plugged in ** its setup to run the EL ECU not the ED ecu**

Its also stand alone ECU not piggy back, My wiring goes as follows

I just checked all my wiring and this is how it all goes

EEC V Pinout EL EMS Pinout

Pin wire colour Pin wire colour

Power Source & Ground

57 Red (Power) 10 Red
60 Black (Gnd) 9 Black (Gnd)

TPS Connection

47 Green/Black 6 White/Black
26 Orange/Black 22 Red/Blue

O2 Sensor

wbo2 data wire/Blue 19 Grey
49 Grey/White 5 Orange

Fuel Injectors

58 Light/Brown 23 Yellow
59 White 11 White

Distributor

56 Dark Brown (looks Black) 8 Green
Resistor from pin 57 on ed ecu to EMS pin 14 Pink

If anyone can sort this out for me or point out where I have a problem ? would be muc appreciated & proberly helpful for others out there.



_________________

AU2 engine with Hoppers head/cam performance package & spool rods / CP pistons ,Snort 1200 plenum, T56 Manual & Billet short shifter, Front & Rear Slotted rotors, Pedders lowered suspension, LSD and tuned with EMS stinger 4424 347rwkw THE ED XR6 IS BOOSTED

Top
 Profile


 Post subject: Re: FORD 60 Pin EA/EB/ED/EL to EMS wiring
Posted: Wed Mar 09, 2011 3:56 pm
Getting Side Ways
Offline

Age: 34

Posts: 3406

Joined: 7th Feb 2005

Ride: AU2 Ute

Location: melbourne
VIC, Australia

You'd probably be better off finding what exactly isnt working first.

Are you getting spark? Are you getting fuel? Do the injectors have power etc...
Top
 Profile


 Post subject: Re: FORD 60 Pin EA/EB/ED/EL to EMS wiring
Posted: Wed Mar 09, 2011 4:44 pm
Getting Side Ways
Offline
User avatar

Posts: 627

Joined: 5th Dec 2009

Gallery: 2 images

Ride: GREEN ED XR6

Power: 249 rwkw

Location: CENTRAL WEST QLD
QLD, Australia

Problem solved It was flooded...... sprayed some carby cleaner in it and fired up within 3 cranks, just sorting out my AC now.



_________________

AU2 engine with Hoppers head/cam performance package & spool rods / CP pistons ,Snort 1200 plenum, T56 Manual & Billet short shifter, Front & Rear Slotted rotors, Pedders lowered suspension, LSD and tuned with EMS stinger 4424 347rwkw THE ED XR6 IS BOOSTED

Top
 Profile


 Post subject: Re: FORD 60 Pin EA/EB/ED/EL to EMS wiring
Posted: Wed Mar 09, 2011 4:55 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

so does the tune i put on the stinger work ok????
Top
 Profile


 Post subject: Re: FORD 60 Pin EA/EB/ED/EL to EMS wiring
Posted: Wed Mar 09, 2011 5:38 pm
Getting Side Ways
Offline
User avatar

Posts: 627

Joined: 5th Dec 2009

Gallery: 2 images

Ride: GREEN ED XR6

Power: 249 rwkw

Location: CENTRAL WEST QLD
QLD, Australia

Yea Troyman its a bit rich at idle ( 9.8-11) to 1100rpm and then leans out a little (14.8-17)after that and dont want to start if you leave it for more than 10 mins, but its a good start, and I havent put the laptop on it yet to calibrate everything.



_________________

AU2 engine with Hoppers head/cam performance package & spool rods / CP pistons ,Snort 1200 plenum, T56 Manual & Billet short shifter, Front & Rear Slotted rotors, Pedders lowered suspension, LSD and tuned with EMS stinger 4424 347rwkw THE ED XR6 IS BOOSTED

Top
 Profile


 Post subject: Re: FORD 60 Pin EA/EB/ED/EL to EMS wiring
Posted: Wed Mar 09, 2011 6:02 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

ok..
the calibration files are already in it for the water temp and air temp sensors...

each engine is slightly different for each tune.. that tune was done on a std el xr6 engine with a turbo..
so if your cam is different the idle load points will be different. ect..

but at light cruising speeds/load the afr should be on the lean side..
once you get your laptop on it you can remove a certain percentage from the fuel map or remove fuel from each load point..

although due to my cam, to get my car to idle smooth my idle afrs are around 11:1
Top
 Profile


 Post subject: Re: FORD 60 Pin EA/EB/ED/EL to EMS wiring
Posted: Wed Mar 09, 2011 7:07 pm
Getting Side Ways
Offline
User avatar

Posts: 627

Joined: 5th Dec 2009

Gallery: 2 images

Ride: GREEN ED XR6

Power: 249 rwkw

Location: CENTRAL WEST QLD
QLD, Australia

Ok, I tried to connect my laptop to the EMS and still a No Go, thats 2 cables I have bought now and Im thinking maybe Ill just buy a EMS data cable and be done with it. Ive installed the driver for the cable and changed the COM ports and still nothing. Im thinking its maybe the cable? also I have tried 2 different laptops.



_________________

AU2 engine with Hoppers head/cam performance package & spool rods / CP pistons ,Snort 1200 plenum, T56 Manual & Billet short shifter, Front & Rear Slotted rotors, Pedders lowered suspension, LSD and tuned with EMS stinger 4424 347rwkw THE ED XR6 IS BOOSTED

Top
 Profile


 Post subject: Re: FORD 60 Pin EA/EB/ED/EL to EMS wiring
Posted: Wed Mar 09, 2011 7:17 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

Try a different cable...as it connected to my laptop straight away..
Top
 Profile


 Post subject: Re: FORD 60 Pin EA/EB/ED/EL to EMS wiring
Posted: Wed Mar 09, 2011 10:03 pm
Getting Side Ways
Offline
User avatar

Posts: 627

Joined: 5th Dec 2009

Gallery: 2 images

Ride: GREEN ED XR6

Power: 249 rwkw

Location: CENTRAL WEST QLD
QLD, Australia

Tried 2 cables, and same result maybe I should buy a genuine EMS 4424 cable, do you know what they are worth new? from EMS Troyman.

Also does you go from a RS232 to usb or RS232 on both ends?



_________________

AU2 engine with Hoppers head/cam performance package & spool rods / CP pistons ,Snort 1200 plenum, T56 Manual & Billet short shifter, Front & Rear Slotted rotors, Pedders lowered suspension, LSD and tuned with EMS stinger 4424 347rwkw THE ED XR6 IS BOOSTED

Top
 Profile


 Post subject: Re: FORD 60 Pin EA/EB/ED/EL to EMS wiring
Posted: Wed Mar 09, 2011 10:14 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

yea try a genuine one.. i remember you saying your using a male to female adaptor aswell as the serial to usb adaptor.. the problem might be in the male to female addaptor??

im not sure how much they are from ems, as i got mine with the ecu..

give ems a call on.02 9756 1178
or you can email them,, sales@fuel-injection.com
Top
 Profile


 Post subject: Re: FORD 60 Pin EA/EB/ED/EL to EMS wiring
Posted: Wed Mar 09, 2011 10:16 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

oh. mines rs232 with a rs232 to usb adaptor on one end..

another thought??
what operating system are you running on your laptop??
Top
 Profile


 Post subject: Re: FORD 60 Pin EA/EB/ED/EL to EMS wiring
Posted: Wed Mar 09, 2011 10:49 pm
Getting Side Ways
Offline
User avatar

Posts: 627

Joined: 5th Dec 2009

Gallery: 2 images

Ride: GREEN ED XR6

Power: 249 rwkw

Location: CENTRAL WEST QLD
QLD, Australia

what serial port am I supposed to use for the cable, hers a picture of my laptop port that is the only one thats not a USB port is that ok?
also I have tried a few cables, rs232 to usb (jaycar one)
rs232 ebay one
both with gender changers,
to get them to connect.
and a wolf3dV4 cable too
Heres what happens when I try to access the ECU (what happens on the screen)
So EMS will have the RS232 to USB genuine adaptor/cable? I think I seen them for like $35 or something Ill try giving them a call tommorow at lunch

Im using windows XP home on my laptop, its a 1.7Ghz, 1Gb ram, 120Gb HDD etc

Hers 2 cables to buy online for a EMS are they the right ones?
http://purchasenet.com.au/shopping/ems-data-cable-4424-stinger-p-772.html
http://www.enginemanagement.com.au/product_info.php?cPath=28&products_id=127



_________________

AU2 engine with Hoppers head/cam performance package & spool rods / CP pistons ,Snort 1200 plenum, T56 Manual & Billet short shifter, Front & Rear Slotted rotors, Pedders lowered suspension, LSD and tuned with EMS stinger 4424 347rwkw THE ED XR6 IS BOOSTED

Top
 Profile


 Post subject: Re: FORD 60 Pin EA/EB/ED/EL to EMS wiring
Posted: Wed Mar 09, 2011 11:49 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

The port you have pictured is a VGA output (for external monitor)... Note the 3 rows of pins...

A T42 laptop does not have an onboard serial port... Most don't now as serial is a thing of the past...

We had T42's at work... They had a PCMCIA card in them (the big slots on the left side) which gave two RS232 ports...

You will either need one of them or a USB to RS232 adaptor... These are available anywhere... And a serial cable wto go from it to the ECU...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: FORD 60 Pin EA/EB/ED/EL to EMS wiring
Posted: Thu Mar 10, 2011 8:25 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

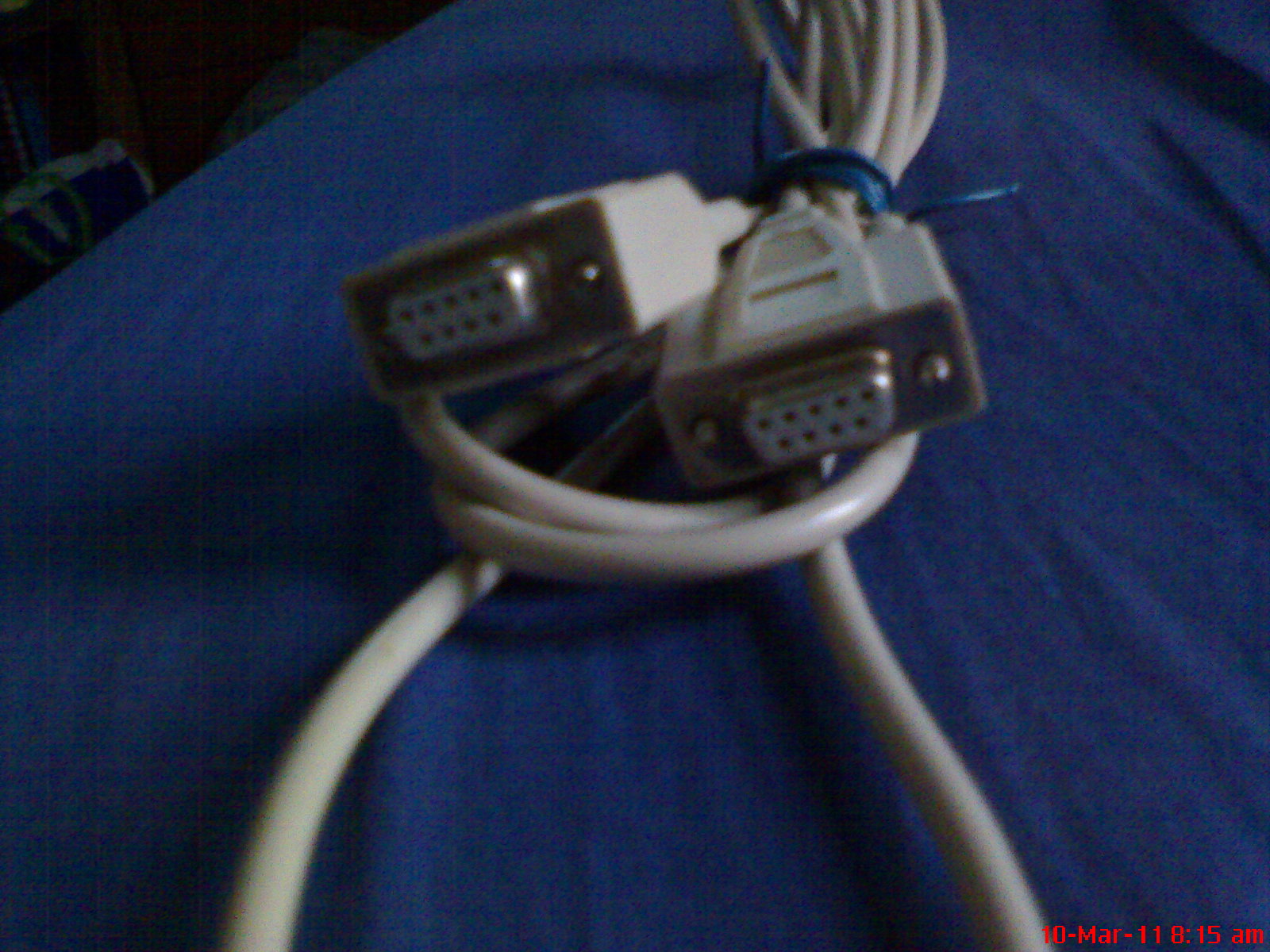

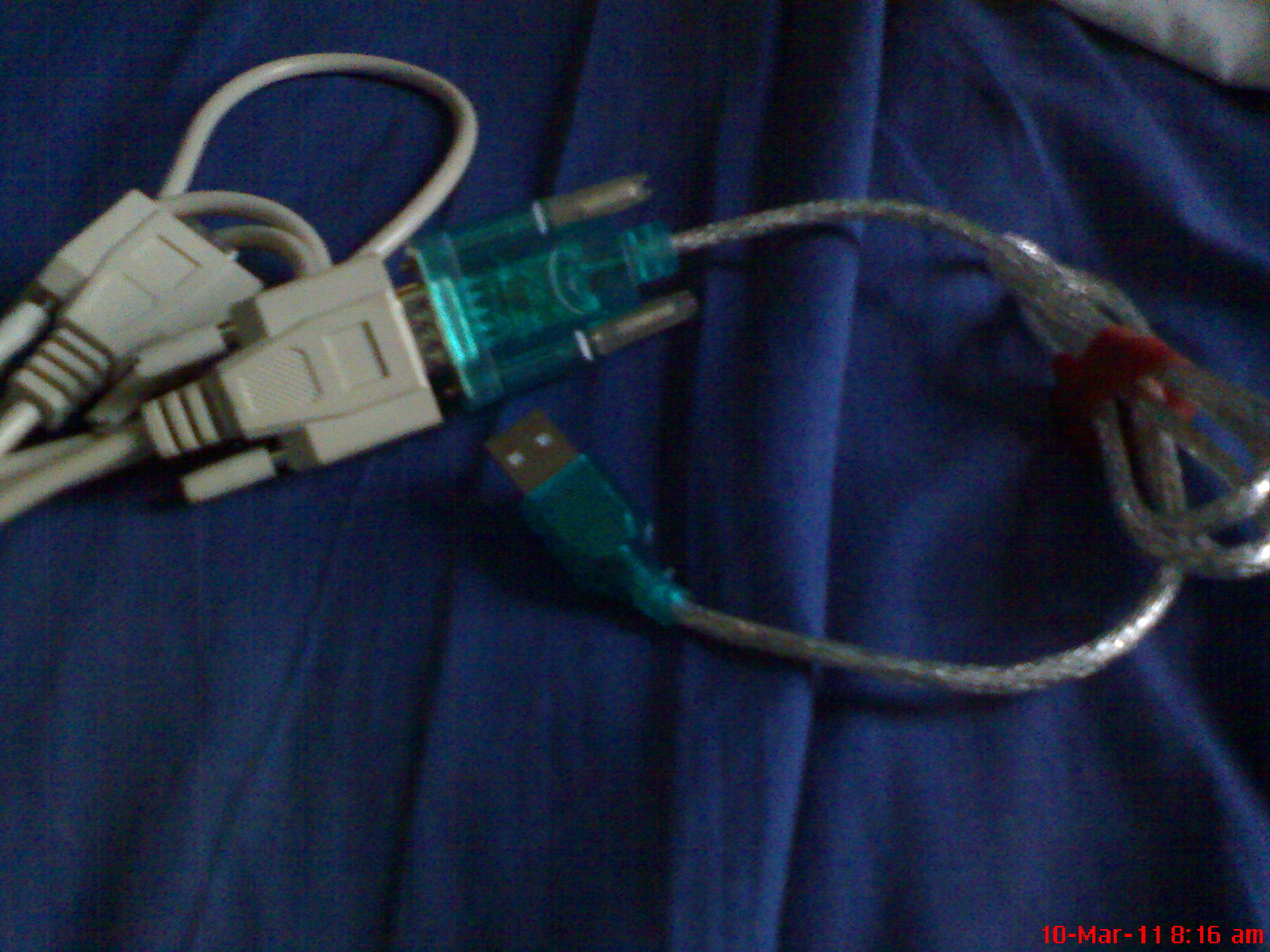

here is my ems cable, and the rs232 to usb adaptor..

Attachment:
ABCD0002.JPG [ 371.09 KiB | Viewed 74 times ]

Attachment:
ABCD0007 (2).JPG
ABCD0007 (2).JPG [ 374.27 KiB | Viewed 66 times ]
Top
 Profile


 Post subject: Re: FORD 60 Pin EA/EB/ED/EL to EMS wiring
Posted: Thu Mar 10, 2011 4:29 pm
Getting Side Ways
Offline
User avatar

Posts: 627

Joined: 5th Dec 2009

Gallery: 2 images

Ride: GREEN ED XR6

Power: 249 rwkw

Location: CENTRAL WEST QLD
QLD, Australia

TROYMAN wrote:
here is my ems cable, and the rs232 to usb adaptor..

Attachment:

God I like EMS tech support, EMS FTW this is called a NULL MODEM CABLE, I rang EMS and explained to them my situation and they sent me a FREE cable with FREE postage.

Attachment:
ABCD0007 (2).JPG


So by next week I should be able to access my EMS via Laptop with the EMS cable then to the RS-232-USB cable

Horay.....



_________________

AU2 engine with Hoppers head/cam performance package & spool rods / CP pistons ,Snort 1200 plenum, T56 Manual & Billet short shifter, Front & Rear Slotted rotors, Pedders lowered suspension, LSD and tuned with EMS stinger 4424 347rwkw THE ED XR6 IS BOOSTED

Top
 Profile
