fuel pressure reg help



Page 1 of 4 [ 47 posts ] Go to page 1, 2, 3, 4  Next


 Post subject: fuel pressure reg help
Posted: Mon Nov 24, 2008 8:04 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 516

Joined: 27th Oct 2007

Gallery: 20 images

Ride: ef xr6 turbo

Location: whyalla
SA, Australia

ok im only new to this stuff andly need some help. i have a ef xr6 and have just bought a snort kit for it. with the kit i was given a 12.1 fuel pressure regulator... one thing i dont know what it does, why its necessary or where it goes and how to put it in can someone give me the lowdown on it please. i am planning to use standard fuel pump with ford motorsport 42lbs injectors



_________________

there are a few falcons in my drive way, some of them are turbo charged and some arent, some have big engines and some are small but they all have one thing in common and that is the blue oval on the front

Top
 Profile


Posted: Mon Nov 24, 2008 9:26 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 206

Joined: 26th May 2008

Ride: EF XR6

Location: Brisbane
QLD, Australia

You should deffinately need it because just putting bigger injectors into a car with out increasing the fuel pressure is relatively useless. I am not totally sure but it will probably be a rising rate fuel pressure reg too so as the boost climbs the pressure climbs, also needed on a turbo car. As far as fitting it with out seeing it can't be sure on that but if it is a standard replacement it will bolt onto the your fuel rail (at the back of the rail near the firewall) with two bolts. If it is not a standard replacement youy will have to modify your fuel rail to fit it. I have modified mine by capping the hole then brazing a 90 degree fitting into it and sitting my adjustable fuel pressure reg bside my intake manifold. Another way i have seen it done is to remove the diafram and spring from the stock pressure reg so fuel basicly flows straight through it and then running fuel lines to your reg, i reccon this is way too much effort though. My car is not turbo so any turbo specific fuel issues i am not 100% on. Hope you can get something helpful from this.



_________________

EF XR6 Manual 271RWHP/199RWKW N/A using Stock manifold with dual plane runners still operating. EFI Hardware 6TBM to come mid year.

Top
 Profile


Posted: Mon Nov 24, 2008 9:37 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

Ignore the post above this one.

The reason you get a 12:1 reg is to look after fuel with the stock ECU.
It increases fuel rail pressure in a non linear fashion.
For example.
Stock fuel pressure, 40psi, running 5psi of boost, now equals 100psi of pressure in the rail.
Whereas with the stock regulator (which is 1:1) you would have 45psi of pressure.
This is so you get more fuel in on boost, so it doesn't lean out.

If you are using an aftermarket ECU, flog it off.
If you are planning on using stock ECU, and run low boost, piss off the 42lb/h injectors, they won't work with the stock ECU.
Also upgrade your fuel pump either way.



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Mon Nov 24, 2008 9:50 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 516

Joined: 27th Oct 2007

Gallery: 20 images

Ride: ef xr6 turbo

Location: whyalla
SA, Australia

thanks for the help. i was planning on using the capa eliminator chip. i also have ba injectors that i was going to use originally. for now i only want to break the 200kw mark. in the latest street fords mag there is a ef turbo with the same kit as mine running the ford motorsport 42lbs injectors the same 12:1 fuel pressure reg with only the capa eliminator chip to tune it. i was planning on doing the same thing but am unsure about the fuel pressure reg



_________________

there are a few falcons in my drive way, some of them are turbo charged and some arent, some have big engines and some are small but they all have one thing in common and that is the blue oval on the front

Top
 Profile


Posted: Mon Nov 24, 2008 9:58 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

I'd speak to whoever will be tuning the car, see what he wants to do.
I would say in that EFs case the 12:1 reg is being used as a bandaid for the fact that the EEC cannot be scaled to recognise boost?
Seems silly to be using 42s then...
You will 100% need a decent fuel pump doing that, the stock pump will not work well with that sort of pressure in the rail.



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Mon Nov 24, 2008 10:02 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 516

Joined: 27th Oct 2007

Gallery: 20 images

Ride: ef xr6 turbo

Location: whyalla
SA, Australia

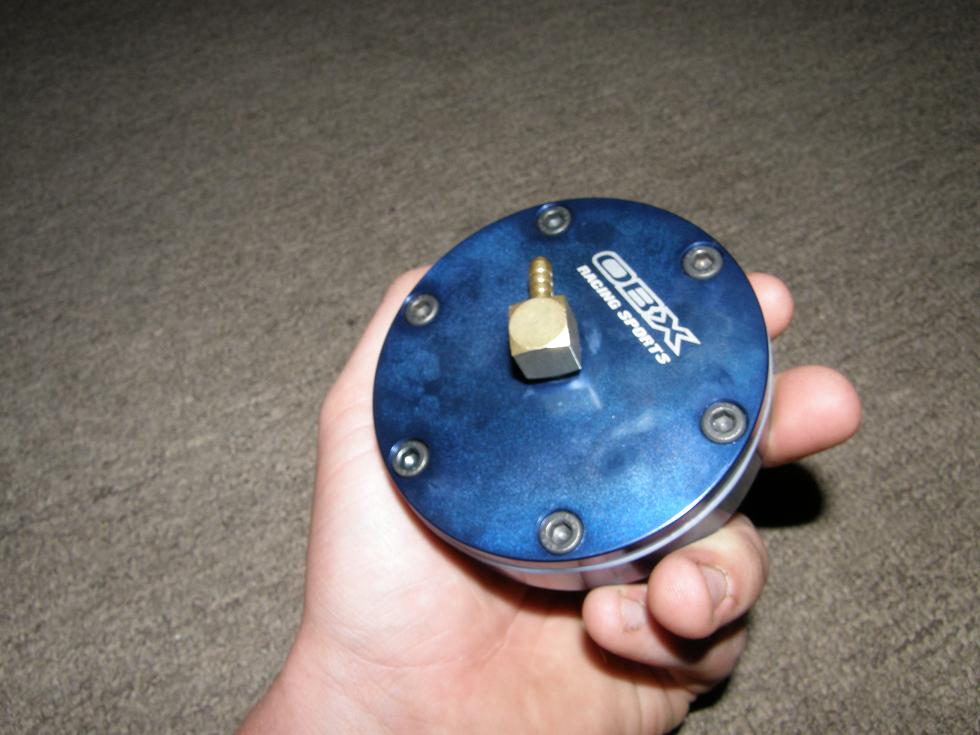

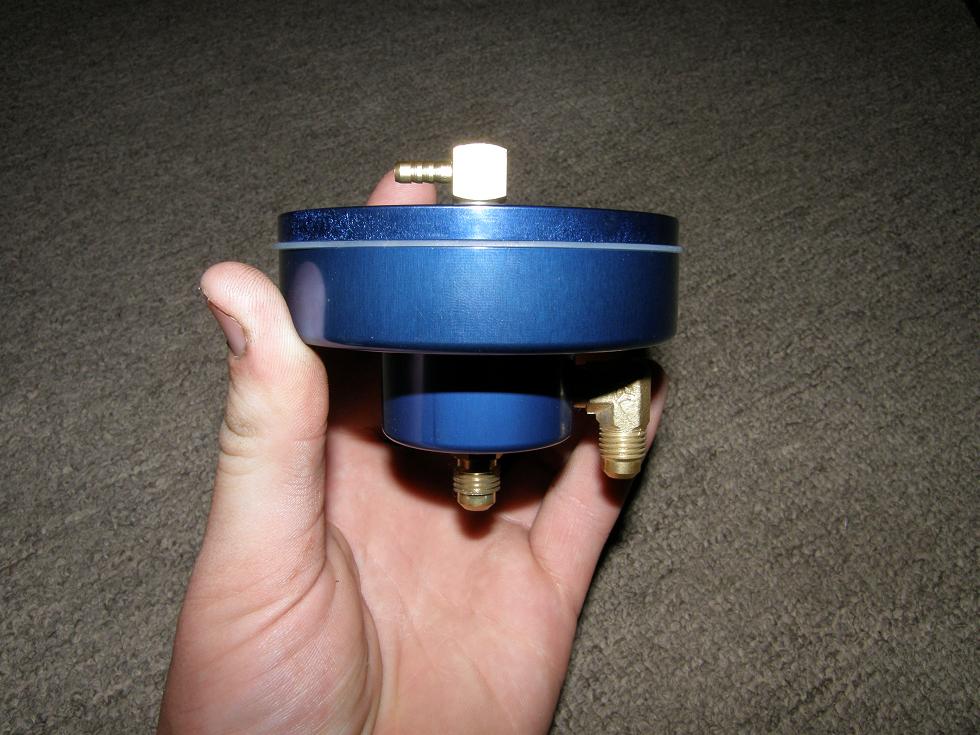

hope this helps





Attachments:
PB240014.jpg [ 87.27 KiB | Viewed 645 times ]
PB240011.jpg [ 112.54 KiB | Viewed 640 times ]



_________________

there are a few falcons in my drive way, some of them are turbo charged and some arent, some have big engines and some are small but they all have one thing in common and that is the blue oval on the front

Top
 Profile


Posted: Mon Nov 24, 2008 10:03 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 1667

Joined: 23rd Dec 2004

Gallery: 1 images

Ride: Boosted ED XR6, EBII Mont Wgn

Power: 252 rwkw

Location: Mildura
VIC, Australia

if you haven't seen it already this thread will be very helpfull.. helped me out heaps..

http://boostedfalcon.net/viewtopic.php? ... lit=bi6tim



_________________

[SEXYR-6] ED XR6 T5 Turbo Build
[EBW-347] EB Wagon V8 Stroker Build
FordMods Member #1761

Top
 Profile


Posted: Mon Nov 24, 2008 10:05 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 1667

Joined: 23rd Dec 2004

Gallery: 1 images

Ride: Boosted ED XR6, EBII Mont Wgn

Power: 252 rwkw

Location: Mildura
VIC, Australia

this is were i mounted mine..




_________________

[SEXYR-6] ED XR6 T5 Turbo Build
[EBW-347] EB Wagon V8 Stroker Build
FordMods Member #1761

Top
 Profile


Posted: Mon Nov 24, 2008 10:10 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 516

Joined: 27th Oct 2007

Gallery: 20 images

Ride: ef xr6 turbo

Location: whyalla
SA, Australia

sexyr6 how did you install yours. did you get rid of the original one or keep it



_________________

there are a few falcons in my drive way, some of them are turbo charged and some arent, some have big engines and some are small but they all have one thing in common and that is the blue oval on the front

Top
 Profile


Posted: Mon Nov 24, 2008 10:15 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 1667

Joined: 23rd Dec 2004

Gallery: 1 images

Ride: Boosted ED XR6, EBII Mont Wgn

Power: 252 rwkw

Location: Mildura
VIC, Australia

you keep the original one, you plumb it in the fuel return..

as you can see in the pic the fitting coming from the middle goes to the reg, and the side connection is looped back aroud to the fuel return pipe..



_________________

[SEXYR-6] ED XR6 T5 Turbo Build
[EBW-347] EB Wagon V8 Stroker Build
FordMods Member #1761

Top
 Profile


Posted: Mon Nov 24, 2008 10:19 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 1667

Joined: 23rd Dec 2004

Gallery: 1 images

Ride: Boosted ED XR6, EBII Mont Wgn

Power: 252 rwkw

Location: Mildura
VIC, Australia

another thing if you have not already upgraded you clucth you WILL need to, I have a Xtreme kit, KFD26001XHD, i give mine a little bit of a hiding and its still holding..



_________________

[SEXYR-6] ED XR6 T5 Turbo Build
[EBW-347] EB Wagon V8 Stroker Build
FordMods Member #1761

Top
 Profile


Posted: Mon Nov 24, 2008 10:21 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 516

Joined: 27th Oct 2007

Gallery: 20 images

Ride: ef xr6 turbo

Location: whyalla
SA, Australia

and the top one is vacuum



_________________

there are a few falcons in my drive way, some of them are turbo charged and some arent, some have big engines and some are small but they all have one thing in common and that is the blue oval on the front

Top
 Profile


Posted: Mon Nov 24, 2008 10:22 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 1667

Joined: 23rd Dec 2004

Gallery: 1 images

Ride: Boosted ED XR6, EBII Mont Wgn

Power: 252 rwkw

Location: Mildura
VIC, Australia

the smaller diameter fitting, yes..



_________________

[SEXYR-6] ED XR6 T5 Turbo Build
[EBW-347] EB Wagon V8 Stroker Build
FordMods Member #1761

Top
 Profile


Posted: Mon Nov 24, 2008 10:27 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 516

Joined: 27th Oct 2007

Gallery: 20 images

Ride: ef xr6 turbo

Location: whyalla
SA, Australia

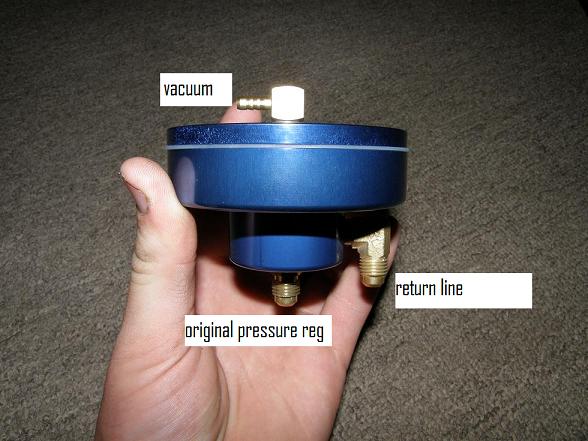

is this correct





Attachments:
PB240011.jpg [ 55.69 KiB | Viewed 620 times ]



_________________

there are a few falcons in my drive way, some of them are turbo charged and some arent, some have big engines and some are small but they all have one thing in common and that is the blue oval on the front

Top
 Profile


Posted: Mon Nov 24, 2008 10:28 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 1667

Joined: 23rd Dec 2004

Gallery: 1 images

Ride: Boosted ED XR6, EBII Mont Wgn

Power: 252 rwkw

Location: Mildura
VIC, Australia

spot on..



_________________

[SEXYR-6] ED XR6 T5 Turbo Build
[EBW-347] EB Wagon V8 Stroker Build
FordMods Member #1761

Top
 Profile
