 Post subject: Going lean at WOT from part-throttle
Posted: Mon Oct 13, 2014 5:56 pm
Getting Side Ways
Offline

Posts: 836

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

Ended up in Off-Topic, so re-posted here:

My earlier post under Tuning your Falcon with a T.I. Performance J3 Chip back in August:
"My EF XR6 goes way lean snapping the throttle open and way rich snapping it shut. For example, turning onto an on-ramp at about 2500-3000 rpm with minimal load then flooring it will lean out to 17 AFR at 4000rpm and WOT :shock: - definitely not ideal. I have played with VE table so it's safe going WOT from idle or under load against the brakes up to stall rpm - so it's fine for the drags. But without the load, it spikes way too lean. It's too far out to even think about working around by tuning rich everywhere. Would love to be able to sort this."


I thought I would put up a couple graphs from my data logging to illustrate the problem.

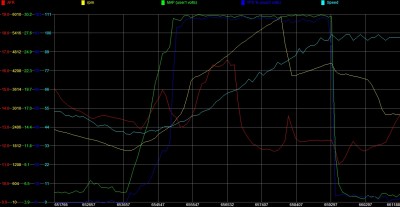

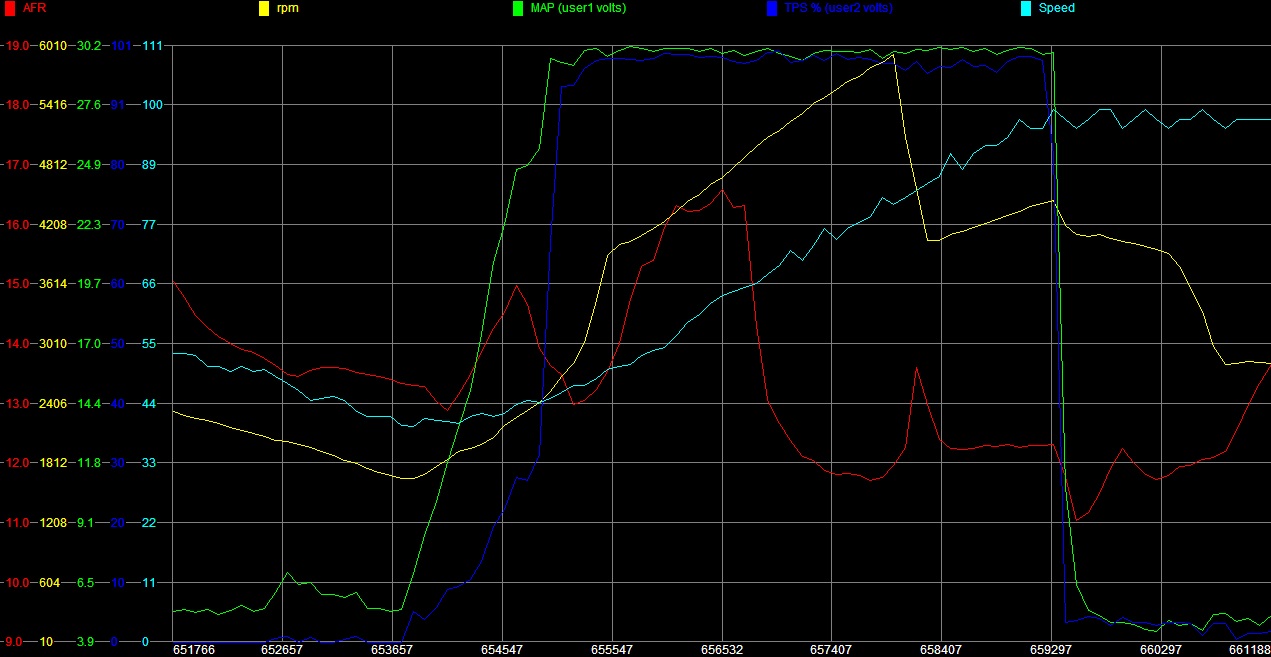

Here is a normal WOT run to redline starting from idle and a dead stop:
Attachment:
Not going lean from idle 121014.jpg
Not going lean from idle 121014.jpg [ 151.88 KiB | Viewed 63 times ]

It goes a little over-rich above 5000 rpm - which I will be tuning out - but otherwise AFRs are OK.

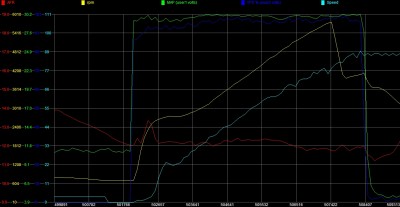

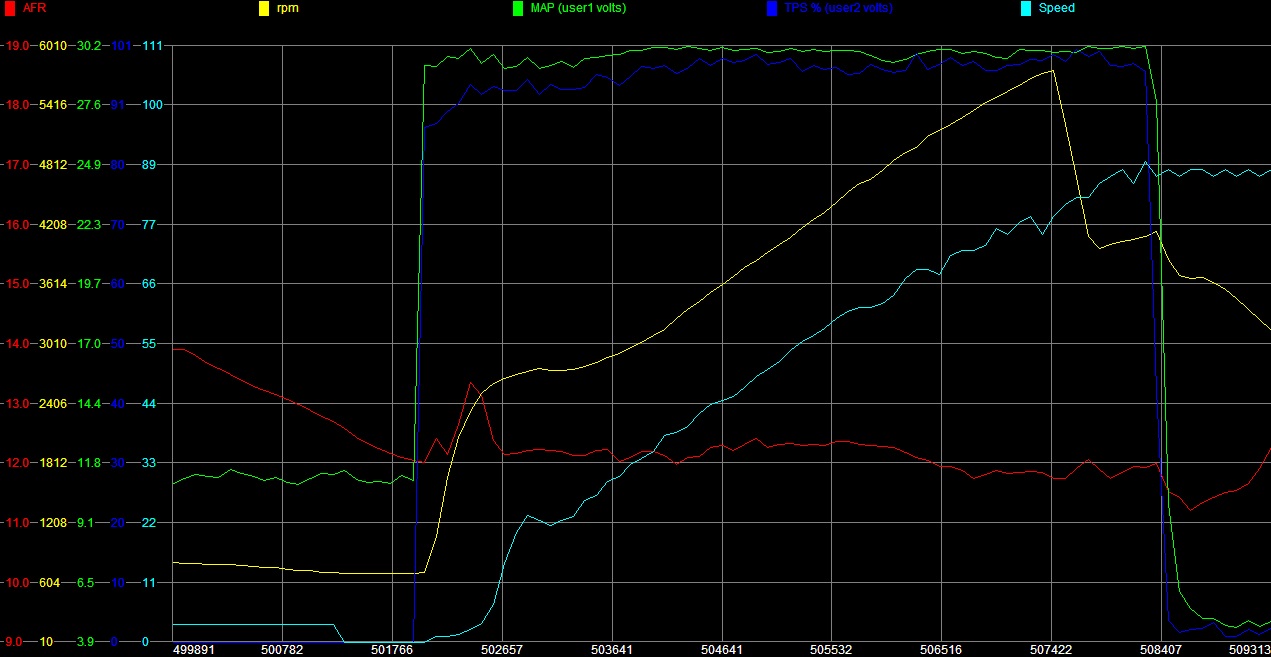

Here is another run (less than 3 minutes later), snapping the throttle open from about 30% throttle and 2400rpm:
Attachment:
Going lean from part throttle 121014.jpg
Going lean from part throttle 121014.jpg [ 159.85 KiB | Viewed 44 times ]

It instantly goes rich to 13.0 AFR as it should, then spikes lean for over a full second, peaking at 16.5 AFR , before dropping back to 11.8 AFR as in the previous run.

This lean spike is fairly consistent - happening whenever I mash it from cruise revs and low load. It hasn't caused any damage yet, or even noticeable pinging, but this can't be good for the engine long-term.

Has anyone seen this effect before? Any ideas what might be causing it?

Thanks.
