Xflow

Post subject: SOHC SPARK and VE maps for MSII

Posted: Mon Oct 27, 2008 11:24 pm

Getting Side Ways

Offline

Age: 36

Posts: 721

Joined: 31st Dec 2005

Ride: EF V8 Futura, 180sx

Location: Brisbane, Burpengary
QLD, Australia

Hey guys thought id give out a freebie that found and and converted over to my msII

here the factory ecu Ve and Spark maps for you MSII if you don't have a good map.

It never misses a bet and don't ping.

also anyone got VE and SPARK map for boost the factory map don't cover anything above atmospheric pressure(14.7 psi or 101kpa)

thx jason

_________________

Ford EF Futura Black
18" koya Strykers, AU engine with port and polish EB head, crow valve springs, standard cam, Large aftermarket RX7 turbo, T5 manual 3" intercooler piping, 600x300x100 intercooler core, MSII with innovate wideband O2 sensor and guage. BA F6 bodykit

Top

Profile

Xflow

Posted: Tue Oct 28, 2008 7:24 am

Getting Side Ways

Offline

Age: 36

Posts: 721

Joined: 31st Dec 2005

Ride: EF V8 Futura, 180sx

Location: Brisbane, Burpengary
QLD, Australia

help if i upload the maps lol

Attachments:

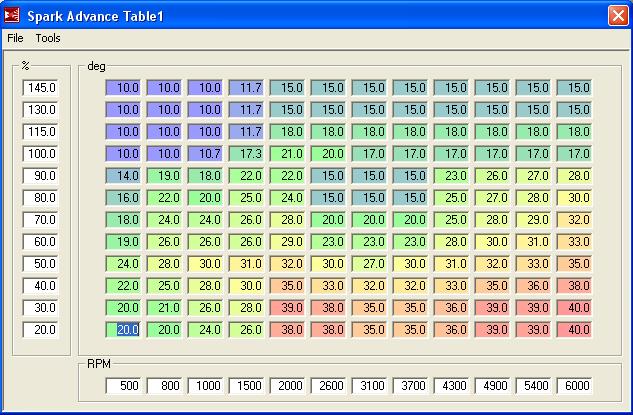

File comment: factory spark map for MSII

Spark map.JPG [ 78.63 KiB | Viewed 770 times ]

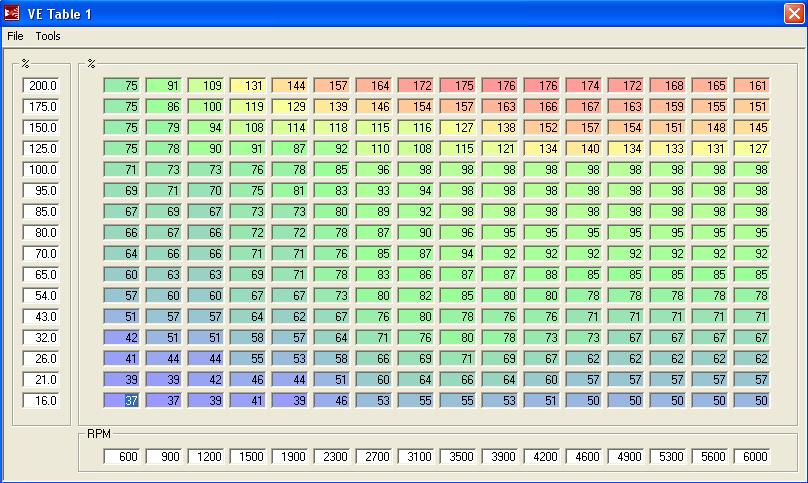

File comment: factory ecu map VE for MSII

VE map.JPG [ 113.35 KiB | Viewed 762 times ]

_________________

Top

Profile

FLASH

Posted: Tue Oct 28, 2008 12:15 pm

Getting Side Ways

Offline

Age: 44

Posts: 1228

Joined: 5th Mar 2006

Gallery: 25 images

Ride: FALCON EB TURBO, EL XR6

Location: Sydney
NSW, Australia

Could we perhaps get a bit more of an explanation for the lesser informed? Yeah ok ill admit ive never looked at ecu tables or anything so don't know much about what im looking at

Like whats the go with the % up the left hand side?

_________________

FALCAHOLIC

IF AT FIRST YOU DON'T SUCCEED
DESTROY ALL EVIDENCE THAT YOU EVEN TRIED
