Tuning your Falcon with a T.I. Performance J3 Chip



Page 99 of 100 [ 1500 posts ] Go to page Previous  1 ... 96, 97, 98, 99, 100  Next


 Post subject: Re: Tuning your Falcon with a T.I. Performance J3 Chip
Posted: Thu Nov 09, 2017 4:26 pm
Getting Side Ways
Offline
User avatar

Posts: 1139

Joined: 27th Feb 2005

Ride: Supercharged EF Fairmont

Location: T.I. Performance HQ
VIC, Australia

I believe Kendall has been making some progress in this area...
Top
 Profile


 Post subject: Re: Tuning your Falcon with a T.I. Performance J3 Chip
Posted: Thu Nov 09, 2017 4:33 pm
Getting Side Ways
Offline

Posts: 890

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

That would be great! Even if I could find out where to look in the hex and the format of the data, I could probably figure it out from there. Thanks for your help.



_________________

95 EF XR6 wagon, 17" FTRs, DBA rotors, KYB/Koni, AU bottom end, ported EF head, backcut valves, SS Inductions, Territory intake, 10.2 CR, Auckland 1258 cam, vernier gear, PH4480 headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: Tuning your Falcon with a T.I. Performance J3 Chip
Posted: Tue Nov 14, 2017 8:29 pm
Getting Side Ways
Offline

Age: 40

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

Yeah i have found a few scalars and functions that seem to control the fans on ef. Unsure of actual conversions just yet so its not ready to be released but it shouldnt be too long .



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: Tuning your Falcon with a T.I. Performance J3 Chip
Posted: Tue Nov 14, 2017 9:44 pm
Getting Side Ways
Offline

Posts: 890

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

That would be great. Thanks for the hard work sorting this stuff out.



_________________

95 EF XR6 wagon, 17" FTRs, DBA rotors, KYB/Koni, AU bottom end, ported EF head, backcut valves, SS Inductions, Territory intake, 10.2 CR, Auckland 1258 cam, vernier gear, PH4480 headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: Tuning your Falcon with a T.I. Performance J3 Chip
Posted: Thu Jun 07, 2018 3:08 pm
Fordmods Newbie
Offline

Posts: 4

Joined: 25th Jan 2017

Ride: NF Fairlane

Location: maryborough
QLD, Australia

Just. A j3 chip Question. Can you get a tune for HP. Play and daily drive and a 2nd tune for torque when towing. And would that work with a mid range cam is stage 3 crow 2222549. Would like to go this way and I'm currently rebuilding my motor but worried it will wreck towing driveability. Thanks
Top
 Profile


 Post subject: Re: Tuning your Falcon with a T.I. Performance J3 Chip
Posted: Thu Jun 07, 2018 10:03 pm
Getting Side Ways
Offline
User avatar

Posts: 1139

Joined: 27th Feb 2005

Ride: Supercharged EF Fairmont

Location: T.I. Performance HQ
VIC, Australia

You should not need two tunes for that application; a Stage 3 pre-tuned chip should be fine for both as they are different RPM and load points. You only really need a separate tune when variables change, ie. different fuels, boost levels, NOS etc.

Cheers,
Jason
Top
 Profile


 Post subject: Re: Tuning your Falcon with a T.I. Performance J3 Chip
Posted: Mon Jul 02, 2018 3:58 pm
Fordmods Newbie
Offline

Posts: 4

Joined: 25th Jan 2017

Ride: NF Fairlane

Location: maryborough
QLD, Australia

Thanks Jason.
I have another question for you. I'm looking at the crow cams you sell. And would like to know why the 2232549 has 050" less lift than the 2222549 when they are the same grinds but for 1.8:1 (el-au) and 2:1 ( pre el) depending on what head you are running. I have a AU HP that's been Flowed and ported I would prefer to run it on my EF bottom end.
The durations full and @ 050" and LSA are the same just less lift.
Are the two cams equal or would I need to go to a stage 4 ( with more lift) cam to get the same performance from an AU head?
Thanks
Top
 Profile


 Post subject: Re: Tuning your Falcon with a T.I. Performance J3 Chip
Posted: Tue Jul 03, 2018 7:45 pm
Getting Side Ways
Offline
User avatar

Posts: 1139

Joined: 27th Feb 2005

Ride: Supercharged EF Fairmont

Location: T.I. Performance HQ
VIC, Australia

I checked with Crow; the AU cam does have less valve lift due to the rocker ratio. Marty said to me the difference will not be noticeable with a cam of this size on an N/A motor.

Marty was going to come back to me with a recommendation for you, stay tuned. If you don't hear from me feel free to give Crow a call.

Cheers,
Jason
Top
 Profile


 Post subject: Re: Tuning your Falcon with a T.I. Performance J3 Chip
Posted: Wed Jul 04, 2018 7:10 pm
Fordmods Newbie
Offline

Posts: 4

Joined: 25th Jan 2017

Ride: NF Fairlane

Location: maryborough
QLD, Australia

Thanks again for your quick reply.
I'll be interested to hear what he comes back with.
Cheers
Top
 Profile


 Post subject: Re: Tuning your Falcon with a T.I. Performance J3 Chip
Posted: Thu Jul 05, 2018 12:26 pm
Getting Side Ways
Offline
User avatar

Posts: 1139

Joined: 27th Feb 2005

Ride: Supercharged EF Fairmont

Location: T.I. Performance HQ
VIC, Australia

Hi mate,

Marty just advised me that he does not have any masters that would have that lift you require.

If you think the 2232549 doesn't have enough lift for your needs (Crow thinks it will), take a look at https://www.tiperformance.com.au/wp-con ... ofiles.pdf - we can order any of these in. Just shoot us an email/PM.

Cheers,
Jason
Top
 Profile


 Post subject: Re: Tuning your Falcon with a T.I. Performance J3 Chip
Posted: Sat Oct 09, 2021 3:30 pm
Getting Side Ways
Offline

Posts: 890

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

I am logging with a TechEdge wideband kit and GM 1-bar MAP sensor.

Both the MAP and TPS readings are cycling significantly (about 2 inHg MAP and 8% throttle) and at the same time about every 3.7 seconds.

What can cause this? Thanks.

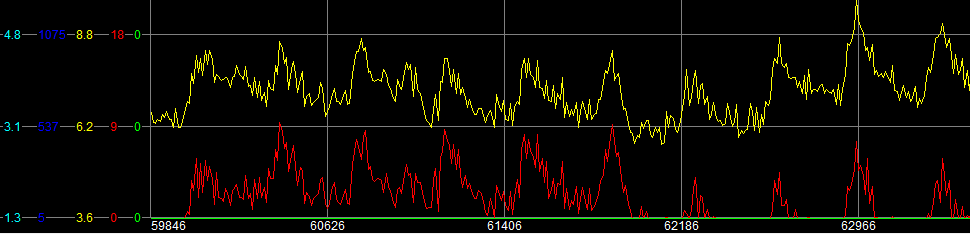

Attachment:
TPS and MAP cycling.PNG
TPS and MAP cycling.PNG [ 11.04 KiB | Viewed 648 times ]

The yellow is MAP and the red is TPS.



_________________

95 EF XR6 wagon, 17" FTRs, DBA rotors, KYB/Koni, AU bottom end, ported EF head, backcut valves, SS Inductions, Territory intake, 10.2 CR, Auckland 1258 cam, vernier gear, PH4480 headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: Tuning your Falcon with a T.I. Performance J3 Chip
Posted: Sat Oct 09, 2021 3:34 pm
Getting Side Ways
Offline

Posts: 890

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

Sorry, forgot to state that this happens even without the engine running. MAP will cycle 27.6 to 29.3 inHgA.



_________________

95 EF XR6 wagon, 17" FTRs, DBA rotors, KYB/Koni, AU bottom end, ported EF head, backcut valves, SS Inductions, Territory intake, 10.2 CR, Auckland 1258 cam, vernier gear, PH4480 headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: Tuning your Falcon with a T.I. Performance J3 Chip
Posted: Sat Oct 09, 2021 3:44 pm
Getting Side Ways
Offline
User avatar

Posts: 1139

Joined: 27th Feb 2005

Ride: Supercharged EF Fairmont

Location: T.I. Performance HQ
VIC, Australia

Looks like either a signal earth issue, or problem with the Vref used by the sensors you're monitoring.

Time to get out the volt meter.

Cheers,
Jason
Top
 Profile


 Post subject: Re: Tuning your Falcon with a T.I. Performance J3 Chip
Posted: Sat Oct 09, 2021 4:58 pm
Getting Side Ways
Offline

Posts: 890

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

Thanks heaps.



_________________

95 EF XR6 wagon, 17" FTRs, DBA rotors, KYB/Koni, AU bottom end, ported EF head, backcut valves, SS Inductions, Territory intake, 10.2 CR, Auckland 1258 cam, vernier gear, PH4480 headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: Tuning your Falcon with a T.I. Performance J3 Chip
Posted: Wed Oct 27, 2021 4:43 pm
Getting Side Ways
Offline

Posts: 890

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

galapogos01 wrote:
Looks like either a signal earth issue, or problem with the Vref used by the sensors you're monitoring.

Time to get out the volt meter.



Good advice! The voltage at the sensors themselves is fine. I finally traced it to the turn indicator circuit. I removed all four indicator bulbs and the relay, and it still cycles, but removing the fuse stops the cycling. So, the problem probably isn't the indicator circuit itself. I suspect that the problem is with my Mongoose MAP1100G alarm system that is wired into the turn indicator circuit (to indicate arming/disarming).

Rather than try to remove the alarm myself, I will get an auto electrician onto it. If I try myself, the car will probably never run again :-).

Thanks for the help



_________________

95 EF XR6 wagon, 17" FTRs, DBA rotors, KYB/Koni, AU bottom end, ported EF head, backcut valves, SS Inductions, Territory intake, 10.2 CR, Auckland 1258 cam, vernier gear, PH4480 headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile
