 Post subject: Re: Tuning your Falcon with a T.I. Performance J3 Chip
Posted: Thu Oct 28, 2021 9:21 pm
Getting Side Ways
Offline
User avatar

Posts: 1145

Joined: 27th Feb 2005

Ride: Supercharged EF Fairmont

Location: T.I. Performance HQ
VIC, Australia

Nice one! Always satisfying when you find the curly problems.

Cheers,
Jason
Top
 Profile


 Post subject: Re: Tuning your Falcon with a T.I. Performance J3 Chip
Posted: Tue Nov 02, 2021 5:49 pm
Getting Side Ways
Offline

Posts: 884

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

It turns out that I was on the wrong track. The reason the cycling went away when I pulled the turn signal fuse is that is the switched circuit I used as the positive for my Techedge WBO2 controller. When I pulled the fuse, the unit just stopped taking new data from the sensors. D'oh!

The problem is definitely with the Bosch LSU-4.9 WBO2 sensor that came with the Techedge 2J9 WBO2 kit. When I disconnect the WBO2 sensor, the cycling stops and the Techedge shows dead steady MAP and AFR signals that respond to changes correctly. So, somehow, the WBO2 sensor is causing a 3.7-second cycling fluctuation in the MAP and AFR signals that the Techedge is recording.

Does anyone know what might cause this? Has the sensor failed? Or maybe it's the Techedge controller itself? Is it some kind of weird current draw cycle in the sensor? I can log TPS and MAP accurately simply by disconnecting the WBO2 sensor. But I kind of need to log AFR at the same time for the logging to be useful.

Thanks for any help.



_________________

95 EF XR6 wagon, 17" FTRs, DBA rotors, KYB/Koni, AU bottom end, ported EF head, backcut valves, SS Inductions, Territory intake, 10.2 CR, Auckland 1258 cam, vernier gear, PH4480 headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: Tuning your Falcon with a T.I. Performance J3 Chip
Posted: Wed Nov 03, 2021 4:10 pm
Getting Side Ways
Offline

Posts: 884

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

I have swapped in a different LSU-4.9 sensor, and the problem remains. So, the issue is either in the Techedge controller or the extension cable. I have a query in to Peter at Techedge, so I'll wait to see what he says.



_________________

95 EF XR6 wagon, 17" FTRs, DBA rotors, KYB/Koni, AU bottom end, ported EF head, backcut valves, SS Inductions, Territory intake, 10.2 CR, Auckland 1258 cam, vernier gear, PH4480 headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: Tuning your Falcon with a T.I. Performance J3 Chip
Posted: Thu Nov 04, 2021 7:40 am
Getting Side Ways
Offline
User avatar

Posts: 1145

Joined: 27th Feb 2005

Ride: Supercharged EF Fairmont

Location: T.I. Performance HQ
VIC, Australia

The sensor needs a lot of current when the heater is cycled on. Again I'd be looking at your wiring, power supply, earth's etc, as any fluctuation is obviously going to affect measurement.

Your power earth should not be SIGRET but your sensor earth should be tied to it.

Cheers,
Jason
Top
 Profile


 Post subject: Re: Tuning your Falcon with a T.I. Performance J3 Chip
Posted: Tue Nov 09, 2021 2:16 pm
Getting Side Ways
Offline

Posts: 884

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

Thanks, Jason.

I have had similar advice from Peter at Techedge.

I temporarily connected the 2J9 controller power positive directly to the positive terminal on the battery, and that had no effect on the cycling.

I moved the controller's power ground from the main ignition/indicator harness ground to the main ECU ground, so it is connected to the same source as the 8-pin I/O connector ground (pin 6). This also did not fix the MAP cycling, but it made the AFR fluctuation even worse.

I can't figure out what to try next. Electrical/electronics is not my strong suit, so I really need help from anyone with expertise.

Thanks very much.



_________________

95 EF XR6 wagon, 17" FTRs, DBA rotors, KYB/Koni, AU bottom end, ported EF head, backcut valves, SS Inductions, Territory intake, 10.2 CR, Auckland 1258 cam, vernier gear, PH4480 headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: Tuning your Falcon with a T.I. Performance J3 Chip
Posted: Tue Nov 09, 2021 10:17 pm
Getting Side Ways
Offline
User avatar

Posts: 1145

Joined: 27th Feb 2005

Ride: Supercharged EF Fairmont

Location: T.I. Performance HQ
VIC, Australia

The main Power and Ground should go to reliable (5a+ capable) power sources. Maybe ground to the body if you're not sure.

Ground on the IO connector should go to SIGRET on your ECU and should not be connected to vehicle ground at all. This is a sensor ground and should be isolated from the main ground.

The MAP sensor itself should be getting 5v from the VREF on the ECU, and ground from SIGRET (not vehicle ground!).

Based on your elimination so far the issue is with ground not power.

HTH

Jason
Top
 Profile


 Post subject: Re: Tuning your Falcon with a T.I. Performance J3 Chip
Posted: Sun Nov 14, 2021 3:19 pm
Getting Side Ways
Offline

Posts: 884

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

Well, I think I finally understood what Jason and Peter were trying to explain to me. The issue was that the ground (pin 6) of the I/O connector was not connected to the same ground as the TPS and MAP sensors use.

When I connected the I/O ground to the sensor ground (pin 91 on the EF ECU) the cycling reduced dramatically. The ranges dropped from about 2 inHg MAP and 8% throttle to about 0.4 inHg MAP and 1% throttle. The cycle frequency is still about 3.7 secs, so the source will still be the O2 sensor heating cycle.

I'm guessing that this is as good as I can expect to get it. In any case, it is plenty consistent enough for me to use it for logging and tuning.

The controller power - both ground and positive - is connected to the 15A turn signal switched circuit, the heaviest gauge switched circuits nearby. So, this should be fine.

I had assumed that the ECU ground and sensor ground were connected in the ECU. They clearly are not.

Thanks very much for all the help solving this problem and teaching me a bit of auto electronics on the way.



_________________

95 EF XR6 wagon, 17" FTRs, DBA rotors, KYB/Koni, AU bottom end, ported EF head, backcut valves, SS Inductions, Territory intake, 10.2 CR, Auckland 1258 cam, vernier gear, PH4480 headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: Tuning your Falcon with a T.I. Performance J3 Chip
Posted: Sun Nov 14, 2021 3:59 pm
Getting Side Ways
Offline

Posts: 884

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

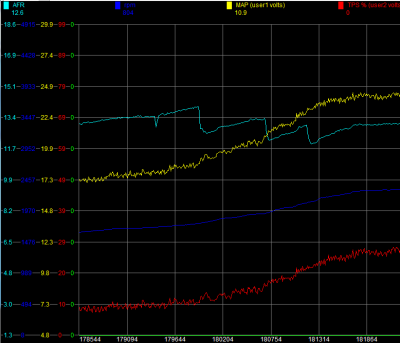

Now I have a new problem. When I open the throttle from idle, the MAP DECREASES. It should increase as the sensor is exposed to more ambient air pressure, shouldn't it.

Here's what I am seeing:
- at 800rpm idle - 11.8-12.2 inHgA MAP
- at 1600-1700rpm no load - 10.6-11.1 inHgA
- at 2600rpm no load - 8.6 to 8.9 inHgA - 3 inHg more vacuum than idle
- snapping the throttle open to WOT, no external load- 2900 rpm (revs coming up) - 29.6 inHgA
- snapping the throttle closed again - 3100rpm (revs coming down) - 5.4 inHgA
- engine off, WOT - 29.0-29.2 inHgA
Actual barometric pressure is 1002hpa - about 29.6 inHgA

Has anyone seen this happen before? Is it a sensor/logging problem? Or is the engine actually doing this? And if so, what can cause this? Is this reflecting the volumetric efficiency characteristics of the cam (about stage 3)? The cam is properly dialed in with a degree wheel and vernier gear. Or is my idle MAP too high - eg, a vacuum leak? I have swapped ISC valves and it made no difference.

Thanks.



_________________

95 EF XR6 wagon, 17" FTRs, DBA rotors, KYB/Koni, AU bottom end, ported EF head, backcut valves, SS Inductions, Territory intake, 10.2 CR, Auckland 1258 cam, vernier gear, PH4480 headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: Tuning your Falcon with a T.I. Performance J3 Chip
Posted: Sun Nov 14, 2021 9:54 pm
Getting Side Ways
Offline
User avatar

Posts: 1145

Joined: 27th Feb 2005

Ride: Supercharged EF Fairmont

Location: T.I. Performance HQ
VIC, Australia

Maybe check your sensor cal mate.
Top
 Profile


 Post subject: Re: Tuning your Falcon with a T.I. Performance J3 Chip
Posted: Mon Nov 15, 2021 5:13 am
Getting Side Ways
Offline

Posts: 884

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

I checked the sensor configuration in Winlog, and it's correct. The fact that it shows 29+ for atmospheric, 12 at idle, and 5 on overrun seems to indicate that the sensor is generally working correctly. I'm thinking it has to be recording something the engine is actually doing.

Has anyone seen MAP DECREASE when coming off idle at no load? If that's normal for a dialed-in stage 3 cam, then I won't worry about it. But, if it indicates mechanical problems - eg, vacuum leak - I need to resolve it before I start trying to tune it and end up chasing my tail.

Thanks for the help.



_________________

95 EF XR6 wagon, 17" FTRs, DBA rotors, KYB/Koni, AU bottom end, ported EF head, backcut valves, SS Inductions, Territory intake, 10.2 CR, Auckland 1258 cam, vernier gear, PH4480 headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: Tuning your Falcon with a T.I. Performance J3 Chip
Posted: Thu Nov 25, 2021 6:51 am
Getting Side Ways
Offline

Posts: 884

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

Well, what I am seeing is real. As it comes off idle, at no load - effectively a higher idle - the vacuum increases (MAP decreases). I suspect that is a function of the hotter Stage 3 cam, now properly degreed, being less efficient at idle, but becoming more efficient as revs increase. Under load, the vacuum DOES decrease (MAP increases) as expected.



_________________

95 EF XR6 wagon, 17" FTRs, DBA rotors, KYB/Koni, AU bottom end, ported EF head, backcut valves, SS Inductions, Territory intake, 10.2 CR, Auckland 1258 cam, vernier gear, PH4480 headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip
