4.0l build 170rwkws on $800 budget!!



Page 1 of 3 [ 31 posts ] Go to page 1, 2, 3  Next


 Post subject: 4.0l build 170rwkws on $800 budget!!
Posted: Fri Sep 27, 2013 10:19 pm
Fordmods Newbie
Offline

Age: 25

Posts: 4

Joined: 27th Sep 2013

Ride: ford EA Spack

Location: bendigo
VIC, Australia

Hey everyone,
I've had some time off work n brought a project to keep me busy its a ea spack with a bbm conversion and el interior and dash for $1000 with f**k head gasket well I sat down one night on the web n done some research on every 3.9l/4.0l engine ever made I've cracked the 170 rwkws mark using all stock parts expect for a j3 chip n pacemaker extractors n exhaust do is wat I used:

Au bottom end
Ea cam
Tickford 94dt head (I had cleaned up the ports)
Bbm manifold
El computer with j3 chip
Pacemakers 4499s
110 cell hi-flow cat
2 1/2inch exhaust with two mufflers (for abit of more back pressure)
Xr6 fuel reg
Au injectors
3" CAI pipe with el xr6 shorkel n hi flow filter
Gasket kit
And a full service
A lot of people talk about the xr6 cam being the biggest stock cam but I lost 9 rwkws I just thought I wwould share my budget build I'm saving to build a new engine for a t66 that I have sitting in the shed so every cent counts :lol:

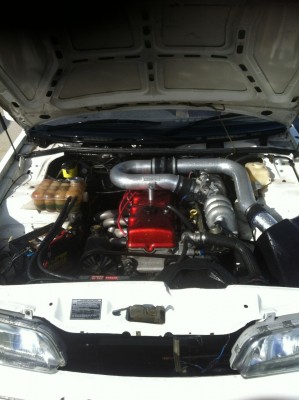

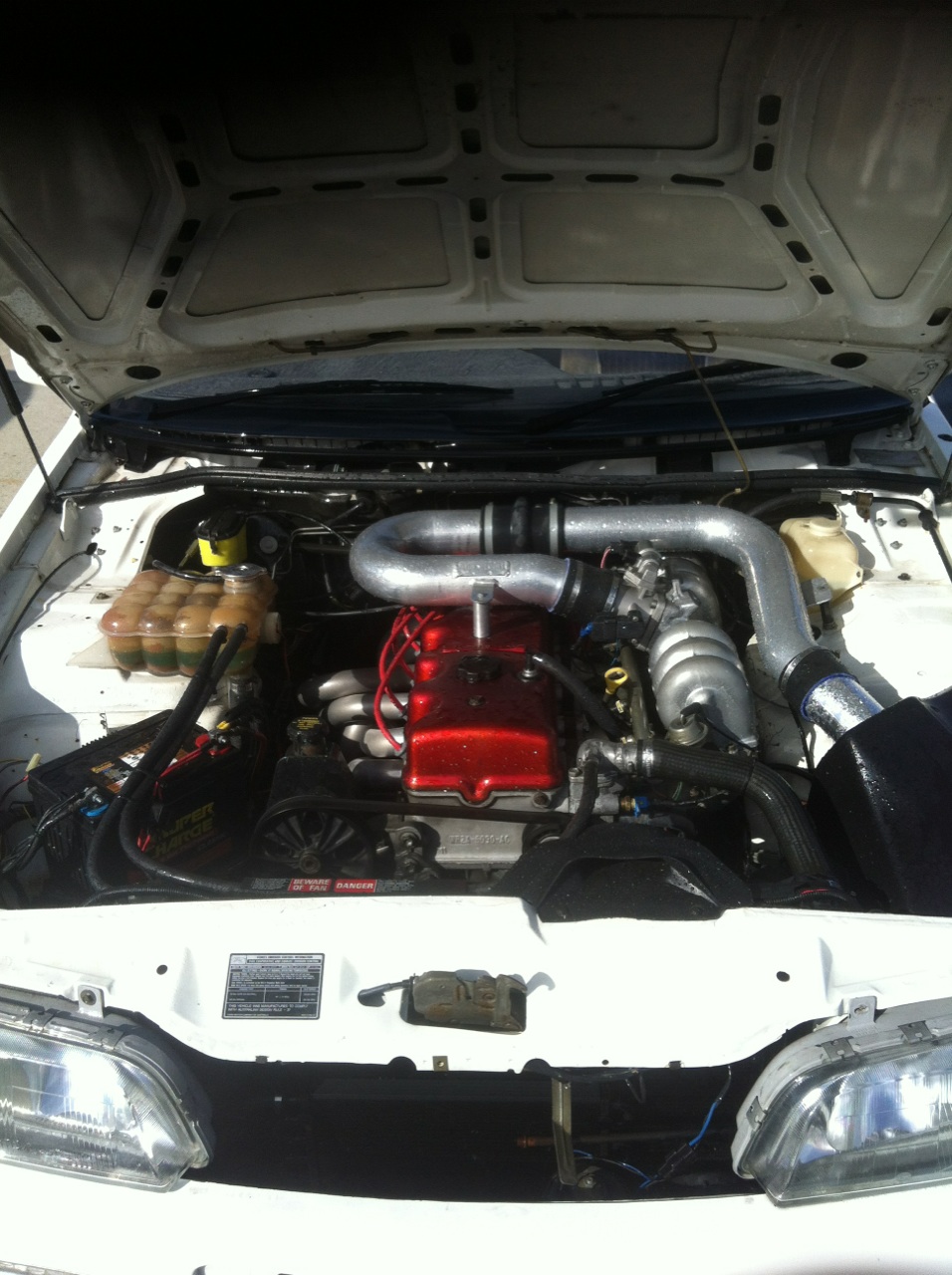

Attachments:
IMG_9011.jpg [ 296.96 KiB | Viewed 64 times ]
Top
 Profile


 Post subject: Re: 4.0l build 170rwkws on $800 budget!!
Posted: Fri Sep 27, 2013 10:24 pm
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

Nice work. There are a few people running ea cams in their e series engines



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: 4.0l build 170rwkws on $800 budget!!
Posted: Fri Sep 27, 2013 10:35 pm
Fordmods Newbie
Offline

Age: 25

Posts: 4

Joined: 27th Sep 2013

Ride: ford EA Spack

Location: bendigo
VIC, Australia

I've looked everywhere ea cams n I only seen 2 or 3 forums about it so I thought I would prove it once for all. My engine machinst recommends these as a cheap turbo cam for a budget turbo build
Top
 Profile


 Post subject: Re: 4.0l build 170rwkws on $800 budget!!
Posted: Sat Sep 28, 2013 12:56 am
Getting Side Ways
Offline

Age: 29

Posts: 4182

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

170rwkw NA or Turbo?



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

51TER - DL LTD. Stock.

Top
 Profile


 Post subject: Re: 4.0l build 170rwkws on $800 budget!!
Posted: Sat Sep 28, 2013 7:43 am
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

67RCE wrote:
170rwkw NA or Turbo?

N/a judging by the first post with the picture.



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: 4.0l build 170rwkws on $800 budget!!
Posted: Sat Sep 28, 2013 10:55 am
Getting Side Ways
Offline

Age: 29

Posts: 4182

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

bry40l wrote:
67RCE wrote:
170rwkw NA or Turbo?

N/a judging by the first post with the picture.

But he then mentioned the cam apparently being good for turbo. And I was posting under the influence of many beers.

OP - with a stock cam you won't make more than 130rwkw.



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

51TER - DL LTD. Stock.

Top
 Profile


 Post subject: Re: 4.0l build 170rwkws on $800 budget!!
Posted: Sat Sep 28, 2013 11:13 am
Getting Side Ways
Offline

Age: 34

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

I was thinking the same. maybe he means 170hp which would be about 128kw



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: 4.0l build 170rwkws on $800 budget!!
Posted: Sat Sep 28, 2013 2:19 pm
Fordmods Newbie
Offline

Age: 25

Posts: 4

Joined: 27th Sep 2013

Ride: ford EA Spack

Location: bendigo
VIC, Australia

NA there is a guy named thom from ozfalcon did the same sort of build in a xh but he got 178 rwkws I'm trying to load the video of dyno n results!!
Top
 Profile


 Post subject: Re: 4.0l build 170rwkws on $800 budget!!
Posted: Sat Sep 28, 2013 2:25 pm
Fordmods Newbie
Offline

Age: 25

Posts: 4

Joined: 27th Sep 2013

Ride: ford EA Spack

Location: bendigo
VIC, Australia

Here thom's forum on the same sort of build: http://www.ozfalcon.com.au/index.php?/t ... 0l-thread/
Top
 Profile


 Post subject: Re: 4.0l build 170rwkws on $800 budget!!
Posted: Sat Sep 28, 2013 3:09 pm
Getting Side Ways
Offline

Age: 27

Posts: 1114

Joined: 18th Oct 2006

Location: Adelaide
SA, Australia

So the EA cam in my back yard out the early 88 model is worth something ?

Nah but seriously , I have read the AU E gas rods are the strongest , but how much power can they take ?

Also have read the EF/EL rods are thicker then the AU rods though lol
Top
 Profile


 Post subject: Re: 4.0l build 170rwkws on $800 budget!!
Posted: Sat Sep 28, 2013 4:09 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

EF_wanabe wrote:
So the EA cam in my back yard out the early 88 model is worth something ?

Nah but seriously , I have read the AU E gas rods are the strongest , but how much power can they take ?

Also have read the EF/EL rods are thicker then the AU rods though lol



au e gas rods are same as normal au, its the ba or bf egas that has slightly stronger rods..
std au rods can still handle around 300rwkw and 18psi boost,,

ef rods are not really thicker its that they are shorter then au/ba that makes them slightly stronger...
Top
 Profile


 Post subject: Re: 4.0l build 170rwkws on $800 budget!!
Posted: Sat Sep 28, 2013 7:59 pm
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

ranga83 wrote:
I was thinking the same. maybe he means 170hp which would be about 128kw

Dont forget the heads ported and it's got the higher compression engine, and a tune. another guy on here claims 140-155 odd kw in his ed from a ported head, ea cam and other few bits
We all know some dynos get more excited than others though :)



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: 4.0l build 170rwkws on $800 budget!!
Posted: Sat Sep 28, 2013 8:06 pm
Getting Side Ways
Offline

Age: 34

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

he "cleaned up his ports". I cleaned up the ports on my tickford head before I put it on, and I have a 977b dyno tuned. I should rip that out and throw in a ea cam by the look of that.
bry40l wrote:
ranga83 wrote:
I was thinking the same. maybe he means 170hp which would be about 128kw

Dont forget the heads ported and it's got the higher compression engine, and a tune. another guy on here claims 140-155 odd kw in his ed from a ported head, ea cam and other few bits
We all know some dynos get more excited than others though :)



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: 4.0l build 170rwkws on $800 budget!!
Posted: Mon Sep 30, 2013 12:20 pm
Getting Side Ways
Offline

Posts: 836

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

Does anyone have the specs on the EA cam? With that much potential out of a reasonably mildly modified engine, it sounds like something of a secret weapon. Thanks.



_________________

95 EF XR6 wagon, 17" FTRs, DBA, QFM, KYB/Koni, AU block, ported EF head, SS Inductions, Territory intake, MLS gasket, milled, Franklin RH24B cam, Coby headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: 4.0l build 170rwkws on $800 budget!!
Posted: Tue Oct 01, 2013 11:11 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

efxr6wagon wrote:
Does anyone have the specs on the EA cam? With that much potential out of a reasonably mildly modified engine, it sounds like something of a secret weapon. Thanks.



http://youtu.be/jJTh9F3Vgg0



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile
