68 mm throttle body issue



Page 2 of 2 [ 24 posts ] Go to page Previous  1, 2


 Post subject: Re: 68 mm throttle body issue
Posted: Sun Jan 25, 2015 10:22 pm
Stock as a Rock
Offline

Age: 26

Posts: 150

Joined: 5th Feb 2010

Ride: EF Falcon

Location: Glenning Valley
NSW, Australia

Theres no way you can, if i move it to one side there will be a massive gap on the otherside. Besides theres still a hole on the manifold side of the throttle body because they have bored it out to far and now theres a hole in the screw hole that bolts the tps on



_________________

EF XR6, Red in colour, T5 with short shift, tired LSD, Pioneer head unit, 2.5 exhaust with staino pacemakers, 68mm TB, dumped on ultras, sitting on FTR's with EL bodykits

Top
 Profile


 Post subject: Re: 68 mm throttle body issue
Posted: Sun Jan 25, 2015 10:24 pm
Stock as a Rock
Offline

Age: 26

Posts: 150

Joined: 5th Feb 2010

Ride: EF Falcon

Location: Glenning Valley
NSW, Australia

effalconxr6 wrote:
Theres no way you can, if i move it to one side there will be a massive gap on the otherside. Besides theres still a hole on the manifold side of the throttle body because they have bored it out to far and now theres a hole in the screw hole that bolts the tps on

*Sorry manifold side of the butterfly



_________________

EF XR6, Red in colour, T5 with short shift, tired LSD, Pioneer head unit, 2.5 exhaust with staino pacemakers, 68mm TB, dumped on ultras, sitting on FTR's with EL bodykits

Top
 Profile


 Post subject: Re: 68 mm throttle body issue
Posted: Mon Jan 26, 2015 12:11 am
Smokin em up
Offline
User avatar

Age: 26

Posts: 278

Joined: 21st Nov 2010

Gallery: 20 images

Ride: EF SERIES 2 XR6

Location: Wyong
NSW, Australia

For ef falcon xr6

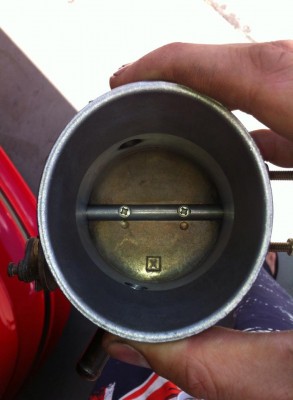

original throttle body

Attachment:
23.jpg [ 55.56 KiB | Viewed 23 times ]

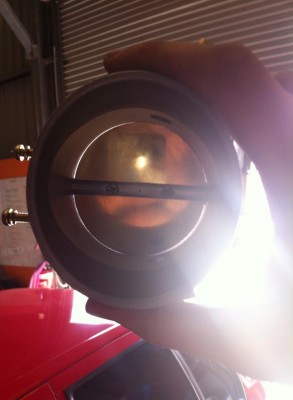

ebay 68mm throttle body

Attachment:
24.jpg [ 43.61 KiB | Viewed 34 times ]

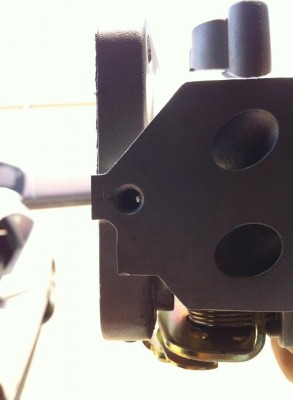

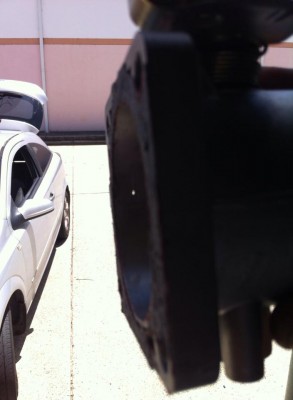

tps bolt hole bored through

Attachment:
25.jpg [ 41.29 KiB | Viewed 35 times ]

Attachment:
26.jpg [ 44.87 KiB | Viewed 34 times ]


car would idle high with idle solenoid holes blocked of..



_________________

96 EF XR6 Factory 5 sp, currently in the middle of building a new motor
75 XB hardtop, factory 351-4speed 9 inch 81000 genuine km's

Top
 Profile


 Post subject: Re: 68 mm throttle body issue
Posted: Mon Jan 26, 2015 12:21 am
Getting Side Ways
Offline
User avatar

Age: 102

Posts: 466

Joined: 22nd Jun 2011

Ride: '97 EL Fairmont Ghia

Location: Perth
WA, Australia

That is terrible.

I'd send that back right away and call them out for that abomination that they sold to you as a "throttle body".



_________________

EL Ghia

Top
 Profile


 Post subject: Re: 68 mm throttle body issue
Posted: Mon Jan 26, 2015 12:38 am
Stock as a Rock
Offline

Age: 26

Posts: 150

Joined: 5th Feb 2010

Ride: EF Falcon

Location: Glenning Valley
NSW, Australia

I am in the process of trying to get a refund or replacement. I might as well have started the car with no throttle body on lol. Its sad that they even sold me something this bad



_________________

EF XR6, Red in colour, T5 with short shift, tired LSD, Pioneer head unit, 2.5 exhaust with staino pacemakers, 68mm TB, dumped on ultras, sitting on FTR's with EL bodykits

Top
 Profile


 Post subject: Re: 68 mm throttle body issue
Posted: Mon Jan 26, 2015 12:49 am
Getting Side Ways
Offline
User avatar

Age: 102

Posts: 466

Joined: 22nd Jun 2011

Ride: '97 EL Fairmont Ghia

Location: Perth
WA, Australia

I wouldnt bother with a replacement from them.

I just noticed your sig, does your car have any other mods? You only really need a 68mm throttle if youre chasing more than 170rwkw.



_________________

EL Ghia

Top
 Profile


 Post subject: Re: 68 mm throttle body issue
Posted: Mon Jan 26, 2015 1:22 am
Stock as a Rock
Offline

Age: 26

Posts: 150

Joined: 5th Feb 2010

Ride: EF Falcon

Location: Glenning Valley
NSW, Australia

Well my next mod was to get ba injectors and a cam with j3 chip. Im already at just shy of 150. 148.8 on the dyno. The trottle body is all part of the plan to extract all the power i can get out of the 4L. Not bad for 305XXX KMS :mrgreen:



_________________

EF XR6, Red in colour, T5 with short shift, tired LSD, Pioneer head unit, 2.5 exhaust with staino pacemakers, 68mm TB, dumped on ultras, sitting on FTR's with EL bodykits

Top
 Profile


 Post subject: Re: 68 mm throttle body issue
Posted: Wed Jan 28, 2015 11:52 am
Getting Side Ways
Offline

Posts: 836

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

It looks like they tried to use a 65mm throttle plate in a 68mm throttle body - thus, the 1.5mm gap all the way around. No amount of adjustment can fix that. But if they have an actual 68mm throttle plate available, simply swapping that in might solve your problem.

I have seen back-to-back dyno plots of a standard and oversize throttle body on the Falcon six. The two plots were virtually identical up to 5000rpm, but the standard started to lose steam above that, while the oversize continued to climb. There was a notable difference at 5500rpm and above, so it would be worth doing if the car is set up to use the extra revs (increased rev limit and shift points, hotter cam, headers and performance exhaust, free-flowing intake, etc).



_________________

95 EF XR6 wagon, 17" FTRs, DBA, QFM, KYB/Koni, AU block, ported EF head, SS Inductions, Territory intake, MLS gasket, milled, Franklin RH24B cam, Coby headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: 68 mm throttle body issue
Posted: Wed Jan 28, 2015 1:33 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Port your own Throttlebody.

post1145463.html



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion
