Advance the timing??



Page 2 of 3 [ 39 posts ] Go to page Previous  1, 2, 3  Next


Posted: Wed Mar 29, 2006 8:47 am
Stock as a Rock
Offline

Age: 32

Posts: 152

Joined: 12th Apr 2005

Gallery: 1 images

Ride: Falcon

Location: Brisbane
QLD, Australia

Steady ED wrote:
soulfire wrote:
Can I get someone to do this for me? lol. I don't even know what a distributor is haha

The dizzy is that thing that is REALLY f**k hard to get too :P
What the spark plug leads plug into.
Diagnostic mode for EA-ED is done by connecting the upper and lower far left pins, on the diagnostics port under the fuse panel.
Alternatively you can earth the top left pin somewwere if you can't join the two clips together.
When they're connected, start the car.
Revs will pick up for a bit, then drop back down.
Once it's dropped down, you can set the timing.


Does someone wanna take a photo of the upper and lower pins connected for dignostic mode so we are certain on what we are doing. :)

^^^And i am with u man how do u know how many degrees u have advanced, i know on most cars there is a little panel which shows u but only about a couple of degrees each way?

i guess u just guestimate off that?? i am probably wrong

Wes.



_________________

BAG 17

Top
 Profile


Posted: Wed Mar 29, 2006 11:13 am
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 8655

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

the_scotsman wrote:
you guys talk about specific numbers of degrees...how the hell are you supposed ot know when you have adavnced it 12 degress or 15 degrees or whatever...how much visibly does that equate to..ie can someone give a ballpark figure for mm moved for every degree or something?


Timing light + timing marks on harmonic balancers.... will give you the exact reading BTCD assuming the harmonic balancer hasnt slipped :)



_________________

I promise..... I will never die.

Fordmods Administration Group MINOR PUNKED

Top
 Profile


Posted: Wed Mar 29, 2006 12:03 pm
Getting Side Ways
Offline

Posts: 1310

Joined: 12th Dec 2005

Location: Perth
WA, Australia

I've gotta advance the timing on my EL now that I have an RPD stage 2 cam... I don't have a timing light, so when will I know if I've advanced the timing too far?
Top
 Profile


Posted: Wed Mar 29, 2006 12:11 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

the_scotsman wrote:
you guys talk about specific numbers of degrees...how the hell are you supposed ot know when you have adavnced it 12 degress or 15 degrees or whatever...how much visibly does that equate to..ie can someone give a ballpark figure for mm moved for every degree or something?


1 degree ~ 1.5mm



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Wed Mar 29, 2006 3:54 pm
Getting Side Ways
Offline

Posts: 1310

Joined: 12th Dec 2005

Location: Perth
WA, Australia

What will happen if I advance the timing too far? I just wanna advance mine due to an aftermarket cam, but don't want to do any damage. Obviously I'll be increasing it incrementally until there is a problem.. just wondering what signs to look for.
Top
 Profile


Posted: Wed Mar 29, 2006 3:57 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4323

Joined: 17th Jan 2006

Ride: Soarer 2.5GT-T

Location: Cranbourne
VIC, Australia

If you increase it too far won't it just ping like a mother f**k? so just adjust it back till it stops pinging?
Top
 Profile


Posted: Wed Mar 29, 2006 4:02 pm
Getting Side Ways
Offline

Posts: 1310

Joined: 12th Dec 2005

Location: Perth
WA, Australia

EB V8 wrote:
dvyvan wrote:
EB V8 wrote:
Sorry mate, I dont get my elbows dirty. What girl wants a leather skinned, black fingernailed, weed. Pass me the toilet paper will ya, wipers!! wipers!! :lol:



So what will you do when your girl wants you to service her car or it breaks down??

call racv?.

Dont worry if i see her broken down on the road ILL pull over and give her a hand......;)


Problem is, I spend the extra bob to buy a proper car that dont break down. The only time you will see my girl is when I fly past with her in my car and your on the side of the road fixing your 350,000km ex taxi EA. Sorry if I splashed you in the rain the other day. Ur an expert with fords because you have seen every problem first hand. haha


Yeah you're obviously a tool. I'm not watching this thread anymore. I think the rest of ya should leave Mr moneybags and his EBV8 (hahaha) alone.
Top
 Profile


Posted: Wed Mar 29, 2006 4:02 pm
Getting Side Ways
Offline

Posts: 1310

Joined: 12th Dec 2005

Location: Perth
WA, Australia

soulfire wrote:
If you increase it too far won't it just ping like a mother f**k? so just adjust it back till it stops pinging?


That's what I thought. Cheers.
Top
 Profile


Posted: Wed Mar 29, 2006 4:03 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 8655

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

soulfire wrote:
If you increase it too far won't it just ping like a mother f**k? so just adjust it back till it stops pinging?


Spot on. Too much initial advance will see the engine pinging - usually as it hits midrange and load values increase significantly. 2 deg at a time usually the best bet.

BTW guys - i've tidied this thread up. Its a tech thread relating to adjusting ignition advance - keep it at that.

Cut the rubbish out.



_________________

I promise..... I will never die.

Fordmods Administration Group MINOR PUNKED

Top
 Profile


Posted: Wed Mar 29, 2006 4:16 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

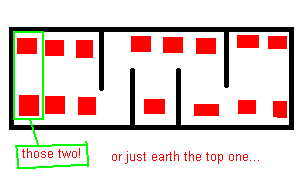

got a dodgy a** picture of the pins for EA-ED
Not 100% if EL or even the 8's the same, but I'm assuming they are.





Attachments:
dodgy.jpg [ 8.73 KiB | Viewed 359 times ]



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Wed Mar 29, 2006 4:16 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

dooooble post, my bad...



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Wed Mar 29, 2006 4:28 pm
Getting Side Ways
Offline
User avatar

Posts: 681

Joined: 3rd Apr 2005

Gallery: 24 images

Ride: BF MKII Ghia

yeha i bridge the same pins in my el

having you advance the timming so far how will it affect fuel economy?


Edit Sorry about the spelling was tired :)

Last edited by dsheps83 on Thu Mar 30, 2006 9:09 am, edited 1 time in total.

Top
 Profile


Posted: Wed Mar 29, 2006 5:02 pm
Tyre Shredder
Offline

Posts: 398

Joined: 9th Mar 2006

Ride: Falcon

Location: Sydney
NSW, Australia

dsheps83 wrote:
yeha i bridge the same pins in my el

having yout timing advancede so far how will it affect fuel economy?


Your EL looks great. Mine looks exactly the same. Is yours lowered 2inch at front and 2inch rear?

I reckon mine doesnt pull as well as it did when it had standard springs? dont know what difference it could make, maybe you just get used to the power and think it used to pull harder???



_________________

EL Fairmont Ghia, extractors, 2.5 inch system, high flow cat, K&N panel filter, AUXR Snorkel, 3.45diff 0-100km/h 6.9secs

SS COMMODORE LS1 282rwkw, awesome power

Top
 Profile


Posted: Wed Mar 29, 2006 5:06 pm
Tyre Shredder
Offline

Posts: 398

Joined: 9th Mar 2006

Ride: Falcon

Location: Sydney
NSW, Australia

Guys,

Sorry if I offended anyone. Im not a ford expert, thus that is why I have questions and participate in the forums. Many of my questions promote good discussion. Please dont make defamatory comments relating to my lack of technical knowledge.

I have questions, I seek your knowledge, so help me out not bag me out.



_________________

EL Fairmont Ghia, extractors, 2.5 inch system, high flow cat, K&N panel filter, AUXR Snorkel, 3.45diff 0-100km/h 6.9secs

SS COMMODORE LS1 282rwkw, awesome power

Top
 Profile


Posted: Wed Mar 29, 2006 8:32 pm
Getting Side Ways
Offline
User avatar

Posts: 681

Joined: 3rd Apr 2005

Gallery: 24 images

Ride: BF MKII Ghia

EB V8 wrote:
dsheps83 wrote:
yeha i bridge the same pins in my el

having yout timing advancede so far how will it affect fuel economy?


Your EL looks great. Mine looks exactly the same. Is yours lowered 2inch at front and 2inch rear?

I reckon mine doesnt pull as well as it did when it had standard springs? dont know what difference it could make, maybe you just get used to the power and think it used to pull harder???


in that pic its not lowered there is one in the gallery that is lowered its just whiteline "lows"
