 Post subject: AFR vs Power
Posted: Sun Aug 26, 2012 2:23 pm
Smokin em up
Offline
User avatar

Age: 27

Posts: 236

Joined: 4th Jan 2009

Ride: ED XR6, AUII XR8

Location: Melbourne
VIC, Australia

Hey,
Does anyone have some dyno power graphs comparing the power output at different AFR's? preferably for a SOHC engine but it doesnt realy matter. Was wanting to see at what AFR these engines make the best power. Cheers.



_________________

ED XR6, LeMans Red, 5-Speed
AUII XR8, Silhouette, 5-Speed

Top
 Profile


 Post subject: Re: AFR vs Power
Posted: Sun Aug 26, 2012 2:36 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

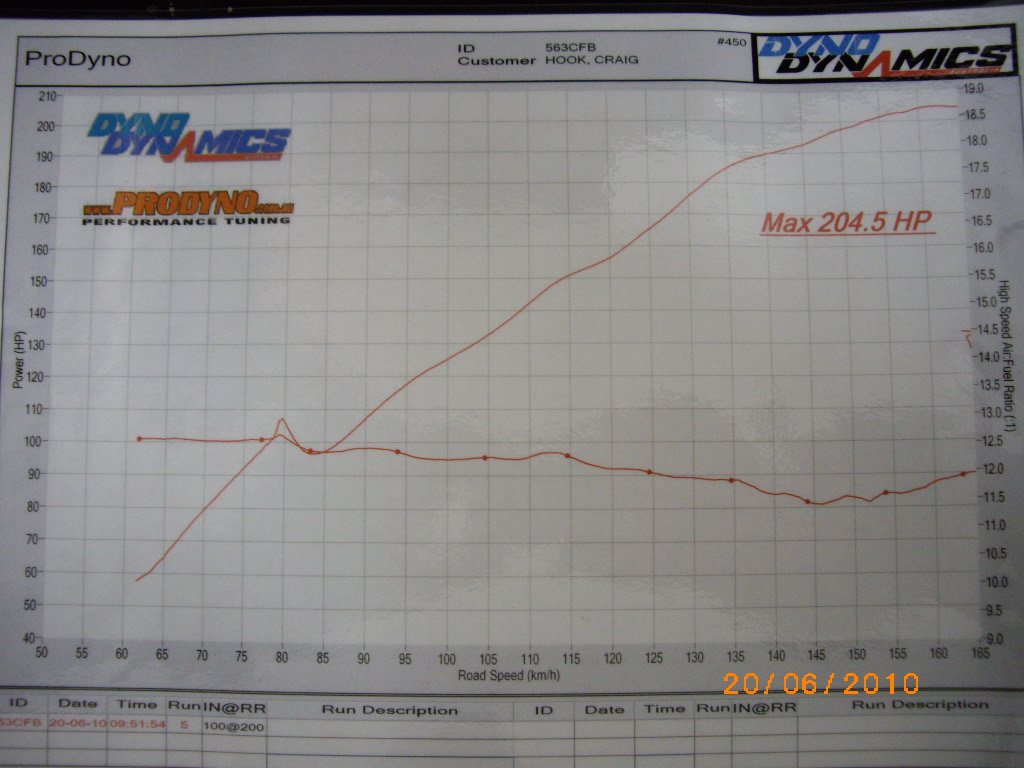

Dunno if this helps much, but it is something.......
