 Post subject: another bbm problem(repost)
Posted: Thu Nov 16, 2006 6:53 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

hi again
iv accidently posted this in the x series forum so i have reposted it here.. sorry....

i put the bbm on my ea today and i have a problem with the car only running on 5 cyl and every 10 or 20 seconds a pop out the exhaust which tells me that the plugs are firing and i tested the injectors and they are all getting power and using a screwdriver as a stethascope (putting handle to my ear and point on injector)they are all ticking..

could it be one blocked injector..
or possibly a sad plug lead....

also when the bbm has no vacuum is it on the short or long runners????
Top
 Profile


Posted: Thu Nov 16, 2006 6:58 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

update...

ive fixed the problem it was blocked injectors i just swapped the ones that were on me log manifold..

the car has so much response now.. 2 dark black lines out the front of my house dont lie..........

but it needs the bbm switch to be connected ..
as it seems to run out of puff after 4000rpm
i still dont know what the manifold is switched to when it has no vacuum..
as that is how it is at the moment...
Top
 Profile


Posted: Thu Nov 16, 2006 9:25 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

BUMP..

cmon guys can someone please tell me what position the bbm is in when it has no vacuum..
short? or long?

and is the short runner for high rpm or low..

sorry for the stupid question. but ive never played around with the bbm before..
Top
 Profile


Posted: Thu Nov 16, 2006 9:29 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 497

Joined: 5th Nov 2004

Gallery: 11 images

Ride: 1989 300ZX Twin turbo Z32

Location: Bardon, Brisbane
QLD, Australia

as far as i'm aware its in long position below 3000rpm and short above 3000



_________________

Sold my EB :(
Now got my 300zx :)

Top
 Profile


Posted: Thu Nov 16, 2006 9:31 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 497

Joined: 5th Nov 2004

Gallery: 11 images

Ride: 1989 300ZX Twin turbo Z32

Location: Bardon, Brisbane
QLD, Australia

so i think vacuum is turned on by the vacuum solenoid when it gets above 3000rpm.



_________________

Sold my EB :(
Now got my 300zx :)

Top
 Profile


Posted: Thu Nov 16, 2006 9:51 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

http://www.fordmods.com/forums/viewtopi ... utterflies

That thread has the answer, comfirms what I was sure I remembered.

When engine is off or no vacuum, the butterflies are OPEN, so short runners.
Engine starts, butterlifes close under vacuum for long runners, till 3800rpm obviously.



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Thu Nov 16, 2006 10:04 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 497

Joined: 5th Nov 2004

Gallery: 11 images

Ride: 1989 300ZX Twin turbo Z32

Location: Bardon, Brisbane
QLD, Australia

Steady ED wrote:
http://www.fordmods.com/forums/viewtopic.php?t=35822&highlight=bbm+butterflies

That thread has the answer, comfirms what I was sure I remembered.

When engine is off or no vacuum, the butterflies are OPEN, so short runners.
Engine starts, butterlifes close under vacuum for long runners, till 3800rpm obviously.


i think its the other way around. you need short runners above 3800rpm so u can get more air. the long runners are used below 3800rpm to improve torque. the manifold is controlled by a solenoid not vacuum from the engine.



_________________

Sold my EB :(
Now got my 300zx :)

Top
 Profile


Posted: Thu Nov 16, 2006 10:09 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

bluecube wrote:
Steady ED wrote:
http://www.fordmods.com/forums/viewtopic.php?t=35822&highlight=bbm+butterflies

That thread has the answer, comfirms what I was sure I remembered.

When engine is off or no vacuum, the butterflies are OPEN, so short runners.
Engine starts, butterlifes close under vacuum for long runners, till 3800rpm obviously.


i think its the other way around. you need short runners above 3800rpm so u can get more air. the long runners are used below 3800rpm to improve torque. the manifold is controlled by a solenoid not vacuum from the engine.

You read that thread dude?
When you take the top half off a BBM, the butterflies are open.
The butterflies when closed block off the SHORT path in the BBM, forcing air to take the long runners.
Hit 3800 and the short path opens, allowing air to take BOTH paths, but primarily the shorter.



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Thu Nov 16, 2006 10:09 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 4102

Joined: 18th Nov 2004

Gallery: 10 images

Ride: PX2 Ranger 4x4 XLT Dual CAB

Location: Carrum Downs
VIC, Australia

Quote:
the manifold is controlled by a solenoid not vacuum from the engine.


However the solenoid allows engine vacuum to the BB switch to move the butterflies.



_________________

She's meanness put to music and the b**ch is born to run!
Like the sign says, "speed's just a question of money. How fast can you go?"

Top
 Profile


Posted: Thu Nov 16, 2006 10:15 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 497

Joined: 5th Nov 2004

Gallery: 11 images

Ride: 1989 300ZX Twin turbo Z32

Location: Bardon, Brisbane
QLD, Australia

Steady ED wrote:
bluecube wrote:
Steady ED wrote:
http://www.fordmods.com/forums/viewtopic.php?t=35822&highlight=bbm+butterflies

That thread has the answer, comfirms what I was sure I remembered.

When engine is off or no vacuum, the butterflies are OPEN, so short runners.
Engine starts, butterlifes close under vacuum for long runners, till 3800rpm obviously.


i think its the other way around. you need short runners above 3800rpm so u can get more air. the long runners are used below 3800rpm to improve torque. the manifold is controlled by a solenoid not vacuum from the engine.

You read that thread dude?
When you take the top half off a BBM, the butterflies are open.
The butterflies when closed block off the SHORT path in the BBM, forcing air to take the long runners.
Hit 3800 and the short path opens, allowing air to take BOTH paths, but primarily the shorter.


dude you just repeated exactly what i said



_________________

Sold my EB :(
Now got my 300zx :)

Top
 Profile


Posted: Thu Nov 16, 2006 10:16 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 497

Joined: 5th Nov 2004

Gallery: 11 images

Ride: 1989 300ZX Twin turbo Z32

Location: Bardon, Brisbane
QLD, Australia

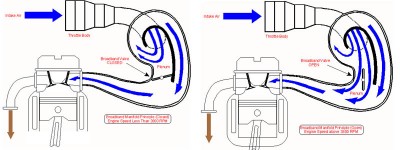

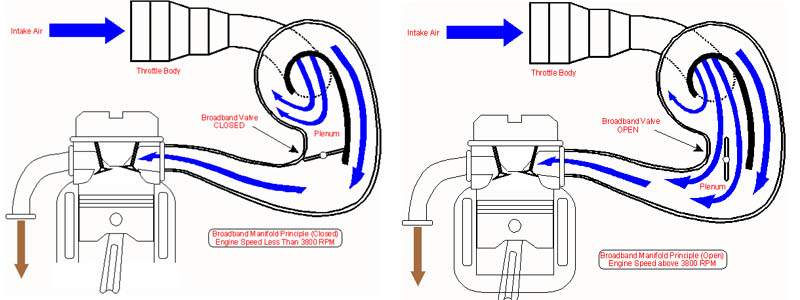

just so everyone is clear





Attachments:
bbm.jpg [ 68.63 KiB | Viewed 38 times ]



_________________

Sold my EB :(
Now got my 300zx :)

Top
 Profile


Posted: Fri Nov 17, 2006 6:52 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

thaks guys

that means that mine is curently open and is using the short path...
which should be for high rpm..

but when driving the car it runs out of puff about 4000rpm

i will try to conect the switch today and see how it goes....
Top
 Profile


Posted: Fri Nov 17, 2006 11:12 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

ok
i switched the runners over to the short path and as i was told it does ping
but i will try to get a el ecu to overcome that problem..

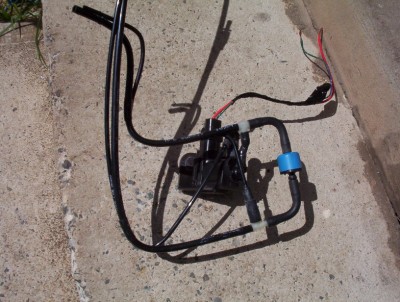

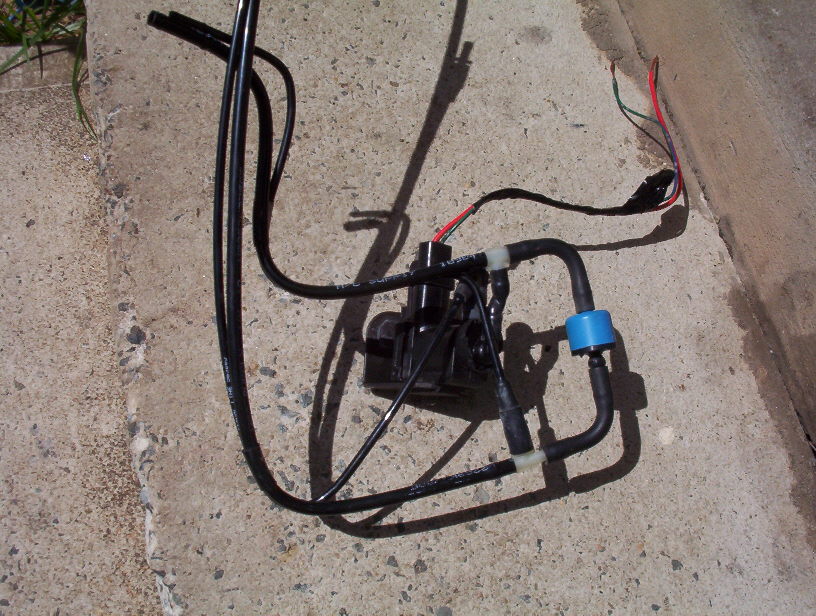

next question is where does the vacuum lines go on the solinoid???

here is a pic





Attachments:
bbm 004.jpg
bbm 004.jpg [ 139.82 KiB | Viewed 25 times ]
Top
 Profile


Posted: Fri Nov 17, 2006 7:37 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

BUMP

i really need help with the vac lines on this bbm switch..
please..
Top
 Profile


Posted: Fri Nov 17, 2006 8:20 pm
Smokin em up
Offline
User avatar

Age: 43

Posts: 212

Joined: 5th Nov 2006

Gallery: 8 images

Ride: 93 ED

Location: WAGGA WAGGA
NSW, Australia

Just had a look under my bonnet. 1 big one goes at the manifold. The other large one goes to the vac tank. 1 small one goes to the heater control on heater hose under manifold. Last small one goes to butterfly switch at the front of manifold.
Top
 Profile
