 Post subject: AU 4.0L Crank Girdle
Posted: Thu May 17, 2007 12:49 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 1934

Joined: 8th Nov 2004

Ride: BA Falcon XR8

Location: Bunbury
WA, Australia

Hey all, a couple of simple questions for you. Do all AU 4.0L six cylinder engines come with a crank girdle as standard? Or was it just for the HP XR6 engines? Also, will the crank girdle fit the EL 4.0L six cylinder main caps?

Thanks in advance for your help! :D
Top
 Profile


Posted: Thu May 17, 2007 11:35 am
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

All AU do have it AFAIK, I don't think it is going to retrofit an E series as the AU sump forms part of the structure when its all bolted up. I doubt it would clear the old sump. AU sump will give you clearance problems on E series.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Thu May 17, 2007 11:37 am
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

All AU do have it AFAIK, I don't think it is going to retrofit an E series as the AU sump forms part of the structure when its all bolted up. I doubt it would clear the old sump. AU sump will give you clearance problems on E series.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Thu May 17, 2007 11:44 am
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 5051

Joined: 5th Nov 2004

Ride: Kia Rio - 1.4L Auto

Power: 238 rwkw

Location: Westside
VIC, Australia

All AU and up engines have some sort of a crank girdle. And thre are 2 types.

Earlier engines had different main caps and the girdle to suit. Later engines had E-series style main caps, and a different girdle to suit (This girdle has been carried through to the BA engines). Either setup requires AU bolts, as they are much longer.

But unfortunately the bolt heads hit the standard E-series sump under cylinders 4, 5 and 6. If you could enlarge the sump there, it will fit.

So I can say, been there, tried that... Didnt fit. :(
Top
 Profile


Posted: Thu May 17, 2007 7:18 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

The EL Hybrid engine had the main cap girdle fitted, and had the the main caps that had the ears on them for the alloy sump when it came along on the AU engines.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Thu May 17, 2007 7:42 pm
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 5051

Joined: 5th Nov 2004

Ride: Kia Rio - 1.4L Auto

Power: 238 rwkw

Location: Westside
VIC, Australia

cjh wrote:
The EL Hybrid engine had the main cap girdle fitted, and had the the main caps that had the ears on them for the alloy sump when it came along on the AU engines.


No they didn't.

The caps were similar, but different to AU caps.
Top
 Profile


Posted: Thu May 17, 2007 8:20 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

arm79 wrote:
cjh wrote:
The EL Hybrid engine had the main cap girdle fitted, and had the the main caps that had the ears on them for the alloy sump when it came along on the AU engines.


No they didn't.

The caps were similar, but different to AU caps.


I saw one with my own eyes, I had to replace a sump gasket( under warranty), thats when I saw it. It was a Hybrid EL. Had the same main caps as AU, but no threads were tapped into the "ears".



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Thu May 17, 2007 8:28 pm
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 5051

Joined: 5th Nov 2004

Ride: Kia Rio - 1.4L Auto

Power: 238 rwkw

Location: Westside
VIC, Australia

cjh wrote:
arm79 wrote:
cjh wrote:
The EL Hybrid engine had the main cap girdle fitted, and had the the main caps that had the ears on them for the alloy sump when it came along on the AU engines.


No they didn't.

The caps were similar, but different to AU caps.


I saw one with my own eyes, I had to replace a sump gasket( under warranty), thats when I saw it. It was a Hybrid EL. Had the same main caps as AU, but no threads were tapped into the "ears".


And ive seen 2.. Replaced the sump gasket on 1 and rebuilt another, my personal motor.

I have both styles of crank girdles in my garage now, which were purchased from Ford. Which ever way you try, they both do not physically do not fit. I have tried.

The caps are similar in that they have the flat sides ready for drilling and tapping, but arent as tall to suit the series 1 girdle.
Top
 Profile


Posted: Thu May 17, 2007 10:09 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

arm79 wrote:
I have both styles of crank girdles in my garage now, which were purchased from Ford. Which ever way you try, they both do not physically do not fit. I have tried.


um well i have a early single piece au girdle on my el right now, and there was no problems fitting it at all. just needed the au bolts.



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile


Posted: Fri May 18, 2007 1:10 am
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 5051

Joined: 5th Nov 2004

Ride: Kia Rio - 1.4L Auto

Power: 238 rwkw

Location: Westside
VIC, Australia

fritzz wrote:
arm79 wrote:
I have both styles of crank girdles in my garage now, which were purchased from Ford. Which ever way you try, they both do not physically do not fit. I have tried.


um well i have a early single piece au girdle on my el right now, and there was no problems fitting it at all. just needed the au bolts.


I had the AU bolts.

And which girdle, top or bottom?

Top
 Profile


Posted: Fri May 18, 2007 2:37 pm
Smokin em up
Offline

Age: 40

Posts: 227

Joined: 21st Jun 2005

Location: Melbourne: Thornbury
VIC, Australia

how thick is the girdle itself?
how thick are the thru-bolt bosses?

Dodgy Bros method could be lightly "clearancing" the tin sump over the bolt holes with a rubber mallet. Just wind the bolts out a few tuns from being snug and tap away. When tensioned you should have adequate clearance. Alternatively shorten the thru-bosses on a mill provided you mains bolts don't bottom out.

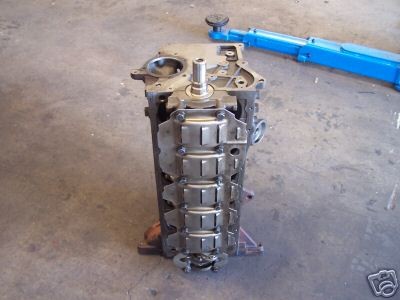

I'm just doing the HV sump and windage tray for my SVO motor at the moment and was strongly considering the one-piece girdle shown above (if i could find one hint hint ). Tried to purchase the windage tray from Ford parts counter and was told its not a serviceable part (ie: cannot be bought over the counter). Spewin because i don't want to raid it out of the BA engine i have sitting here.

Anyone seen the BA version? in this pic (of Dansedgli's) i would assume its hidden by the windage tray.





Attachments:
Image022.jpg [ 211.27 KiB | Viewed 133 times ]



_________________

EA SVO Fairmont Ghia - Recaros, Bilsteins, Sunroof, SVO rims and body kit, Genie headers, DBA rotors. T5 steeda triax short shifter. 3.27 lsd. (EL 4.0 ported/polished, rebuilt and balanced, Dev5 cam. J3 chipped EL ecu, AU injectors).

Top
 Profile


 Post subject: better pic of BA windage tray
Posted: Fri May 18, 2007 5:22 pm
Smokin em up
Offline

Age: 40

Posts: 227

Joined: 21st Jun 2005

Location: Melbourne: Thornbury
VIC, Australia

better pic





Attachments:
f755_1.jpg [ 20.98 KiB | Viewed 167 times ]



_________________

EA SVO Fairmont Ghia - Recaros, Bilsteins, Sunroof, SVO rims and body kit, Genie headers, DBA rotors. T5 steeda triax short shifter. 3.27 lsd. (EL 4.0 ported/polished, rebuilt and balanced, Dev5 cam. J3 chipped EL ecu, AU injectors).

Top
 Profile


Posted: Fri May 18, 2007 10:08 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

arm79 wrote:
fritzz wrote:
arm79 wrote:
I have both styles of crank girdles in my garage now, which were purchased from Ford. Which ever way you try, they both do not physically do not fit. I have tried.


um well i have a early single piece au girdle on my el right now, and there was no problems fitting it at all. just needed the au bolts.


I had the AU bolts.

And which girdle, top or bottom?



the top one,



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile


Posted: Fri May 18, 2007 10:11 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

aaron_hogan wrote:
Dodgy Bros method could be lightly "clearancing" the tin sump over the bolt holes with a rubber mallet. Just wind the bolts out a few tuns from being snug and tap away. When tensioned you should have adequate clearance. Alternatively shorten the thru-bosses on a mill provided you mains bolts don't bottom out.


the bolts don't come close at all, the only part that comes close is the very back corners of the girdle plate.



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile


Posted: Sun May 20, 2007 5:42 pm
Smokin em up
Offline
User avatar

Age: 30

Posts: 290

Joined: 10th May 2006

Ride: 5 Spd EA Wagon, 5 spd EF Fairmon

Location: Melbourne
VIC, Australia

Are the sumps the same from EA-EL??

David



_________________

If you're not driving a manual, you are only steering...

Top
 Profile
