 Post subject: Au motor into eb - Quick Question!HELP
Posted: Fri Jul 28, 2006 10:19 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 497

Joined: 5th Nov 2004

Gallery: 11 images

Ride: 1989 300ZX Twin turbo Z32

Location: Bardon, Brisbane
QLD, Australia

Hey everyone,

I've got my hands on an au motor with very low kays. I have read a few topics on here about fitting it into my eb. Doesn't sound too difficult.

One question tho - if i put my tfi dizzy and standard eb inlet manifold etc on the au motor - will i just be able to use my eb ecu to run the engine with no dramas? I would also be changing the pulleys on the au so it ran my normal clutch fan etc.

If anyone has done a EF/EL/AU conversion into EB etc - could you please help me out :)

Cheers,
Rob



_________________

Sold my EB :(
Now got my 300zx :)

Top
 Profile


Posted: Fri Jul 28, 2006 10:46 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 2754

Joined: 14th Apr 2005

Ride: fairmont

Location: mackay
QLD, Australia

give voxace a pm mate he has done it



_________________

Now i have a EF XR8 5spd.........mmmmmm 5L

Top
 Profile


Posted: Fri Jul 28, 2006 11:28 am
Technical Contributor
Offline
User avatar

Age: 32

Posts: 3097

Joined: 5th Nov 2004

Gallery: 29 images

Ride: VU SS

Location: Ivanhoe
NSW, Australia

OK.

Firstly I would recommend not running the EB pulleys. it's probably more work than using the serpentine belt.
The alternator bolts up differently for starters, so I don't know how you would run the older style setup with it.

Running the original manifold shouldn't be a drama I wouldn't think. I think this will mean mounting the A/C lower (?), and using an XH tensioner.
If you have smartlock, why not convert to BBM?

Personally I just found it way easier to run everything as intended for an AU motor.

You'll be able to put the dizzy in no worries though.



_________________

EF Fairmont now Sold!
Guides: Polishing|Modifications |Manual Conversion

Top
 Profile


Posted: Sat Jul 29, 2006 12:56 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 497

Joined: 5th Nov 2004

Gallery: 11 images

Ride: 1989 300ZX Twin turbo Z32

Location: Bardon, Brisbane
QLD, Australia

Hey. Thanks for replying :)
I've been thinking about what you said and I've decided to go with the serpentine set up. So i'll just have to get ahold of a p/steering alternator and aircon pump of an au. I will also use the bbm now too. As I will be changing the ecu for the bbm - do you reckon I should go with an au ecu and run coilpacks or an el and run dizzy? I will also be putting a dash, cluster and centre console from an ef down the track too. So its important that an au ecu would run the ef dash components etc.

I suppose I would also need the engine loom coz it will have thermo fan connectors on it too i guess?



_________________

Sold my EB :(
Now got my 300zx :)

Top
 Profile


Posted: Sat Jul 29, 2006 2:33 pm
Technical Contributor
Offline
User avatar

Age: 32

Posts: 3097

Joined: 5th Nov 2004

Gallery: 29 images

Ride: VU SS

Location: Ivanhoe
NSW, Australia

Go EL ECU and Dizzy. Easier.

You can use EF-AU Power steering pump, and I think you will have to use EF-EL air-con, as I think the AU has a different setup for mounting the lines to it.



_________________

EF Fairmont now Sold!
Guides: Polishing|Modifications |Manual Conversion

Top
 Profile


Posted: Sat Jul 29, 2006 3:32 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 497

Joined: 5th Nov 2004

Gallery: 11 images

Ride: 1989 300ZX Twin turbo Z32

Location: Bardon, Brisbane
QLD, Australia

Oh ok cool. So the EF/EL aircon will bolt to the au motor, but i still have to use an au alternator tho hey?

thanks for your help voxace :)



_________________

Sold my EB :(
Now got my 300zx :)

Top
 Profile


Posted: Sat Jul 29, 2006 3:50 pm
Technical Contributor
Offline
User avatar

Age: 32

Posts: 3097

Joined: 5th Nov 2004

Gallery: 29 images

Ride: VU SS

Location: Ivanhoe
NSW, Australia

Yep that's right (I think).



_________________

EF Fairmont now Sold!
Guides: Polishing|Modifications |Manual Conversion

Top
 Profile


Posted: Sat Jul 29, 2006 4:08 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 497

Joined: 5th Nov 2004

Gallery: 11 images

Ride: 1989 300ZX Twin turbo Z32

Location: Bardon, Brisbane
QLD, Australia

I've just had a look at a few pics of au and ef/el air con compressors and they look quite different. The au seems to be more square and there are 2 mounting points on the top whereas the ef/el has only 1.

so unfortunately i dont think they will fit (unless anyone has successfully fitted an ef/el to au?) So i'll have to spend the extra $$ on an au compressor and then get an aircon place to modify the fittings to fit my eb aircon hoses etc.





Attachments:

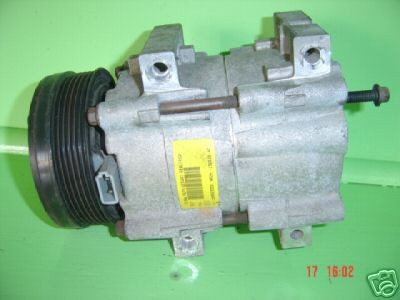

File comment: EF/EL Compressor
ef.jpg [ 20.16 KiB | Viewed 26 times ]

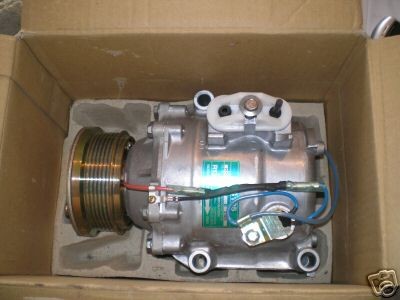

File comment: Here is the AU compressor
au.jpg [ 18.31 KiB | Viewed 28 times ]



_________________

Sold my EB :(
Now got my 300zx :)

Top
 Profile


Posted: Sat Jul 29, 2006 4:11 pm
Technical Contributor
Offline
User avatar

Age: 32

Posts: 3097

Joined: 5th Nov 2004

Gallery: 29 images

Ride: VU SS

Location: Ivanhoe
NSW, Australia

Well I'm using EF/EL on mine.
It bolted up to the engine fine!



_________________

EF Fairmont now Sold!
Guides: Polishing|Modifications |Manual Conversion

Top
 Profile


Posted: Sat Jul 29, 2006 4:16 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 497

Joined: 5th Nov 2004

Gallery: 11 images

Ride: 1989 300ZX Twin turbo Z32

Location: Bardon, Brisbane
QLD, Australia

oh ok. thats sounds great then! sorry i think i read your last post wrong (when you said you werent sure - you must have been talking about alternator). Thats great then, save money and aircon fittings should attach :)



_________________

Sold my EB :(
Now got my 300zx :)

Top
 Profile


Posted: Sat Jul 29, 2006 4:26 pm
Technical Contributor
Offline
User avatar

Age: 32

Posts: 3097

Joined: 5th Nov 2004

Gallery: 29 images

Ride: VU SS

Location: Ivanhoe
NSW, Australia

Here you go:
http://home.exetel.com.au/voxace/FM/au-ac.JPG



_________________

EF Fairmont now Sold!
Guides: Polishing|Modifications |Manual Conversion

Top
 Profile


Posted: Sat Jul 29, 2006 6:51 pm
Smokin em up
Offline

Age: 35

Posts: 254

Joined: 30th Jan 2006

Gallery: 2 images

Ride: eb 's' and '67 xr fairmont

Location: Sunbury
VIC, Australia

ypu can uase the original manifiold and computer, but you will need a ef/el c/a pump with ef bracket as the eb bracket will mount it too far back. you need to get a slighly longer belt (not sure of the part number 0 and you will auve to modify the tensioner so you can turn it about 5 degrees clockwise. not the beast way to do it but if you want the budget option it works. i did this to a mates car and he was a a*** and didnt want to spend the dosh. just another option for you mate



_________________

05 BA futura wagon, dumped, 19s, limo tint ( now the wifes car!

BA XLS ute 3V V8 manual, paceys, CAI and underdrives, good work car!

67 XR fairmont factory V8currently in pieces undergoing full resto one day will make a sweet cruiser!

Top
 Profile


Posted: Mon Jul 31, 2006 7:57 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 497

Joined: 5th Nov 2004

Gallery: 11 images

Ride: 1989 300ZX Twin turbo Z32

Location: Bardon, Brisbane
QLD, Australia

Hey voxace. Did you have to use an AU bell housing for your conversion?



_________________

Sold my EB :(
Now got my 300zx :)

Top
 Profile


Posted: Mon Jul 31, 2006 9:12 pm
Technical Contributor
Offline
User avatar

Age: 32

Posts: 3097

Joined: 5th Nov 2004

Gallery: 29 images

Ride: VU SS

Location: Ivanhoe
NSW, Australia

No, but I still want one because two bolts wont go in.



_________________

EF Fairmont now Sold!
Guides: Polishing|Modifications |Manual Conversion

Top
 Profile


 Post subject: i did the same
Posted: Fri Aug 11, 2006 6:04 pm
Stock as a Rock
Offline

Age: 39

Posts: 175

Joined: 6th Jun 2005

Ride: el falcon

Location: Brisbane
QLD, Australia

i just did the same sort of thing with my el, you will most likely have to go and get a mitsubishi electrics alternator around $130, ef/l power steering pump $ 40 and pulley setup, and also an au belt the ef/l ones dont stretch enough because they have a different way of going on, hope this has helped you
