BA/BF head on a EF/EL block.



Page 1 of 6 [ 89 posts ] Go to page 1, 2, 3, 4, 5, 6  Next


 Post subject: BA/BF head on a EF/EL block.
Posted: Sat Feb 23, 2013 4:44 am
Fordmods Newbie
Offline

Age: 22

Posts: 9

Joined: 5th Oct 2012

Gallery: 1 images

Ride: Ford ef xr6

Location: Maryborough
VIC, Australia

Hi everyone,
I have a 95 EF and I was going to put a BA engine into it but seemed like alot of money and that you have to cut the frame which I dont really wanna do so I was wondering if you could fit a BA head on a EF block? so that way it will fit without having to cut anything.
Cheers
Top
 Profile


 Post subject: Re: BA/BF head on a EF/EL block.
Posted: Sat Feb 23, 2013 6:54 am
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

The short answer to this question is NO.

BA head is wider than the E series Block.
Top
 Profile


 Post subject: Re: BA/BF head on a EF/EL block.
Posted: Sat Feb 23, 2013 7:50 am
Getting Side Ways
Offline
User avatar

Posts: 901

Joined: 28th Apr 2011

Gallery: 18 images

Ride: 1997 EL XR6

Power: 180 rwkw

Location: Melbourne
VIC, Australia

SWC wrote:
The short answer to this question is NO.

BA head is wider than the E series Block.


+1 only other option is AU head and rocker gear



_________________

MGW Short Throw Shifter, CVE Cam, CVE Head, SS Big Mouth Air Intake, Pacemaker Headers, 3" Exhaust, 3" Varex, 3" Cat, 19" Silver Agents, EMS Stinger 4424, 42lb Injectors and Walbro 255lb Fuel Pump

Next: Pacemaker Comps, 6 Individual Throttle Bodies, ICE Coil and ignition

Top
 Profile


 Post subject: Re: BA/BF head on a EF/EL block.
Posted: Sat Feb 23, 2013 7:55 am
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Six wrote:
SWC wrote:
The short answer to this question is NO.

BA head is wider than the E series Block.


+1 only other option is AU head and rocker gear


Why use an AU head on an E series, they will fit but there is nothing you can do to a AU Head that you can't do to a E head.
Top
 Profile


 Post subject: Re: BA/BF head on a EF/EL block.
Posted: Sat Feb 23, 2013 7:56 am
Getting Side Ways
Offline
User avatar

Posts: 901

Joined: 28th Apr 2011

Gallery: 18 images

Ride: 1997 EL XR6

Power: 180 rwkw

Location: Melbourne
VIC, Australia

SWC wrote:
Six wrote:
SWC wrote:
The short answer to this question is NO.

BA head is wider than the E series Block.


+1 only other option is AU head and rocker gear


Why use an AU head on an E series, they will fit but there is nothing you can do to a AU Head that you can't do to a E head.


I know, just pointing out is the only other series of head which will fit



_________________

MGW Short Throw Shifter, CVE Cam, CVE Head, SS Big Mouth Air Intake, Pacemaker Headers, 3" Exhaust, 3" Varex, 3" Cat, 19" Silver Agents, EMS Stinger 4424, 42lb Injectors and Walbro 255lb Fuel Pump

Next: Pacemaker Comps, 6 Individual Throttle Bodies, ICE Coil and ignition

Top
 Profile


 Post subject: Re: BA/BF head on a EF/EL block.
Posted: Sat Feb 23, 2013 8:08 am
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Six wrote:
SWC wrote:
Six wrote:
SWC wrote:
The short answer to this question is NO.

BA head is wider than the E series Block.


+1 only other option is AU head and rocker gear


Why use an AU head on an E series, they will fit but there is nothing you can do to a AU Head that you can't do to a E head.


I know, just pointing out is the only other series of head which will fit


Yeh, I see your point, AU jead will fit the E series.
Top
 Profile


 Post subject: Re: BA/BF head on a EF/EL block.
Posted: Sat Feb 23, 2013 2:21 pm
Getting Side Ways
Offline
User avatar

Posts: 901

Joined: 28th Apr 2011

Gallery: 18 images

Ride: 1997 EL XR6

Power: 180 rwkw

Location: Melbourne
VIC, Australia

Yeah, SWC is right your better off using a E Series head if you plan on doing work to one...



_________________

MGW Short Throw Shifter, CVE Cam, CVE Head, SS Big Mouth Air Intake, Pacemaker Headers, 3" Exhaust, 3" Varex, 3" Cat, 19" Silver Agents, EMS Stinger 4424, 42lb Injectors and Walbro 255lb Fuel Pump

Next: Pacemaker Comps, 6 Individual Throttle Bodies, ICE Coil and ignition

Top
 Profile


 Post subject: Re: BA/BF head on a EF/EL block.
Posted: Sat Feb 23, 2013 3:42 pm
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

Years ago you could buy a dohc head conversion for the au. Have seen it brought up on here a few times Swc would be old enough to remember :)



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: BA/BF head on a EF/EL block.
Posted: Sat Feb 23, 2013 4:08 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

From FF
http://www.fordforums.com/f126/krogdahl-dohc-head-3126/

Attachment:

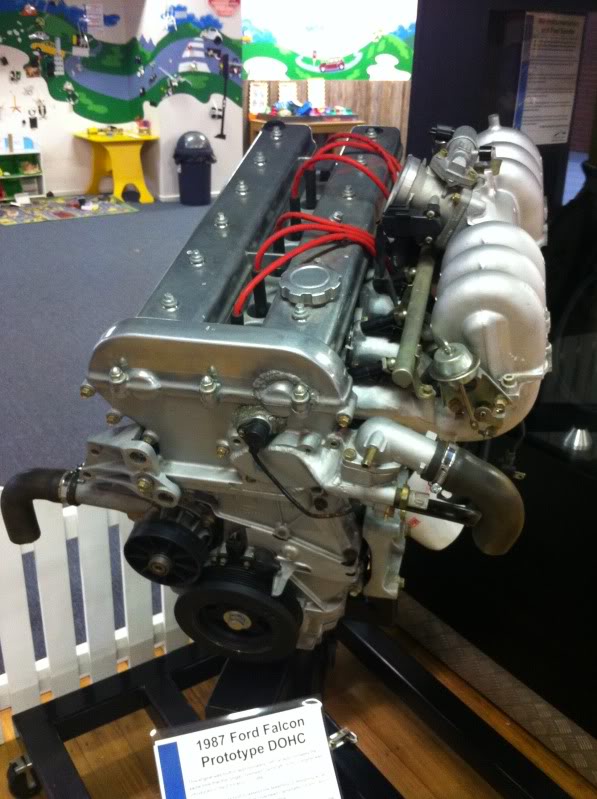

DOHC ON AU.jpg
DOHC ON AU.jpg [ 81.95 KiB | Viewed 189 times ]


Attachment:

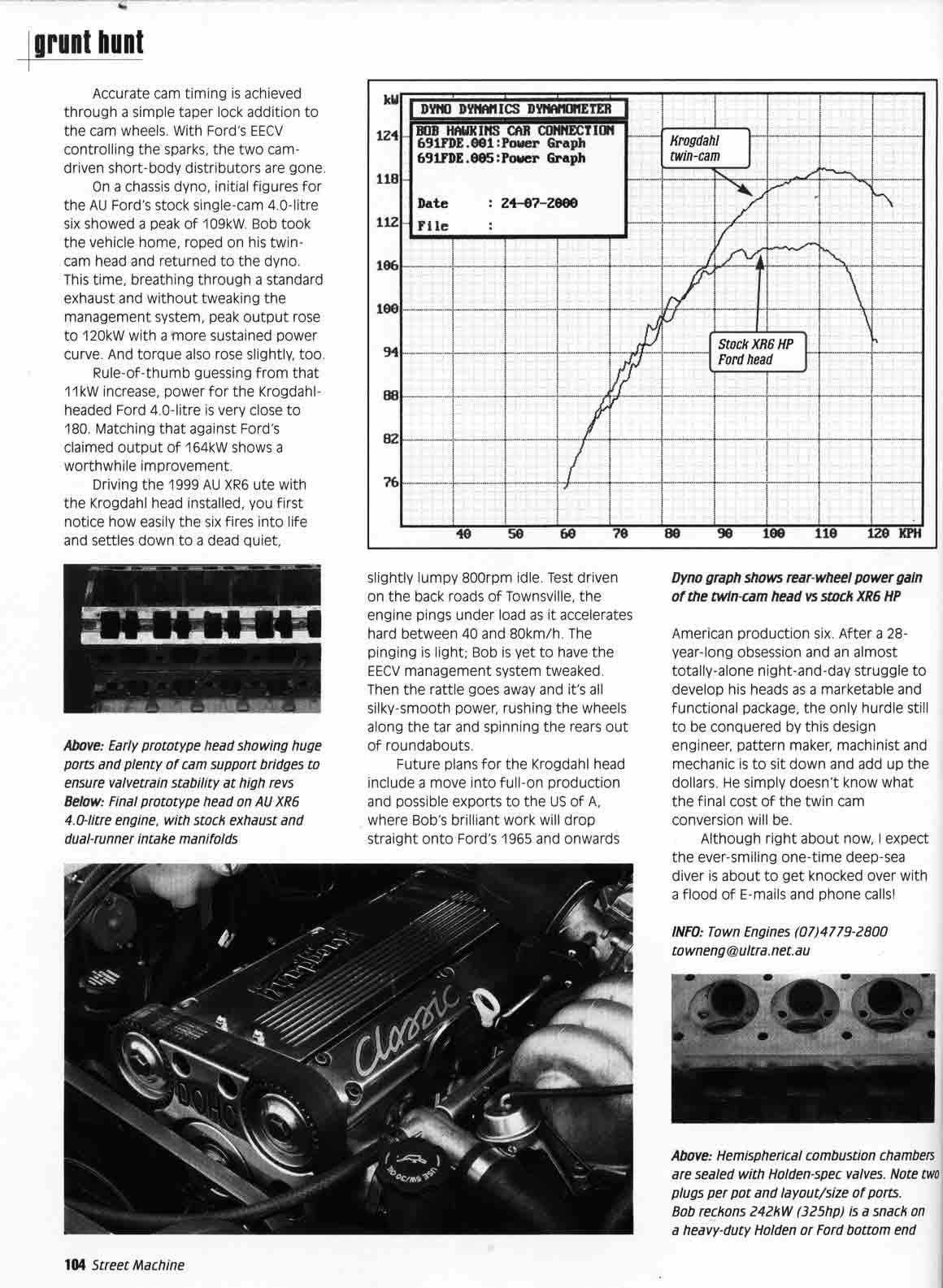

DOHC ON AU artical.jpg
DOHC ON AU artical.jpg [ 138.95 KiB | Viewed 282 times ]
Top
 Profile


 Post subject: Re: BA/BF head on a EF/EL block.
Posted: Sat Feb 23, 2013 6:40 pm
Getting Side Ways
Offline
User avatar

Posts: 901

Joined: 28th Apr 2011

Gallery: 18 images

Ride: 1997 EL XR6

Power: 180 rwkw

Location: Melbourne
VIC, Australia

Looks a tad ugly lol...

But a nice bit of gear all the same...



_________________

MGW Short Throw Shifter, CVE Cam, CVE Head, SS Big Mouth Air Intake, Pacemaker Headers, 3" Exhaust, 3" Varex, 3" Cat, 19" Silver Agents, EMS Stinger 4424, 42lb Injectors and Walbro 255lb Fuel Pump

Next: Pacemaker Comps, 6 Individual Throttle Bodies, ICE Coil and ignition

Top
 Profile


 Post subject: Re: BA/BF head on a EF/EL block.
Posted: Sat Feb 23, 2013 9:55 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 2833

Joined: 7th Nov 2004

Gallery: 4 images

Ride: Lincoln LS, MKII Escort, ED

Location: geelong
VIC, Australia

Has anyone actually tried this? Territory AWD into BF/FG-series is also supposed to be impossible as well.

ive just googled the headgaskets for EA-AU and BA-FG and they look mighty similar.

http://www.ebay.com.au/itm/PERMASEAL-ML ... 2c6a382f5f

http://www.ebay.com.au/itm/FORD-FALCON- ... 1c1d98201a

At a guess, a small strip would need to be welded along the galleries on the DOHC head and decked flat to seal it, and there is an extra gallery at the front- otherwise they look similar enough that if i was thinking of doing this i would go ahead and start buying parts



_________________

Because i can.

Top
 Profile


 Post subject: Re: BA/BF head on a EF/EL block.
Posted: Sun Feb 24, 2013 8:36 am
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

JOSE wrote:
Has anyone actually tried this? Territory AWD into BF/FG-series is also supposed to be impossible as well.

ive just googled the headgaskets for EA-AU and BA-FG and they look mighty similar.

http://www.ebay.com.au/itm/PERMASEAL-ML ... 2c6a382f5f

http://www.ebay.com.au/itm/FORD-FALCON- ... 1c1d98201a

At a guess, a small strip would need to be welded along the galleries on the DOHC head and decked flat to seal it, and there is an extra gallery at the front- otherwise they look similar enough that if i was thinking of doing this i would go ahead and start buying parts


No one said it was impossible. The OP said "so that way it will fit without having to cut anything."

Anything is possible if you throw enough Effort, Skill, Time and Money at it. At the end of the day what is your return for the effort. What power increase will you achieve? What is the $ per Kw ratio. I would think that at the end of the day a Barra conversion would be the simpler and cheaper way to go. I do know of drive in drive out Barra conversions being done for less than $5,000.00.

I must admit it is an interesting concept and for some it is just the point of doing something that someone else hasn't done.

You would need to run Barra intake as well as exhaust manifold as the ports are different. BBM could be modified to take an EF/EL upper or even mod the BA upper. Clearence on the Passenger Strut tower will be ok as there are those that have fitted the Barra with plenty of clearence.

The Barra runs a single row timing chain compaired to the E/AU series engines. I am not sure but does the Barra run an AUX Gear? As it doesn't have a dizzy and the Cam sensor is on the front casing and the oil pump is a different drive then I don't see the need for the AUX Drive.

You would need to work out how to set up the timing chain to include the AUX Drive and you would need to get the correct sprocket as well, maybe also the Crank sprocket too.

I would suspect that you would need to fabricate a new Timing case as well.

Food for thought.

Anyone else have constructive thoughts on this.
Top
 Profile


 Post subject: Re: BA/BF head on a EF/EL block.
Posted: Sun Feb 24, 2013 9:31 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 2833

Joined: 7th Nov 2004

Gallery: 4 images

Ride: Lincoln LS, MKII Escort, ED

Location: geelong
VIC, Australia

SWC wrote:
Anyone else have constructive thoughts on this.


does that $5k include the engineers cert?

most of the barra's increase in power over the old SOHC will come from the head itself - there would be minimal power advantages in the block.

when it comes to the timing chain and the oil pump/CAS drive it gets complicated BUT i would hazard a guess that a custom set of cam gears (delete VCT) a custom crank sprocket and a custom SOHC timing chain would take care of that. timing cover would be a matter of machining up a bit that bridges the DOHC head to the SOHC cover. this would be quite a few $$ of machinework, i wouldnt have the skill or tools for this part.

i recon it would be possible to get 90% the gain of a full barra engine conversion for 50% the (legally engineered insurable/legal) cost of a conversion. and other than the modified head and timing cover there would be no cutting to the car. run SOHC injection with a tune and away you go.

Quote:
Anything is possible if you throw enough Effort, Skill, Time and Money at it.


if you have the first 3 it is amazing how little of the fourth you need.



_________________

Because i can.

Top
 Profile


 Post subject: Re: BA/BF head on a EF/EL block.
Posted: Sun Feb 24, 2013 9:42 am
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

JOSE wrote:
SWC wrote:
Anyone else have constructive thoughts on this.


does that $5k include the engineers cert?

most of the barra's increase in power over the old SOHC will come from the head itself - there would be minimal power advantages in the block.

when it comes to the timing chain and the oil pump/CAS drive it gets complicated BUT i would hazard a guess that a custom set of cam gears (delete VCT) a custom crank sprocket and a custom SOHC timing chain would take care of that. timing cover would be a matter of machining up a bit that bridges the DOHC head to the SOHC cover. this would be quite a few $$ of machinework, i wouldnt have the skill or tools for this part.

i recon it would be possible to get 90% the gain of a full barra engine conversion for 50% the (legally engineered insurable/legal) cost of a conversion. and other than the modified head and timing cover there would be no cutting to the car. run SOHC injection with a tune and away you go.

Quote:
Anything is possible if you throw enough Effort, Skill, Time and Money at it.


if you have the first 3 it is amazing how little of the fourth you need.

It bolts directly into the au engine bay. And will run off the au computer if you know what your doing. Also if your so worried about cutting the k frame in e series dry sump the motor



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: BA/BF head on a EF/EL block.
Posted: Sun Feb 24, 2013 1:47 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

bry40l wrote:
[It bolts directly into the au engine bay. And will run off the au computer if you know what your doing. Also if your so worried about cutting the k frame in e series dry sump the motor


What runs off the AU ECU? Are you talking the Barra engine or the Head on an E/AU Block?
