 Post subject: BA engine into EF XR6
Posted: Sun Feb 03, 2008 3:10 pm
Fordmods Newbie
Offline

Age: 41

Posts: 4

Joined: 3rd Feb 2008

Ride: xr6

Location: auckland
New Zealand

here's some mods that i've done to my EF XR6 to fit a BA engine, now if someone could tell me how to wire the thing i'll be rolling, i have the computer & loom, just need to wire one of the plugs that goes from the PCM into the passenger compartment, which is stuff like ecu & fuel supply relays, oxygen sensor power steering, elect. throttle etc etc, i've got a manual for the EF & it has all the info on ecu terminals colour coded & numbered & also a manual for the BA but it only gives colour coding & descriptions but not numbered! bit annoying as i'm not exactly an automotive elecrician, will post the answers if i can work it out





Attachments:
File comment: needed to take the BA mounts off & re-use the EF mounts, as BA bottom nut is surface mounted & did'nt recess into the crossmember locating holes
003.JPG [ 156.68 KiB | Viewed 154 times ]
File comment: also had to grind off the top locating lugs on the EF mounts as there in a different position to the BA top alloy mount bracket
005.JPG [ 160.02 KiB | Viewed 147 times ]

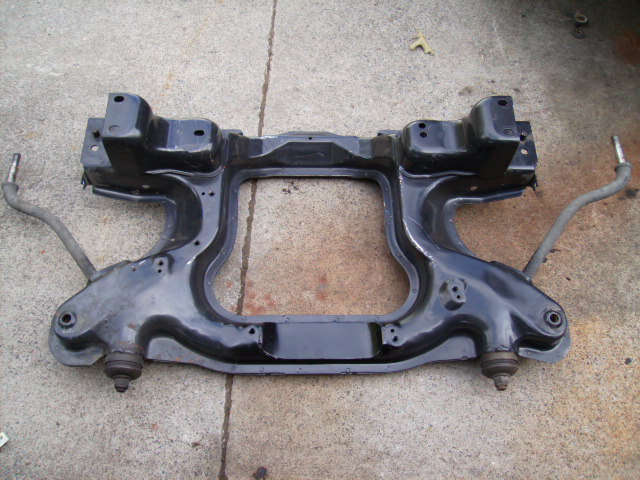

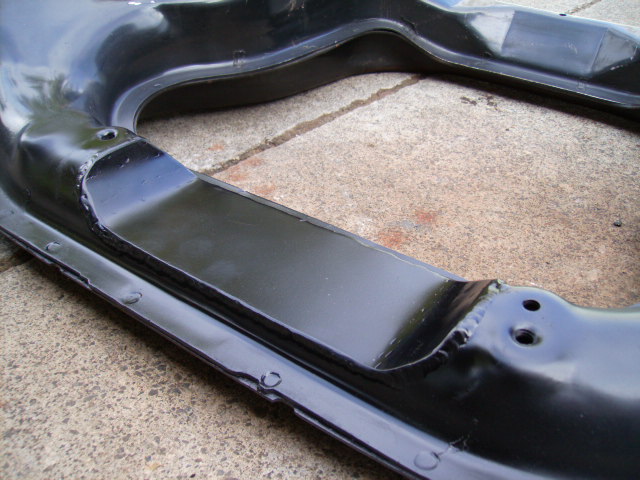

File comment: took 30mm out off the crossmember, gives about 10mm space between the sump
008.JPG [ 127.47 KiB | Viewed 127 times ]

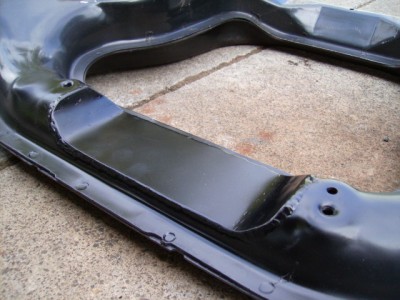

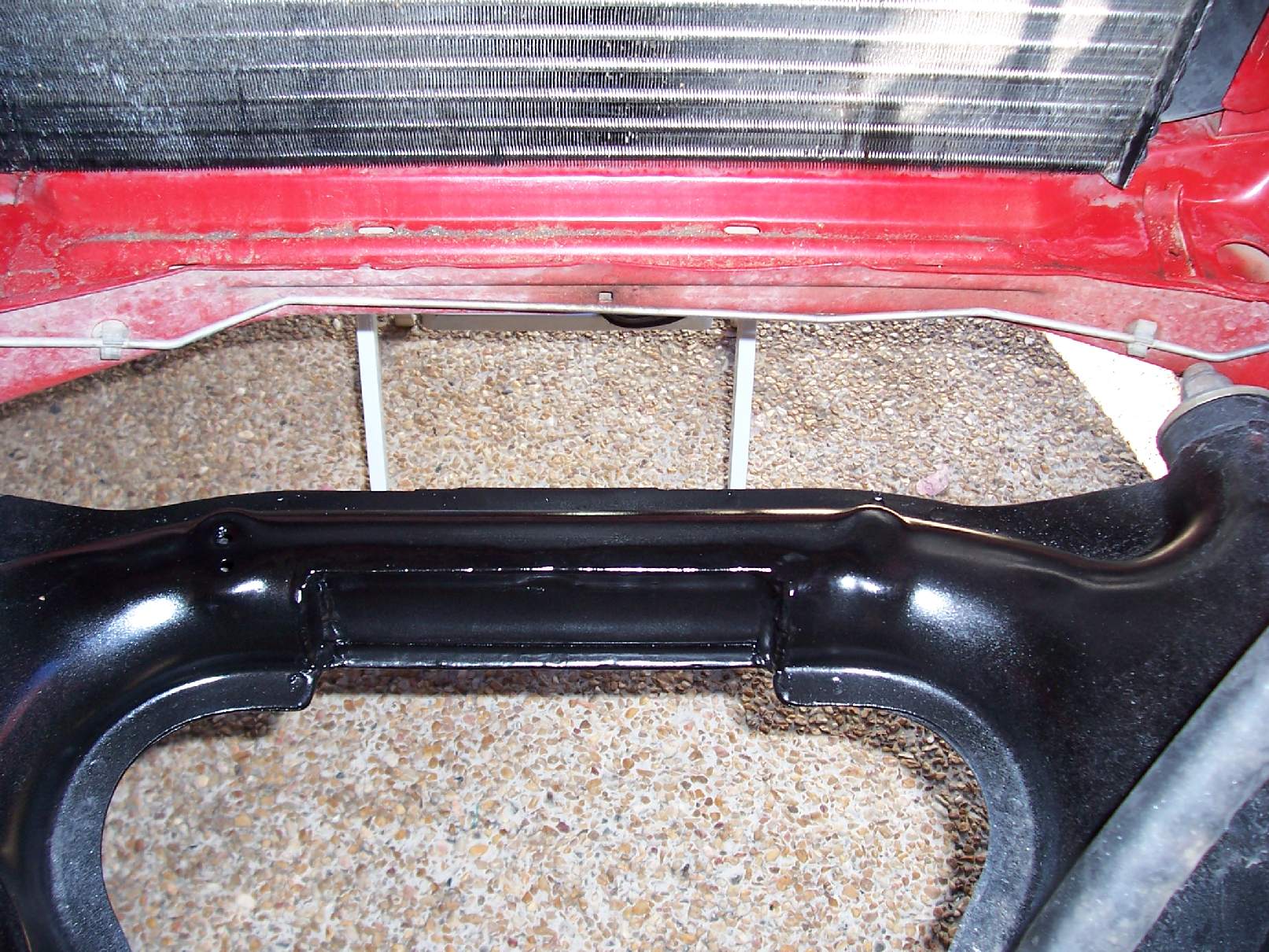

File comment: here's the crossmember with cut out on the front for clearance to clear the sump
007.JPG [ 143.76 KiB | Viewed 112 times ]

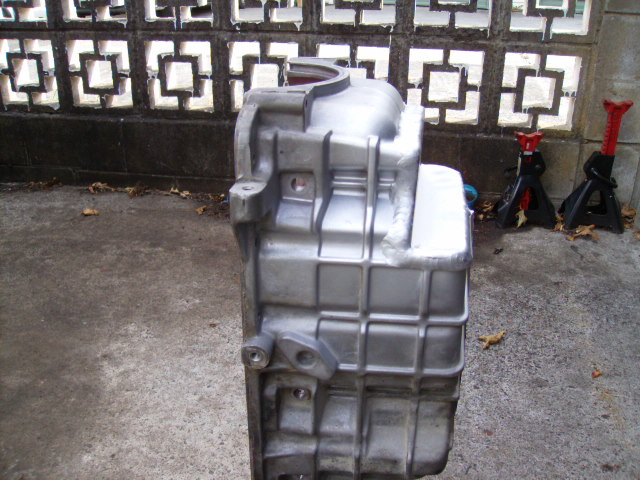

File comment: i cut the sump this way as the BA oil pick up routes around the front, it can't be cut like the AU sump
006.JPG [ 141.02 KiB | Viewed 170 times ]
Top
 Profile


Posted: Sun Feb 03, 2008 3:19 pm
Getting Side Ways
Offline

Age: 26

Posts: 2823

Joined: 26th Jul 2006

Ride: EF Fairmont II

Location: Melbourne
VIC, Australia

there isnt very many (is there even any? apart from "jetxr") EF's with BA engines out there. well done mate good lucking in finishing this project.
Top
 Profile


Posted: Sun Feb 03, 2008 3:54 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

Looks good mate, so you're planning on running the stock BA PCM?



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Sun Feb 03, 2008 5:07 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 1160

Joined: 25th Apr 2005

Gallery: 11 images

Location: Melbourne
VIC, Australia

Looks great! What have you got planned to clearance the bonnet ?
Top
 Profile


Posted: Sun Feb 03, 2008 5:07 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 1934

Joined: 8th Nov 2004

Ride: BA Falcon XR8

Location: Bunbury
WA, Australia

Holy crap!! That much needs to be cut out of the sump and crossmemeber to fit? s**t, i'm going to have to recalculate things then.
Top
 Profile


Posted: Sun Feb 03, 2008 5:24 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

fordman351 wrote:
Holy crap!! That much needs to be cut out of the sump and crossmemeber to fit? s**t, i'm going to have to recalculate things then.
I am surprised myself, I had assumed the AU and B series sumps where very similar.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Sun Feb 03, 2008 5:29 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 1934

Joined: 8th Nov 2004

Ride: BA Falcon XR8

Location: Bunbury
WA, Australia

twason wrote:
fordman351 wrote:
Holy crap!! That much needs to be cut out of the sump and crossmemeber to fit? s**t, i'm going to have to recalculate things then.
I am surprised myself, I had assumed the AU and B series sumps where very similar.


That's what i was thinking, unless jason161 has done this to keep the engine a bit lower in the engine bay so as not to have bonnet clearance issues???
Top
 Profile


Posted: Sun Feb 03, 2008 5:48 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 2198

Joined: 8th Nov 2004

Ride: EL Ghia - XF Ego 302 Clevo

Location: Shit Creek
WA, Australia

it looks as tho its protruding a fair amount.



_________________

Team EGO

Top
 Profile


Posted: Sun Feb 03, 2008 6:00 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 1934

Joined: 8th Nov 2004

Ride: BA Falcon XR8

Location: Bunbury
WA, Australia

Jason161, any chance you could throw up a couple of photos of the engine clearance with the engine in the car? I'm very interested to see what kind of room is there.
Top
 Profile


Posted: Sun Feb 03, 2008 6:06 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

Or engine in the K frame would help.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Mon Feb 04, 2008 1:06 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 1934

Joined: 8th Nov 2004

Ride: BA Falcon XR8

Location: Bunbury
WA, Australia

twason wrote:
Or engine in the K frame would help.


Yeah thats what i meant :P
Top
 Profile


Posted: Mon Feb 04, 2008 4:10 pm
Fordmods Newbie
Offline

Age: 41

Posts: 4

Joined: 3rd Feb 2008

Ride: xr6

Location: auckland
New Zealand

yeah i'm not sure what to do with the bonnet, probably end up getting a secound hand one & cut a square hole like the JETXR one, then i can think of some ideas to make a better design with the actual bonnet.

the BA sump is pretty much the same as the AU apart from the oil pick up location, that hump under the crank shaft seal is where the oil pick up pipe runs for the BA block, on the EF & AU series the pick up is to the side, so you have to make the cut just under the hump.

i am planning to use the stock PCM as it's already got the harness wired up to the sensors, injectors, ignition etc. unless there's a better alternative i'm not aware of?

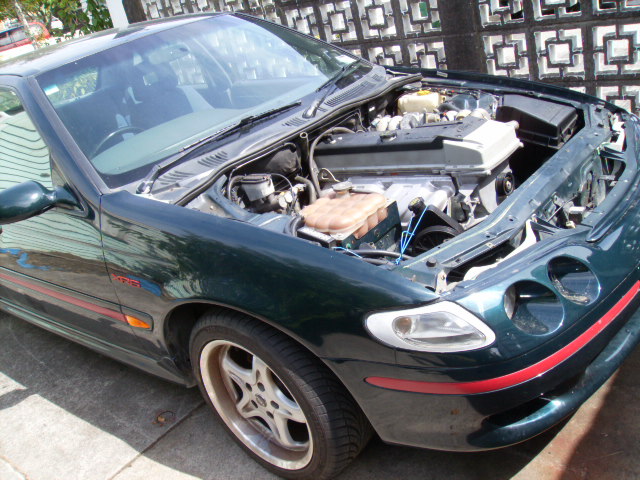

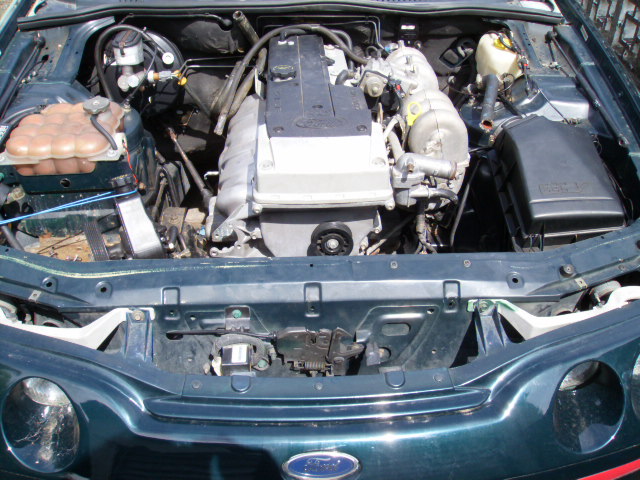

i've attached a few pictures of the actual clearences with the engine bolted in place, as you can see you don't need to cut as far in on the sump as i have, i just wanted to be absolutely certain that it would go in.

now looking at the pictures you really don't need to cut as much out of the crossmember either, at least this gives a reference point for the install for future projects





Attachments:

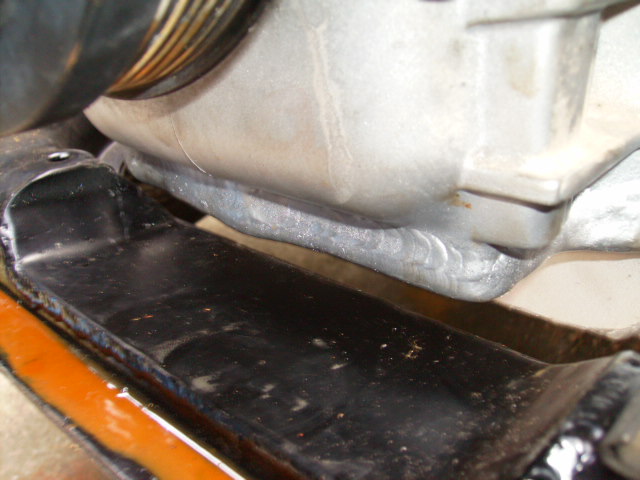

File comment: clearance from the front passenger side
007.JPG [ 100.5 KiB | Viewed 85 times ]

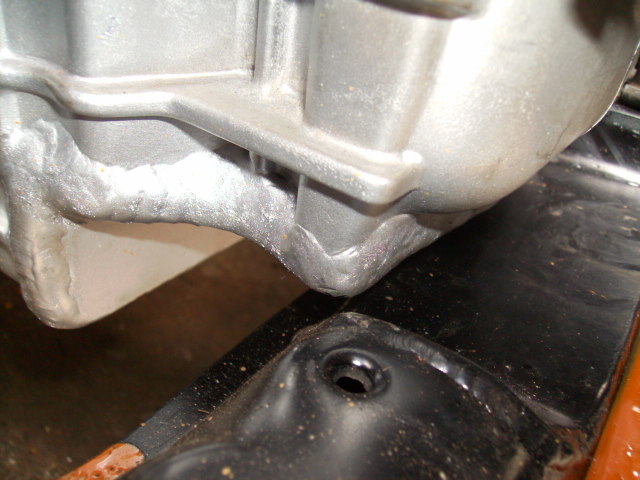

File comment: clearence from the front drivers side
005.JPG [ 103.91 KiB | Viewed 70 times ]

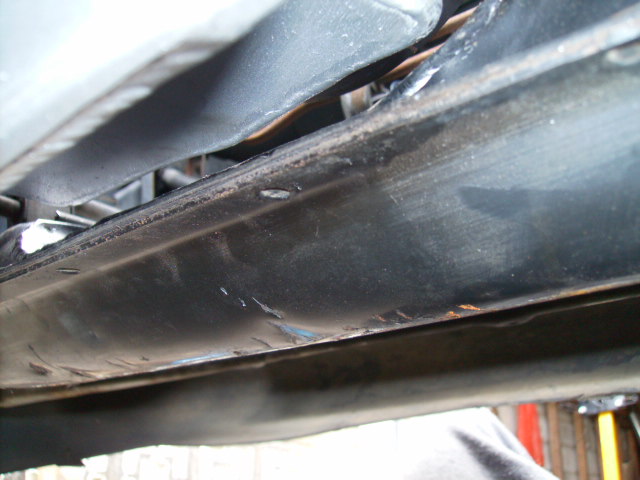

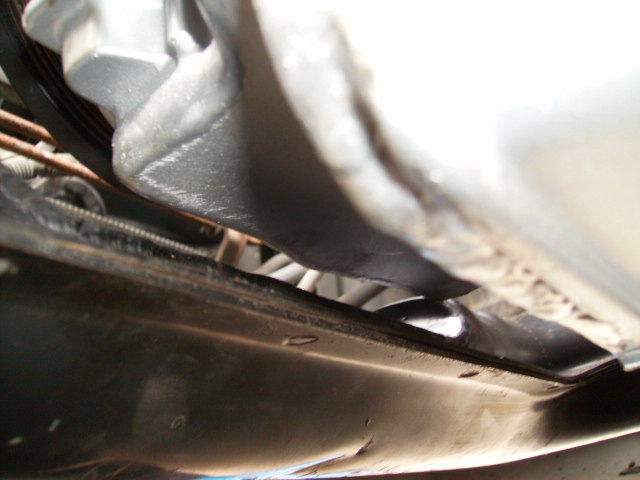

File comment: underneath drivers side
003.JPG [ 98.17 KiB | Viewed 61 times ]
File comment: underneath passenger side
004.JPG [ 85.32 KiB | Viewed 62 times ]
Top
 Profile


Posted: Mon Feb 04, 2008 4:34 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

jason161 wrote:
i am planning to use the stock PCM as it's already got the harness wired up to the sensors, injectors, ignition etc. unless there's a better alternative i'm not aware of?

No, I'm of the belief that the stock PCM is the best way to go, if you can get it working it'd be brilliant.



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Mon Feb 04, 2008 7:05 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

This one is mine for an AU motor. I got away with only a cm clearance between the sump and Kframe without cutting the sump.





Attachments:
File comment: AU clearance
Kframe.JPG [ 334.77 KiB | Viewed 97 times ]



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Mon Feb 04, 2008 7:42 pm
Getting Side Ways
Offline

Age: 31

Posts: 3893

Joined: 15th Nov 2004

Gallery: 24 images

Ride: BF MKII V8 Fairmont Ghia

Location: Perth
WA, Australia

from those pictures with a cut sump it looks as if you could also squeeze it in without a modified k-frame?
