 Post subject: bellhousing patterns eb to au
Posted: Wed Dec 29, 2010 5:38 pm
Fordmods Newbie
Offline

Age: 32

Posts: 2

Joined: 29th Jun 2010

Location: ballarat
VIC, Australia

hi guys
new here
are the eb-ef etc have the same bellhousing as the au engine, and can you put a xf dizzy in the au engine

thanks craig
Top
 Profile


 Post subject: Re: bellhousing patterns eb to au
Posted: Thu Dec 30, 2010 3:48 pm
Oompa Loompa
Offline

Age: 38

Posts: 29

Joined: 21st May 2009

Ride: EF Wagon

Location: Alice Springs
NT, Australia

AFAIK EA through AU all have the same bellhousing patterns.

I believe the XF dizzy will bolt into the 3.9/4.0L engines as it is apparently fairly common in demolition derby cars to use a centrepoint EA intake with an adapter plate and stromberg bolted on with an earlier type dizzy to keep fuel and ignition basic and reliable.

EDIT: Not sure if the dizzy will fit AU, but I guess they still run the idler shaft setup to run the oil pump so I cant see why not.
Top
 Profile


 Post subject: Re: bellhousing patterns eb to au
Posted: Thu Dec 30, 2010 3:52 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

the au and eb bellhousing are a little different..
you can bolt a eb bellhousing onto an au engine but the 4 bottom bolts dont line up...
Top
 Profile


 Post subject: Re: bellhousing patterns eb to au
Posted: Thu Dec 30, 2010 4:40 pm
Fordmods Newbie
Offline

Posts: 9

Joined: 24th Nov 2010

Ride: Au XR6

Location: Melbourne
VIC, Australia

The Au bellhousing is different to the Eb, just take it off and stick your old one onto the transmission. 2 inner bolts (from memory) will not line up but are not necesary.
Top
 Profile


 Post subject: Re: bellhousing patterns eb to au
Posted: Thu Dec 30, 2010 10:31 pm
Fordmods Newbie
Offline

Age: 32

Posts: 2

Joined: 29th Jun 2010

Location: ballarat
VIC, Australia

did anyone have a pic of the bellhousing and the bolt holes that dont line up, i have been told the dizzy will fit the au engine but can fine any info on it

thanks craig
Top
 Profile


 Post subject: Re: bellhousing patterns eb to au
Posted: Thu Dec 30, 2010 11:03 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

i dont have any pics of the difference in bellhousings, but i had previously ran the eb bellhousing on my au engine with no lower bolts and had over 200rwkw and had no issues..

i know the eb dizzy goes into the au block as im currently running one in mine, but i have heard that the xf dizzy fits but i have not tried it myself...
Top
 Profile


 Post subject: Re: bellhousing patterns eb to au
Posted: Thu Dec 30, 2010 11:40 pm
QLD Cruise Moderator
Offline

Age: 52

Posts: 407

Joined: 20th Jul 2009

Gallery: 1 images

Ride: EF Ford Falcon Wagon

Location: Atkinsons Dam an hour out of Brisbane
QLD, Australia

kaosracing6 wrote:
hi guys
new here
are the eb-ef etc have the same bellhousing as the au engine, and can you put a xf dizzy in the au engine

thanks craig


Au bellhousing's are different to the E Series
Top
 Profile


 Post subject: Re: bellhousing patterns eb to au
Posted: Tue Feb 17, 2015 10:52 pm
Getting Side Ways
Offline
User avatar

Age: 102

Posts: 466

Joined: 22nd Jun 2011

Ride: '97 EL Fairmont Ghia

Location: Perth
WA, Australia

Thread mine.

For future reference: the difference between AU and E series. This is an AU sandwich plate on an EF bellhousing. The whole lower half does not line up except for the clutch cable hole. Also it seems AU onwards only uses 2 starter bolts and not 3.




_________________

EL Ghia

Top
 Profile


 Post subject: Re: bellhousing patterns eb to au
Posted: Wed Feb 18, 2015 5:54 am
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

E sereis only uses 2 starter bolts as well on the six.
Top
 Profile


 Post subject: Re: bellhousing patterns eb to au
Posted: Tue Mar 24, 2015 11:42 am
Tyre Shredder
Offline
User avatar

Age: 44

Posts: 363

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

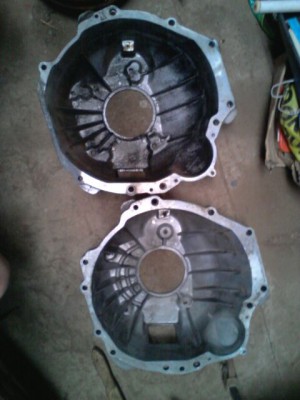

Just found this pic-thought it may help someone-AU bottom/EF top





Attachments:
File comment: AU & EF Bellhousings
IMG_2014100810194.jpg [ 42.28 KiB | Viewed 125 times ]



_________________

XG ute now powered with DOHC-BARRA 182/Tiger extractors/20% Underdrive and BA 4-SPEED + Tiptronic shifter
Mods to come AU XR6 3:45.1 LSD/New wheels and full respray
the-garage-f53/project-xg-fpv-dohc-barra-182-t128753-60.html
