Best operating temperature thermostat for my car's setup



Page 1 of 2 [ 17 posts ] Go to page 1, 2  Next


 Post subject: Best operating temperature thermostat for my car's setup
Posted: Thu Feb 14, 2013 10:43 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1204

Joined: 24th Apr 2010

Gallery: 1 images

Ride: Ef Fairmont

Location: Bleakheath
NSW, Australia

Got an issue with the thermostat I reckon, the gauge goes up to the M before it drops when warming up and when the car's getting a bit of a workout ( up hills, traffic etc) it likes to sit on the M. cruising behind a car it goes up but sits on the top of the L when cruising on an open road on a cool day.
I recently had the whole cooling system flushed, radiator rebuilt ( single core Natrad) and new hoses, along with the reco head. The Thermostat Pepe's gave me was a Tridon TT228-195, I cant find the opening temp on the net but I assume its about 91 degree's. What thermostat opening temp would you guys recommend?
Car is a 1994 Ef Fairmont with a tickford head/cam, extractors and an au head gasket ( raised compression).
Top
 Profile


 Post subject: Re: Best operating temperature thermostat for my car's setup
Posted: Thu Feb 14, 2013 1:20 pm
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

Have you replaced your water pump? A good e series will get up to operating temp and stay there unless your really giving it a hard time



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: Best operating temperature thermostat for my car's setup
Posted: Thu Feb 14, 2013 2:17 pm
Getting Side Ways
Offline

Posts: 836

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

The 195 in the Tridon part number means 195 degrees F, which is 91 degrees C. This is the standard temperature thermostat for an EF, so wouldn't be causing your gauge to read high (unless the thermostat is faulty). You can go at least one step cooler without upsetting the ECU, but that won't fix your high temp problem.

It doesn't sound like your temp sensor (just below the thermostat) is likely the problem, but it's not impossible. Are your thermo fans coming on OK? With the car stationary and idling, the fans should start a couple minutes after the thermostat opens (when the top rad hose gets hot). Once when I had the rad out of my EF, I forgot to plug the thermos back in; the temp got hot every time I slowed down or stopped. Interestingly, I could have gone forever on the highway, and never noticed the fan wasn't working. The rad was more than capable of handling the heat without fan assist.

Could be the water pump. Does the temperature gauge drop when you turn the heater (and ventilation fan) on? That would indicate a good water pump but radiator not coping - for whatever reason. If the heater on makes no difference to the temp gauge, then the radiator is cooling OK.



_________________

95 EF XR6 wagon, 17" FTRs, DBA, QFM, KYB/Koni, AU block, ported EF head, SS Inductions, Territory intake, MLS gasket, milled, Franklin RH24B cam, Coby headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: Best operating temperature thermostat for my car's setup
Posted: Thu Feb 14, 2013 2:53 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

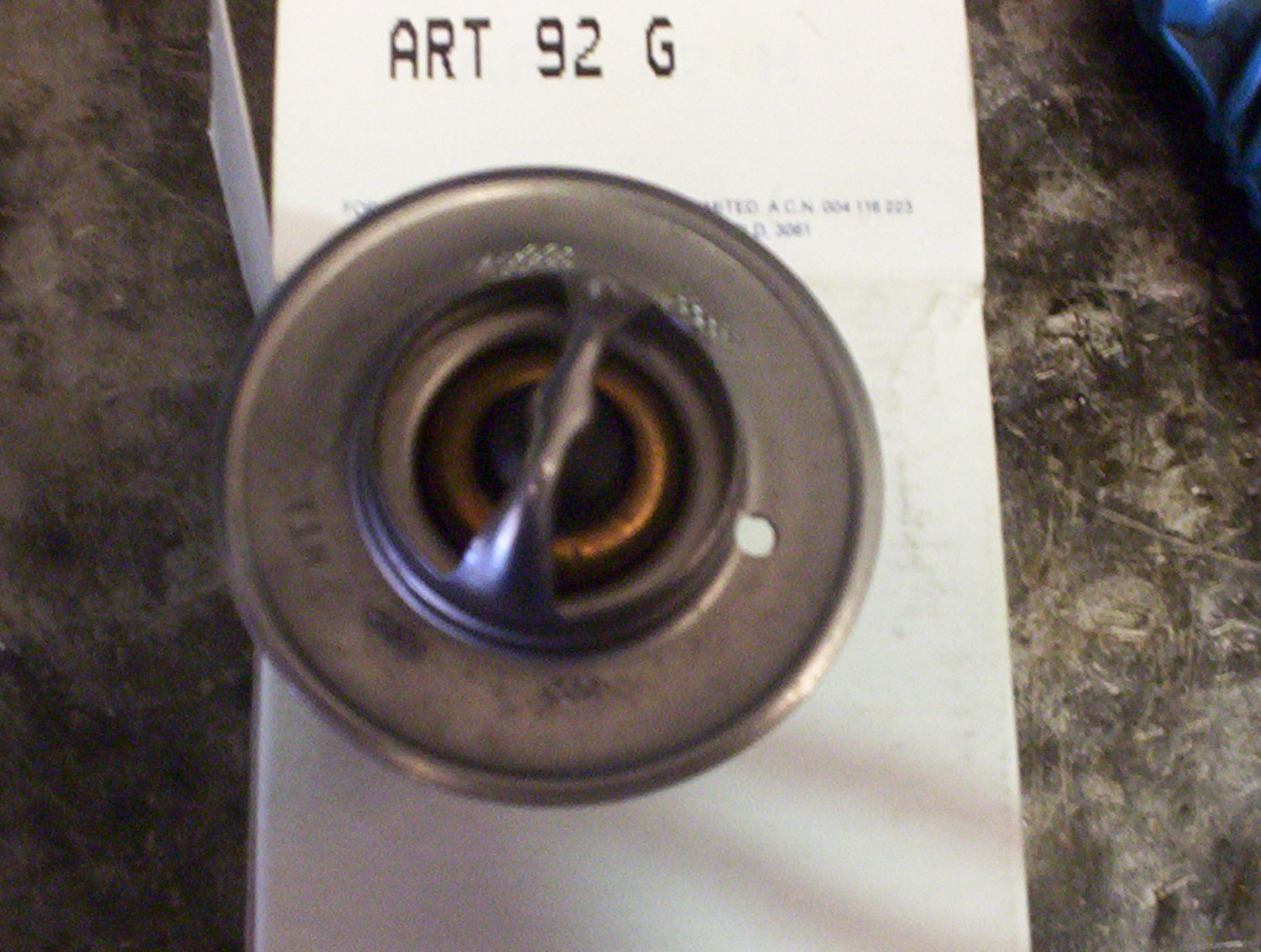

Just to be technical, the Ford spec t'stat is 92*C....P# ART 92 G.
Also, drill a small hole as seen in the pic...this helps eleviate " heat shock " and helps bleed air of the system as well.
This was a Ford TSB....back in the late 90's





Attachments:
Genuine Ford thermostats. 002.jpg
Genuine Ford thermostats. 002.jpg [ 363.49 KiB | Viewed 121 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Best operating temperature thermostat for my car's setup
Posted: Thu Feb 14, 2013 5:51 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

if it runs a little higher then your confortable with i would go for a 87 degc thermostat. which is a 188 deg f, thats what im running in my au..
Top
 Profile


 Post subject: Re: Best operating temperature thermostat for my car's setup
Posted: Thu Feb 14, 2013 7:33 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1204

Joined: 24th Apr 2010

Gallery: 1 images

Ride: Ef Fairmont

Location: Bleakheath
NSW, Australia

Yeah the thermo's kick in when she gets to the top of the M and I can actually watch the thermostat open on the temp gauge as it goes to the middle of the M and then drops down quickly to the A. The flow is great so I would say the pumps not the problem as when the thermostat does open it flows very well.
Thanks Troyman. Ill go the 87 I think
Top
 Profile


 Post subject: Re: Best operating temperature thermostat for my car's setup
Posted: Fri Feb 15, 2013 9:42 pm
Getting Side Ways
Offline

Posts: 1687

Joined: 5th Nov 2004

Gallery: 5 images

Ride: 1994 ED Ricer

Location: Perth
WA, Australia

i run a tridon 180 thermostat (82 degrees) perfect setup.
Make sure you get the HIFLOW option
Top
 Profile


 Post subject: Re: Best operating temperature thermostat for my car's setup
Posted: Sat Feb 16, 2013 12:26 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1204

Joined: 24th Apr 2010

Gallery: 1 images

Ride: Ef Fairmont

Location: Bleakheath
NSW, Australia

I think it was from raising the compression with the Au head gasket that didnt help either with the 91 thermostat. In saying that its been a bit more stable now the harmonic balancer has been done so maybe that was not helping the pump. Still to high for my liking.
Do you think an Na tickford head raised compression with a single core radiator running an 82 would be too low? Im leading towards Troymans suggestion of an 87, where will the 87 kick in on the gauge when it opens on warm up? Id like the bottom of the M at most and to sit bottom of the A or middle of the A under normal load.
Top
 Profile


 Post subject: Re: Best operating temperature thermostat for my car's setup
Posted: Sat Feb 16, 2013 12:39 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

raising the compression that tiny amount wont make it run hotter,
Top
 Profile


 Post subject: Re: Best operating temperature thermostat for my car's setup
Posted: Sat Feb 16, 2013 10:08 am
Getting Side Ways
Offline

Age: 26

Posts: 789

Joined: 9th Dec 2011

Ride: S1 eb 5speed

Location: Coffs Harbour
NSW, Australia

Didn't know you could get 87deg thermostats. Sounds like a better option then 81deg
Top
 Profile


 Post subject: Re: Best operating temperature thermostat for my car's setup
Posted: Sat Feb 16, 2013 11:46 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1204

Joined: 24th Apr 2010

Gallery: 1 images

Ride: Ef Fairmont

Location: Bleakheath
NSW, Australia

TROYMAN wrote:
raising the compression that tiny amount wont make it run hotter,

O.k. Sorry I got told that by the bloke I bought the thermostat off when I asked.
Bugs me because it flows great when opened and I spent all that cash on getting the cooling system professionally flushed and the Natrad single core radiator rebuilt and I was expecting a car with no drama's with heating up. I know its still within the " normal" range but the thermo fans dont kick in until it goes above the M, when I get the J3 I might also see if they can kick in the thermo fans earlier, maybe at the middle of the M
Top
 Profile


 Post subject: Re: Best operating temperature thermostat for my car's setup
Posted: Sat Feb 16, 2013 7:51 pm
Getting Side Ways
Offline

Age: 26

Posts: 789

Joined: 9th Dec 2011

Ride: S1 eb 5speed

Location: Coffs Harbour
NSW, Australia

How often does it get up there?
Top
 Profile


 Post subject: Re: Best operating temperature thermostat for my car's setup
Posted: Sat Feb 16, 2013 8:26 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1204

Joined: 24th Apr 2010

Gallery: 1 images

Ride: Ef Fairmont

Location: Bleakheath
NSW, Australia

when warming the car up it goes to the top of the M before it quickly drops down to the A ( thermostat obviously opens then) and when driving in stop start traffic and going up the mountains from Penrith on a hot day it sits around the M for most of the way until you get to open cruising traffic at around 80km/h with minimal hills ( no extra acceleration needed) and then it slowly goes back down to the A.
Top
 Profile


 Post subject: Re: Best operating temperature thermostat for my car's setup
Posted: Sat Feb 16, 2013 8:30 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1204

Joined: 24th Apr 2010

Gallery: 1 images

Ride: Ef Fairmont

Location: Bleakheath
NSW, Australia

Living in Lawson its about once a week or once a fortnight we go down to Penrith and travel back up the mountains. I am looking at doing a decent trip to Brisvagas later this year and want to have a steady low temp before I even consider the trip.
Katoomba Radiator service did the radiator overhaul and flush with fresh coolant. He did say the radiator was blocked if the car overheats when going up hills but then changed his mind when I said he had reco'ed the radiator and agreed it was the theromostat....
Top
 Profile


 Post subject: Re: Best operating temperature thermostat for my car's setup
Posted: Sat Feb 16, 2013 11:19 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2098

Joined: 19th Jan 2005

Gallery: 9 images

Ride: 5L 5 speed Fairmont Ghia

Location: St Maoris
NSW, Australia

last time I checked, this 'M' that you refer to is part of "NORMAL". I wouldn't worry about it



_________________

Remember kids, the more pages of crap in your build thread, the bigger your e-penis is

Top
 Profile
