 Post subject: checking timing marks on EL
Posted: Fri Apr 03, 2015 4:18 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 552

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

hey guys just wondering if u can tell me if my timing looks like its one tooth out or is it fine? cause I got some pinging problems at mid range rpm. uploaded some pics so u can see.





Attachments:

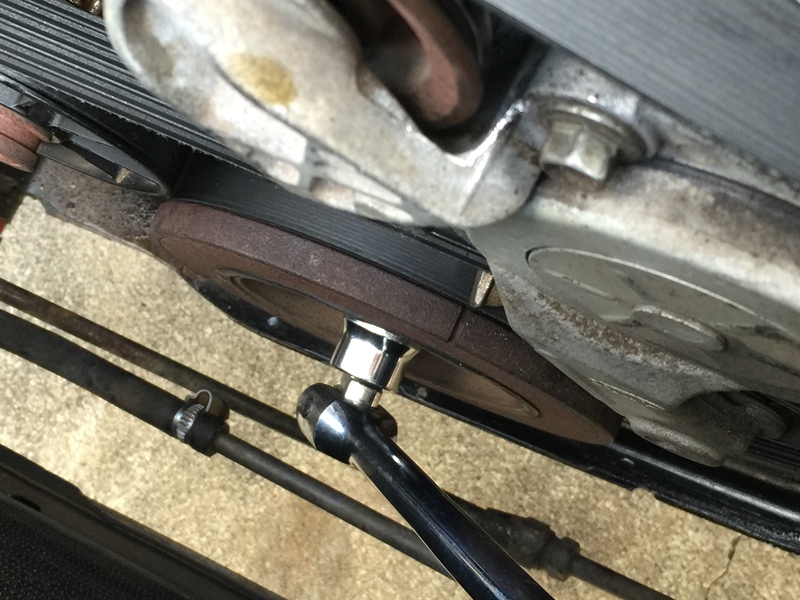

crank mark.jpg
crank mark.jpg [ 205.38 KiB | Viewed 59 times ]

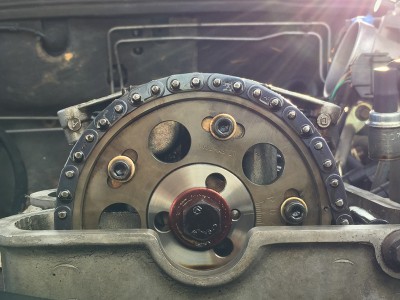

cam mark.jpg
cam mark.jpg [ 195.1 KiB | Viewed 70 times ]
Top
 Profile


 Post subject: Re: checking timing marks on EL
Posted: Fri Apr 03, 2015 4:39 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Looks about right. Timing mark on the cam gear should be approx 3mm above the head at TDC.

What cam are you running to require the Vernier Gear?
Top
 Profile


 Post subject: Re: checking timing marks on EL
Posted: Fri Apr 03, 2015 5:23 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 552

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

wade billet 1673 I think I got one of the last ones before they were just giving out regrinds.
Top
 Profile


 Post subject: Re: checking timing marks on EL
Posted: Sat Apr 04, 2015 9:15 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

pinging is more to do with ignition timing, fuel quality vs compression, not cam timing.

whats the ignition timing at?
Top
 Profile


 Post subject: Re: checking timing marks on EL
Posted: Sat Apr 04, 2015 5:29 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 552

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

pretty much tdc. can the au knock sensor play a part in pinging?
Top
 Profile


 Post subject: Re: checking timing marks on EL
Posted: Sat Apr 04, 2015 5:36 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

im guessing its a au engine ??
the knock sensor should remove timing if it detects pinging, maybe its faulty?
but unless your running low octane fuel or a bad batch the engine shouldn't be relying on the knock sensor..

what fuel do you run and what heat range spark plugs are you using?
Top
 Profile


 Post subject: Re: checking timing marks on EL
Posted: Sat Apr 04, 2015 6:03 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 552

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

ive tried another ecu but it still pings but not as bad as my standard ecu which is my XR6 ecu I always run 98 in it as it is more noticeable with 91 in it. the spark plugs are EL XR6 ones I think there the ZGR6B-11. it is more noticeable on a warm day aswell
Top
 Profile


 Post subject: Re: checking timing marks on EL
Posted: Sat Apr 04, 2015 7:40 pm
Getting Side Ways
Offline

Age: 34

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

What fpr are you running? A standard fpr on an xr ecu will be lean



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: checking timing marks on EL
Posted: Sun Apr 05, 2015 6:17 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 552

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

not sure on the fpr
