Coolant warning lamp



Page 1 of 2 [ 22 posts ] Go to page 1, 2  Next


 Post subject: Coolant warning lamp
Posted: Thu Jan 18, 2007 12:46 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2718

Joined: 27th Nov 2004

Gallery: 6 images

Ride: EF & VTR1000

Location: Wollongong
NSW, Australia

The Coolant warning lamp keeps coming on in my EF, I check the water and it appears to be fine, replaced the radiator hoses as one had a small leak, but nothing to worry about, could this be a faulty sensor? and if it was would it appear through the airbag light flashing on start up? it comes on, then just turns off when it feels like, then will come on again and stay on for what ever it feels like.. Any ideas?

Cheers,
Rob
Top
 Profile


Posted: Thu Jan 18, 2007 12:49 pm
Getting Side Ways
Offline
User avatar

Posts: 653

Joined: 2nd May 2006

Gallery: 1 images

Ride: FG G6E Turbo

Location: Melbourne
VIC, Australia

The coolant warning lamp on a ED, where is the sensor (thermostat or radiator overflow tank)?
as mine needs to be changed as its always on and I always have water in my car



_________________

FG G6E Turbo
Grandpa Spec!

Top
 Profile


Posted: Thu Jan 18, 2007 12:53 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 10126

Joined: 5th Nov 2004

Gallery: 4 images

Ride: EF Gli Ghia, XP Fairmont

Location: Perth
WA, Australia

yes - you may be able to pull the sensor out and give it a clean, it could just have some gunk stuck on/in it somewhere. Or for peice of mind, put a new one in.



_________________

Owning 1 of 67612 EF GLi Sedans made
FACT: "Chuck Norris owns the greatest Poker Face of all-time. It helped him win the 1983 World Series of Poker despite him holding just a Joker, a Get out of Jail Free Monopoly card, a 2 of clubs, 7 of spades and a green #4 card from the game Uno."

Top
 Profile


Posted: Thu Jan 18, 2007 12:55 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2718

Joined: 27th Nov 2004

Gallery: 6 images

Ride: EF & VTR1000

Location: Wollongong
NSW, Australia

How do they come out greg? just threaded into the overflow bottle? or na? lol
Top
 Profile


Posted: Thu Jan 18, 2007 1:00 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 10126

Joined: 5th Nov 2004

Gallery: 4 images

Ride: EF Gli Ghia, XP Fairmont

Location: Perth
WA, Australia

yeah, you undo the white "plug" which threads in behind the plug. Then pull the plug out!



_________________

Owning 1 of 67612 EF GLi Sedans made
FACT: "Chuck Norris owns the greatest Poker Face of all-time. It helped him win the 1983 World Series of Poker despite him holding just a Joker, a Get out of Jail Free Monopoly card, a 2 of clubs, 7 of spades and a green #4 card from the game Uno."

Top
 Profile


 Post subject: coolant light
Posted: Thu Jan 18, 2007 1:04 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1132

Joined: 11th Jun 2006

Gallery: 1 images

Ride: ef fairmont,

Location: brisbane
QLD, Australia

it sounds like your sensor is busted mate common on those sensors is to fill up with water and sink to the bottom of your header tank. with the air bag light it sounds like there mabey a fault in the air bag system the light is flashin a code it will flash a sequence of numbers say it will flash once pause then flash twice thats a code 12 then it will go off for a few seconds then repeat the sequence again then stay on till the ignition is turned off just count these flashes and post the code up and some one will be able to help you out :D



_________________

95 ef montfor sale pm for info, 88 hilux mud truck

Top
 Profile


Posted: Thu Jan 18, 2007 1:20 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2718

Joined: 27th Nov 2004

Gallery: 6 images

Ride: EF & VTR1000

Location: Wollongong
NSW, Australia

ok its spitting out these codes;

F - being a flash P - being a pause

F - 3 times
P - 3 secs
F - 3 times
P - 6secs
F - 3 times
P - 3 secs
F - 3 times
P - 6 secs

keeps doing that untill it just stays on, so is that code 33 and code 36?

not sure on these code things.. lol
Top
 Profile


Posted: Thu Jan 18, 2007 1:31 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2718

Joined: 27th Nov 2004

Gallery: 6 images

Ride: EF & VTR1000

Location: Wollongong
NSW, Australia

meh the code flashing is passanger side airbag, which i don't have so has nothing to do with coolant sensor

anyone know how much these little f**k are?
Top
 Profile


Posted: Thu Jan 18, 2007 1:49 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 4102

Joined: 18th Nov 2004

Gallery: 10 images

Ride: PX2 Ranger 4x4 XLT Dual CAB

Location: Carrum Downs
VIC, Australia

More than likely the float on the sensor has a small crack in it an it is full of water.
New one is around $25 for the Float only if you can still find one.
The Sensor & Float together is around $60

Or you could try sealing it. Drill a small hole in the float to allow water to escape then seal it back up with a waterproof sealer such as silicone. Make sure you smear it over the whole float, to seal the original crack.



_________________

She's meanness put to music and the b**ch is born to run!
Like the sign says, "speed's just a question of money. How fast can you go?"

Top
 Profile


Posted: Thu Jan 18, 2007 1:58 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2718

Joined: 27th Nov 2004

Gallery: 6 images

Ride: EF & VTR1000

Location: Wollongong
NSW, Australia

I just had a quick look at the sensor and I can't see how you'd be able to get it out?
Top
 Profile


 Post subject: coolant sensor
Posted: Thu Jan 18, 2007 2:01 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1132

Joined: 11th Jun 2006

Gallery: 1 images

Ride: ef fairmont,

Location: brisbane
QLD, Australia

a pair of pointy nose(needle nose)pliers. you will find on the sensor there is a screw fitting that holds the sensor into the bottle use the pliers at 9 and 3 on the fitting or 12 and 6 up to you and unscrew it then pull the sensor out (damn its easyier to show someone then explain it) hope you understand my mummble jummble :D :lol:



_________________

95 ef montfor sale pm for info, 88 hilux mud truck

Top
 Profile


Posted: Thu Jan 18, 2007 2:17 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 4102

Joined: 18th Nov 2004

Gallery: 10 images

Ride: PX2 Ranger 4x4 XLT Dual CAB

Location: Carrum Downs
VIC, Australia

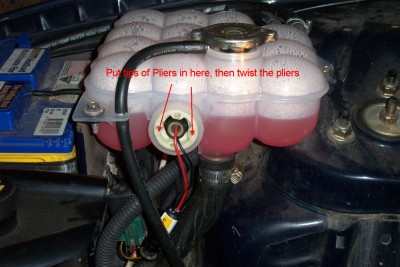

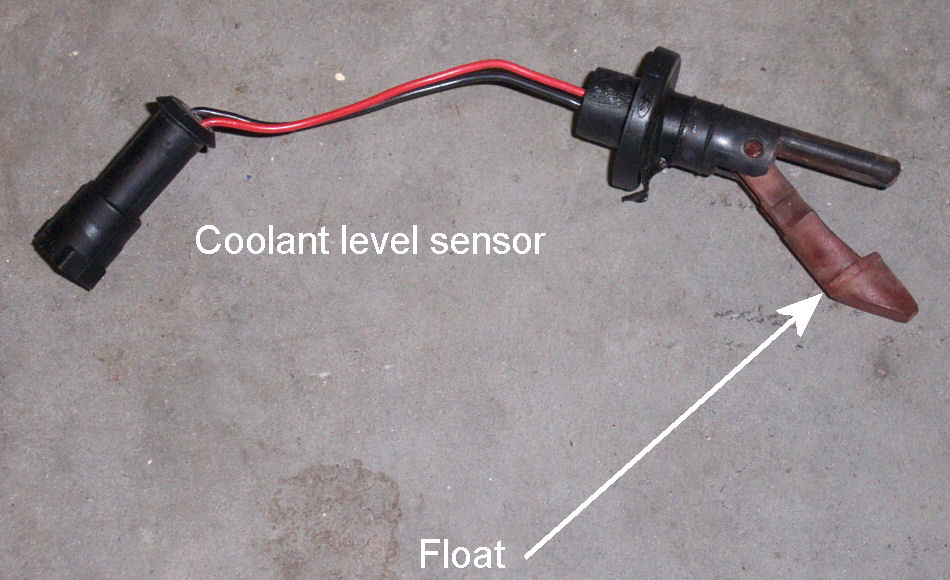

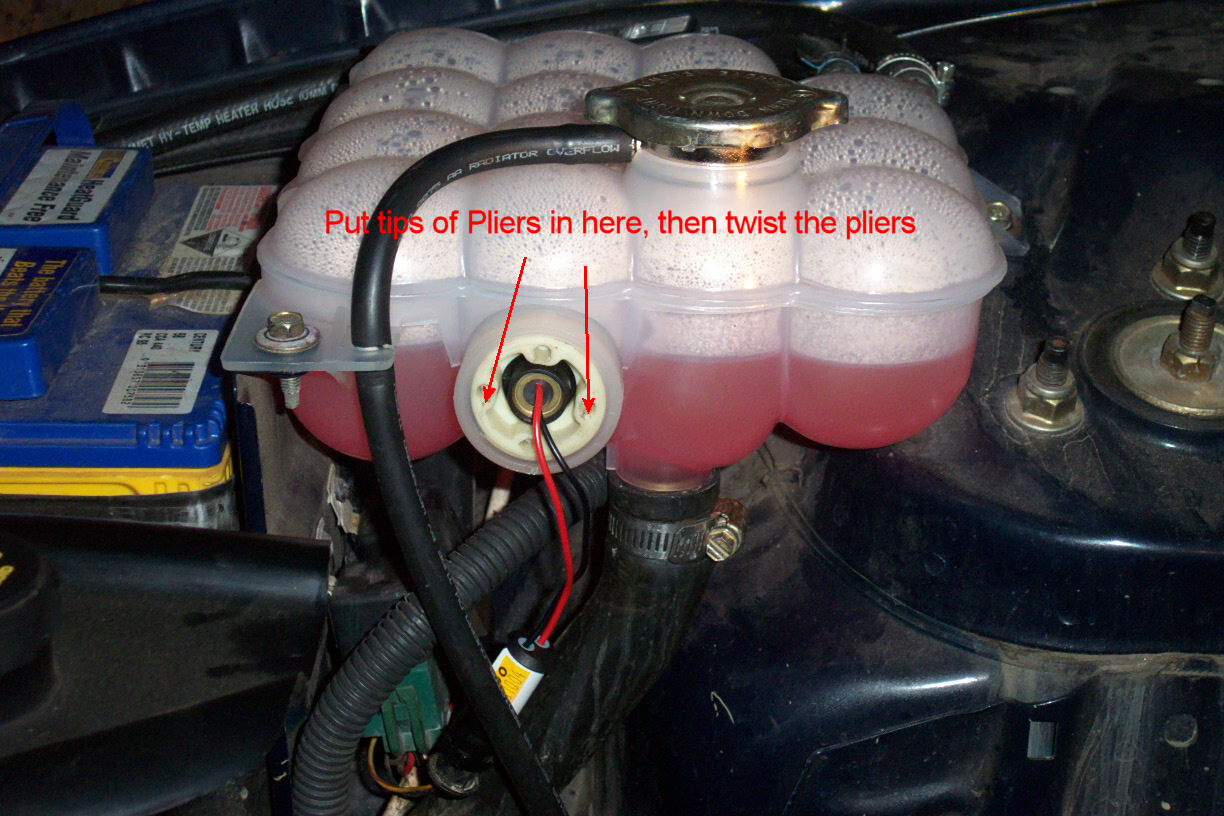

To replace the float, drain/syphon the header tank, unplug sensor then unscrew the white plastic ring on the side of the tank, I use a pair of pointed nose pliers. Sensor just pulls out from tank. float can then be removed from sensor.

Here's a couple of pics for you, from when I did mine.





Attachments:
header tank & float_0195.JPG
header tank & float_0195.JPG [ 116.22 KiB | Viewed 17 times ]
header tank & float_0194.JPG
header tank & float_0194.JPG [ 220.57 KiB | Viewed 28 times ]



_________________

She's meanness put to music and the b**ch is born to run!
Like the sign says, "speed's just a question of money. How fast can you go?"

Top
 Profile


Posted: Thu Jan 18, 2007 2:44 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2718

Joined: 27th Nov 2004

Gallery: 6 images

Ride: EF & VTR1000

Location: Wollongong
NSW, Australia

lol - thanks for the details guys.

I'll order a new one and chuck it in..
Top
 Profile


Posted: Thu Jan 18, 2007 3:17 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 10126

Joined: 5th Nov 2004

Gallery: 4 images

Ride: EF Gli Ghia, XP Fairmont

Location: Perth
WA, Australia

that's a ncie new bottle you have there max :P



_________________

Owning 1 of 67612 EF GLi Sedans made
FACT: "Chuck Norris owns the greatest Poker Face of all-time. It helped him win the 1983 World Series of Poker despite him holding just a Joker, a Get out of Jail Free Monopoly card, a 2 of clubs, 7 of spades and a green #4 card from the game Uno."

Top
 Profile


Posted: Thu Jan 18, 2007 5:44 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 4102

Joined: 18th Nov 2004

Gallery: 10 images

Ride: PX2 Ranger 4x4 XLT Dual CAB

Location: Carrum Downs
VIC, Australia

Happy wrote:
that's a ncie new bottle you have there max :P


HAD!



_________________

She's meanness put to music and the b**ch is born to run!
Like the sign says, "speed's just a question of money. How fast can you go?"

Top
