crankcase explosion!!



Page 1 of 3 [ 31 posts ] Go to page 1, 2, 3  Next


 Post subject: crankcase explosion!!
Posted: Tue Jun 29, 2010 12:05 am
Stock as a Rock
Offline

Age: 32

Posts: 128

Joined: 10th Oct 2005

Ride: turbo ef falcon

Location: canberra
ACT, Australia

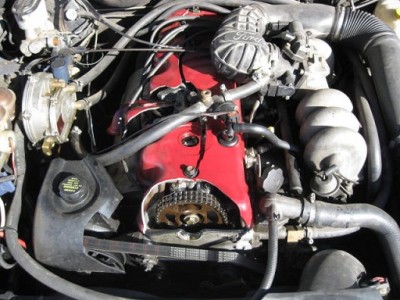

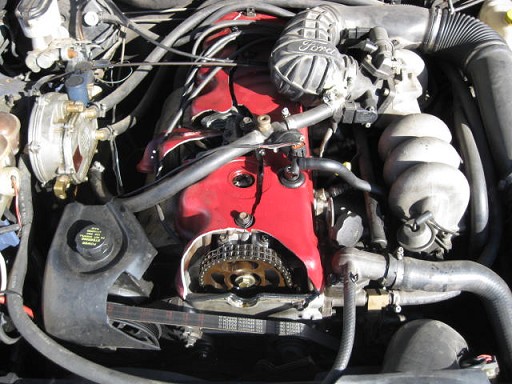

Was working on the bosses car and found the injectors to be pumping in a ridiculous amount of fuel.. changed the injectors over and removed all the plugs, did a routine spark check since it still didn't want to fire properly - cranked it twice then all of a sudden this happened...




_________________

I will not eat oysters. I want my food dead. Not sick. Not wounded. Dead.

Top
 Profile


 Post subject: Re: crankcase explosion!!
Posted: Tue Jun 29, 2010 12:09 am
Getting Side Ways
Offline

Age: 29

Posts: 2563

Joined: 19th Feb 2007

Gallery: 21 images

Ride: 98 EL Futura

Power: 199 rwkw

Location: Lilydale
VIC, Australia

wow....



_________________

EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come

Top
 Profile


 Post subject: Re: crankcase explosion!!
Posted: Tue Jun 29, 2010 12:17 am
Getting Side Ways
Offline

Age: 29

Posts: 638

Joined: 16th Feb 2005

Ride: EA Turbo

Location: Melbourne
VIC, Australia

Damn what a waste of a tickford rocker cover :(



_________________

1988 EA S-Pack|MPI|LSD|AIT turbo manifold|Garrett GT3540|3" Exhaust turbo back|Resprayed|microtech LT8s|60lb Injectors|Bosch 044 with surge tank|3000 RPM stall|Ported AU head|Wade turbo cam|Crow double valve springs|1.3mm MLS headgasket|C4 conversion|Built bottom end|10.6@125MPHi

Top
 Profile


 Post subject: Re: crankcase explosion!!
Posted: Tue Jun 29, 2010 12:30 am
Getting Side Ways
Offline

Age: 41

Posts: 4629

Joined: 23rd Nov 2006

Gallery: 4 images

Ride: 5.0 AU's and 5.0 Maverick

Power: 139 rwkw

Location: Sydney West
NSW, Australia

Looks like the sump was fuel of petrol.
An issue old school people keep an eye out for after the amount of times the diaphram used to let go in mechanical fuel pumps and fill the sump with fuel.



_________________

xr6turnip wrote:
More people paid for a ride in a VT commodore then an AU Falcon so the VT is superior.
Based on that fact my Mum is the best around!

Top
 Profile


 Post subject: Re: crankcase explosion!!
Posted: Tue Jun 29, 2010 12:35 am
Stock as a Rock
Offline

Age: 32

Posts: 128

Joined: 10th Oct 2005

Ride: turbo ef falcon

Location: canberra
ACT, Australia

Yeah there was a ridiculous amount of fuel in the sump, though it was pretty unlucky to have the perfect mixture of vapour under the rocker cover to go off like that! Needless to say, there was an almighty bang and I lost my hearing for a few minutes.. lucky I didn't lose more than that! :roll:



_________________

I will not eat oysters. I want my food dead. Not sick. Not wounded. Dead.

Top
 Profile


 Post subject: Re: crankcase explosion!!
Posted: Tue Jun 29, 2010 12:44 am
Getting Side Ways
Offline

Age: 26

Posts: 1109

Joined: 4th Sep 2009

Ride: 92 EB s

Location: DORRIGO
NSW, Australia

Holy.
So....
Never seen that before.
Guessing all the killerwasps excaped.
Top
 Profile


 Post subject: Re: crankcase explosion!!
Posted: Tue Jun 29, 2010 12:45 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

Thats huge! Lucky indeed bud.



_________________

>>>EF Futura T build<<<

Top
 Profile


 Post subject: Re: crankcase explosion!!
Posted: Tue Jun 29, 2010 12:51 am
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

so no video of it then?



_________________

R.I.P Tobias my son.

Top
 Profile


 Post subject: Re: crankcase explosion!!
Posted: Tue Jun 29, 2010 2:39 am
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 4285

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

:shock:

Never seen that on a modern EFI engine, but i have seen something similar on old school carby & mech fuel pump engines, due to filling the sump with petrol

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|FS [VIC]: Wrecking - Eb XR8 - Parts available |Build Thread|Ebay Items - Ford Parts|

Top
 Profile


 Post subject: Re: crankcase explosion!!
Posted: Tue Jun 29, 2010 7:50 am
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 433

Joined: 18th Jul 2009

Ride: NL FAIRLANE BA TURBO POWERED

Location: ballarat
VIC, Australia

I was looking through pickles catalogue and saw this and wondering what could have caused this i guess i now know.





Attachments:
Item.jpg [ 74.46 KiB | Viewed 73 times ]
Top
 Profile


 Post subject: Re: crankcase explosion!!
Posted: Tue Jun 29, 2010 9:47 am
Getting Side Ways
Offline

Posts: 2448

Joined: 5th Nov 2004

Gallery: 7 images

Location: Brisbane
QLD, Australia

Wasnt an LPG Car was it? - I noticed the pickles one was.

I got a conversion in sydney from a "reputable" place.. and they didnt relocate the rocker breather intake hose. So the Crank/Rocker Cover filled with a perfect LPG Mixture instead of just fresh air. I was lucky - I saw the problem and fixed it.

Ive seen that mistake on most LPG Conversions on those engines in the aftermarket. I think its just Lazy. The Rocker Breather needs to be blocked at the throttle body (just in front of the butterfly), and relocated to the fresh side of the mixer. Some mixers actually have a fitting for it.

I often see/hear of this happening, and Guys not understanding why. I dare say the EB/D crack was due to too much fuel in the sump as said, but that AU is definetly due to the LPG system

Nigel
Top
 Profile


 Post subject: Re: crankcase explosion!!
Posted: Tue Jun 29, 2010 10:13 am
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 4307

Joined: 5th Nov 2004

Gallery: 9 images

Ride: EF Falcon XT-T

Location: Mornington Peninsula
VIC, Australia

Yeah i've seen an LPG 4L do the above



_________________

FALCN6 - EF GLi Turbo, 20" Rims, Air Bag Suspension, Straight LPG, 225rwkw
DTHWGN - EA GL Wagon, LTD Interior, Satin Black, 5.0, Turbo
RACER - EF Futura , 5.0, 5 Speed
PROJECT - 83 Thunderbird, Lowered, 18" Billet Wheels
DAILY - BA Fairmont Ghia 5.4 3V

Top
 Profile


 Post subject: Re: crankcase explosion!!
Posted: Tue Jun 29, 2010 10:14 am
Getting Side Ways
Offline

Age: 34

Posts: 3406

Joined: 7th Feb 2005

Ride: AU2 Ute

Location: melbourne
VIC, Australia

This happened to Dad's EA a few years ago.

It woke up the neighbourhood.

The engine filled with gas overnight and ignited when he cranked it over.
Top
 Profile


 Post subject: Re: crankcase explosion!!
Posted: Tue Jun 29, 2010 2:16 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 4285

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

I have seen the odd LPG powered falcon blow up the rocker cover like that, always wondered how it managed to happen, now we know.

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|FS [VIC]: Wrecking - Eb XR8 - Parts available |Build Thread|Ebay Items - Ford Parts|

Top
 Profile


 Post subject: Re: crankcase explosion!!
Posted: Tue Jun 29, 2010 2:33 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 741

Joined: 29th May 2007

Ride: EF XR8 347

Power: 232 rwkw

Location: Perth
WA, Australia

Makes you wonder why ADR specify a sealed PCV as opposed to an open air one if this s**t can happen...



_________________

347 XR8 Build Thread
