D.I.Y i6 head porting



Page 1 of 2 [ 22 posts ] Go to page 1, 2  Next


 Post subject: D.I.Y i6 head porting
Posted: Sat Jun 23, 2007 1:07 am
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 1953

Joined: 1st Feb 2006

Gallery: 25 images

Ride: BA on gas. EL on gas. XF on gas.

Location: Greenacres/Adelaide
SA, Australia

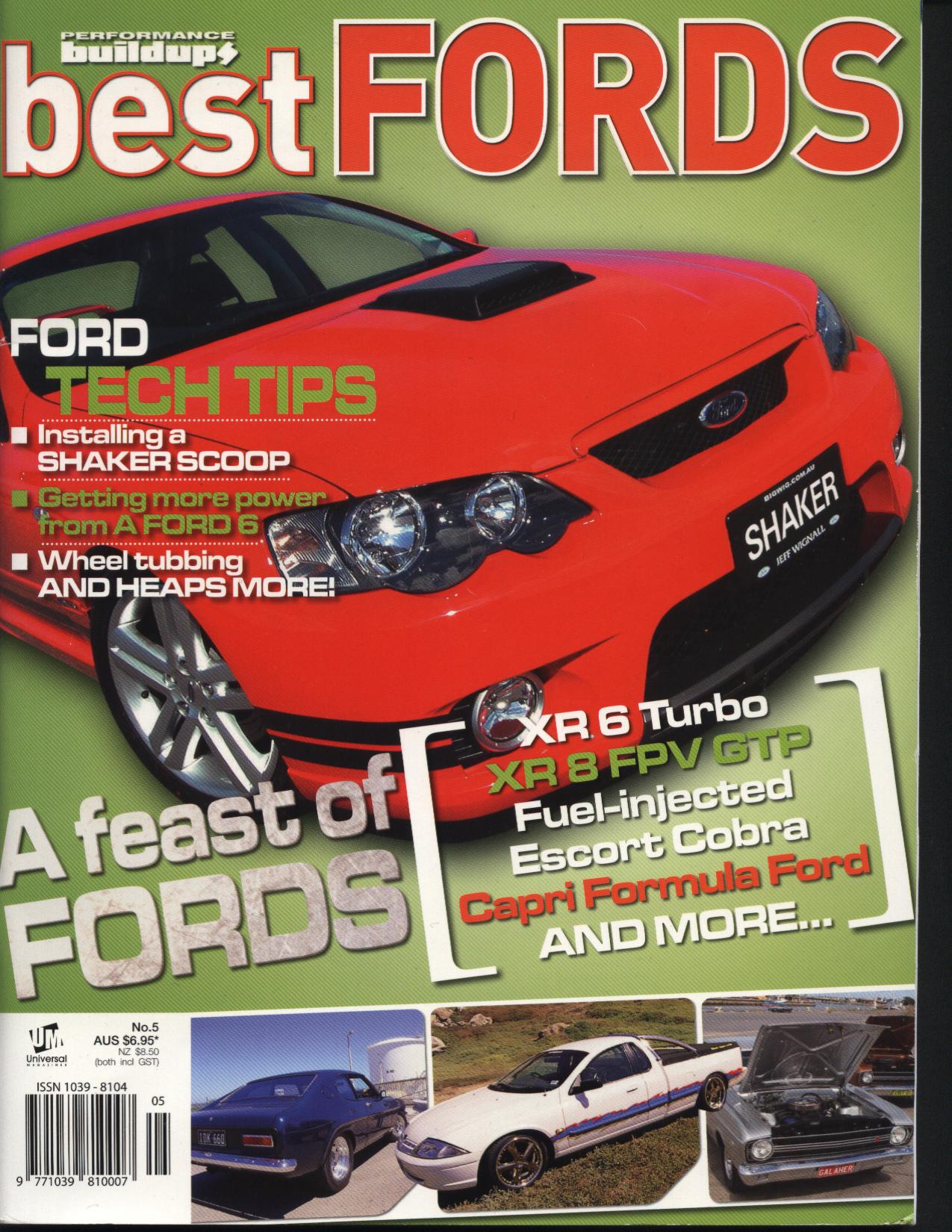

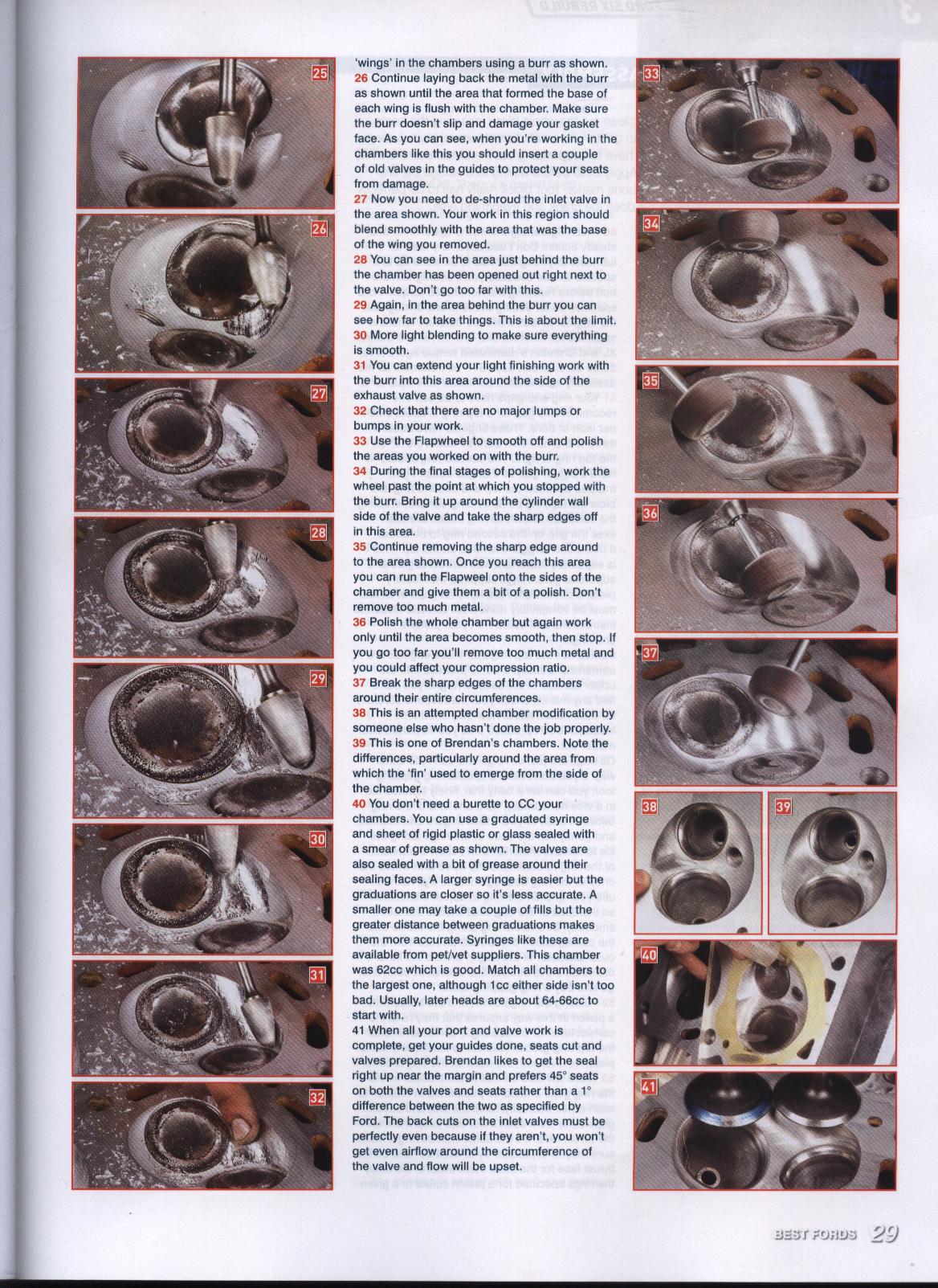

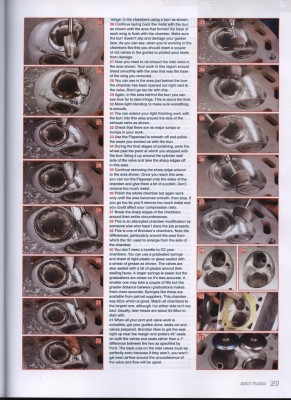

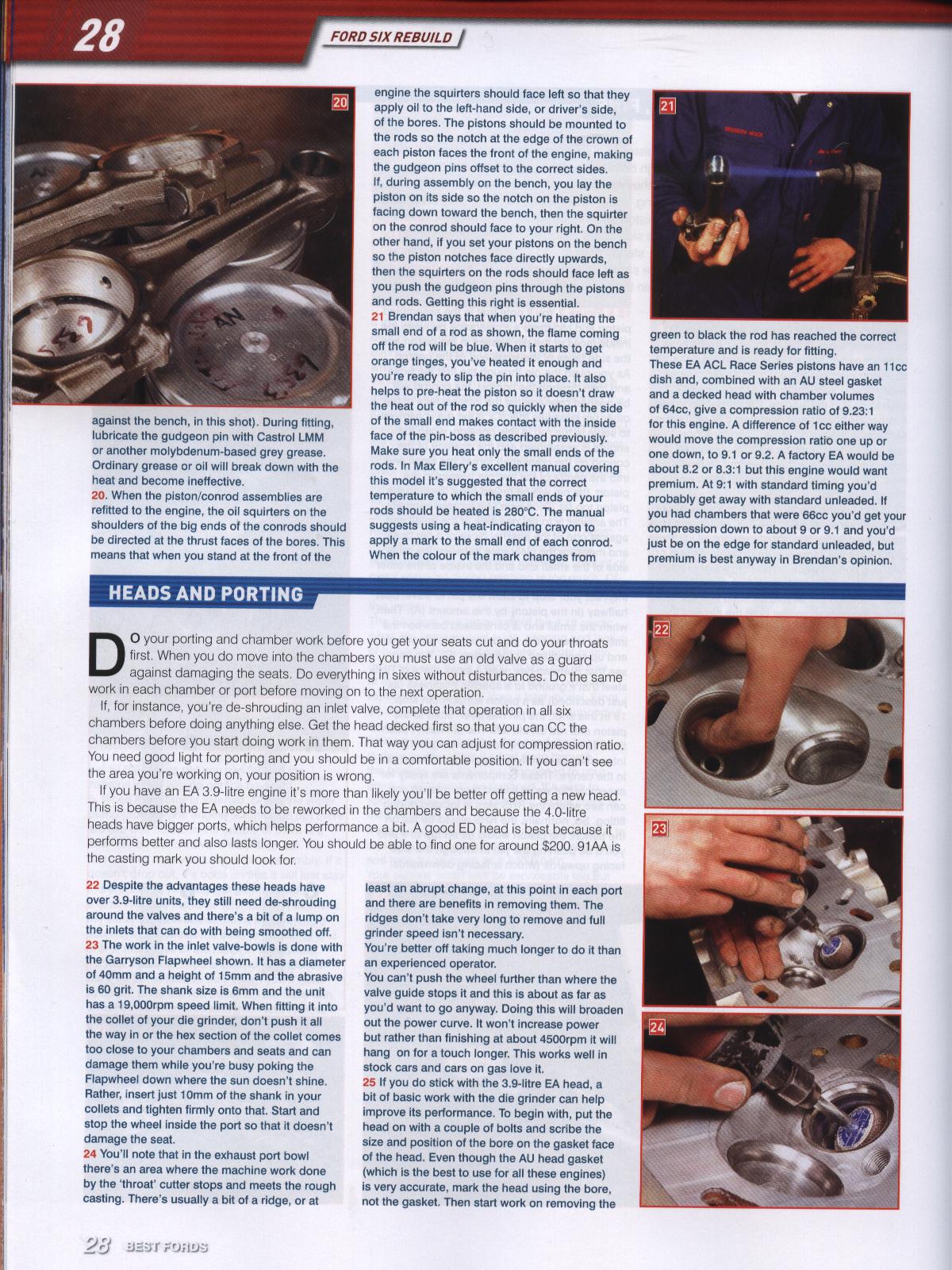

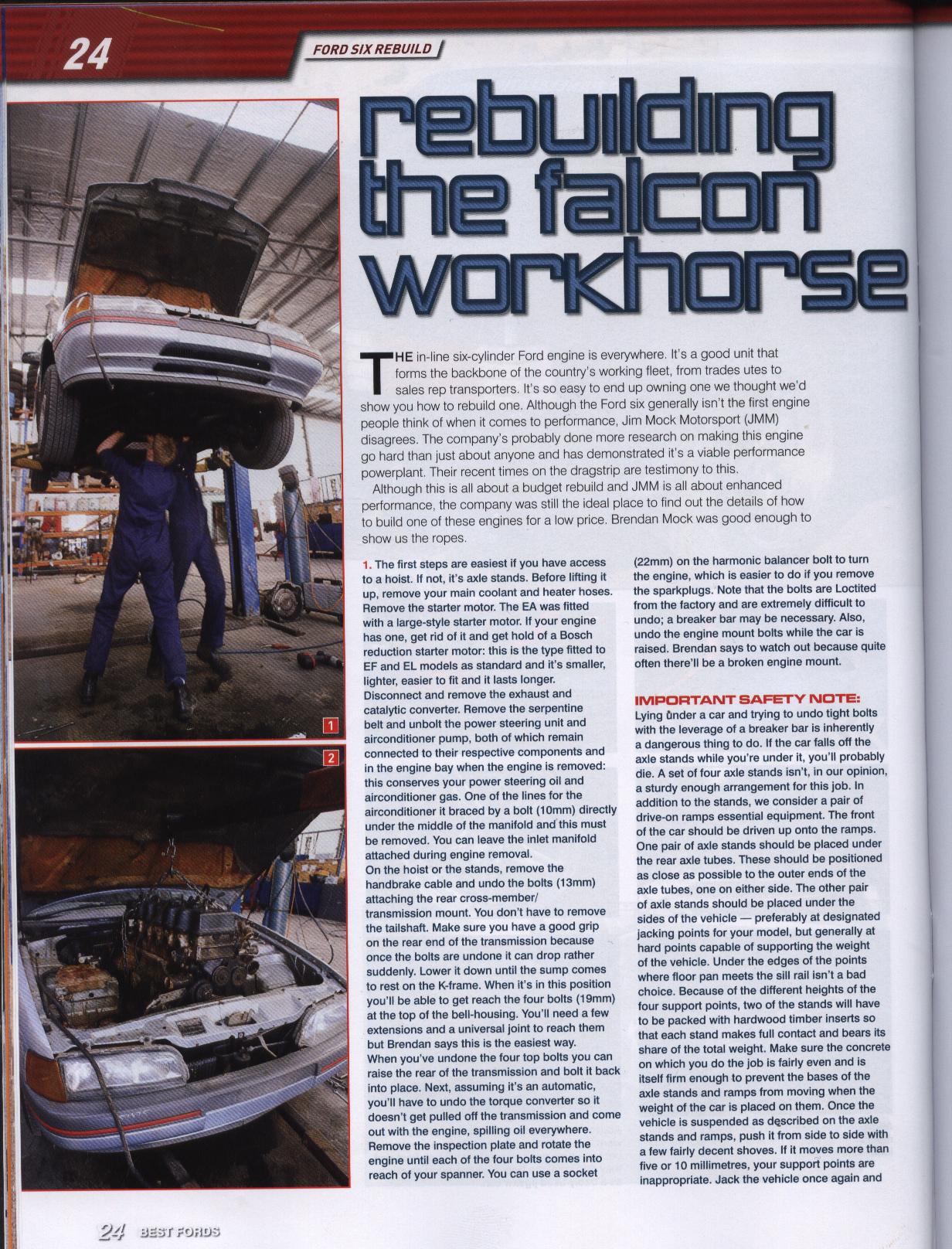

Take a look at Best Fords, I got this copy a week ago. This info came from Brendan Mock at JMM (Jim Mock Motorsport).





Attachments:
BestFordsCover.jpg [ 334.69 KiB | Viewed 141 times ]
BestFordsP1.jpg [ 411.77 KiB | Viewed 551 times ]
BestFordsP2.jpg [ 407.13 KiB | Viewed 835 times ]
BestFordsP3.jpg [ 381.49 KiB | Viewed 1124 times ]



_________________

Member Number 8804

Top
 Profile


Posted: Sat Jun 23, 2007 2:07 am
Getting Side Ways
Offline
User avatar

Posts: 2945

Joined: 24th Jan 2005

Gallery: 18 images

Ride: XW, EL, Territory, VFR800

Power: 129 rwkw

Location: Adelaide
SA, Australia

Very handy... Bookmarking this for when I rebuild my i6
Top
 Profile


Posted: Sat Jun 23, 2007 2:25 am
Getting Side Ways
Offline

Age: 30

Posts: 410

Joined: 27th Jul 2005

Ride: Mazda CX-5 & 96 EL Falcon

Location: Adelaide
SA, Australia

Might have a go, need to do the head gasket on the next few weeks so this looks like it might be worth a go. what advantages will this give? sorry I know its a dump question but I'm just starting out with all the engine mod stuff.



_________________

My EL Gli.

Top
 Profile


Posted: Sat Jun 23, 2007 4:35 am
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 1953

Joined: 1st Feb 2006

Gallery: 25 images

Ride: BA on gas. EL on gas. XF on gas.

Location: Greenacres/Adelaide
SA, Australia

Get a 91AA head and do the work before you pull yours apart. I should be able to get you a good price on your head work (facing ect.).



_________________

Member Number 8804

Top
 Profile


Posted: Sat Jun 23, 2007 12:39 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4849

Joined: 19th Feb 2005

Gallery: 1 images

Ride: BA Falcon Suzy Across

Power: 178 rwkw

Location: melbourne
VIC, Australia

MoNGooSE wrote:
Very handy... Bookmarking this for when I rebuild my i6


mongoose, that was the issue I was talking about a few weeks back where they had an el xr6 turbo with build information.



_________________

178.3 rwkw
15.1@96 mph
Now with 3.9 shrooms

Top
 Profile


Posted: Sat Jun 23, 2007 12:45 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

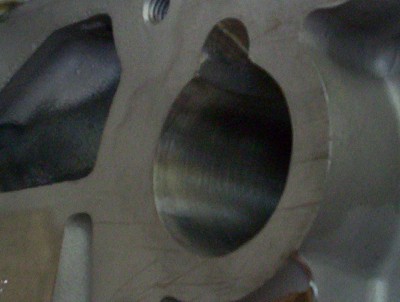

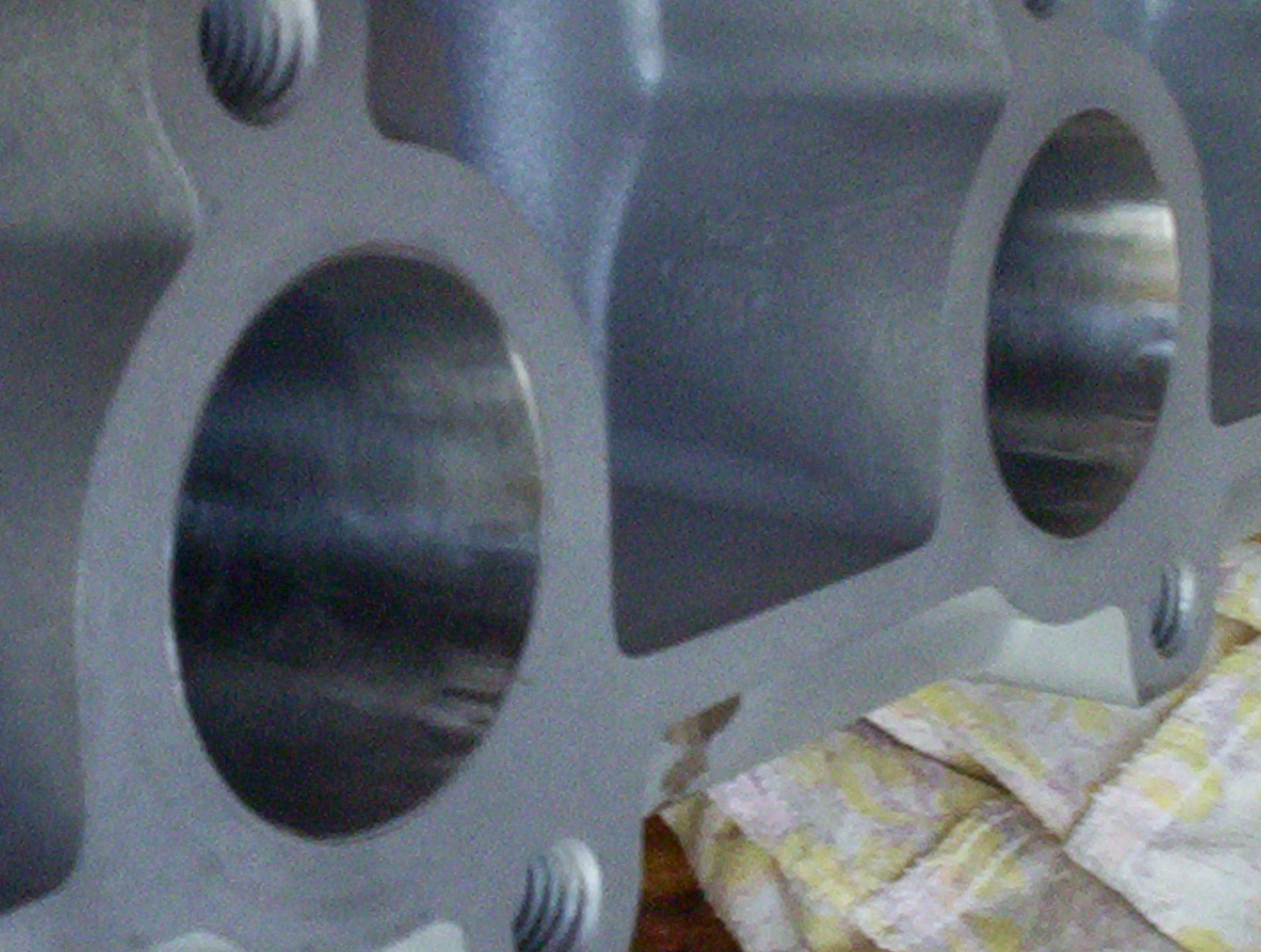

I did my head myself. You do need to be careful for where you remove the material from. Its not how much you remove, but where you remove it from, and port matching helps a lot.

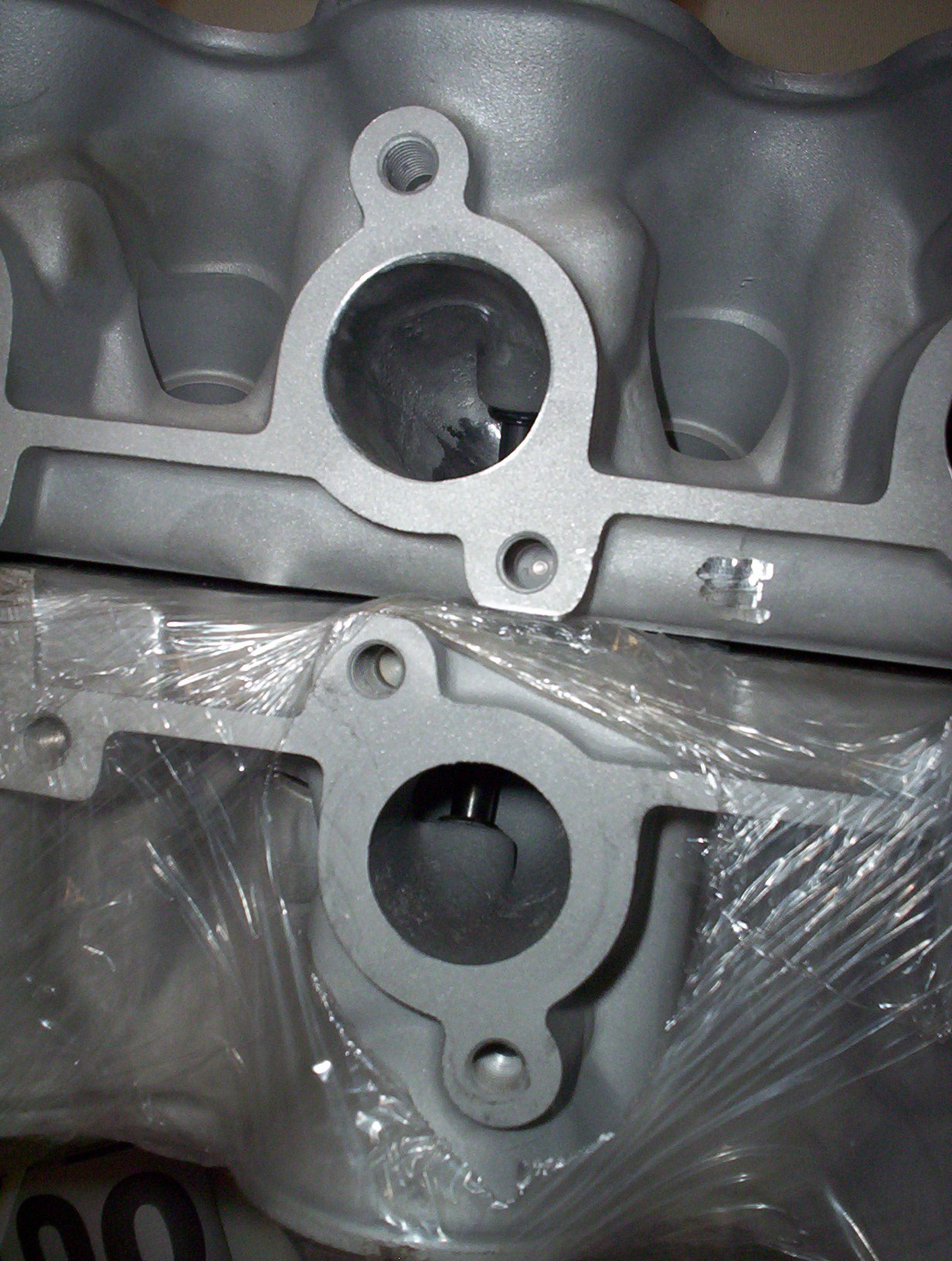

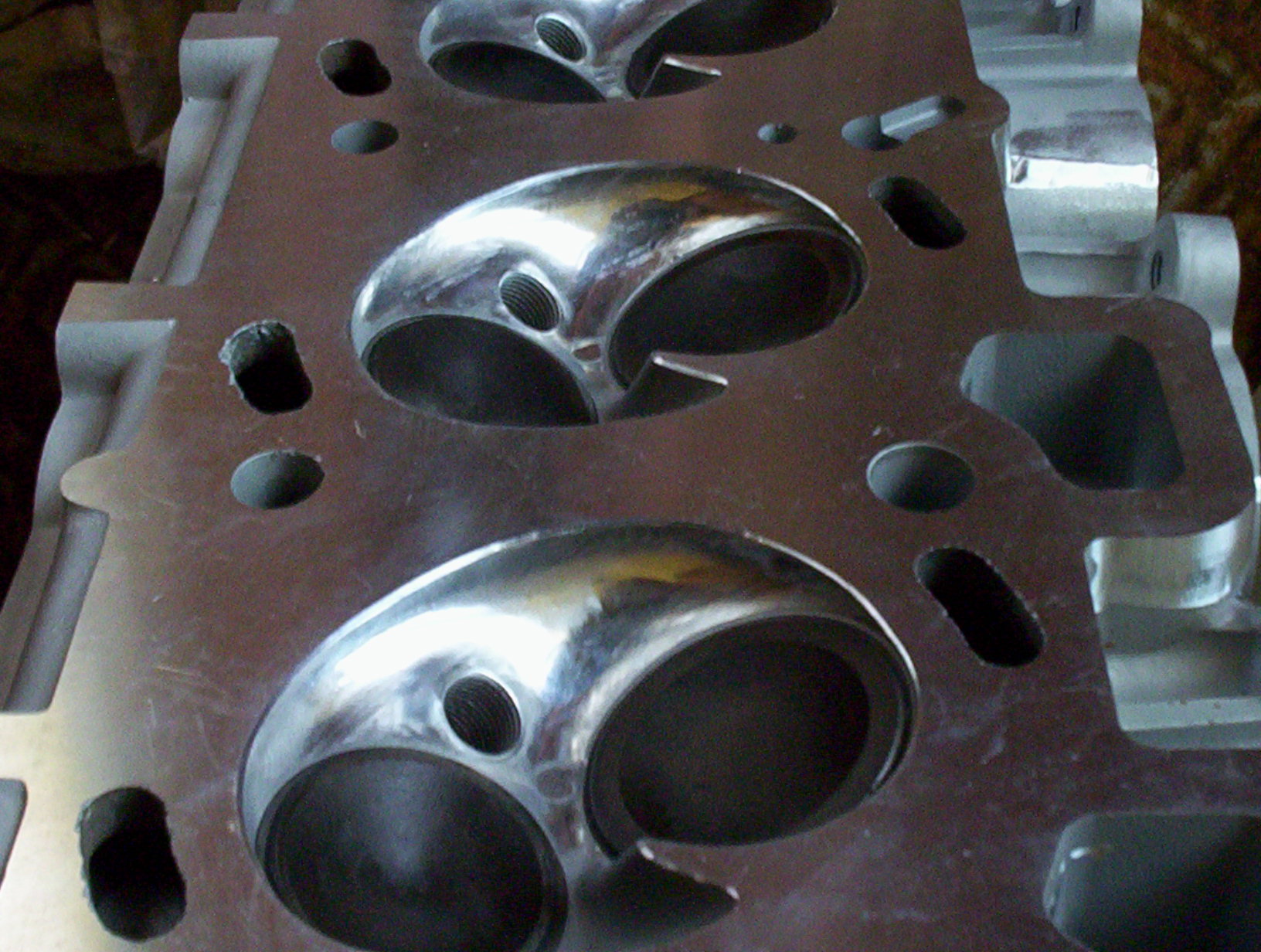

The top cyl head is my ported one, and the one below it is a 94 EF cyl head.





Attachments:
My EA88 cyl head, ex ports..jpg
My EA88 cyl head, ex ports..jpg [ 436.68 KiB | Viewed 173 times ]
My 88EA cyl head ported & polished. 004.jpg
My 88EA cyl head ported & polished. 004.jpg [ 332.32 KiB | Viewed 88 times ]
My 88EA cyl head ported & polished. 003.jpg
My 88EA cyl head ported & polished. 003.jpg [ 334.13 KiB | Viewed 103 times ]
My 88EA cyl head ported & polished. 002.jpg
My 88EA cyl head ported & polished. 002.jpg [ 406.48 KiB | Viewed 136 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sat Jun 23, 2007 12:55 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4849

Joined: 19th Feb 2005

Gallery: 1 images

Ride: BA Falcon Suzy Across

Power: 178 rwkw

Location: melbourne
VIC, Australia

That looks awesome cjh, where did you learn to do it like tht?



_________________

178.3 rwkw
15.1@96 mph
Now with 3.9 shrooms

Top
 Profile


Posted: Sat Jun 23, 2007 1:02 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

smiley235 wrote:
That looks awesome cjh, where did you learn to do it like tht?



I've been doing it at home for years, I like doing alloy heads, doesn't take as long, and with cast iron heads, its easier to get a smooth finish.
I have done motorbike heads too.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sat Jun 23, 2007 2:43 pm
Getting Side Ways
Offline

Posts: 6166

Joined: 8th May 2007

cjh wrote:
smiley235 wrote:
That looks awesome cjh, where did you learn to do it like tht?



I've been doing it at home for years, I like doing alloy heads, doesn't take as long, and with cast iron heads, its easier to get a smooth finish.
I have done motorbike heads too.


Looks flash but arent you supposed to take that protruding edge off like in the top pics?
Top
 Profile


Posted: Sat Jun 23, 2007 5:21 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

FordFairmont wrote:
cjh wrote:
smiley235 wrote:
That looks awesome cjh, where did you learn to do it like tht?



I've been doing it at home for years, I like doing alloy heads, doesn't take as long, and with cast iron heads, its easier to get a smooth finish.
I have done motorbike heads too.


Looks flash but arent you supposed to take that protruding edge off like in the top pics?


I want to see how it goes with them in.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sat Jun 23, 2007 5:58 pm
Smokin em up
Offline

Age: 30

Posts: 274

Joined: 22nd Feb 2006

Ride: AU 6

Location: Geelong
VIC, Australia

that protruding edge doesnt need to be removed unless your going turbo, by removing that edge u lose compression, i have half of that edge taken out but not the whole lot due to the bigger valve hitting it so they were cut in half.
Top
 Profile


Posted: Sat Jun 23, 2007 6:13 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 1953

Joined: 1st Feb 2006

Gallery: 25 images

Ride: BA on gas. EL on gas. XF on gas.

Location: Greenacres/Adelaide
SA, Australia

Joesau wrote:
that protruding edge doesnt need to be removed unless your going turbo, by removing that edge u lose compression, i have half of that edge taken out but not the whole lot due to the bigger valve hitting it so they were cut in half.


So you know better than JMM do you?



_________________

Member Number 8804

Top
 Profile


Posted: Sat Jun 23, 2007 6:28 pm
Smokin em up
Offline

Age: 30

Posts: 274

Joined: 22nd Feb 2006

Ride: AU 6

Location: Geelong
VIC, Australia

Look mate im not here to argue with you or knock JMM, all i know is removing that hump in the combustion chamber u lose compressiion!!
ANother big company in qld I THINK recommend u dont remove that hump in the head.

Have a look at Autospeed articles theres a big right up on head work for i6 eb threw to Au, my egdes have been half taken out pretty much all of it only to fit the extra size of the exhuast valve.

Im just telling you what i know and what ive been told, who knows the reason why JMM ported the head like that??? do u know??? maybe that head was going on a car to be turboe'dd u dont know!, just cos they ported the head like that doesnt mean u go out and do the same?? would they give away there top secrets in a magazine i think they know better than that especially the way they are with there cams everything is top secret mate, if u had a good thing going would u tell everyone the key??
Top
 Profile


Posted: Sat Jun 23, 2007 6:46 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 1953

Joined: 1st Feb 2006

Gallery: 25 images

Ride: BA on gas. EL on gas. XF on gas.

Location: Greenacres/Adelaide
SA, Australia

No the engine was not for a turbo.
JMM are not the only people to recommend the ED head.



_________________

Member Number 8804

Top
 Profile


Posted: Sat Jun 23, 2007 8:11 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

the reson the ridge is removed is because its is a restriction to air flow. i think thats pretty obvious when looking at it.

heres another DIY 4l porting article http://autospeed.drive.com.au/cms/A_1792/article.html



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile
