 Post subject: Re: E series high compression
Posted: Sun Dec 07, 2014 3:57 pm
Fordmods Newbie
Offline

Age: 49

Posts: 9

Joined: 6th Oct 2012

Ride: EB Fairmont

Location: Rockhampton
QLD, Australia

who makes flat tops for the au engines? where can i get them? not having any luck searching this info!!
Top
 Profile


 Post subject: Re: E series high compression
Posted: Sun Dec 07, 2014 4:11 pm
Getting Side Ways
Offline

Age: 34

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

Precisionintl.com they are au flattops 040 over so you will need au rods and a rebore



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: E series high compression
Posted: Sun Dec 07, 2014 4:23 pm
Oompa Loompa
Offline

Age: 36

Posts: 38

Joined: 14th Jan 2011

Ride: Series 2 ea

Location: nagambie
VIC, Australia

These guys can make whatever dish or dome you want. My au runs 11.7 comp with these pistons and spool barra rods.
Top
 Profile


 Post subject: Re: E series high compression
Posted: Sun Dec 07, 2014 4:49 pm
Getting Side Ways
Offline

Age: 38

Posts: 1319

Joined: 5th Nov 2004

Ride: 66 Coupe

Location: Perth
WA, Australia

CP pistons
Top
 Profile


 Post subject: Re: E series high compression
Posted: Sun Dec 07, 2014 5:23 pm
Fordmods Newbie
Offline

Age: 49

Posts: 9

Joined: 6th Oct 2012

Ride: EB Fairmont

Location: Rockhampton
QLD, Australia

ranga83 they would be the mahle motorsport forged ones PFO3986L6040MMS ?
Top
 Profile


 Post subject: Re: E series high compression
Posted: Sun Dec 07, 2014 5:33 pm
Getting Side Ways
Offline

Age: 34

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

Yep



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: E series high compression
Posted: Sun Dec 07, 2014 5:43 pm
Fordmods Newbie
Offline

Age: 49

Posts: 9

Joined: 6th Oct 2012

Ride: EB Fairmont

Location: Rockhampton
QLD, Australia

thanks. i thought so, just wasnt to sure as the pic shows a small dish. should have mentioned i am looking for them for a speedway engine on methanol. needs 11:1 or better compression
Top
 Profile


 Post subject: Re: E series high compression
Posted: Sun Dec 07, 2014 5:46 pm
Getting Side Ways
Offline

Age: 34

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

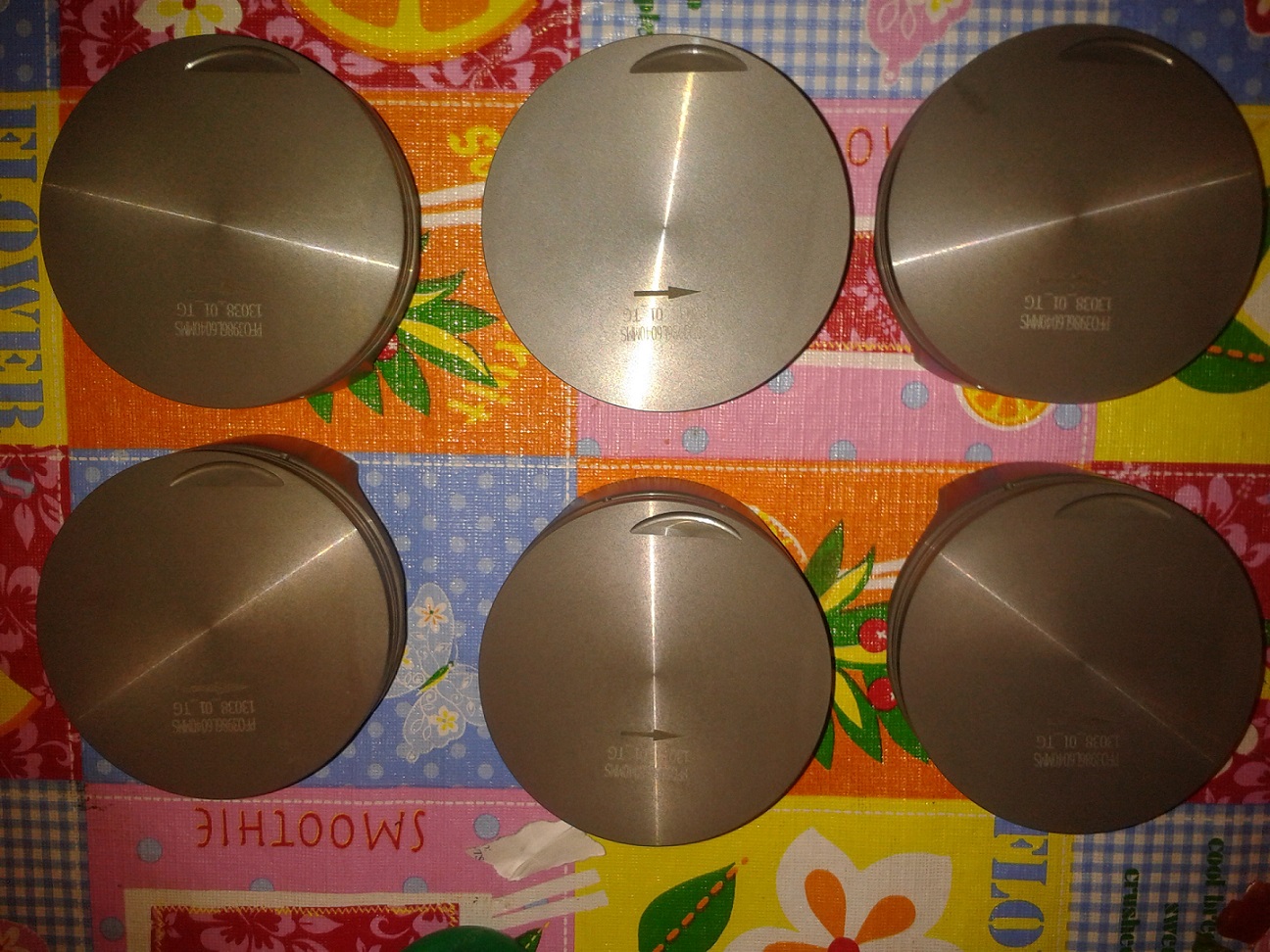

Attachment:
2013-07-18%2019_41_55.jpg [ 429.72 KiB | Viewed 67 times ]
that's them there



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: E series high compression
Posted: Sun Dec 07, 2014 6:42 pm
Oompa Loompa
Offline

Age: 36

Posts: 38

Joined: 14th Jan 2011

Ride: Series 2 ea

Location: nagambie
VIC, Australia

Mine are cp pistons the dome sits 1.5mm above the deck with big valve reliefs on both sides. I don't recommend altering the head in any way for compression due to detonation problems
Top
 Profile


 Post subject: Re: E series high compression
Posted: Sun Dec 07, 2014 6:47 pm
Getting Side Ways
Offline

Age: 34

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

esi635 wrote:
Mine are cp pistons the dome sits 1.5mm above the deck with big valve reliefs on both sides. I don't recommend altering the head in any way for compression due to detonation problems

What head gasket are you using? I have a set of pistons im putting into a spare bloke atm that are 1mm above deck



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: E series high compression
Posted: Sun Dec 07, 2014 8:04 pm
Oompa Loompa
Offline

Age: 36

Posts: 38

Joined: 14th Jan 2011

Ride: Series 2 ea

Location: nagambie
VIC, Australia

It's a mls-r. Gasket. 1.3 mm thick. It has 5 layers and is pretty much indestructible
Top
 Profile


 Post subject: Re: E series high compression
Posted: Sun Dec 07, 2014 8:16 pm
Oompa Loompa
Offline

Age: 36

Posts: 38

Joined: 14th Jan 2011

Ride: Series 2 ea

Location: nagambie
VIC, Australia

My setup was a bit overkill. But I figured it is allot easier to take some off the pistons than put it on. The pistons are flat top with 1mm taken off the outside 10mm so the dome fits up inside the oval shaped combustion chamber.
Top
 Profile


 Post subject: Re: E series high compression
Posted: Sun Dec 07, 2014 8:20 pm
Getting Side Ways
Offline

Age: 34

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

Im slapping one together with ba gas pistons. But the dome is 040 proud. So i need to use a h/g thats 080 so i still have my 040 quench



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: E series high compression
Posted: Sun Dec 07, 2014 8:40 pm
Oompa Loompa
Offline

Age: 36

Posts: 38

Joined: 14th Jan 2011

Ride: Series 2 ea

Location: nagambie
VIC, Australia

You could use two au mls gaskets. A bit dodgy but plenty of turbo guys do it with success. My quench is only .033 A bit tight but so far so good.
Top
 Profile


 Post subject: Re: E series high compression
Posted: Sun Dec 07, 2014 8:44 pm
Getting Side Ways
Offline

Age: 34

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

That would only give me 060/ 020quench. Bit tight for my likeing. Was thinking just 2 monotorque gaskets. Should give me just enough. Its only a slap together engine until i get the flattops in my other block



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
