 Post subject: Re: EA falcon misfire
Posted: Fri Mar 07, 2014 10:08 pm
Stock as a Rock
Offline
User avatar

Age: 34

Posts: 125

Joined: 27th Apr 2011

Gallery: 8 images

Ride: ea falcon

Location: tanilba bay
NSW, Australia

i don't see coil on your list of parts. have you checked your spark is a nice blue and not orange? just a thought.



_________________

EA falcon(S-Pac) AU engine and injector's, EL BBM conversion,K&N pod,EL ECU,T5 5speed,EL Streering rack, EL Brake system, Extractor's 2 1/2in high flow cat, through 2 1/2in mandrel bent pipe with Lukey Performance muffler

Top
 Profile


 Post subject: Re: EA falcon misfire
Posted: Sat Mar 08, 2014 9:56 am
Smokin em up
Offline
User avatar

Age: 21

Posts: 233

Joined: 2nd Sep 2013

Ride: 1988 5spd DOHC EA Falcon S

Location: ACT
NSW, Australia

Well s**t, that was the last thing on my mind as the coil was new, but s**t ( ebay coil )

While cranking it's getting orange spark, i guess i'll slap on another new cheap one i have laying around until i can afford the proper stuff.



_________________

Rolling around with a Barra 182 - equipped 1988 EA falcon

http://www.fordmods.com/the-garage-f53/ ... 27639.html

Top
 Profile


 Post subject: Re: EA falcon misfire
Posted: Sat Mar 08, 2014 10:19 am
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

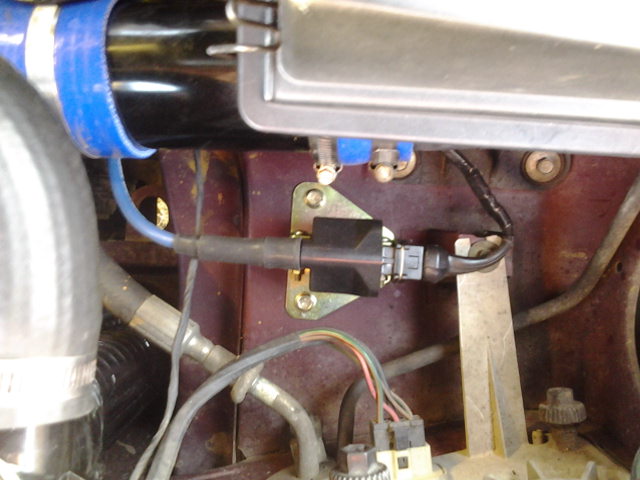

Grab a Bosch Coil and mount it off the AC Compressor. The new ones come with an extension lead as the now habe the plugs on the same side.

Attachment:
Coil Relocation.jpg
Coil Relocation.jpg [ 56.42 KiB | Viewed 17 times ]


http://www.ebay.com.au/itm/Ignition-Coi ... 2c71116bf6

http://www.ebay.com.au/itm/NEW-BOSCH-EA ... 256bc8645a

http://www.ebay.com.au/itm/FORD-EA-EB-E ... 1e87ed3008
Top
 Profile


 Post subject: Re: EA falcon misfire
Posted: Sat Mar 08, 2014 10:22 am
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

EAfalconS wrote:
i don't see coil on your list of parts. have you checked your spark is a nice blue and not orange? just a thought.


He did say "Good New Coil" in his original post, but certainly does pay to check.
Top
 Profile


 Post subject: Re: EA falcon misfire
Posted: Sat Mar 08, 2014 10:26 am
Smokin em up
Offline
User avatar

Age: 21

Posts: 233

Joined: 2nd Sep 2013

Ride: 1988 5spd DOHC EA Falcon S

Location: ACT
NSW, Australia

I could certainly do with that extension haha. Coil replacement is a s**t of a job, just so damn fiddly.



_________________

Rolling around with a Barra 182 - equipped 1988 EA falcon

http://www.fordmods.com/the-garage-f53/ ... 27639.html

Top
 Profile


 Post subject: Re: EA falcon misfire
Posted: Sat Mar 08, 2014 10:40 am
Smokin em up
Offline
User avatar

Age: 21

Posts: 233

Joined: 2nd Sep 2013

Ride: 1988 5spd DOHC EA Falcon S

Location: ACT
NSW, Australia

Taking a look again i don't think it'd work at the AC compressor with the factory inlet hose, although i have seen a thread on mounting to the side of the strut tower, i'm only considering moving the damn thing because the next time i change the coil, i'll thank myself.



_________________

Rolling around with a Barra 182 - equipped 1988 EA falcon

http://www.fordmods.com/the-garage-f53/ ... 27639.html

Top
 Profile


 Post subject: Re: EA falcon misfire
Posted: Sat Mar 08, 2014 12:28 pm
Stock as a Rock
Offline
User avatar

Age: 34

Posts: 125

Joined: 27th Apr 2011

Gallery: 8 images

Ride: ea falcon

Location: tanilba bay
NSW, Australia

SWC wrote:
EAfalconS wrote:
i don't see coil on your list of parts. have you checked your spark is a nice blue and not orange? just a thought.


He did say "Good New Coil" in his original post, but certainly does pay to check.



Ha... so it did. :oops:



_________________

EA falcon(S-Pac) AU engine and injector's, EL BBM conversion,K&N pod,EL ECU,T5 5speed,EL Streering rack, EL Brake system, Extractor's 2 1/2in high flow cat, through 2 1/2in mandrel bent pipe with Lukey Performance muffler

Top
 Profile


 Post subject: Re: EA falcon misfire
Posted: Sat Mar 08, 2014 1:20 pm
Getting Side Ways
Offline

Age: 21

Posts: 462

Joined: 24th Jun 2013

Gallery: 3 images

Ride: Ford Fairlane na2

Location: Launceston
TAS, Australia

I moved mine so its inbetween the headlight and airbox.



_________________

NA2 fairlane - 3.9 with au headgasket & injectors, ef fans, 2.5" zorst, lowered on selby springs , kenwood head unit and 6 speakers, fusion sub, el ecu & ti chip

Top
 Profile


 Post subject: Re: EA falcon misfire
Posted: Sat Mar 08, 2014 1:24 pm
Smokin em up
Offline
User avatar

Age: 21

Posts: 233

Joined: 2nd Sep 2013

Ride: 1988 5spd DOHC EA Falcon S

Location: ACT
NSW, Australia

That's where i was thinking of mounting it, and just making up a bracket to fit the existing bolts on the strut tower.



_________________

Rolling around with a Barra 182 - equipped 1988 EA falcon

http://www.fordmods.com/the-garage-f53/ ... 27639.html

Top
 Profile


 Post subject: Re: EA falcon misfire
Posted: Sat Mar 08, 2014 1:28 pm
Getting Side Ways
Offline

Age: 21

Posts: 462

Joined: 24th Jun 2013

Gallery: 3 images

Ride: Ford Fairlane na2

Location: Launceston
TAS, Australia

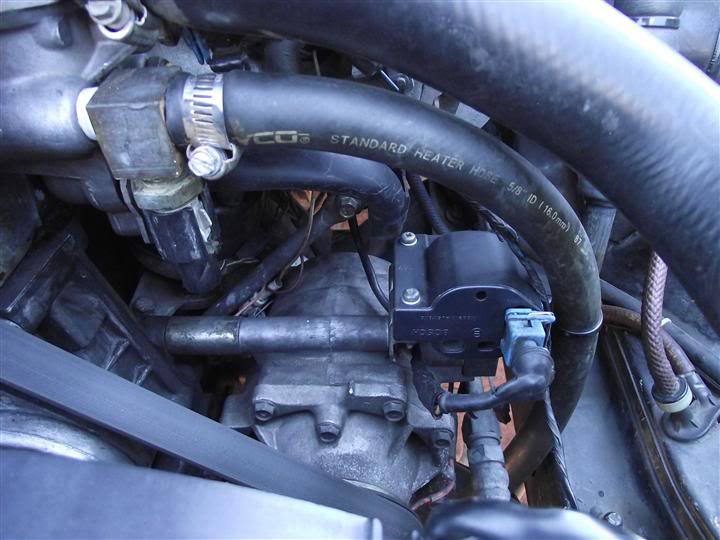

I put mine where it is so it sits flat so there's no added stress on the coil. I also had to solder and heat shrink in an extension to put it where it is but it madeit so much easier to change the lead to the coil.





Attachments:
1392967157739.jpg [ 95.28 KiB | Viewed 18 times ]



_________________

NA2 fairlane - 3.9 with au headgasket & injectors, ef fans, 2.5" zorst, lowered on selby springs , kenwood head unit and 6 speakers, fusion sub, el ecu & ti chip

Top
 Profile


 Post subject: Re: EA falcon misfire
Posted: Sat Mar 08, 2014 9:12 pm
Smokin em up
Offline
User avatar

Age: 21

Posts: 233

Joined: 2nd Sep 2013

Ride: 1988 5spd DOHC EA Falcon S

Location: ACT
NSW, Australia

Just finished doing my extension, only did a matter of male / female connectors.

should be done by tomorrow i'll post a pic when it's finished.



_________________

Rolling around with a Barra 182 - equipped 1988 EA falcon

http://www.fordmods.com/the-garage-f53/ ... 27639.html

Top
 Profile


 Post subject: Re: EA falcon misfire
Posted: Sun Mar 09, 2014 11:34 am
Smokin em up
Offline
User avatar

Age: 21

Posts: 233

Joined: 2nd Sep 2013

Ride: 1988 5spd DOHC EA Falcon S

Location: ACT
NSW, Australia

Well it's still burning orange, must be a spark plug, number 4 burns white but number 3 burns orange.

Also as for that little black wire that usually earths under the coil, what's that for? Is it necessary to have it connected?



_________________

Rolling around with a Barra 182 - equipped 1988 EA falcon

http://www.fordmods.com/the-garage-f53/ ... 27639.html

Top
 Profile


 Post subject: Re: EA falcon misfire
Posted: Sun Mar 09, 2014 12:11 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

GrannyFalcon82 wrote:
Well it's still burning orange, must be a spark plug, number 4 burns white but number 3 burns orange.

Also as for that little black wire that usually earths under the coil, what's that for? Is it necessary to have it connected?


Check your leads, swap them on the Dizzy and see if No3 is still orange and 4 is white.

Black wire is probably your noise suppressor.
Top
 Profile


 Post subject: Re: EA falcon misfire
Posted: Sun Mar 09, 2014 12:39 pm
Getting Side Ways
Offline

Age: 21

Posts: 462

Joined: 24th Jun 2013

Gallery: 3 images

Ride: Ford Fairlane na2

Location: Launceston
TAS, Australia

Could be dodgy terminal in the cap and the spark is jumping more that it should.



_________________

NA2 fairlane - 3.9 with au headgasket & injectors, ef fans, 2.5" zorst, lowered on selby springs , kenwood head unit and 6 speakers, fusion sub, el ecu & ti chip

Top
 Profile


 Post subject: Re: EA falcon misfire
Posted: Sun Mar 09, 2014 1:04 pm
Smokin em up
Offline
User avatar

Age: 21

Posts: 233

Joined: 2nd Sep 2013

Ride: 1988 5spd DOHC EA Falcon S

Location: ACT
NSW, Australia

I bought new spark plugs because i was very unhappy with the bosch ones i had been using, the new ones are all sparking white on the same lead, however it's still f**k misfiring / rich mixture, i'm going to change the cap and if that doesn't work, i have no other explanation other than the computer s**t itself.



_________________

Rolling around with a Barra 182 - equipped 1988 EA falcon

http://www.fordmods.com/the-garage-f53/ ... 27639.html

Top
