 Post subject: ED Head Gasket Replacement
Posted: Mon Feb 16, 2009 1:38 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 1456

Joined: 17th Apr 2008

Gallery: 3 images

Ride: VY Commodore Wagon Accli

Location: Bannockburn
VIC, Australia

Ok, this is probably going to be the stupidest question ever, until waggin gets the Search Function up and running again but.

Bear with me, I have never pulled the rocker cover off my own ED or any other Ford! I have only done Head Gasket Replacement to a VN Commonbore.

Is it possible to remove the head without removing the Cam Gear????

So far I have done:

Undone Bolts to Extractor's, and removed it's Gasket
Undone Bolts to Inlet Manifold, and removed it's Gasket
Removed Rocker Cover.

Looking through some of the stuff on the forums I will need to:

Remove Power Steering Pump
Cable Tie Cam Sprocket to Timing Chain

Anything else I should be doing?


:? :? :? :? :? :? :?



_________________

Pre AU Adapters for sale

Successful Trades with: John_XR6 (John_LS1), Private9, Schmee, Manari, Kyle_Bardell, Greenhorn (Boostedfalcon.net), FTG AUTO SALVAGE, EVL098, Gogetta, EFIII, Krytox, Blue, Smik-EL, TP351.

Top
 Profile


 Post subject: Re: ED Head Gasket Replacement
Posted: Mon Feb 16, 2009 2:45 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 1456

Joined: 17th Apr 2008

Gallery: 3 images

Ride: VY Commodore Wagon Accli

Location: Bannockburn
VIC, Australia

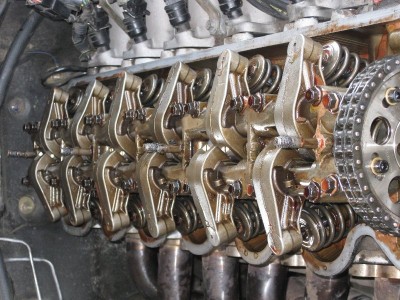

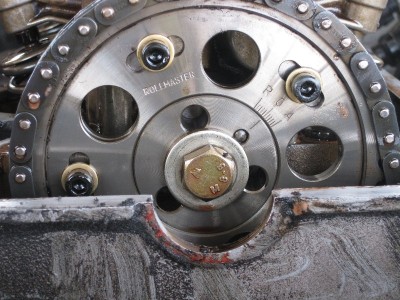

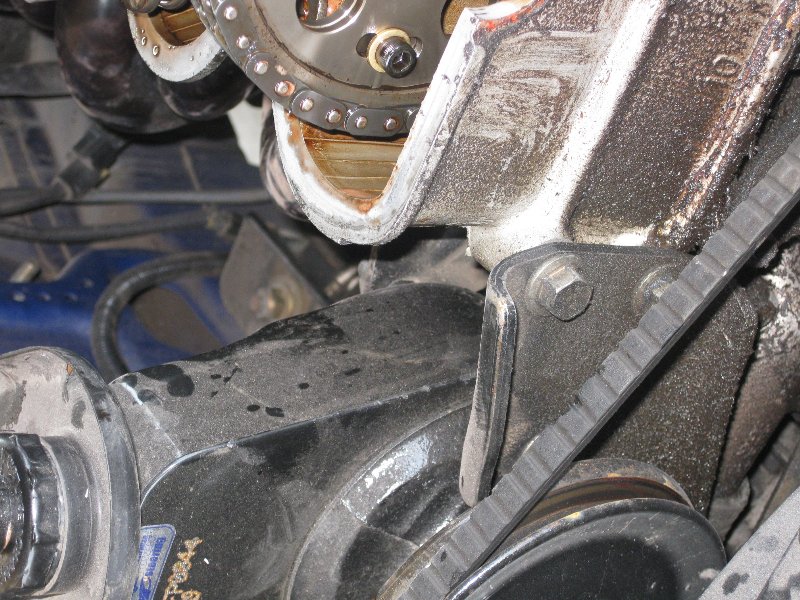

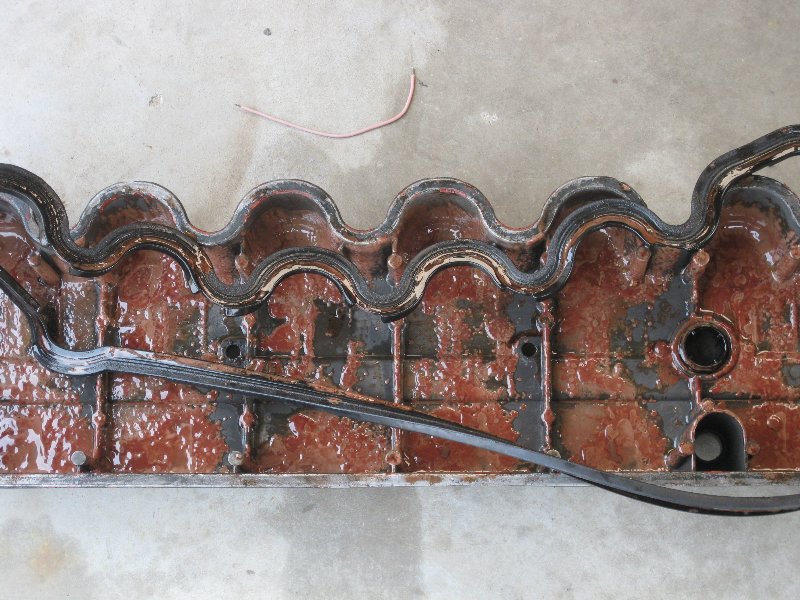

thought I would take some photo's of what I have:





Attachments:
Cam Gear 004.jpg
Cam Gear 004.jpg [ 118.32 KiB | Viewed 120 times ]
Cam Gear 003.jpg
Cam Gear 003.jpg [ 134.8 KiB | Viewed 113 times ]
Cam Gear 002.jpg
Cam Gear 002.jpg [ 129.28 KiB | Viewed 117 times ]
Cam Gear 001.jpg
Cam Gear 001.jpg [ 125.65 KiB | Viewed 140 times ]



_________________

Pre AU Adapters for sale

Successful Trades with: John_XR6 (John_LS1), Private9, Schmee, Manari, Kyle_Bardell, Greenhorn (Boostedfalcon.net), FTG AUTO SALVAGE, EVL098, Gogetta, EFIII, Krytox, Blue, Smik-EL, TP351.

Top
 Profile


 Post subject: Re: ED Head Gasket Replacement
Posted: Mon Feb 16, 2009 3:02 pm
Getting Side Ways
Offline

Posts: 596

Joined: 4th May 2007

Ride: 1992 EBII Fairmont

Location: Aga
VIC, Australia

Remove rocker gear and cam, be sure not to lose lifters down into the sump.

Loosen the timing chain at the tensioner.
Top
 Profile


 Post subject: Re: ED Head Gasket Replacement
Posted: Mon Feb 16, 2009 3:05 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 1456

Joined: 17th Apr 2008

Gallery: 3 images

Ride: VY Commodore Wagon Accli

Location: Bannockburn
VIC, Australia

I'm having to resort to Boostedfalcon.net for a detailed guide on what to do, there are a few more easy steps that I can do, which is take off the power Steering Pump, a few belts, and Turn the Crankshaft Clockwise to TDC.

Once I have done that then what I think is the tendious bit begins, which is to remove the Camshaft and rocker Gear......

And it's annoying too because the guide on Boosted Falcon.net doesn't show pics :x......



_________________

Pre AU Adapters for sale

Successful Trades with: John_XR6 (John_LS1), Private9, Schmee, Manari, Kyle_Bardell, Greenhorn (Boostedfalcon.net), FTG AUTO SALVAGE, EVL098, Gogetta, EFIII, Krytox, Blue, Smik-EL, TP351.

Top
 Profile


 Post subject: Re: ED Head Gasket Replacement
Posted: Mon Feb 16, 2009 4:55 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 1456

Joined: 17th Apr 2008

Gallery: 3 images

Ride: VY Commodore Wagon Accli

Location: Bannockburn
VIC, Australia

ok, I have taken off the Power Steering Pump, I have set the Crankshaft to TDC.

I have taken out the Filler Plug, that big bolt thingy on the side of the head, along with this other weird looking thing, which I got out with a coat hanger.

Now my problem is trying to release the tension, I can't figure out how to possibly do it...

On the boosted instructions you are technically supposed to use a Ford Special Tool to release the tension, but it says that using a 3mm allen Key, with a tube hanging over by 5mm, but how big a diamater tube am I supposed to use??? because I can't see how it can be released :? :? :?



_________________

Pre AU Adapters for sale

Successful Trades with: John_XR6 (John_LS1), Private9, Schmee, Manari, Kyle_Bardell, Greenhorn (Boostedfalcon.net), FTG AUTO SALVAGE, EVL098, Gogetta, EFIII, Krytox, Blue, Smik-EL, TP351.

Top
 Profile


 Post subject: Re: ED Head Gasket Replacement
Posted: Mon Feb 16, 2009 5:07 pm
Getting Side Ways
Offline

Posts: 6166

Joined: 8th May 2007

damn the lack of search function !!!

i started a thread awhile ago asking about the tensioner and alot of good info for 'beginners' is in there.

bascially the tensioner has an outside bit with slanted teeth cut into it, and a dowel pin which locks its way up & down to adjust the tension. Outside tube pushes the cylinder together, whilst the allen key in the middle turns the dowel through the teeth to the shut position

Stick your head around the side with a flashlight, you will see you need the largest hollow tube that will fit in there. And cut it short enough so that the allen key is exposed enough to reach the slot. Push and turn clockwise till it locks together, this will loosen the chain
Top
 Profile


 Post subject: Re: ED Head Gasket Replacement
Posted: Mon Feb 16, 2009 5:37 pm
Fordmods Junkie
Offline
User avatar

Posts: 11738

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

fordmods-technical-documents-diy-f38/head-gasket-doco-started-t22726.html

Read this...it will help you through it.

I'm in the process of making a Tech Doco of this...but it has taken me AGES to even put it together being lazy and lacking Office on this computer.

phong =P~



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: ED Head Gasket Replacement
Posted: Mon Feb 16, 2009 6:08 pm
Fordmods Junkie
Offline
User avatar

Posts: 3083

Joined: 22nd Sep 2005

Gallery: 13 images

Ride: EF

Location: Melbourne
VIC, Australia

yeah the thread phong listed shows all the details, do what it said.

some things youll need.
-14mm IMPACT socket
-GOOD breaker bar, you saw the one i bent at AFD
-zip ties for the timing chain to the vernier gear.
-undo the bolt in the right hand side of the head dont forget it or snapped timing guide will result, (not deadly just rattly at low rpm).

tbh removing the rocker gear is easy, its cleaning the block REALLY WELL, and the reall tediuos pain is putting the rocker gear back on (try to keep your lifters in when removing (use tape) so you dont have to redo them.

hope it helps.
Rushed



_________________

latest mod: A Service
MY BUILD THREAD

Top
 Profile


 Post subject: Re: ED Head Gasket Replacement
Posted: Tue Feb 17, 2009 1:08 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 1456

Joined: 17th Apr 2008

Gallery: 3 images

Ride: VY Commodore Wagon Accli

Location: Bannockburn
VIC, Australia

Well know I see what I'm trying to turn, but with the correct diameter Hollow Tubing and allen Key that hangs out by 5mm as suggested by the boosted guide aint working... and I've been trying to turn it clockwise for the last 2 hrs... turning the top most end of that dowel thingo towards the front of the car, if you can picture what I mean....

It feels much easier to get a set of plyers and twist the darned thing... but no they don't fit :x.



_________________

Pre AU Adapters for sale

Successful Trades with: John_XR6 (John_LS1), Private9, Schmee, Manari, Kyle_Bardell, Greenhorn (Boostedfalcon.net), FTG AUTO SALVAGE, EVL098, Gogetta, EFIII, Krytox, Blue, Smik-EL, TP351.

Top
 Profile


 Post subject: Re: ED Head Gasket Replacement
Posted: Tue Feb 17, 2009 5:38 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 1456

Joined: 17th Apr 2008

Gallery: 3 images

Ride: VY Commodore Wagon Accli

Location: Bannockburn
VIC, Australia

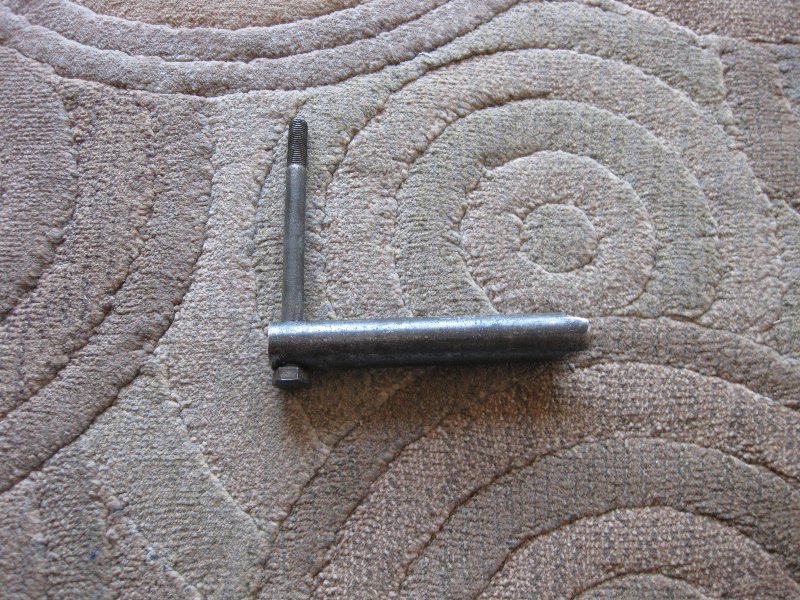

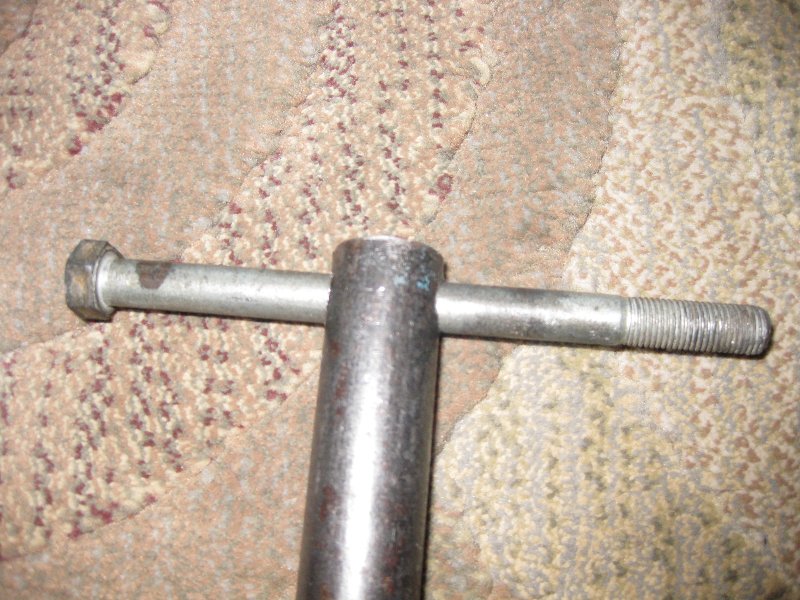

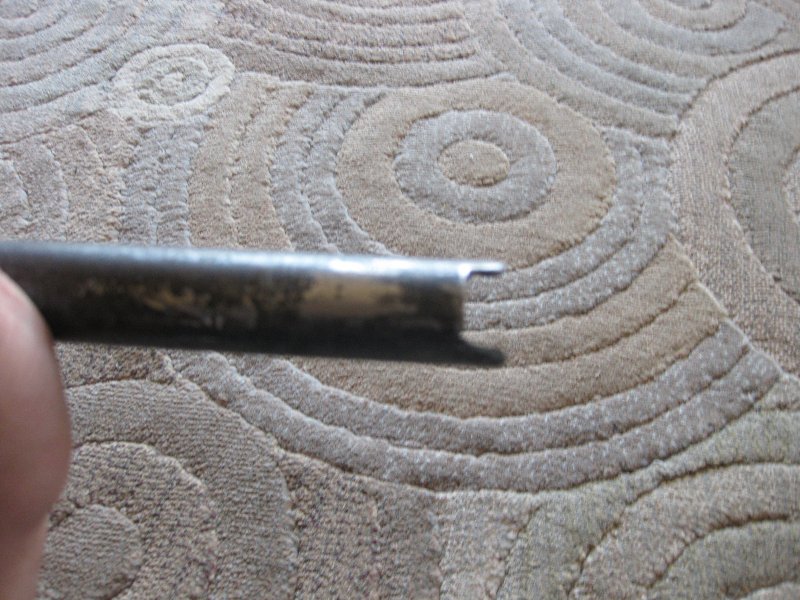

Well, I after about 5 hr's I finally managed to release the tension on the timing chain, but I ended up making this to do it:
