 Post subject: ED XR6 engine fitted in EA with twin thermo cooling mod
Posted: Thu Nov 09, 2006 6:19 pm
Parts Gopher
Offline

Age: 36

Posts: 56

Joined: 1st Jan 2006

Ride: XF Fairmont Ghia

Location: Blayney
NSW, Australia

Thanks for the replies to all the people who have offered advice during the planning, installation and wiring of an awsome mod.

Originally, this EA series II (8 seater family wagon) was fitted with the stock 3.9ltr. After a serious overheating (and I mean serious!!!!!) I decided to drop in an XR6 motor, aluminium radiator and twin thermo's.

The result is incredible!! Overall, I think the power has been boosted at least 20%.

I have performed all the work and completed the job fairly cheap (around $1500).

I haven't had the chance to wash up under the hood, so don't be too critical!!

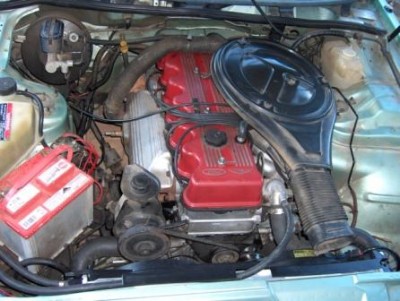

Have a look!





Attachments:
engine1.jpg [ 35.88 KiB | Viewed 43 times ]



_________________

Build it yourself, you'll appreciate it more!

Top
 Profile


Posted: Thu Nov 09, 2006 6:21 pm
Getting Side Ways
Offline

Age: 31

Posts: 1279

Joined: 5th Apr 2005

Gallery: 2 images

Ride: Toyota Supra RZ

Location: Burwood Nights
VIC, Australia

shoulda converted it to multipoint while you were there.. CPI.. *shudder*

but yeah the thermoconversion goes off.. i upgraded from clapped out ebII 4ltr to el tickford motor with bbm (and ecu..) and meh.. at the start it felt good now its meh
Top
 Profile


Posted: Thu Nov 09, 2006 6:38 pm
Getting Side Ways
Offline

Age: 30

Posts: 4609

Joined: 29th Jul 2005

Gallery: 10 images

Ride: BOXCAR

Location: Launceston
TAS, Australia

fancy putting CPI on a tickford motor!! Shame On You!!

LOL just joking :)



_________________

^^^ What He Said

<a href="http://www.fordmods.com/forums/viewtopic.php?t=44952" target="_blank" class="postlink"> TAS Cruises</a>

Top
 Profile


 Post subject: Reason for CPI
Posted: Thu Nov 09, 2006 6:57 pm
Parts Gopher
Offline

Age: 36

Posts: 56

Joined: 1st Jan 2006

Ride: XF Fairmont Ghia

Location: Blayney
NSW, Australia

I hear what your saying!!

I was interested in Multi inj, only I was talked out of it by the wreckers because of the ECU and loom conversions needed to run it.

I've heard you can get mod chips (in line installations) for manipulating the ECU into tring a little harder.

Has anyone had any experience with these?



_________________

Build it yourself, you'll appreciate it more!

Top
 Profile


 Post subject: Re: Reason for CPI
Posted: Thu Nov 09, 2006 7:24 pm
Getting Side Ways
Offline

Age: 30

Posts: 4609

Joined: 29th Jul 2005

Gallery: 10 images

Ride: BOXCAR

Location: Launceston
TAS, Australia

Cruzr wrote:
I hear what your saying!!

I was interested in Multi inj, only I was talked out of it by the wreckers because of the ECU and loom conversions needed to run it.

I've heard you can get mod chips (in line installations) for manipulating the ECU into tring a little harder.

Has anyone had any experience with these?


an MPI ECU and loom would cost bugger all. Parts for EAs are pretty damn cheap.

And no i haven't heard of that ECU mod



_________________

^^^ What He Said

<a href="http://www.fordmods.com/forums/viewtopic.php?t=44952" target="_blank" class="postlink"> TAS Cruises</a>

Top
 Profile


 Post subject: Re: Reason for CPI
Posted: Thu Nov 09, 2006 7:30 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

Cruzr wrote:
I hear what your saying!!

I was interested in Multi inj, only I was talked out of it by the wreckers because of the ECU and loom conversions needed to run it.

I've heard you can get mod chips (in line installations) for manipulating the ECU into tring a little harder.

Has anyone had any experience with these?


They are mentioned in the FAQ sticky - dont waste any time with them

your next mod has got to be the MPEFI conversion ;). That xr6 engine which is normally rated at over 160kw is going to be suffocated by that cfi setup (CFI's were only rated at 120kw's).



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Thu Nov 09, 2006 8:13 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 3687

Joined: 4th Mar 2005

Gallery: 23 images

Ride: XR6 Turbo

Location: Taree
NSW, Australia

Yes turf the cpi, but anyway great start!



_________________

SS Inductions CAI, K&N Filters, M-spec FMC, Turbosmart BOV, 8psi capa tune, X-force cat.

Mods going on: Nizpro springs, bosch 040 pump + Walbro gss341, 600cc injectors, PWR transcooler, 20% Underdrives, 15psi Actuator, Kingspring SSL's, 15psi tune.....More coming

Top
 Profile


 Post subject: Multi EFI
Posted: Thu Nov 09, 2006 8:29 pm
Parts Gopher
Offline

Age: 36

Posts: 56

Joined: 1st Jan 2006

Ride: XF Fairmont Ghia

Location: Blayney
NSW, Australia

Has anyone had any experiences with this mod?

Buying another EA for harvesting the MPI would work well cos I need a 5spd for my other project (XF Fairmont Ghia)!



_________________

Build it yourself, you'll appreciate it more!

Top
 Profile


Posted: Thu Nov 09, 2006 9:08 pm
Smokin em up
Offline
User avatar

Age: 43

Posts: 212

Joined: 5th Nov 2006

Gallery: 8 images

Ride: 93 ED

Location: WAGGA WAGGA
NSW, Australia

Half way through EL motor and trans into an ED, took the day off work to do some research and found out some cool stuff on the bbm and thermo conversion. will let everyone know when it fires up in a couple of days.
Top
 Profile


Posted: Thu Nov 09, 2006 11:08 pm
Stock as a Rock
Offline

Age: 33

Posts: 136

Joined: 9th Nov 2004

Ride: EA2 'Mont

Location: Warrnambool
VIC, Australia

mpfi you dont need the loom, just the manifold (oh the loom attatched to that but that's part of it anyway) with injectors and sensors etc attached, the ecu, and the fuel pump.

as per fordtech.com (if it is still there) you only need to change one wire in the CFI engine loom for idle control to do the multipoint conversion.

you most likely will be able to get it to work with the CFI distributor also (the engine probably has a multipoint one unless you changed it anyway) and you will get an even bigger power kick
Top
 Profile


Posted: Fri Nov 10, 2006 7:49 am
Tyre Shredder
Offline
User avatar

Posts: 300

Joined: 5th Apr 2005

Gallery: 10 images

Ride: EF II Fairmont Ghia

Location: Bowral
NSW, Australia

Yep... one wire needs to be changed, and the ECu needs to be changed and that is all. I did the MPFI conversion on my old EA which after the conversion pulled out 111rwkw, pretty awesome if you ask me.
