EF/EL 4.0 Engine number location.



Page 1 of 1 [ 9 posts ]


 Post subject: EF/EL 4.0 Engine number location.
Posted: Mon Nov 24, 2014 6:23 pm
Stock as a Rock
Offline
User avatar

Age: 57

Posts: 178

Joined: 3rd Aug 2005

Ride: Falcon XR6

Location: FTG
VIC, Australia

Hi All,

A while ago I purchased another EF XR6 on which the rego had lapsed.

I rang VicRoads today to make a booking for a registration inspection and was asked for an engine number as well as the VIN number.

I had thought that the engine number was part of the VIN number and said that to the VicRoads person that I was talking to ... who replyed that the engine number was different.
Not knowing any better I replied that I would call again once I had the engine number.

So off I went to have a closer look at the vehicle ID tags to see if they listed the engine number ... which they did not.

So I grabbed a torch and had a look around the block on the exhaust side looking for anything that resembled an engine number ... I couldn't find anything that stood out as an engine number ... the only thing I found was a 4 digit alphanumeric code cast into the block near the bell housing.

Tried a google search and came up with conflicting opinions of where people thought the engine number is located so that really didn't help.

I then had a look on my current XR6's engine block and found that the 4 digit alphanumeric code was indeed different to the other XR.

To further add to my confusion I dug out an old registration label for my current XR and it confirmed my earlier thought as the engine number listed on the rego sticker was part of the VIN number.

So if the engine number is part of the VIN number is it stamped anywhere on the block?

Does anyone know exactly where to look for this elusive number?

Any help would be appreciated.

Cheers,

Alan.



_________________

95 EF XR6 Manual
Pioneer, Oz Audio, Butler, Image Dynamics, Audison
MEASQ - Aust Champion Intermediate Class 2006
MEASQ - Vic Champion Intermediate Class 2007
MEASQ - Aust Champion Intermediate Class 2007
MEASQ - Aust Champion Expert Class 2008
MEASQ - Aust Champion Advanced Class 2011 (Shared)

Top
 Profile


 Post subject: Re: EF/EL 4.0 Engine number location.
Posted: Mon Nov 24, 2014 7:51 pm
Parts Gopher
Offline

Posts: 86

Joined: 23rd Dec 2009

Gallery: 16 images

Ride: ford ef2 xr6

Location: melbourne
VIC, Australia

Engine number will only be part of vin number if car still has original factory fitted engine.Ef six cylinder engine number is located at rear of engine block on exhaust side(Note:According to the factory workshop manual I have here,early build vehicles have engine number stamped on front of cylinder block on exhaust side.).
Top
 Profile


 Post subject: Re: EF/EL 4.0 Engine number location.
Posted: Mon Nov 24, 2014 8:51 pm
Stock as a Rock
Offline
User avatar

Age: 57

Posts: 178

Joined: 3rd Aug 2005

Ride: Falcon XR6

Location: FTG
VIC, Australia

Thanks for the replies guys ...

I revisited my workshop manual and found the locations that you both referred to ... don't know how I missed it when flicking through it earlier today.

Will look at below cylinder 1 exhaust port tomorrow.

Thanks for your help.



_________________

95 EF XR6 Manual
Pioneer, Oz Audio, Butler, Image Dynamics, Audison
MEASQ - Aust Champion Intermediate Class 2006
MEASQ - Vic Champion Intermediate Class 2007
MEASQ - Aust Champion Intermediate Class 2007
MEASQ - Aust Champion Expert Class 2008
MEASQ - Aust Champion Advanced Class 2011 (Shared)

Top
 Profile


 Post subject: Re: EF/EL 4.0 Engine number location.
Posted: Mon Nov 24, 2014 8:56 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

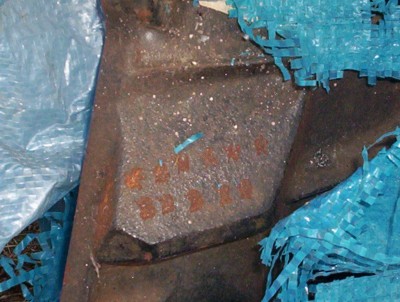

The engine numbers on EA to ED were stamped near the P/S pump....EF & EL & AU (some EL & AU were dot matrix) stamped on the same side near the bellhousing.





Attachments:
Engine number position EF, EL, AU.jpg
Engine number position EF, EL, AU.jpg [ 380.35 KiB | Viewed 265 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: EF/EL 4.0 Engine number location.
Posted: Mon Nov 24, 2014 9:21 pm
Getting Side Ways
Offline

Age: 34

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

Some ef blocks had it near the p/s pump. I have one sitting in the shed im pretty sure. Im guessing early ef



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: EF/EL 4.0 Engine number location.
Posted: Tue Nov 25, 2014 7:39 pm
Stock as a Rock
Offline
User avatar

Age: 57

Posts: 178

Joined: 3rd Aug 2005

Ride: Falcon XR6

Location: FTG
VIC, Australia

So I had a look at both my XR's today and found the engine number on both.

On my red XR which is an EF 1 the engine number was stamped under the exhaust port of number one cylinder ...
And on my green XR which is an EF 2 (the one I'm getting registered) the engine number was stamped on the back of the block flange where it meets the bell housing again on the exhaust side.

Both cars still have their original engines.

So EF 1 is at the front of the block and EF 2 is at the rear.



_________________

95 EF XR6 Manual
Pioneer, Oz Audio, Butler, Image Dynamics, Audison
MEASQ - Aust Champion Intermediate Class 2006
MEASQ - Vic Champion Intermediate Class 2007
MEASQ - Aust Champion Intermediate Class 2007
MEASQ - Aust Champion Expert Class 2008
MEASQ - Aust Champion Advanced Class 2011 (Shared)

Top
 Profile


 Post subject: Re: EF/EL 4.0 Engine number location.
Posted: Wed Nov 26, 2014 6:16 am
Getting Side Ways
Offline
User avatar

Age: 23

Posts: 461

Joined: 31st Mar 2013

Ride: 96 EL XR6

Location: Hervey Bay
QLD, Australia

Sierra wrote:
So EF 1 is at the front of the block and EF 2 is at the rear.


What build month is your EF1? It would have gotten one of the last ED blocks, as stated earlier - SOME early EFs had the engine number located near the P/S pump.

No difference between ED and EF block anyway, same same,



_________________

EL XR6, T5 Speed - Full Factory Fitted Tickford Body Kit, AU Engine, Billet Camtech 845 Cam, J3 Chip, MLS Gasket, Intake, Extractors, High flow cat, 2 1/2in exhaust, K&N Air Filter, 3.45 LSD, - My Pride and Joy

Top
 Profile


 Post subject: Re: EF/EL 4.0 Engine number location.
Posted: Wed Nov 26, 2014 8:31 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

Falcon96XR6 wrote:
Sierra wrote:
So EF 1 is at the front of the block and EF 2 is at the rear.


What build month is your EF1? It would have gotten one of the last ED blocks, as stated earlier - SOME early EFs had the engine number located near the P/S pump.

No difference between ED and EF block anyway, same same,


actually its the other way around, late ed had ef block and head..
Top
 Profile


 Post subject: Re: EF/EL 4.0 Engine number location.
Posted: Wed Nov 26, 2014 11:53 am
Stock as a Rock
Offline
User avatar

Age: 57

Posts: 178

Joined: 3rd Aug 2005

Ride: Falcon XR6

Location: FTG
VIC, Australia

Falcon96XR6 wrote:
Sierra wrote:
So EF 1 is at the front of the block and EF 2 is at the rear.


What build month is your EF1? It would have gotten one of the last ED blocks, as stated earlier - SOME early EFs had the engine number located near the P/S pump.

No difference between ED and EF block anyway, same same,


My EF I is a January 95 build ... and my EF II is a December 95 build


TROYMAN wrote:
Falcon96XR6 wrote:
Sierra wrote:
So EF 1 is at the front of the block and EF 2 is at the rear.


What build month is your EF1? It would have gotten one of the last ED blocks, as stated earlier - SOME early EFs had the engine number located near the P/S pump.

No difference between ED and EF block anyway, same same,


actually its the other way around, late ed had ef block and head..


That makes sense ... similar scenario as EL hybrid leading into AU
