 Post subject: EF Low Coolant light - Barra conversion
Posted: Wed Apr 20, 2022 7:53 am
Fordmods Newbie
Offline

Age: 48

Posts: 5

Joined: 20th Apr 2022

Ride: Ef Fairmont Ghia

Location: Auckoand
New Zealand

Hi - Have an EF Fairmont Ghia with recent Barra conversion. Used BA expansion tank so doesn't have low coolant sensor and now have constant low coolant light flashing on dash. Did a search and got a few different ideas but have not found a fix yet.

Short of removing the dash light has anyone resolved this - tried jumping the plug with a wire and using a 220ohm resistor but no joy. I'm crap when it comes to electrics so appreciate some who can explain the fix to me like im 5.

cheers
Top
 Profile


 Post subject: Re: EF Low Coolant light - Barra conversion
Posted: Wed Apr 20, 2022 8:46 pm
Fordmods Junkie
Online
User avatar

Posts: 3733

Joined: 22nd Jan 2009

Ride: '03 BA Wagooon & EB Wagooon

Location: Geeelong
VIC, Australia

kiwiskidkid wrote:
Hi - Have an EF Fairmont Ghia with recent Barra conversion. Used BA expansion tank so doesn't have low coolant sensor and now have constant low coolant light flashing on dash. Did a search and got a few different ideas but have not found a fix yet.

Short of removing the dash light has anyone resolved this - tried jumping the plug with a wire and using a 220ohm resistor but no joy. I'm crap when it comes to electrics so appreciate some who can explain the fix to me like im 5.

cheers



could have sworn someone answered this question??.

think what i read mentioned 180 resistor?.
Top
 Profile


 Post subject: Re: EF Low Coolant light - Barra conversion
Posted: Thu Apr 21, 2022 3:24 am
Fordmods Newbie
Offline

Age: 48

Posts: 5

Joined: 20th Apr 2022

Ride: Ef Fairmont Ghia

Location: Auckoand
New Zealand

Yes some posts said 180 and some 220 but none confirmed it worked with either. Thanks for your response, ill give 180 a try, fingers crossed.
Top
 Profile


 Post subject: Re: EF Low Coolant light - Barra conversion
Posted: Thu Apr 21, 2022 6:41 pm
Fordmods Junkie
Online
User avatar

Posts: 3733

Joined: 22nd Jan 2009

Ride: '03 BA Wagooon & EB Wagooon

Location: Geeelong
VIC, Australia

kiwiskidkid wrote:
Yes some posts said 180 and some 220 but none confirmed it worked with either. Thanks for your response, ill give 180 a try, fingers crossed.


oh ok .... i won't make any promises as i'm only going by the comment someone left. grab both values & try?.
Top
 Profile


 Post subject: Re: EF Low Coolant light - Barra conversion
Posted: Thu Apr 21, 2022 9:47 pm
Tyre Shredder
Offline
User avatar

Age: 39

Posts: 398

Joined: 24th Jun 2014

Gallery: 4 images

Ride: BA XR6 Turbo

Location: Jamestown
SA, Australia

i could be completely wrong here but looks like the coolant sensor passes through upto 2 resistors in the wiring diagram

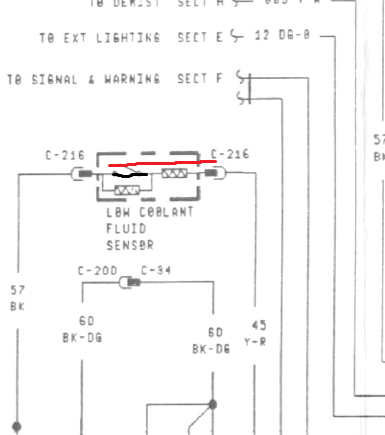

Pic 1 switch open
current flows through both resistors
Attachment:
New Bitmap Image (4).bmp
New Bitmap Image (4).bmp [ 491.13 KiB | Viewed 156 times ]

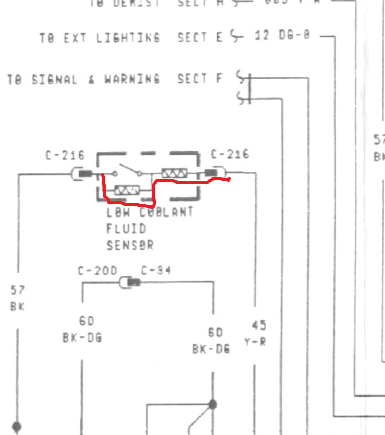

Pic 2 switch closed
Current bypasses one of the resistors
Attachment:
New Bitmap Image (4) - Copy.bmp
New Bitmap Image (4) - Copy.bmp [ 491.13 KiB | Viewed 154 times ]


i couldn't tell you what resistor values are used or what order they are used in
Hope this helps in some way



_________________

Current Ride
BA XR6 Turbo, P3 Paint, BP Trim, Fully Stock Mods to Come!
BA XR6 , P3 Paint, BG Trim, !
1995 EF XR6 The newest member of my ford family!

BLUE BLOOD
Previous Rides
RIP 1996 EF Falcon furura, White sacrificed for parts
1997 EL Falcon
1980 Ford Escort

Top
 Profile


 Post subject: Re: EF Low Coolant light - Barra conversion
Posted: Thu Apr 21, 2022 10:03 pm
Fordmods Newbie
Offline

Age: 48

Posts: 5

Joined: 20th Apr 2022

Ride: Ef Fairmont Ghia

Location: Auckoand
New Zealand

Thanks - I tried 220 and 180 on the plug and neither worked so your take on two could be right. I also put the multimeter on it and switched to 2k ohms got not change - I'm not sure if this means the plug is not even wired up or not? hoping a brain with electrical know how can chirp in and give me a much needed clue as Im stuck.
Top
 Profile


 Post subject: Re: EF Low Coolant light - Barra conversion
Posted: Thu Apr 21, 2022 10:51 pm
Fordmods Junkie
Online
User avatar

Posts: 3733

Joined: 22nd Jan 2009

Ride: '03 BA Wagooon & EB Wagooon

Location: Geeelong
VIC, Australia

kiwiskidkid wrote:
Thanks - I tried 220 and 180 on the plug and neither worked so your take on two could be right. I also put the multimeter on it and switched to 2k ohms got not change - I'm not sure if this means the plug is not even wired up or not? hoping a brain with electrical know how can chirp in and give me a much needed clue as Im stuck.



i checked my stuck [?] EB sensor and it shows .197/180 on the 2K range. believe it's stuck on the "low".


just rechecked the sensor ....... it's .180 when full & 1.376 when empty.


8-)
Top
 Profile


 Post subject: Re: EF Low Coolant light - Barra conversion
Posted: Fri Apr 22, 2022 9:23 am
Fordmods Newbie
Offline

Age: 48

Posts: 5

Joined: 20th Apr 2022

Ride: Ef Fairmont Ghia

Location: Auckoand
New Zealand

Thanks for that mate - much appreciated
