EF stage 2 cam onto AU head



Page 2 of 2 [ 22 posts ] Go to page Previous  1, 2


 Post subject: Re: EF stage 2 cam onto AU head
Posted: Wed Aug 05, 2015 11:28 pm
Getting Side Ways
Offline

Age: 40

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

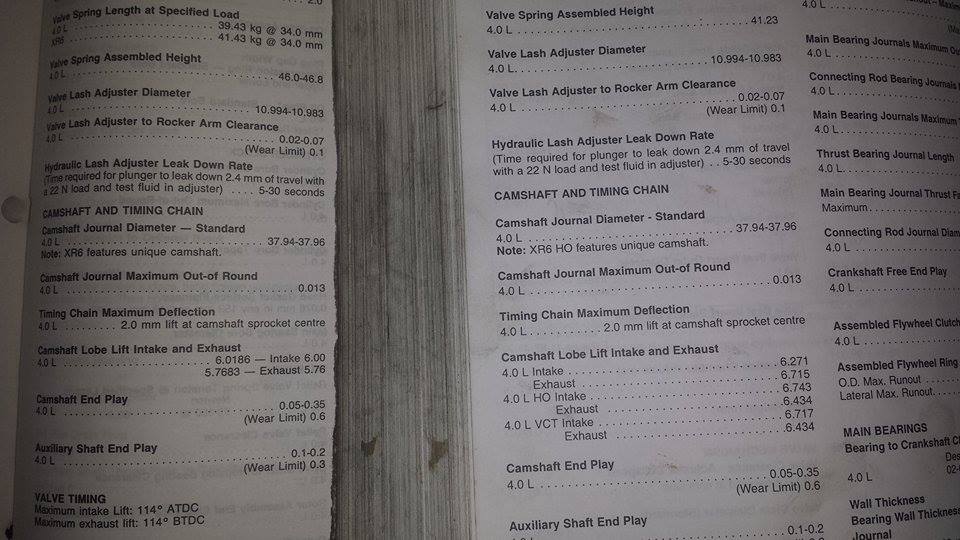

ef factory workshop manual and the au factory workshop manual. journals are the same size





Attachments:
11854052_10153581923272848_484126240_n.jpg [ 85.92 KiB | Viewed 265 times ]



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: EF stage 2 cam onto AU head
Posted: Thu Aug 06, 2015 11:37 pm
Fordmods Junkie
Offline
User avatar

Age: 45

Posts: 1000493

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AUXR6 HP With Ducati SupA Bike!

Location: Perth
WA, Australia

WTF??? i have been told sooo many times they will not fit
even by a cam manufacturer ??

serious ohh well
cool :)



_________________

RIP SCOTT

Top
 Profile


 Post subject: Re: EF stage 2 cam onto AU head
Posted: Fri Aug 07, 2015 9:52 am
Getting Side Ways
Offline
User avatar

Posts: 1412

Joined: 21st May 2005

Location: Melbourne
VIC, Australia

I think people might have gotten confused with the Base circle diameter of the cam lobe being larger in the AU



_________________

EL Fairmont Ghia - Manual - Supercharged
- The Car
- The Headlights

Top
 Profile


 Post subject: Re: EF stage 2 cam onto AU head
Posted: Fri Aug 07, 2015 11:17 am
Getting Side Ways
Offline

Age: 40

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

Base circle in the au is smaller. 1.8" vs 2.1" for e series. I was thinking they had it confused with the crank mains.



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: EF stage 2 cam onto AU head
Posted: Fri Aug 07, 2015 12:08 pm
Getting Side Ways
Offline
User avatar

Posts: 1412

Joined: 21st May 2005

Location: Melbourne
VIC, Australia

ranga83 wrote:
Base circle in the au is smaller. 1.8" vs 2.1" for e series. I was thinking they had it confused with the crank mains.
You sure on that? I was sure I'd read it was larger on AU.

My logic also agrees with it, but perhaps my logic is wrong, or missing some detail....
With a lower ratio rocker it would require a large base circle to keep the HLA's in contact with the valve tip. (this is assuming HLA's are same length, and no major changes in geometry of the rocker arm apart from length beyond the pivot)



_________________

EL Fairmont Ghia - Manual - Supercharged
- The Car
- The Headlights

Top
 Profile


 Post subject: Re: EF stage 2 cam onto AU head
Posted: Fri Aug 07, 2015 1:50 pm
Getting Side Ways
Offline

Age: 40

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

Im positive. Thats how i measure them to tell the difference when i get regrinds 2nd hand.



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: EF stage 2 cam onto AU head
Posted: Fri Aug 14, 2015 11:15 pm
Stock as a Rock
Offline

Age: 32

Posts: 123

Joined: 21st Mar 2011

Ride: four wheels and an engine

Location: right over there...
VIC, Australia

ok so can i put my cam in :?: :D
