EF Timing Chain Replacement



Page 1 of 1 [ 9 posts ]


 Post subject: EF Timing Chain Replacement
Posted: Wed Mar 08, 2017 1:13 pm
Fordmods Newbie
Offline

Age: 27

Posts: 5

Joined: 8th Mar 2017

Ride: ef xr6

Location: Melbourne
VIC, Australia

Hi guys. Ive got the engine out of my xr6 and i need to change the timing chain. My question is, is it necessary to take the head off? or is it possible to remove and replace the timing chain cover without doing so?
Top
 Profile


 Post subject: Re: EF Timing Chain Replacement
Posted: Wed Mar 08, 2017 4:01 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 839

Joined: 12th Aug 2007

Gallery: 22 images

Ride: AU2 XR8 ute & 91 EA bitsa

Location: Melbourne
VIC, Australia

You can remove the timing cover without taking the head off. The sump can be loosed to make it easier to remove. That being said, most people would replace the sump gasket and rear seal while the engine is out.



_________________

AU2 XR8 with Raptor VL, ported Yella Terra GT40P heads, Scorpion 1.6 RRs, XE264HR-14 Comp Cam, ceramic coated Hurricane Headers, 60lb injectors, Walbro 255, 200cfi cats, 3" exhaust & Snow Performance water methanol injection

Top
 Profile


 Post subject: Re: EF Timing Chain Replacement
Posted: Wed Mar 08, 2017 5:12 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5582

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Why do you need to change the timing chain ?



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: EF Timing Chain Replacement
Posted: Wed Mar 08, 2017 9:17 pm
Fordmods Newbie
Offline

Age: 27

Posts: 5

Joined: 8th Mar 2017

Ride: ef xr6

Location: Melbourne
VIC, Australia

I had the engine out as I needed to replace sump gasket and weld up the clutch hole on the firewall, when I dropped the sump, I found a chain guide in the bottom. So may as well do the chain.
Top
 Profile


 Post subject: Re: EF Timing Chain Replacement
Posted: Wed Mar 08, 2017 9:45 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5582

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Making lot of work for yourself. The chains are usually bullet proof - the guide I assume is the lower one on the timing cover. Provided it's okay, refit it to the cover and put the sump on.

As mentioned, you'd be better replacing the rear main seal, and possibly the rear welch plug.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: EF Timing Chain Replacement
Posted: Sat Jun 24, 2017 8:36 pm
Fordmods Newbie
Offline

Age: 27

Posts: 5

Joined: 8th Mar 2017

Ride: ef xr6

Location: Melbourne
VIC, Australia

okay so i am finally getting around to this, ive removed the sump and ive removed all the bolts from the timing cover. ive used an allan key to release the tensioner but i cant seem to get the cover off. it moves around but it still seams that the tensioner is attached. what am i doing wrong? / Forgetting?
Top
 Profile


 Post subject: Re: EF Timing Chain Replacement
Posted: Sat Jun 24, 2017 8:41 pm
Fordmods Newbie
Offline

Age: 27

Posts: 5

Joined: 8th Mar 2017

Ride: ef xr6

Location: Melbourne
VIC, Australia

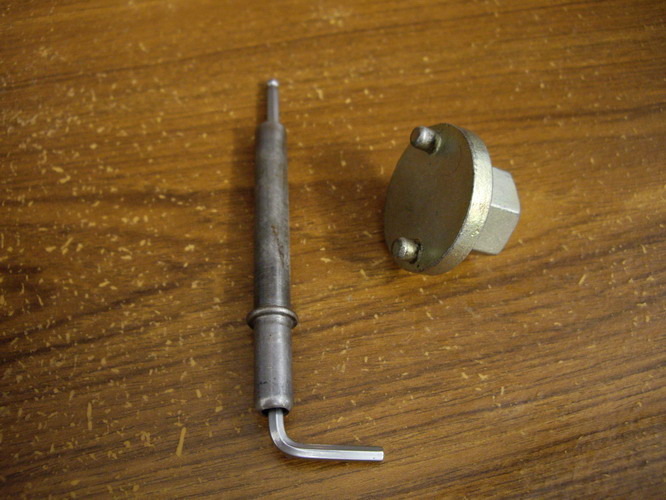

Attachment:
IMGP1066_resize.JPG [ 101.46 KiB | Viewed 10 times ]

where could i get the tool on the right?
Top
 Profile


 Post subject: Re: EF Timing Chain Replacement
Posted: Mon Jul 03, 2017 1:29 pm
Fordmods Newbie
Offline

Age: 27

Posts: 5

Joined: 8th Mar 2017

Ride: ef xr6

Location: Melbourne
VIC, Australia

anyone? I've got the engine out of the car. Dropped the sump. I've released the tension and got the timing cover loose but can't get it off.
Top
 Profile


 Post subject: Re: EF Timing Chain Replacement
Posted: Mon Jul 03, 2017 8:22 pm
Fordmods Junkie
Offline
User avatar

Posts: 11711

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

Did you pull the tensioner completely out? Also the top guide bolt removed?



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)
