 Post subject: EL fairmont few issue i need help with
Posted: Sun Jun 03, 2012 1:09 am
Getting Side Ways
Offline

Age: 36

Posts: 546

Joined: 5th Jun 2010

Ride: BA XT, NCII V8

Location: Adelaide
SA, Australia

Ok picked up a EL Fairmont.

did a service on it few days after i got it, oil , filters etc

ever since i got the car it feels like its flooding its self. if i put the foot into it off the line its almost stalls has no power until about 3000rpm.
even driving nice its running at 16.7l/100k. my EF used to get 13 and i drove it hard.

when i go around a corner it feels like it comletley dies has about 2hp lol.
asoon as i straighten up it takes off again.
i am a little worried about the gearbox mounts as when i go over a bump, train track etc the shifter shakes around alot more than normal ( auto ). could this be causing it to lose power while turning.

Other Q's my mate is wrecking a EF XR6 and it has the LSD, will it fit into my EL with no issues as i have heard the rear suspensions is slitley different on the EL's than the EF, just wondering as he said i could have it.

also with the fuel issue i have a spare EF intake manifold that i was going to chrome up. has the regulator and rail injectors etc. i noticed that the injectors on my EL are skinny and the ones of my old EF are more chunky. completely different looking. maybe my EL has wrong injectors???

sorry for all the blah blah would love some help
Top
 Profile


 Post subject: Re: EL fairmont few issue i need help with
Posted: Sun Jun 03, 2012 2:27 am
Getting Side Ways
Offline

Age: 72

Posts: 2542

Joined: 18th Mar 2006

Ride: EF-XR8chaser

Location: wollongong
NSW, Australia

wtbdlltd wrote:
Ok picked up a EL Fairmont.

did a service on it few days after i got it, oil , filters etc

ever since i got the car it feels like its flooding its self. if i put the foot into it off the line its almost stalls has no power until about 3000rpm.
even driving nice its running at 16.7l/100k. my EF used to get 13 and i drove it hard.

when i go around a corner it feels like it comletley dies has about 2hp lol.
asoon as i straighten up it takes off again.
i am a little worried about the gearbox mounts as when i go over a bump, train track etc the shifter shakes around alot more than normal ( auto ). could this be causing it to lose power while turning.

Other Q's my mate is wrecking a EF XR6 and it has the LSD, will it fit into my EL with no issues as i have heard the rear suspensions is slitley different on the EL's than the EF, just wondering as he said i could have it.

also with the fuel issue i have a spare EF intake manifold that i was going to chrome up. has the regulator and rail injectors etc. i noticed that the injectors on my EL are skinny and the ones of my old EF are more chunky. completely different looking. maybe my EL has wrong injectors???

sorry for all the blah blah would love some help

how many ks and did you change the fuel filter?



_________________

R.I.P HANS HARTMAN

Top
 Profile


 Post subject: Re: EL fairmont few issue i need help with
Posted: Sun Jun 03, 2012 10:28 am
Parts Gopher
Offline

Age: 35

Posts: 92

Joined: 28th Mar 2012

Ride: 94 NC II FAIRLANE

Location: grafton
NSW, Australia

+1 on fuel filter and they chew pumps up sometimes too. check obvious things like spark and fuel before getting too worried maybe clean your injectors.



_________________

If life was easy we would all be living

Top
 Profile


 Post subject: Re: EL fairmont few issue i need help with
Posted: Sun Jun 03, 2012 2:00 pm
Getting Side Ways
Offline

Age: 36

Posts: 546

Joined: 5th Jun 2010

Ride: BA XT, NCII V8

Location: Adelaide
SA, Australia

i did change the fuel filter and new plugs and leads. but already after only 500ks the plugs are looking burnt.

not sure how many k's on the car it has a NL Cluster in it so no original.
Top
 Profile


 Post subject: Re: EL fairmont few issue i need help with
Posted: Sun Jun 03, 2012 2:04 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4583

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

if the injectors look different swap them over mate, someone may have put the wrong type on and they are flooding the car, still doesnt fix your problem about when you go around corners :?



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: EL fairmont few issue i need help with
Posted: Sun Jun 03, 2012 2:26 pm
Getting Side Ways
Offline

Age: 36

Posts: 546

Joined: 5th Jun 2010

Ride: BA XT, NCII V8

Location: Adelaide
SA, Australia

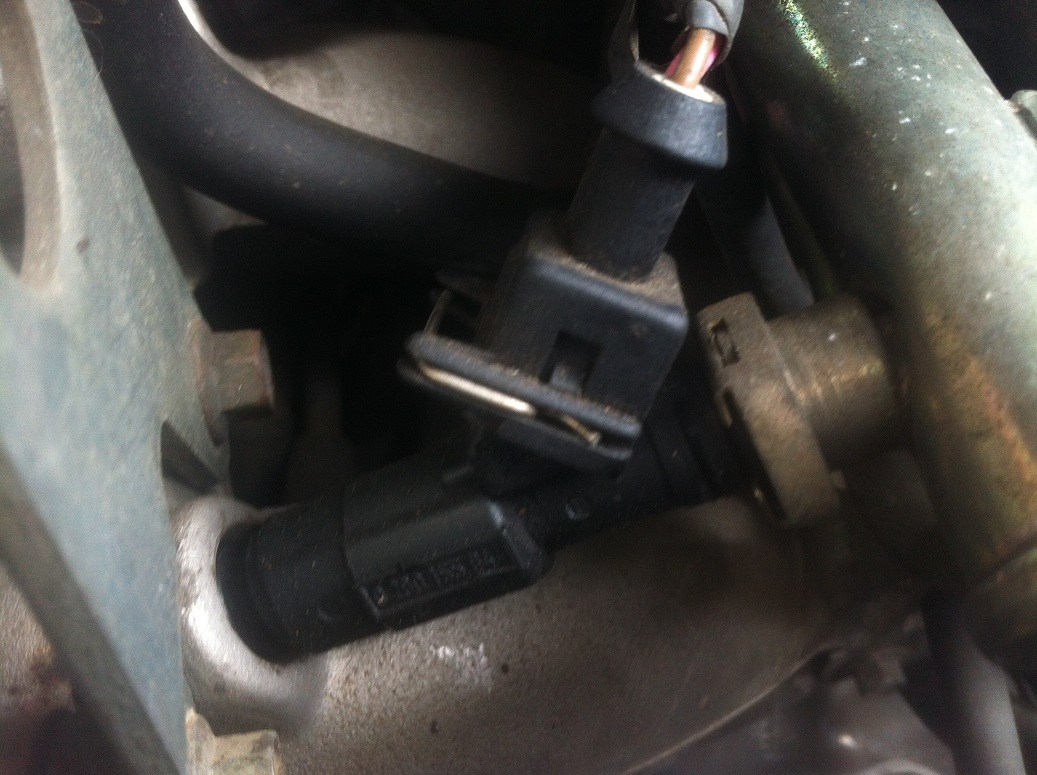

here is a pic of the injectors that are on it.

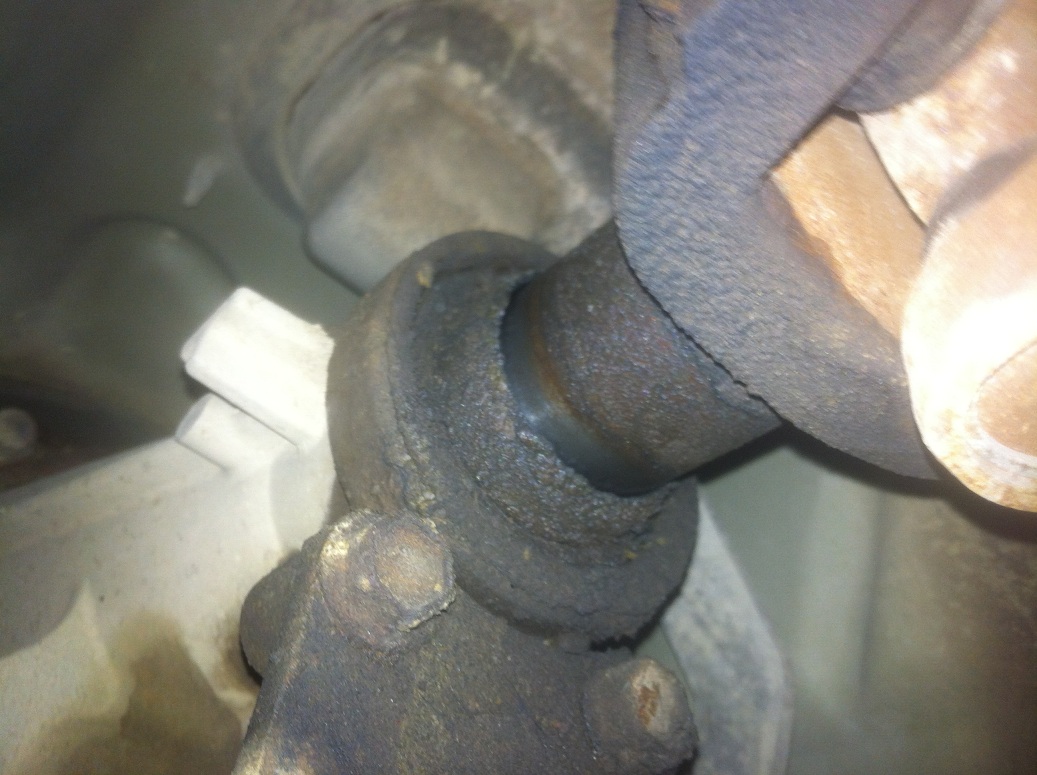

and a pic of the tail shaft in the gearbox, to me it looks like the gearbox has moved forward somehow as it does not look like its all the way in





Attachments:
IMG_1118.JPG [ 240.23 KiB | Viewed 139 times ]
IMG_1120.JPG [ 217.88 KiB | Viewed 128 times ]
Top
 Profile


 Post subject: Re: EL fairmont few issue i need help with
Posted: Sun Jun 03, 2012 2:31 pm
Technical Contributor
Offline
User avatar

Age: 44

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

Injectors:
They look like AU ones.


Tail Shaft:

Theres nothing wrong with it, its called a Slip Yoke, as the diff goes up and down the tailshaft needs to be able to 'move'.



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


 Post subject: Re: EL fairmont few issue i need help with
Posted: Sun Jun 03, 2012 2:33 pm
Getting Side Ways
Offline

Age: 36

Posts: 546

Joined: 5th Jun 2010

Ride: BA XT, NCII V8

Location: Adelaide
SA, Australia

ok thanks for the help guys ill have alook do some fiddling and see what i can come up with
Top
 Profile


 Post subject: Re: EL fairmont few issue i need help with
Posted: Sun Jun 03, 2012 2:51 pm
Fordmods Junkie
Offline
User avatar

Posts: 11752

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

...this may seem stupid, but did you put the fuel filter in the right way? If you put it in backwards it won't be very good on fuel. Also O2 sensor can be a contributor to your fuel issues. Check for any vacuum leaks as well.

Regarding cornering and losing power, you might have an electrical problem with a loose cable some where? Or fuel pump might be buggered with a dodgy pick up?



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: EL fairmont few issue i need help with
Posted: Sun Jun 03, 2012 2:54 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4583

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

Krytox wrote:
Injectors:
They look like AU ones.


Tail Shaft:

Theres nothing wrong with it, its called a Slip Yoke, as the diff goes up and down the tailshaft needs to be able to 'move'.

they could be cheapo replacement injectors from egay, id be swapping them just to rule out one thing since it wont cost you anything, and you can get a proper inspection on these skinnier ones and find out what they are.

and with the tail shaft as krytox said its a slip yoke, if you lower the car it will sit further in the gearbox, raise the car up and it will come out further



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: EL fairmont few issue i need help with
Posted: Sun Jun 03, 2012 3:20 pm
Getting Side Ways
Offline

Age: 36

Posts: 546

Joined: 5th Jun 2010

Ride: BA XT, NCII V8

Location: Adelaide
SA, Australia

ok good thing on the tailshaft then.

ill swap the injectors over when the rain stops,

they have been sitting in the shed for a while should i soak em in petrol or anything to clean them?
Top
 Profile


 Post subject: Re: EL fairmont few issue i need help with
Posted: Sun Jun 03, 2012 9:21 pm
Parts Gopher
Offline

Age: 31

Posts: 76

Joined: 2nd Jul 2010

Ride: 96 EF 5 Spd

Location: lara
VIC, Australia

the ef diff will go in, just need to swap the rear part of the handbrake cable and EF upper control arms as they will be longer
the watts link sits a bit different but doesnt really matter too much you can change the diff hat if you really want to, so as the watts links is in the correct posistion
Top
 Profile


 Post subject: Re: EL fairmont few issue i need help with
Posted: Tue Jun 05, 2012 5:32 pm
Parts Gopher
Offline

Posts: 72

Joined: 30th May 2010

Gallery: 9 images

Ride: el fairmont

Location: canberra act
QLD, Australia

I recently bought an el fairmont ghia & it has the same injectors they are semens el replacements swap the fuel rail just to rule them out ,before you go changing too much do the base timing as mine was pretty gutless but after i did the timing it was a rocket ,completely different car
Top
 Profile


 Post subject: Re: EL fairmont few issue i need help with
Posted: Wed Jun 06, 2012 5:08 pm
Getting Side Ways
Offline

Age: 36

Posts: 546

Joined: 5th Jun 2010

Ride: BA XT, NCII V8

Location: Adelaide
SA, Australia

ok put the ef injectors on it today and the top half of the manifold that i had cleaned from another car.

took it for a spin and its so much better. will take it for a cruise later and see what the fuel is like but so far so good, does not try and stall when i take off, it actually span up the wheels when i gave it to her off the line woot.
Top
 Profile


 Post subject: Re: EL fairmont few issue i need help with
Posted: Wed Jun 06, 2012 11:45 pm
Oompa Loompa
Offline

Age: 31

Posts: 39

Joined: 26th Oct 2011

Ride: fairmont

Location: Minto
NSW, Australia

good job dave man
