Ok just bought a timing chain kit and new harmonic balancer for my EL i6. Apart from coolant, new "O" rings for the water pump heater hose and puller for the harmonic balancer what else do i need to do this kit and any tips? I know all about the TDC so dont worry about that.
Top
 Profile


Posted: Sun Mar 04, 2007 7:13 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

Gaskets for the cover, Chain Guides, O-ring for the tensioner (all in one kit for $100)

Buy Form-a-Gasket #3
Buy RTV Blue


You don't have to remove the pump to do the chain.



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Sun Mar 04, 2007 7:59 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

i already have the entire kit for $80 and all the sealents needed. just wanted to know what else apart from what i added in my first post...Thanks for the reply anyways.
Top
 Profile


Posted: Sun Mar 04, 2007 8:32 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Have you got the O'ring for the timing cover to block???
There should be 3 O'rings for the timing chain tensioner, 1 big one and 2 small ones the same size.
You may need a tool to remove and refit the tensioner assembly, as well as resetting the tensioner.
If you don't reset the tensioner correctly, you will damage the engine block at the journal/bore where the auxillary shaft ( the one that drives the dizzy and oil pump ), runs, I have seen it happen a few times.
So, becareful.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sun Mar 04, 2007 8:43 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

It has the 2 o rings, large aluminium washer, 1 top rubber gasket, 2 paper gaskets (dont know why 2!), crank seal, 2 large chain guides, 1 small chain guide, chain tensioner and chain. I have the tensioner remover (the tensioner cover) I guess i just need coolant and possibly a new o ring for the heater hose on the wter pump. Whats the 3rd o ring for you were talking about as i only got 2 (1 thick and 1 thin same about 15mm diameter)
Top
 Profile


Posted: Sun Mar 04, 2007 8:48 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

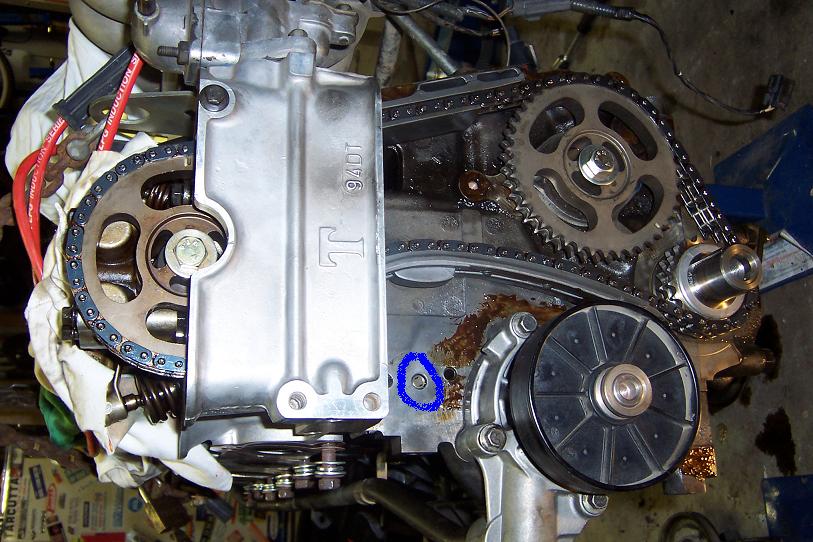

small black one here:
...well it goes on the timing cover but ends up there





Attachments:
timing_cover.JPG [ 103.33 KiB | Viewed 79 times ]



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Sun Mar 04, 2007 9:02 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Krytox wrote:
small black one here:
...well it goes on the timing cover but ends up there


That one is about an 1" in diameter, and is of a thicker cross section than the one for the outer of the tensioner one.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sun Mar 04, 2007 9:03 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

Okies i must have it. i guess out of the 2 supplied one for that as u showed and 1 for the chain tensioner. If i need more i can get every size needed from work in a o ring kit in bot metric and imperial. That pic will be handy tho. Thanks krytox. Also i know about the tensioner release as i did my head gasket almost 2 years ago. A small allen ket and turn counter clockwise to release from memory.
Top
 Profile


Posted: Sun Mar 04, 2007 9:06 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

And use a piece of old fuel pipe to push on the tensioner too, when you undo the tensioner.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Mon Mar 05, 2007 10:25 am
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1132

Joined: 11th Jun 2006

Gallery: 1 images

Ride: ef fairmont,

Location: brisbane
QLD, Australia

i just found that when you remove the tensioner by the 14mm on the end the whole thing comes out. just pull it apart clean the small filter inside it, new o ring of course then , with the tensioner its self compress it back (done mine with my fingers) and fit back in ,then fit the big half of the case bolt in tighten it then a poke with a phillihps head screw driver and the refit the 14mm till firm not tight hows that sound to you guys as i have now problem using that method on a few ef,els now no fancy tools needed



_________________

95 ef montfor sale pm for info, 88 hilux mud truck

Top
 Profile


Posted: Fri Apr 13, 2007 2:46 pm
Getting Side Ways
Offline

Age: 27

Posts: 1323

Joined: 12th Nov 2006

Gallery: 9 images

Ride: 02 xls ute 347

Location: adelaide
SA, Australia

what do you do to get the top sprocket in the right position when you put the chain on?
I am putting my head back on but i removed my top sprocket and now that i want to put my head back on im not which way the sprocket should be facing?



_________________

02 series 3 AU marline ute 5speed 347 stroker

Top
 Profile


Posted: Fri Apr 13, 2007 3:34 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

The kit comes with a new tensioner.


To line up the cam gear turn the crank via the harmonic balancer (breaker bar and socket)
Top
 Profile


Posted: Fri Apr 13, 2007 6:57 pm
Getting Side Ways
Offline

Age: 27

Posts: 1323

Joined: 12th Nov 2006

Gallery: 9 images

Ride: 02 xls ute 347

Location: adelaide
SA, Australia

i dont have the kit..................but when i took the head off i took the chain off the sprocket.
I need to know how to line it up again?
I dont have the timing cover off ..................just the head off and i need to put it back on.



_________________

02 series 3 AU marline ute 5speed 347 stroker

Top
 Profile


Posted: Fri Apr 13, 2007 10:11 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

ea_falcon wrote:
i dont have the kit..................but when i took the head off i took the chain off the sprocket.
I need to know how to line it up again?
I dont have the timing cover off ..................just the head off and i need to put it back on.



You certainly did that the wrong way.........you should've left the cam sprocket on the chain with a zip-tie. The head will come off over it.
You have made the job a lot harder than it needed to be.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sat Apr 14, 2007 3:07 am
Getting Side Ways
Offline

Age: 27

Posts: 1323

Joined: 12th Nov 2006

Gallery: 9 images

Ride: 02 xls ute 347

Location: adelaide
SA, Australia

yes i have made it alot harder......................but how do i make it work again lol

Seriously ive got the crank at top dead center and the rotor in the dizzy is pointing to number one.................where do i go from here?



_________________

02 series 3 AU marline ute 5speed 347 stroker

Top
