 Post subject: EL Intake + Pod
Posted: Thu Apr 05, 2007 1:10 pm
Technical Contributor
Offline
User avatar

Age: 30

Posts: 963

Joined: 8th Nov 2004

Gallery: 4 images

Ride: Liberty MY04 4GEN Luxury

Location: Melbourne
VIC, Australia

Hey guys a lot of you have probably seen my boxed pod setup from the Technical Document I made. Anyway I've just noticed EF/ELs with those mandrel bent 3" intake pipes, say they notice a change in performance and induction noise when fitted. I was just wondering if therefore there would be any gain in performance / noise if I was to replace my EF intake pipe with the straight-through EL pipe? Some have said to me the straight pipes actually bring down performance.

Anyone experimented with each + a pod?



_________________

www.lukehimself.net

Top
 Profile


Posted: Thu Apr 05, 2007 1:29 pm
Tyre Shredder
Offline
User avatar

Age: 29

Posts: 308

Joined: 9th Apr 2006

Gallery: 5 images

Ride: R33

Power: 142 rwkw

Location: Pennant Hills, Sydney
NSW, Australia

dont bother with the El intake pipe, just get the BA intake setup, it looks bigger than the EL one, and makes a louder induction noise when i fitted it to my EF.



_________________

R33 GTS-T - 222.6rwkw
EF - 142rwkw

Top
 Profile


Posted: Thu Apr 05, 2007 1:32 pm
Getting Side Ways
Offline

Age: 31

Posts: 509

Joined: 7th Nov 2004

Gallery: 9 images

Ride: '05 5.4L BA MK2 XT

Location: Sydney
NSW, Australia

At a FordMods dyno day I attended quite some time ago they dyno'd an EF, then took off the intake piping and dyno'd again, showing that the standard EF intake piping created a 7KW restriction... 7 KW's!!!!

They tested the same car with an EL piping and it showed considerably less restriction if any (cant recall, I think it was about 2-3kw less then with no intake at all)
Top
 Profile


Posted: Thu Apr 05, 2007 1:40 pm
Technical Contributor
Offline
User avatar

Age: 30

Posts: 963

Joined: 8th Nov 2004

Gallery: 4 images

Ride: Liberty MY04 4GEN Luxury

Location: Melbourne
VIC, Australia

Cool, thanks for the replies guys. So a BA intake pipe will swap with my pipe straight over, no modification?



_________________

www.lukehimself.net

Top
 Profile


Posted: Thu Apr 05, 2007 1:50 pm
Tyre Shredder
Offline
User avatar

Age: 29

Posts: 308

Joined: 9th Apr 2006

Gallery: 5 images

Ride: R33

Power: 142 rwkw

Location: Pennant Hills, Sydney
NSW, Australia

yeah no modification, but i didnt have the pod boxed just exposed in the bay, reason was the BA pipe didnt reach the box. But it would be easy to make some pvc pipe and extend it to the ef box, im sure someone on here has done this before.



_________________

R33 GTS-T - 222.6rwkw
EF - 142rwkw

Top
 Profile


Posted: Thu Apr 05, 2007 1:52 pm
Getting Side Ways
Offline

Age: 31

Posts: 509

Joined: 7th Nov 2004

Gallery: 9 images

Ride: '05 5.4L BA MK2 XT

Location: Sydney
NSW, Australia

It probably wont do anything for you, the moral of my last post is that the EL came out with the most efficient intake piping and is not worth playing with, unless your replacing it with something shiny for looks...
Or something custom designed to be better
Top
 Profile


Posted: Thu Apr 05, 2007 1:57 pm
Tyre Shredder
Offline
User avatar

Age: 29

Posts: 308

Joined: 9th Apr 2006

Gallery: 5 images

Ride: R33

Power: 142 rwkw

Location: Pennant Hills, Sydney
NSW, Australia

yeah this is it, not sure on who the member is..





Attachments:

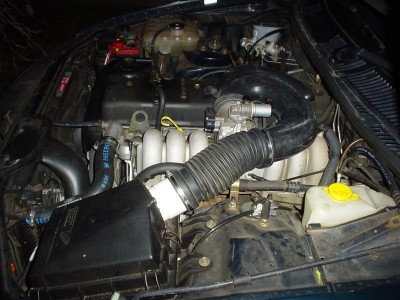

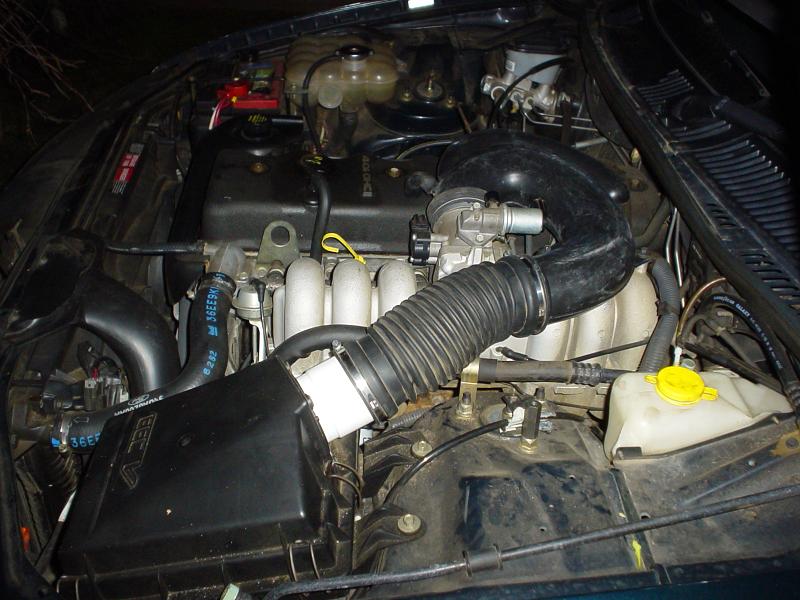

File comment: BA intake on EF
small.JPG [ 80.41 KiB | Viewed 60 times ]



_________________

R33 GTS-T - 222.6rwkw
EF - 142rwkw

Top
 Profile


Posted: Thu Apr 05, 2007 2:06 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2983

Joined: 15th Apr 2006

Gallery: 5 images

Ride: Falcon

Location: Aberfoyle Park
SA, Australia

Spoondog wrote:
yeah this is it, not sure on who the member is..


Nice snorkle mod. LOL



_________________

HOLDENS go like rockets. They fall apart in stages!!!

Top
 Profile


Posted: Thu Apr 05, 2007 2:26 pm
Technical Contributor
Offline
User avatar

Age: 30

Posts: 963

Joined: 8th Nov 2004

Gallery: 4 images

Ride: Liberty MY04 4GEN Luxury

Location: Melbourne
VIC, Australia

Ah nice, might give it a try depending on how much they cost at the wreckers. Thats one hell of a dirty engine bay!!



_________________

www.lukehimself.net

Top
 Profile


Posted: Thu Apr 05, 2007 2:54 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

You would be lucky to find a measurable difference in performance between EF and EL intake pipes. It is generally agreed upon that the EF is a little better though (think JMM started all that).

I dont trust the 2 vs 7rwkw results posted above at all. Seen way to many cars on the dyno that contradict it.



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Thu Apr 05, 2007 4:57 pm
Stock as a Rock
Offline

Age: 31

Posts: 181

Joined: 7th Sep 2006

Ride: EF Mont

Location: Hobart
TAS, Australia

the EF intake pipe has a venturi like bottle neck just behind the air box that reduces the diameter of the pipe from 80mm to 50mm. Ford put it in there to reduce induction noise.

I think it was CJH that told me that :)



_________________

Sanity is for the Weak!!

Top
 Profile


Posted: Thu Apr 05, 2007 5:05 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

The narrow section is inside the airbox on the EF's and just at the start of the pipe on later models. The EF pipe itself is wide all the way through

comparing the EF to 3" steel it is hard to see any obvious restriction




_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Thu Apr 05, 2007 7:31 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

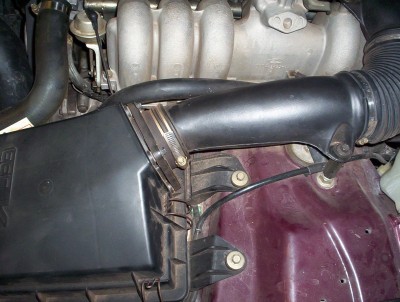

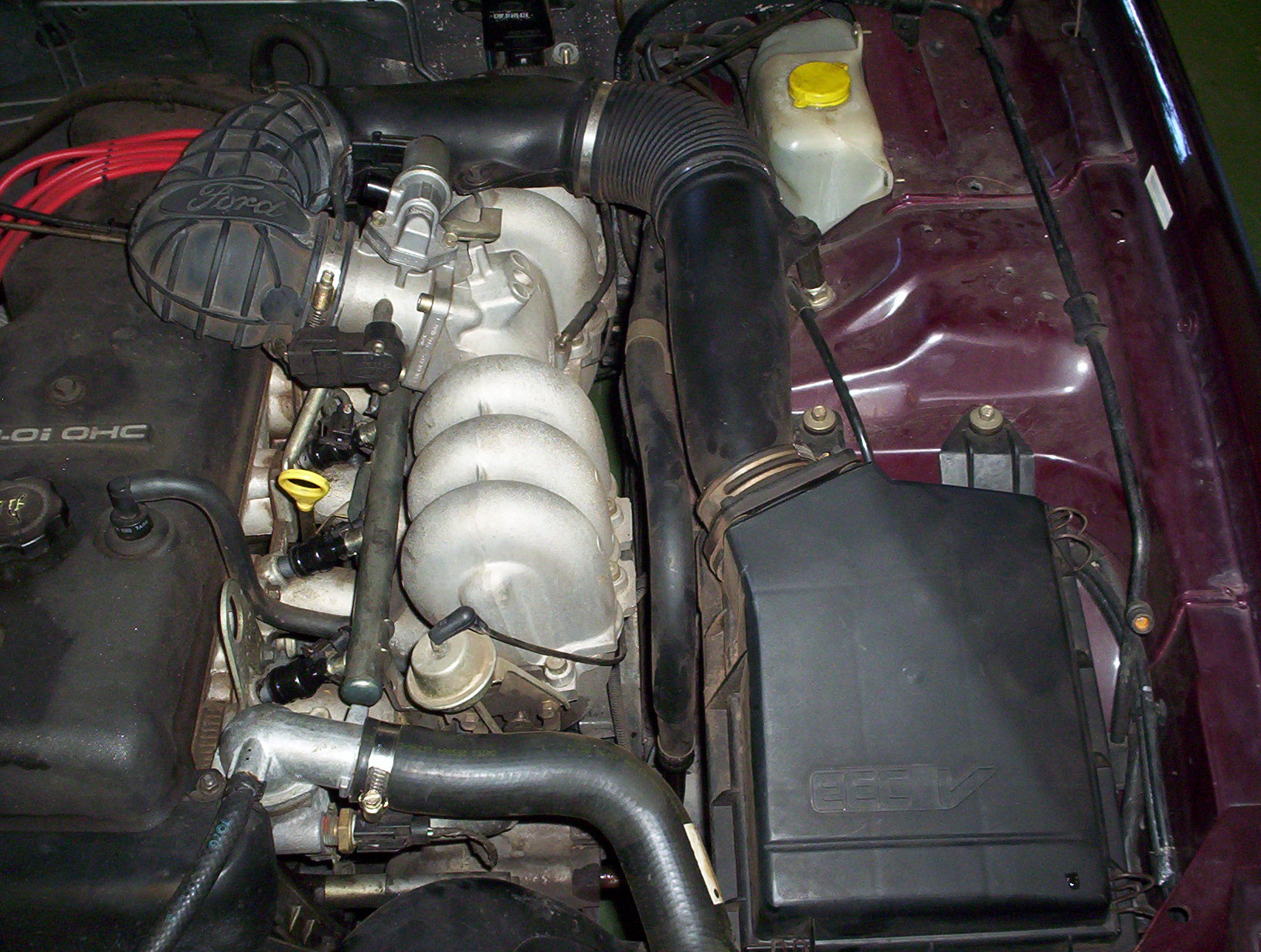

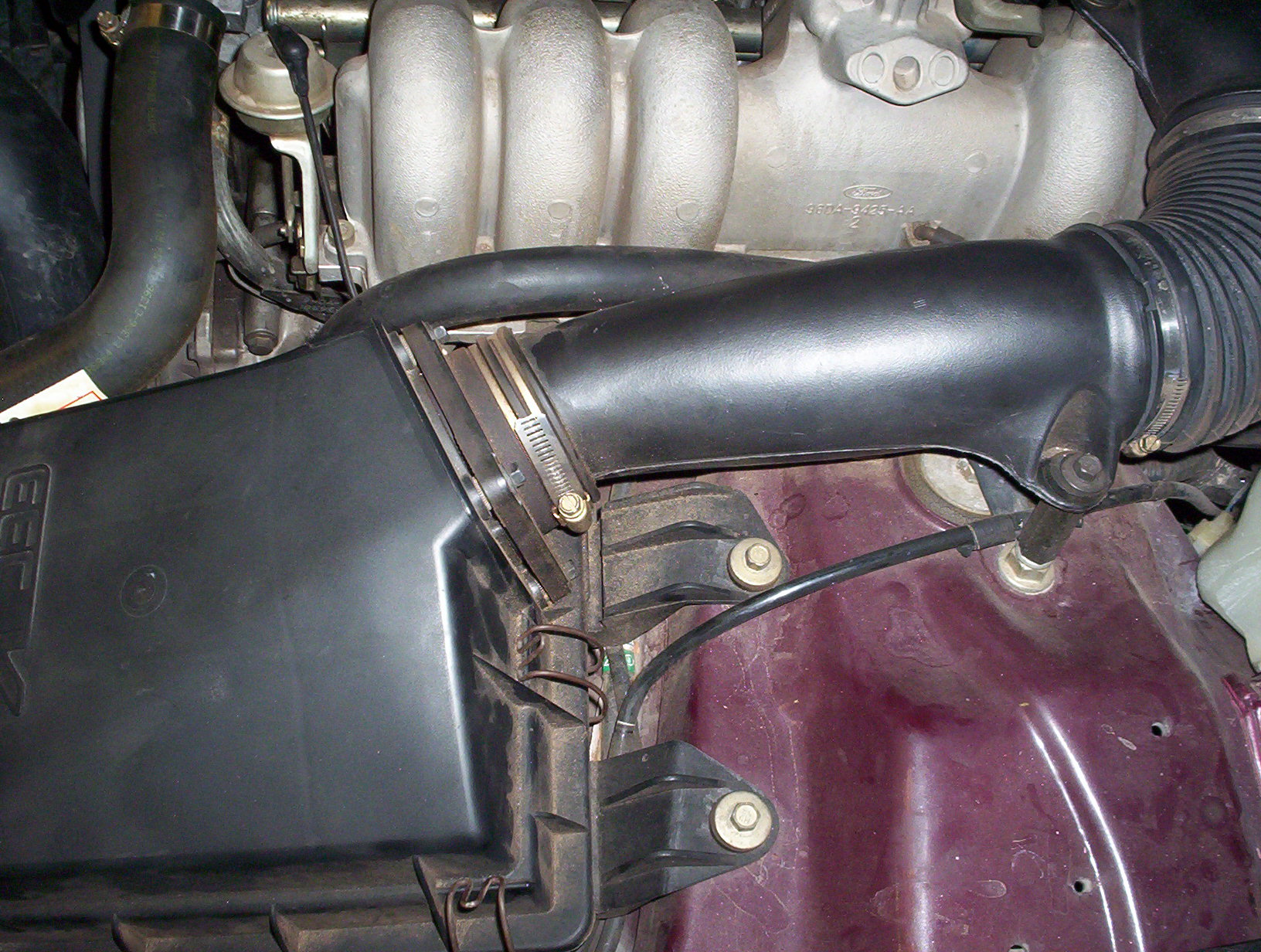

Here's a pic of std ducting for an EL. Complete with the narrow, HP sucking, venturi bit.





Attachments:
EL intake ducting std 001.jpg
EL intake ducting std 001.jpg [ 496.99 KiB | Viewed 33 times ]
EL intake ducting std 002.jpg
EL intake ducting std 002.jpg [ 506.35 KiB | Viewed 35 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Thu Apr 05, 2007 7:55 pm
Getting Side Ways
Offline

Posts: 558

Joined: 6th May 2006

Location: cbd melb.
VIC, Australia

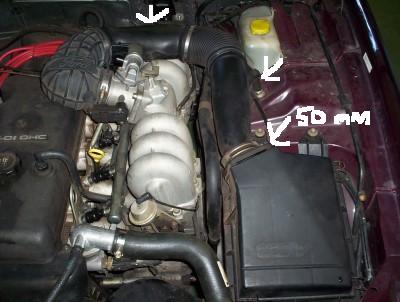

This is what i did. I have an el with the stock set up right, now ill attach a picture and show you what i have changed. I have changed the 2 pipes with 80mm pvc, and with the el air box the entre size is 50mm as u may know, but i also have bought an ef air box lid which has an 80mm opening and i cut off the belmouth inside.. So i have 80mm tubing all the way including the air box lid and then i added a el gt snorkel to finish it off. Also i painted the pvc, air box lid and the snorkel gloss black, so the induction pipes will look the same colour.





Attachments:
t_el_intake_ducting_std_001_923.jpg [ 22.32 KiB | Viewed 33 times ]
Top
 Profile


Posted: Thu Apr 05, 2007 7:56 pm
Getting Side Ways
Offline

Posts: 558

Joined: 6th May 2006

Location: cbd melb.
VIC, Australia

i cant really be bothered taking a picture on a camera then placing in on the computer.. lol
