el into eb conversion (WE HAVE IGNITION)



Page 4 of 5 [ 65 posts ] Go to page Previous  1, 2, 3, 4, 5  Next


Posted: Sun Jan 07, 2007 1:25 pm
Getting Side Ways
Offline

Posts: 1310

Joined: 12th Dec 2005

Location: Perth
WA, Australia

Hazza i got a timing light if you wanna borrow it.
Top
 Profile


Posted: Sun Jan 07, 2007 2:31 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

cheers but going ot get one from my dad this arvo then go to rocko to pick up a nissan pulsar of my bro so i can get to work lol

just found out that the pulsar has a f**k powersteering hose and frunt brakes r f**k so gotta fix that too
Top
 Profile


Posted: Mon Jan 08, 2007 9:34 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

well now im really really p****d off.

got a batt charger charged it up . played around re seating the dizzy this arvo and got her running not so bad ( still need timing light to get ti better. ) but now a new prob has arisen

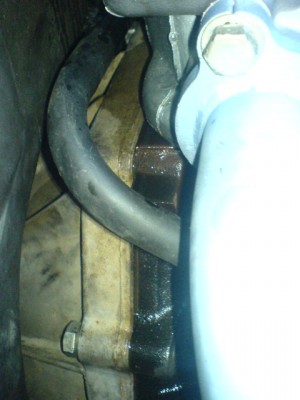

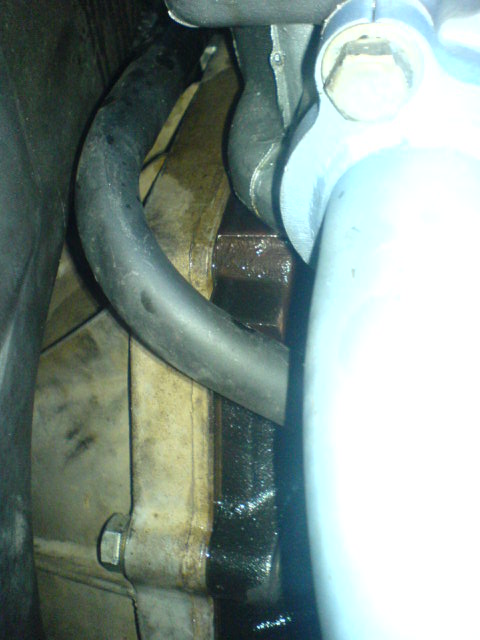

as i was looking over towards the zorst i noticed som oil at the back of the motor running down next to the bell housing. sure enought its looks like coming from the head gasket (that was just done while motr was out) the head wend back on no worries all torqued up and tighten another 90' so i thought oh s**t. looked in the oil cap and could see a few droplets of water. .. (i think) may be silver paint over spray.

well now just took the rocker cover off and cant see ne water thinking maybe the back of the rocker cover gasket wasnt on right and its leaked out. coz i pussed the car back and saw a nice big puddle of oil . thinking if it was the head it prob wouldnt be that much ?

but if it is the head well

im confuzzled on what the f**k to do.

and why its leaking

after the head got skimmed and the block was cleaned right back with gasket remover a blade and steel wool.

this has been the worst last 2 weeks.





Attachments:
DSC00438.JPG [ 95.22 KiB | Viewed 21 times ]
DSC00436.JPG [ 55.23 KiB | Viewed 12 times ]

Last edited by HaZZa on Mon Jan 08, 2007 10:05 pm, edited 1 time in total.

Top
 Profile


Posted: Mon Jan 08, 2007 10:00 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

Are you sure the oil is comming from the head gasket and not the rocker cover? Ive been caught a couple of times when the rocker cover gasket has pinched at the 1/2 moon at the back and it weaps oil down onto the top of the bellhousing.



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Mon Jan 08, 2007 10:06 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

guess if i pull the plug and it is the gasket then it would have oil all over it
brb
Top
 Profile


Posted: Mon Jan 08, 2007 10:09 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

well plugs fine . i think im right for now . bloody hope so .

just thought whenit was popping and s**t it may of blow the gasket or something
Top
 Profile


Posted: Tue Jan 09, 2007 4:20 pm
Tyre Shredder
Offline

Posts: 330

Joined: 26th Apr 2006

Location: rockingham
WA, Australia

if that oil/water mix dripped from you car when it wasnt running it shouldnt be the rocker cover gasket as it isnt full of oil, only circulates when the cars running.
as for the rough idleing, make sure you connect the front pcv hose to the fuel breather line to the bottom of the inlet manifold. i think its different on eb/eds. ef/el use a three point conector like an E with out the top -.
Top
 Profile


Posted: Tue Jan 09, 2007 9:34 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

thats kewl all sused out was just the rocker cover gasket.

as for the motor it makes great power on cyl 4,5,6 but not the rest .

gotta do compression test as the plugs r getting oiled up.

so if compression test goes bad motor will be comming back out and will get the bottom end redone. more then likely forged pistons (of some brand) then might as well get a big cam of some brand and go for power .

thinking might just get the eb motor some new stem seals and berings and gaskets and wack her back in, in the mean time with the bbm.

then afterwards dropp the el motor in .
Top
 Profile


Posted: Tue Jan 09, 2007 9:34 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

thats kewl all sused out was just the rocker cover gasket.

as for the motor it makes great power on cyl 4,5,6 but not the rest .

gotta do compression test as the plugs r getting oiled up.

so if compression test goes bad motor will be comming back out and will get the bottom end redone. more then likely forged pistons (of some brand) then might as well get a big cam of some brand and go for power .

thinking might just get the eb motor some new stem seals and berings and gaskets and wack her back in, in the mean time with the bbm.

then afterwards dropp the el motor in .
Top
 Profile


Posted: Thu Jan 11, 2007 9:25 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

well compresion test came back


cyl 1 = 0
cyl 2 = 130
cyl 3 =130
cyl 4 = 130
cyl 5 = 127
cyl 6 = 125

so somethings up with 1. should prob do a leak down test and go from there . but now just thinking to rip the head off and go get the stg 3 from KEC then get some forged pistons new rings bearings etc.

depends on funds and time
Top
 Profile


Posted: Thu Jan 11, 2007 9:30 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

FEATURES

New O.E. valves.
High flowing valve seats.
New valve locks.
Radius leading edge on exhaust valve.
Threads re-tapped.
Exhaust valves are backcut.
Head gasket faces re-machined.
Intake valves are backcut.
Full set of K Line guides.
Blending the valve seat to the bowl.
Bowl machine work.
Large Valves.
New 4140 valve retainers.
New valve stem seals.
Valve tips equalized.
Spring pressure checked.
Combustion chambers relieved.
All spring heights are re-corrected.
New set of chrome silicon valve springs.
Valve heights equalized.
Hot tanked.
Sand Blasted.
Vacuum tested.
Clean, assemble and pass quality testing.

OPTIONAL EXTRAS

Top gasket set - V8:$210, 6 Cyl:$187.
One piece stainless valves - V8:$562, 6 Cyl:$462.
Roller Rockers - V8:$693, 6 Cyl:$660.
Standard rockers - V8:$150, 6 Cyl:$95.
LPG conversion kit - V8:$528, 6 Cyl:$447.
3Additional port work - V8:$750, 6 Cyl:$700.
Chrome taller rocker covers - V8:$105 6 Cyl:$95.


ENGINE-POWER-TORQUE USING KEC HEAD AND CAM KIT

308 Holden 288HP@273ft.lbs.
302 Cleveland 260HP@275ft.lbs.
351 Cleveland 360HP@340ft.lbs. with cnc heads 420hp@400lbs
350 Chev 350HP@330ft.lbs.
6 Cyl Hold. 202 180HP@170ft.lbs.
304 Holden EFI 260HP@285ft.lbs.
253 Holden 258HP@240ft.lbs.
351 Windsor 290HP@283ft.lbs.
302 Windsor 240HP@235ft.lbs.
400 Chev 374HP@370ft.lbs.
250 Falcon 200HP@180ft.lbs.
355 Holden EFI 326HP@320ft.lbs. 355 efi carby with cnc heads 450hp@420lbs
V6 HOLDEN 225HP@258.lbs.
4 litre falcon 265hp@279lbs
VL Holden Rb30 215hp@258lbs
Top
 Profile


Posted: Thu Jan 11, 2007 9:56 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

far out man that some pretty low compression there..
you might want to look into your bottom end aswell..

do you know how many kms were on the engine??
Top
 Profile


Posted: Thu Jan 11, 2007 11:48 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

yeh 148 thou

well just ripped the head off and found the damage lol

post pics in a sec.

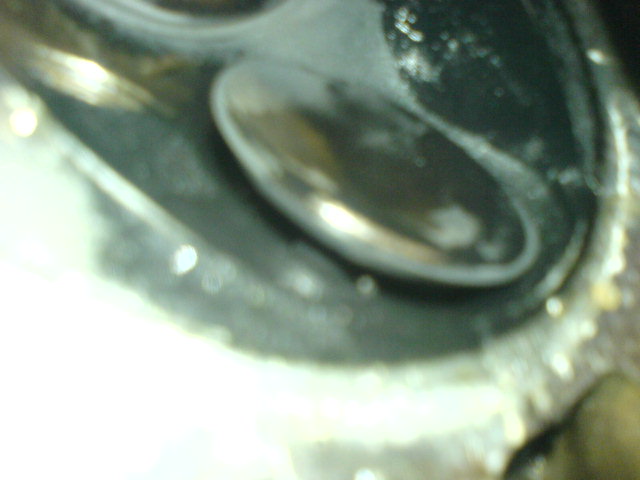

basicl bent No 1 zorst valve pretty bad

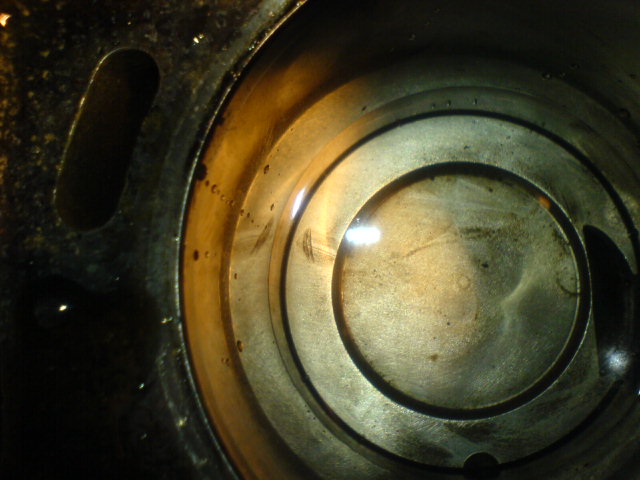

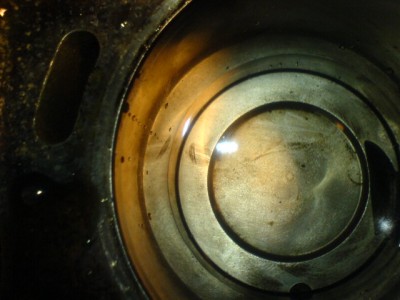

dented piston 1 twice.

neway heads been taken away going to get new valve put in and reseated. etc

hopefully have it going as soon as its back .





Attachments:
File comment: lil hard to see with the pic
DSC00429.JPG [ 61.21 KiB | Viewed 16 times ]
DSC00427.JPG [ 43.76 KiB | Viewed 13 times ]
Top
 Profile


Posted: Fri Jan 12, 2007 8:39 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

ouch!!

looks like cam timing was out..
that would explain the low compression..
Top
 Profile


Posted: Fri Jan 12, 2007 9:10 am
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

Might pay to check the rocker arms are not cracked while its down..
vibr8n wrote:
agree with arm79 90% of ford service team wouldn't know the boot from bonnet. diagnosed my blocked up cat as a fcuked fuel pump & regulator.
They have a diagnostics plug for a reason ?
I am sure that the catch here is that if you asked them to point out the bonnet before you agreed to them servicing the car then they would be adjusting the price of the labour accordingly.
:)



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
