hye guys.

well i got my hands on a el motor been strippping it down and cleaning it up as well as going to replace all gaskets befor its installed. what im trying to work out is the wireing for it all ..

i got hold of a el xr6 comp too pretty sure its for a auto . is there neway to find out ?/

as my car is manual. i want to install the xr6 ecu to run the bbm right

neway with the wireing harness what will i have to do to it for it to fit in the eb . ie what plugs do i need to change and what will i need to run to where to get the bbm working right?

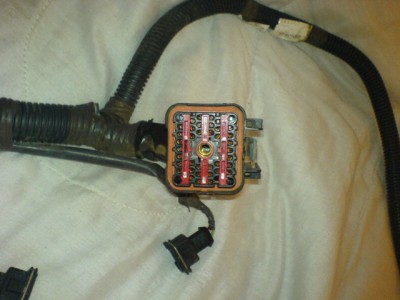

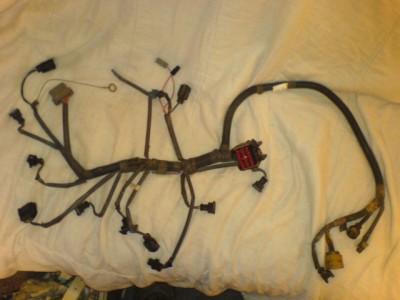

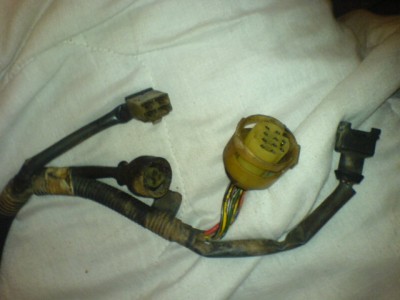

here is a few pics of the loom that came with the motor can ppl please tell what plugs r what and what goes where. or ne wireing diagrams would be of great use.

cheeres.





Attachments:
DSC00286.JPG [ 59.89 KiB | Viewed 17 times ]
DSC00285.JPG [ 51.1 KiB | Viewed 12 times ]
DSC00284.JPG [ 58.62 KiB | Viewed 17 times ]
Top
 Profile


Posted: Thu Nov 02, 2006 11:55 pm
Getting Side Ways
Offline

Age: 31

Posts: 1279

Joined: 5th Apr 2005

Gallery: 2 images

Ride: Toyota Supra RZ

Location: Burwood Nights
VIC, Australia

mate i've done what you've done... that is el xr motor into a box car....

I reused my EB engine loom and just extended the bits that needed to be longer.. I then ran the extra wire to the ECU and the power wire for the BBM switch..

EDIT:::

Also .. remember to run the extra wire(s) for the knock sensor .. and make sure u dont "lose" your oil pressure sender wire.. i "lost" mine and once the motors in its not very easy to get to/mess with the loom...!!
Top
 Profile


Posted: Sat Nov 04, 2006 8:41 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

im doing the BBM conversion now but im using the EA/EB computer.



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


Posted: Sat Nov 04, 2006 11:34 am
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

cool. might just have to do that.


the elxr ecu will plug straight into the exsisting loom right?

if so what wires do i run to the ecu and what wire should i tap it into ?
and for the power switch on the bbm?

never played around with the motor befor only everything else lol.
Top
 Profile


Posted: Sat Nov 04, 2006 12:52 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

yeah the EL computer will go in (EF's wont) also you HAVE to have smartlock otherwise you WILL need a smartlock iliminator which are around 150 bucks

as for the wires im not sure which one runs the BBM switch



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


Posted: Sat Nov 04, 2006 10:32 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

yeh already have smart lock and thermos installed

so no worries there just the wireing im bit iffy about .
Top
 Profile


Posted: Sun Nov 05, 2006 12:32 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

ok the TPS is apparently the only one that needs changing. the others fit straight in apparently. so cut the plugs so that you have plenty of wire length and colour match the plug. view my thread in my sig for pics
