Posted: Mon Dec 18, 2006 8:03 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

ur spot on there mate.

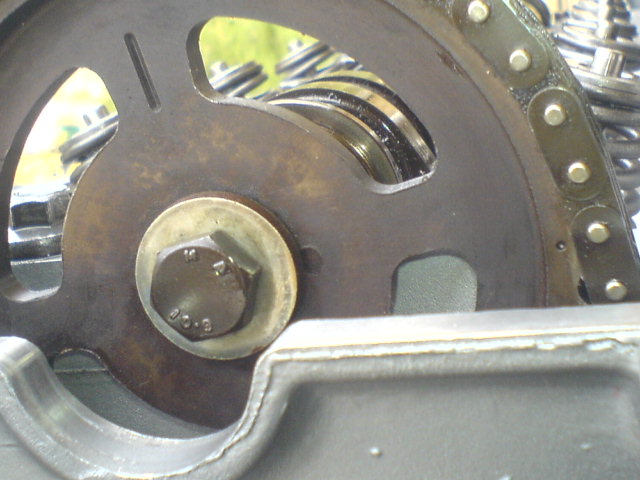

heres a pic.

so to get the timming right should i just adjust the cam sproket so that dot is level with the head? when at tdc





Attachments:
DSC00423.JPG [ 64.71 KiB | Viewed 26 times ]
Top
 Profile


Posted: Mon Dec 18, 2006 8:08 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

one more thing


whats the best way to check its a tdc. im 99% sure it is just wont hurt to make sure.

cheeres for every1's help on this. its been the biggest pain in the a**.
Top
 Profile


Posted: Mon Dec 18, 2006 9:38 pm
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 5051

Joined: 5th Nov 2004

Ride: Kia Rio - 1.4L Auto

Power: 238 rwkw

Location: Westside
VIC, Australia

Much better... lol...

Hybrid are fun...

And that dot can be 3mm or 3 deg (cant remember which) above the head when the balancer is at TDC. So where it is now is 100% correct.

If you were 1 tooth out, you would either not be able to see the dot or it would be really high up off the head.

TDC check is simply where you have the engine sitting now. Balancer mark pointing to the mark on the timing case, and the cam gear dot where it is now.
Top
 Profile


Posted: Mon Dec 18, 2006 9:41 pm
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 1339

Joined: 7th Nov 2004

Gallery: 3 images

Ride: FGX G6ET

Location: Worrigee
NSW, Australia

I had this EXACT same issue last year doing the head gasket....that bloody little dot had me f*cked for ages!! I was lining it up with those other bigger marks too....lol...
Top
 Profile


Posted: Mon Dec 18, 2006 9:46 pm
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 5051

Joined: 5th Nov 2004

Ride: Kia Rio - 1.4L Auto

Power: 238 rwkw

Location: Westside
VIC, Australia

The cam sprockets on these are the same as the aux sprockets. The AU use that little d**k for the cam timing sensor. So the timing marks you were using are for something different.
Top
 Profile


Posted: Mon Dec 18, 2006 10:09 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 831

Joined: 9th Nov 2004

Gallery: 4 images

Ride: BA XR8 & 06 4x4 Bravo

Location: Pakenham
VIC, Australia

Is the car that your Dad & Brother doing up a 35 Chev?



_________________

'04 BA XR8
Winter White, 5 Speed Manual, Sports Leather, Premium Sound, 2 1/2" Cat Back Exh - no rear Mufflers, Lowered SL/SSL, 20's, Underdrives, BF Typhoon Rear Spoiler, GT Steering Wheel, etc.

Top
 Profile


Posted: Mon Dec 18, 2006 10:14 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

Beware the aux sproket of doom. The demise of my hybrid engine...




_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Mon Dec 18, 2006 11:56 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

wrong on car
i give u a hint its a ford :P

and cheere's for ure help guys
Top
 Profile


Posted: Tue Dec 19, 2006 1:00 am
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

only thing is im still going to have to rip the head off to change the vale stem seals.

would it still be right to use the head bolts ? the motor hasnt been run since the head has been on and they were new so.

just hope it dosnt f**k the head gasket either taking it off. as i dont want to by another acl race series one when i just got one.


1 more thing guys when i go to get the new seals do i ask for ones to suite a el hybrid motor or would au ones work ?
Top
 Profile


Posted: Tue Dec 19, 2006 1:09 am
Getting Side Ways
Offline

Posts: 1162

Joined: 19th Jun 2005

Location: perth sor
WA, Australia

were they ford bolts? or arp etc? stock bolts are one use and once they're torqued up they stretch ever so slightly.

tis a 32/4 ford sedan or somethin yeh?



_________________

current ride: worn out chuck taylors

Top
 Profile


Posted: Tue Dec 19, 2006 1:12 am
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

correct !

as for bolts they r austral branded bolts
Top
 Profile


Posted: Tue Dec 19, 2006 9:32 am
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 5051

Joined: 5th Nov 2004

Ride: Kia Rio - 1.4L Auto

Power: 238 rwkw

Location: Westside
VIC, Australia

You dont need to take the head off to do the stem seals. They are done everyday on an engine in a car.

Just turn the engine to TDC for every cylinder. You can fill it with air to stop the valve from droping - Or just let the valve drop, it wont fall far. Installation of spring will be a bit of a pain though. Take the spring off, remove the seal and replace with new one. Then put the spring back on. There is a few instructions on how to do it properly in the cam change doco in the Tech Docs dection.

I'm surprised that no one noticed the stem seals were the wrong ones during installation. The size of the seal between the 2 heads is considerably different, and there would be a fair gap between stem and the seal.

Did you do the head yourself, or send it elsewhere for that work?
Top
 Profile


Posted: Tue Dec 19, 2006 11:50 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

i got the head machined else where but did the seals myself but had no idea that they wernt the right ones (plus this is the first time for me stripping and redoing a motor. so yeh didnt know what to look for as such .

cheeres for ur help man ill c if i can find the dockos
Top
 Profile


Posted: Wed Dec 20, 2006 8:12 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

The hybrid motors came out inthe last of the EL's. they were using AU gear.
Beehive valve springs, different conrods, pistons, rocker ratio change(2:1 old, 1.8:1 new) Main bearing caps have lumps on the sides for the AU sump side bolts, and they have a main bearing cap girdle/brace.
There is probably more differences, but this is what i remember of the top of my head.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Wed Dec 20, 2006 8:12 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

The hybrid motors came out inthe last of the EL's. they were using AU gear.
Beehive valve springs, different conrods, pistons, rocker ratio change(2:1 old, 1.8:1 new) Main bearing caps have lumps on the sides for the AU sump side bolts, and they have a main bearing cap girdle/brace.
There is probably more differences, but this is what i remember of the top of my head.



_________________

http://youtu.be/jJTh9F3Vgg0
