 Post subject: EL Rocker Cover Leak
Posted: Fri Nov 09, 2012 5:06 pm
Smokin em up
Offline

Age: 27

Posts: 214

Joined: 19th Jul 2009

Ride: Ford EL Fairmont Ghia

Location: Melbourne
VIC, Australia

Hi guys I have noticed a leak from the front of the engine where the bottom of the rocker cover is. Is this gasket easy enough to change and do I have to re-tighten the bolts at a specific tension or just by feel?

Thanks guys
Top
 Profile


 Post subject: Re: EL Rocker Cover Leak
Posted: Fri Nov 09, 2012 5:22 pm
Fordmods Junkie
Offline
User avatar

Posts: 11738

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

Nathanhrv wrote:
Hi guys I have noticed a leak from the front of the engine where the bottom of the rocker cover is. Is this gasket easy enough to change and do I have to re-tighten the bolts at a specific tension or just by feel?

Thanks guys


Easy enough to do yourself. I have never tightened them to a specific torque setting, however I think you are meant to according to the workshop manual. I just tighten it tight, but not too tight because you are tightening into an alloy thread.

Just buy a new rubber gasket, for safety measure you can put extra gasket maker goo on the half moons on front and back of the cover and tighten it all up, however it is not necessary.



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: EL Rocker Cover Leak
Posted: Fri Nov 09, 2012 5:31 pm
Smokin em up
Offline

Age: 27

Posts: 214

Joined: 19th Jul 2009

Ride: Ford EL Fairmont Ghia

Location: Melbourne
VIC, Australia

thanks for that phongus. is it just called the rocker cover gasket?
Top
 Profile


 Post subject: Re: EL Rocker Cover Leak
Posted: Fri Nov 09, 2012 5:37 pm
Getting Side Ways
Offline
User avatar

Age: 22

Posts: 696

Joined: 10th Oct 2012

Ride: 5 speed XG ute

Location: Adelaide Hills
SA, Australia

Should be easy enough as phongus said. My XG leaked in the exact same spot as yours, took me half an hour and i had no dramas what so ever changing the gasket myself and it was the first time I'd ever changed a gasket.



_________________

Yep, I don't know what to write here...

Top
 Profile


 Post subject: Re: EL Rocker Cover Leak
Posted: Fri Nov 09, 2012 5:39 pm
Smokin em up
Offline

Age: 27

Posts: 214

Joined: 19th Jul 2009

Ride: Ford EL Fairmont Ghia

Location: Melbourne
VIC, Australia

thanks for that guys, so pretty much remove the old gasket and scrape any excess rubber stuck to the motor, and then just put the new one on and tighten?
Top
 Profile


 Post subject: Re: EL Rocker Cover Leak
Posted: Fri Nov 09, 2012 5:39 pm
Getting Side Ways
Offline
User avatar

Age: 22

Posts: 696

Joined: 10th Oct 2012

Ride: 5 speed XG ute

Location: Adelaide Hills
SA, Australia

and yes... its just called a rocker cover gasket or valve cover gasket. Just scrape any excess rubber off and on with the new one...



_________________

Yep, I don't know what to write here...

Top
 Profile


 Post subject: Re: EL Rocker Cover Leak
Posted: Fri Nov 09, 2012 5:44 pm
Fordmods Junkie
Offline
User avatar

Posts: 11738

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

Nathanhrv wrote:
thanks for that guys, so pretty much remove the old gasket and scrape any excess rubber stuck to the motor, and then just put the new one on and tighten?


Pretty much, just have to perfect your ability to clear the rocker assembly when removing and installing the rocker cover on the back of the engine. It's just a nuisance when you accidentally clip the rocker pedestal and dislodge the rubber gasket from the rocker groove. Then you have to fiddle around trying to get it back in the groove. You'll understand what I'm talking about when you pull the rocker cover off :). It is nothing major though, just something annoying after a long hard days work.



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: EL Rocker Cover Leak
Posted: Fri Nov 09, 2012 5:49 pm
Getting Side Ways
Offline
User avatar

Age: 22

Posts: 696

Joined: 10th Oct 2012

Ride: 5 speed XG ute

Location: Adelaide Hills
SA, Australia

haha. Dislodging the gasket really gets frustrating when it happens three times in a row lol. Did that happen to you as well phongus?



_________________

Yep, I don't know what to write here...

Top
 Profile


 Post subject: Re: EL Rocker Cover Leak
Posted: Fri Nov 09, 2012 6:18 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

You need to make sure the rocker cover is clean and dry, NO oil residue, water, etc.

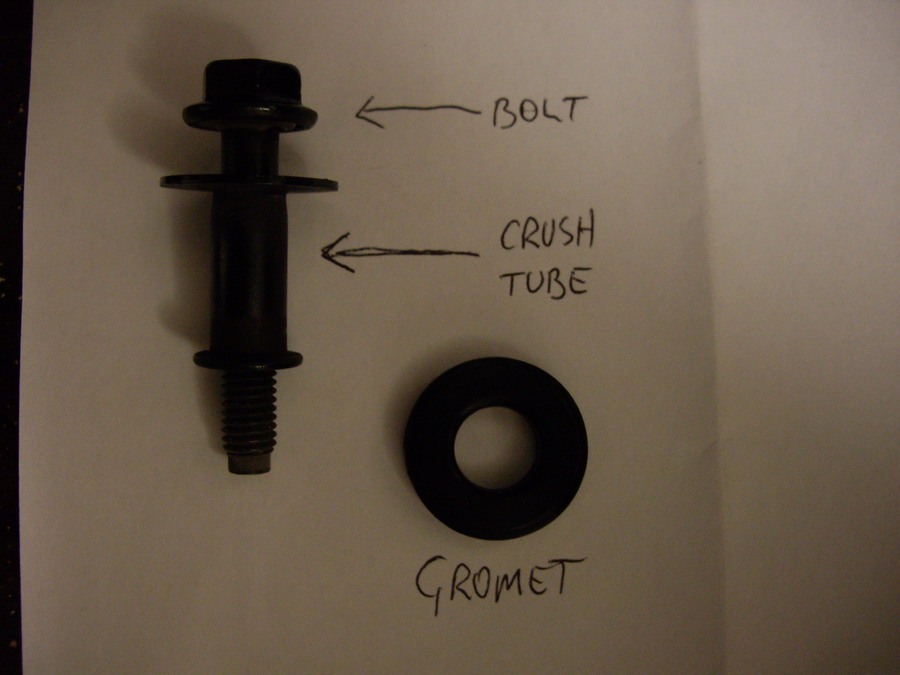

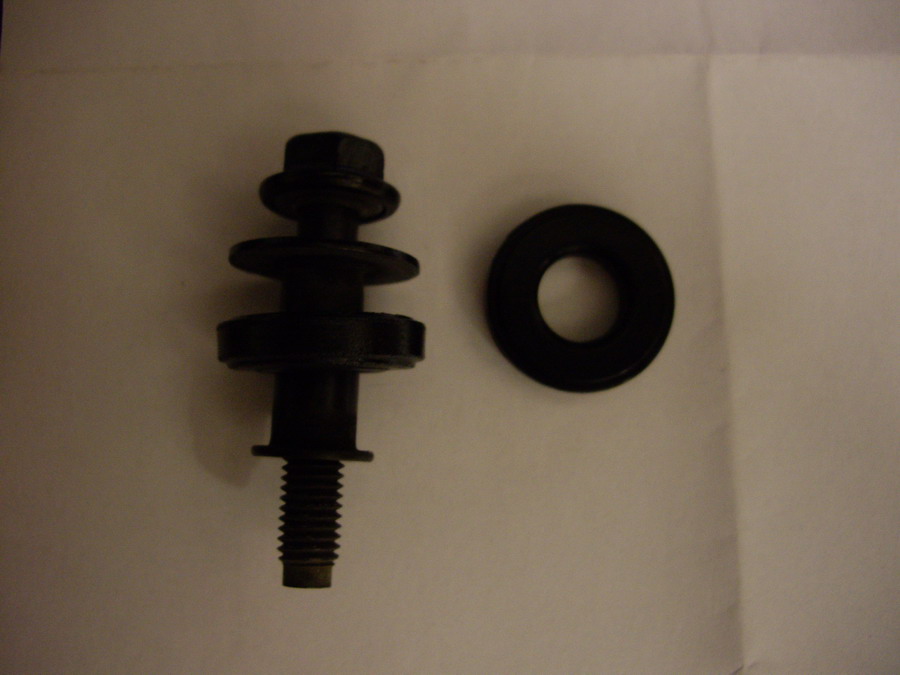

Also, replace the 4 rubber gromets on the rocker cover retaining bolts.....these are what applies the sealing pressure onto the seal.
You can tighten the bolts as hard as you like, BUT, you will not apply anymore pressure to the gasket.
The bolts have a crush tube, so tightening the bolts overly does nothing.





Attachments:
IMGP2928_resize.JPG [ 95.53 KiB | Viewed 54 times ]
IMGP2927_resize.JPG [ 85.61 KiB | Viewed 34 times ]



_________________

http://youtu.be/jJTh9F3Vgg0
