 Post subject: hole in vacline
Posted: Tue Dec 11, 2007 7:57 pm
Smokin em up
Offline
User avatar

Posts: 205

Joined: 14th Oct 2007

Gallery: 1 images

Ride: EF futura 96

Location: Le BrisVois
QLD, Australia

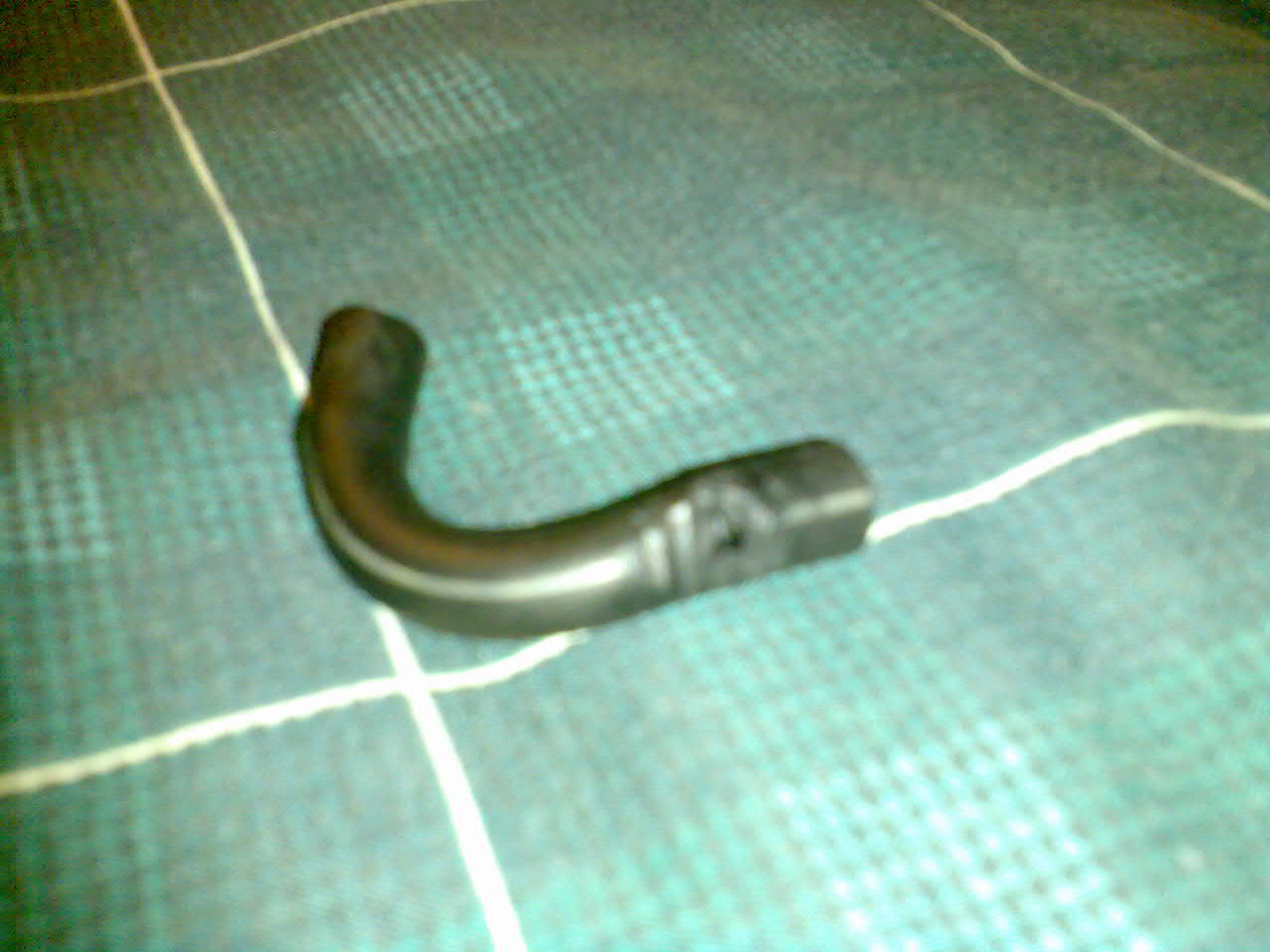

I too have this problem, today I had the intake off and I checked my vac-line as Snap suggested and found that one of the wiring looms has been rubbing on the vac-line and punctured it (see pic) -- I have replaced the vacline but i dont have a filter on the car at the moment so I cant go and see if this is causing my surge/rough idle. __ will post later.

-- I know you have had your regulator line off and checked that but have a look around/under/over the vaclines for damage, as mine was hidden until I moved some looms.

l8r





Attachments:
Image065.jpg [ 113.81 KiB | Viewed 150 times ]
Top
 Profile


Posted: Fri Dec 14, 2007 8:23 pm
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 918

Joined: 6th Aug 2007

Gallery: 4 images

Ride: BA XR8

Location: Kellyville
NSW, Australia

Hey,

Up until recently, about a month or so, my engine had been idling perfectly after my engine conversion, and good throttle response after i got rid of the ISC, and made a block to adjust the amount of air past the throttle body, so no high revving after a stab of the throttle. I have noticed recently that the purge tank is copping some excess fuel, this seems the cause of some of my rough idling, due to the extra fuel being sucked in. This seems to be when the engine is hot (proper running temp), after a bout 30 secs idling when cold it idles pretty good.

My EL XR6 ECU is new, as are the plugs and leads and everything else associated with the ignition system, so i am sure they're not the problem.

I am going to disconnect the battery and see if there could be a code stuck in the ECU as posted earlier. See what happens, and i'll let u know.

Cheers

Daz



_________________

BA XR8 Boss 260
DAZFAB......Now Mobile
Mink = GAY
DAZFAB MEMBERS ,,,,DA22LE, XTT909, TERRORISTGHIA, TROYMAN, SWC, FAT245

Top
 Profile


Posted: Sat Dec 15, 2007 10:18 am
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 918

Joined: 6th Aug 2007

Gallery: 4 images

Ride: BA XR8

Location: Kellyville
NSW, Australia

Hey Guys,

Didnt disconnect the battery last night, and was going to do it this morning after i got back from the shops, when the car was warm to see what difference it would make. I did, however, pull the plug for the purge canister and guess what, not idling to bad, and the "hunting" as previously described from another user has gone. This was happening at around 2200-2400rpm, with a slight load on the engine. When u boot it it's ok, cause it copping a gutfull of air.
Might look into getting a frequency switch to connect the purge canister when the car is at cruising speed, say around 80 kms.

Cheers

Daz 8-)



_________________

BA XR8 Boss 260
DAZFAB......Now Mobile
Mink = GAY
DAZFAB MEMBERS ,,,,DA22LE, XTT909, TERRORISTGHIA, TROYMAN, SWC, FAT245

Top
 Profile


Posted: Sat Dec 15, 2007 10:26 am
Fordmods Newbie
Offline

Posts: 11

Joined: 16th Jul 2007

Ride: EF XR6

Location: Ipswich
QLD, Australia

Ok stupid question but whats a purge canister and where do i find it :P?
Top
 Profile


Posted: Sat Dec 15, 2007 11:55 am
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 918

Joined: 6th Aug 2007

Gallery: 4 images

Ride: BA XR8

Location: Kellyville
NSW, Australia

under the left hand guard, right in front of the wheel......u can miss it, failing that, follow the hoses from the motor near the A/C compressor.

Cheers

Daz 8-)



_________________

BA XR8 Boss 260
DAZFAB......Now Mobile
Mink = GAY
DAZFAB MEMBERS ,,,,DA22LE, XTT909, TERRORISTGHIA, TROYMAN, SWC, FAT245

Top
 Profile


Posted: Sat Dec 15, 2007 11:59 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 885

Joined: 14th Mar 2007

Location: Castlemaine
VIC, Australia

have you tried raising your idle on the back of the throttlebody? 1/8th of a turn should fix your problem.

The EL's (maybe other E series too), after driving will idle higher than usual for 10seconds~, which afterwards they drop by a few hundred rpm.

I had to adjust mine after the manual transmission was installed as i was running a tricked auto comp.
Matt



_________________

it can be fast and cheap,but it wont be reliable
it can be reliable and cheap,but it wont be fast
or you can be fast and reliable,but it wont be cheap

Top
 Profile


Posted: Sat Dec 15, 2007 2:03 pm
Smokin em up
Offline

Age: 36

Posts: 210

Joined: 14th May 2005

Location: Perth
WA, Australia

The Purge Canister is not susposed to be allowing vacume through all the time.

Its possable the solionoid is stuck open.
Replace it.
Top
 Profile


Posted: Sat Dec 15, 2007 2:05 pm
Smokin em up
Offline

Age: 36

Posts: 210

Joined: 14th May 2005

Location: Perth
WA, Australia

Ignore that.

The ECU shouldnt keep it open all the time. if you disconnected the wires to it.

Or did you take off the pipe and plug the line ?
Top
 Profile


Posted: Sat Dec 15, 2007 2:38 pm
Fordmods Newbie
Offline

Posts: 11

Joined: 16th Jul 2007

Ride: EF XR6

Location: Ipswich
QLD, Australia

-GAS-MAN- wrote:
have you tried raising your idle on the back of the throttlebody? 1/8th of a turn should fix your problem.

The EL's (maybe other E series too), after driving will idle higher than usual for 10seconds~, which afterwards they drop by a few hundred rpm.

I had to adjust mine after the manual transmission was installed as i was running a tricked auto comp.
Matt


I've actually completely disconnected the ISC and upped the idle through the screw on the throttle body and it made no difference. Its definately a miss or something cause i'm almost certain i can feel it blipping whilst i'm travelling along.

I ran the codes a while back and it was coming back about the cam sensor and knock sensor. Is it possible that these things would cause it? I think the mechanic said my timing was advanced but he was a bit of a joker and didn't even really know how to put the car into diag mode.
Top
 Profile


Posted: Sat Dec 15, 2007 9:33 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

Was at the Christmas cruise today which was a great day out and was talking about my idle problem which isnt a rev related problem so the ISC has nothing to do with it. It appears to be an ignition problem. I replaced the coil Friday and that wasnt it so now i have a spare. Anyways today i was told that the ignition module could be at fault, now this makes sense as its related to the engine bay temperature. As it gets hotter the missing ilde is worse. I will replace the module this week and let you all know what happens.
Top
 Profile


 Post subject: Re: hole in vacline
Posted: Tue Dec 18, 2007 7:55 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3737

Joined: 22nd May 2006

Ride: BF F6 Tornado - #0077

Location: Bendigo
VIC, Australia

rdiigen wrote:
I too have this problem, today I had the intake off and I checked my vac-line as Snap suggested and found that one of the wiring looms has been rubbing on the vac-line and punctured it (see pic) -- I have replaced the vacline but i dont have a filter on the car at the moment so I cant go and see if this is causing my surge/rough idle. __ will post later.

-- I know you have had your regulator line off and checked that but have a look around/under/over the vaclines for damage, as mine was hidden until I moved some looms.

l8r


where can i find that line and a few others that might be causing it



_________________

** For Sale ** http://www.fordmods.com/ford-parts-for-sale-f17/assorted-e-series-parts-t124697.html

F6 Tornado 2006 Build

Is it about sex? The engine in my car? Or a cure for cancer?
No?

Then f**k off

Top
 Profile


Posted: Tue Dec 18, 2007 8:04 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

looks like the vac line for fuel regulator at the rear of the injector rail.
Top
 Profile


Posted: Tue Dec 18, 2007 8:14 pm
Smokin em up
Offline
User avatar

Posts: 205

Joined: 14th Oct 2007

Gallery: 1 images

Ride: EF futura 96

Location: Le BrisVois
QLD, Australia

two inch or so length of vachose off the fuel pressure regulator.. idle and revving is smooth again now.
Top
 Profile


Posted: Mon Jan 07, 2008 2:04 pm
Parts Gopher
Offline

Age: 40

Posts: 51

Joined: 10th Mar 2005

Gallery: 1 images

Ride: Falcon Futura EL

Location: Sydney
NSW, Australia

joolz wrote:
Anyways today i was told that the ignition module could be at fault


Hi joolz,
What was the outcome? Did you solve the idle issue?
Top
 Profile


Posted: Mon Jan 07, 2008 11:53 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3737

Joined: 22nd May 2006

Ride: BF F6 Tornado - #0077

Location: Bendigo
VIC, Australia

rdiigen wrote:
two inch or so length of vachose off the fuel pressure regulator.. idle and revving is smooth again now.


could you explain that a bit better?



_________________

** For Sale ** http://www.fordmods.com/ford-parts-for-sale-f17/assorted-e-series-parts-t124697.html

F6 Tornado 2006 Build

Is it about sex? The engine in my car? Or a cure for cancer?
No?

Then f**k off

Top
 Profile
