EL XR6 Engine Mounts (Round)



Page 1 of 2 [ 20 posts ] Go to page 1, 2  Next


 Post subject: EL XR6 Engine Mounts (Round)
Posted: Tue Feb 28, 2012 9:51 am
Fordmods Newbie
Offline

Posts: 16

Joined: 17th Feb 2007

Location: Hobart
TAS, Australia

Hi Guys,

I've been told that engine mounts in my ELXR6 will probably need replacing (car has done 217k). I have the round hydraulic type mounts, as apposed to the square solid rubber mounts.

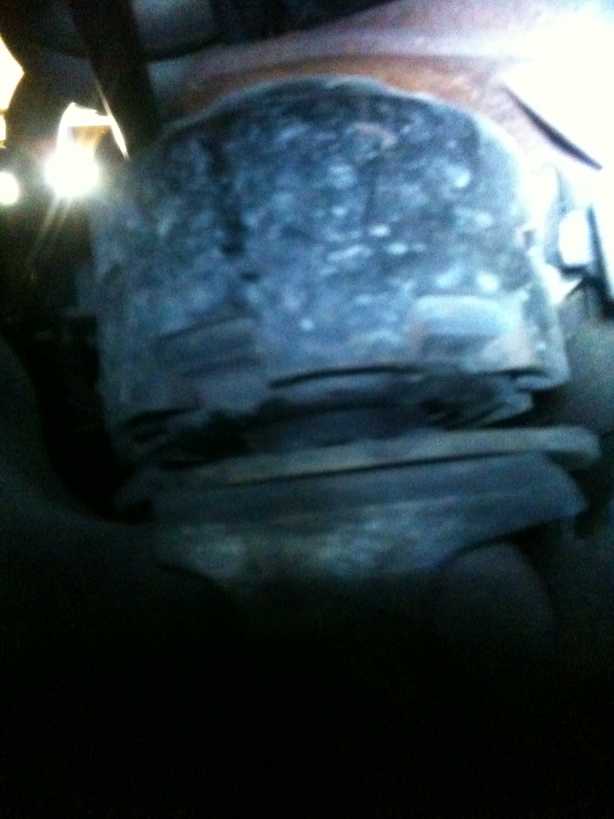

I've had a look and they don't appear to be perished both look exactly the same, I don't feel any extra vibration when at idle, no engine slap when changing gear etc. I took a photo of the mount that is under the intake manifold, I notice both have a rubber ring on the bottom that is detached and spins freely is this normal?

Can anyone else post a pic of a new mount from EL that I can compare or even on car?





Attachments:
File comment: Engine Mount Passenger side
IMG_05522.jpg [ 44.67 KiB | Viewed 103 times ]
Top
 Profile


 Post subject: Re: EL XR6 Engine Mounts (Round)
Posted: Tue Feb 28, 2012 11:38 am
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 3355

Joined: 10th Jan 2010

Gallery: 8 images

Ride: EL XR6

Location: albion park, wollongong
NSW, Australia

What if it's manual ?



_________________

El XR6 Turbo
Dark Agents,Sunroof, bilstein shocks, 6000k HIDS, 329 mm slotted rotors, twin pot calipers , Climate Control, GarrettT04 turbo,log manifold, crow turbo cam, microtech lt10c, 42lb injectors , 044, surge tank , T56 , rebuilt bottom end , alloy plenum .

Aiming for 300 rwkw

Top
 Profile


 Post subject: Re: EL XR6 Engine Mounts (Round)
Posted: Tue Feb 28, 2012 12:21 pm
Fordmods Newbie
Offline

Posts: 16

Joined: 17th Feb 2007

Location: Hobart
TAS, Australia

ef_falcon_95 wrote:
What if it's manual ?


Which it is. I'm guessing just ride the clutch with handbrake on
Top
 Profile


 Post subject: Re: EL XR6 Engine Mounts (Round)
Posted: Tue Feb 28, 2012 12:26 pm
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 3355

Joined: 10th Jan 2010

Gallery: 8 images

Ride: EL XR6

Location: albion park, wollongong
NSW, Australia

My handl brake won't hold , I sometimes get slight vibration at low revs , could be engine mounts ?



_________________

El XR6 Turbo
Dark Agents,Sunroof, bilstein shocks, 6000k HIDS, 329 mm slotted rotors, twin pot calipers , Climate Control, GarrettT04 turbo,log manifold, crow turbo cam, microtech lt10c, 42lb injectors , 044, surge tank , T56 , rebuilt bottom end , alloy plenum .

Aiming for 300 rwkw

Top
 Profile


 Post subject: Re: EL XR6 Engine Mounts (Round)
Posted: Tue Feb 28, 2012 12:32 pm
Fordmods Newbie
Offline

Posts: 16

Joined: 17th Feb 2007

Location: Hobart
TAS, Australia

ef_falcon_95 wrote:
My handl brake won't hold , I sometimes get slight vibration at low revs , could be engine mounts ?


Adjust your hand brake so it works adequately. Is your vibration coming when driving or just sitting there idling, or in neutral slowly revving?
Top
 Profile


 Post subject: Re: EL XR6 Engine Mounts (Round)
Posted: Tue Feb 28, 2012 12:42 pm
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 3355

Joined: 10th Jan 2010

Gallery: 8 images

Ride: EL XR6

Location: albion park, wollongong
NSW, Australia

When I come to a stop at traffic lights the exhaust vibrates on the body , it's only a slight vibration . I had the exhaust modified to clear the body but still rattles the slightest bit .
When I give it a rev it goes away



_________________

El XR6 Turbo
Dark Agents,Sunroof, bilstein shocks, 6000k HIDS, 329 mm slotted rotors, twin pot calipers , Climate Control, GarrettT04 turbo,log manifold, crow turbo cam, microtech lt10c, 42lb injectors , 044, surge tank , T56 , rebuilt bottom end , alloy plenum .

Aiming for 300 rwkw

Top
 Profile


 Post subject: Re: EL XR6 Engine Mounts (Round)
Posted: Tue Feb 28, 2012 4:56 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

DaPlaya wrote:
Hi Guys,

I've been told that engine mounts in my ELXR6 will probably need replacing (car has done 217k). I have the round hydraulic type mounts, as apposed to the square solid rubber mounts.

I've had a look and they don't appear to be perished both look exactly the same, I don't feel any extra vibration when at idle, no engine slap when changing gear etc. I took a photo of the mount that is under the intake manifold, I notice both have a rubber ring on the bottom that is detached and spins freely is this normal?

Can anyone else post a pic of a new mount from EL that I can compare or even on car?


The Photo that you have posted up show a good Mount. When they go they collapse and sink down and rest metal on metal. Passenger side is usually ok, what doe the drivers side look like. This is the side that usually gives out due the heat from the exhaust.
Top
 Profile


 Post subject: Re: EL XR6 Engine Mounts (Round)
Posted: Tue Feb 28, 2012 5:12 pm
Fordmods Newbie
Offline

Posts: 16

Joined: 17th Feb 2007

Location: Hobart
TAS, Australia

Thanks mate, I'll take a photo of the other and post it up then let me know what you think. Cheers :)
Top
 Profile


 Post subject: Re: EL XR6 Engine Mounts (Round)
Posted: Tue Feb 28, 2012 5:16 pm
Getting Side Ways
Offline
User avatar

Posts: 659

Joined: 14th Apr 2006

Ride: EF Fairmont Sedan

Power: 180 rwkw

Location: Ferntree Gully
VIC, Australia

I got new mounts in my EF back in August 2009

These were repo ones not Ford ones - they do the job


Close Ups




_________________

PROEF 13.46 @ 105.78mph - 1994 Ford Fairmont EF NA 6cyl Man 3.9 diff Sedan
Stock Fuel Pump, 29lb Injectors, JMM Street Series Headers, 2.5" Exhaust, 205rwkw

Top
 Profile


 Post subject: Re: EL XR6 Engine Mounts (Round)
Posted: Tue Feb 28, 2012 7:01 pm
Fordmods Newbie
Offline

Posts: 16

Joined: 17th Feb 2007

Location: Hobart
TAS, Australia

DRHEMI wrote:
I got new mounts in my EF back in August 2009

These were repo ones not Ford ones - they do the job


Close Ups



Thanks for the post matey, however they're the square solid rubber angle mounts, I have the round hydraulic style which are straight up and down. mind you by the looks of that all I would need is a bracket to make those angles fit
Top
 Profile


 Post subject: Re: EL XR6 Engine Mounts (Round)
Posted: Tue Feb 28, 2012 9:21 pm
Getting Side Ways
Offline
User avatar

Posts: 659

Joined: 14th Apr 2006

Ride: EF Fairmont Sedan

Power: 180 rwkw

Location: Ferntree Gully
VIC, Australia

I am petty sure i had the round ones before and these were the replacements

I will see if i can find a pic which confirms it

is that the round mount in this pic? bottom - middle?



_________________

PROEF 13.46 @ 105.78mph - 1994 Ford Fairmont EF NA 6cyl Man 3.9 diff Sedan
Stock Fuel Pump, 29lb Injectors, JMM Street Series Headers, 2.5" Exhaust, 205rwkw

Last edited by DRHEMI on Tue Feb 28, 2012 9:31 pm, edited 2 times in total.

Top
 Profile


 Post subject: Re: EL XR6 Engine Mounts (Round)
Posted: Tue Feb 28, 2012 9:29 pm
Fordmods Newbie
Offline

Posts: 16

Joined: 17th Feb 2007

Location: Hobart
TAS, Australia

Did they come with those brackets (brass coloured)?
Top
 Profile


 Post subject: Re: EL XR6 Engine Mounts (Round)
Posted: Tue Feb 28, 2012 9:35 pm
Fordmods Newbie
Offline

Posts: 16

Joined: 17th Feb 2007

Location: Hobart
TAS, Australia

DRHEMI wrote:
I am petty sure i had the round ones before and these were the replacements

I will see if i can find a pic which confirms it

is that the round mount in this pic? bottom - middle?


Yep they are the round ones. What make/model are your headers?
Top
 Profile


 Post subject: Re: EL XR6 Engine Mounts (Round)
Posted: Tue Feb 28, 2012 10:00 pm
Getting Side Ways
Offline
User avatar

Posts: 659

Joined: 14th Apr 2006

Ride: EF Fairmont Sedan

Power: 180 rwkw

Location: Ferntree Gully
VIC, Australia

DaPlaya wrote:
What make/model are your headers?

Pacemaker 4480 HPC Ceramic Coated

DaPlaya wrote:
Did they come with those brackets (brass coloured)?

Yeah the did

Here is an earlier pic - you can see the old ones here that were replaced - I played with the Pic so you can see them better thats what its so crap lol

If you still can't see them then save the pic to your computer and make the pic brighter




_________________

PROEF 13.46 @ 105.78mph - 1994 Ford Fairmont EF NA 6cyl Man 3.9 diff Sedan
Stock Fuel Pump, 29lb Injectors, JMM Street Series Headers, 2.5" Exhaust, 205rwkw

Top
 Profile


 Post subject: Re: EL XR6 Engine Mounts (Round)
Posted: Tue Feb 28, 2012 11:48 pm
Tyre Shredder
Offline
User avatar

Posts: 326

Joined: 12th Jun 2010

Ride: EL Fairmont

Location: Central Highlands
QLD, Australia

DaPlaya wrote:
Hi Guys,

I've been told that engine mounts in my ELXR6 will probably need replacing (car has done 217k). I have the round hydraulic type mounts, as apposed to the square solid rubber mounts.

I've had a look and they don't appear to be perished both look exactly the same, I don't feel any extra vibration when at idle, no engine slap when changing gear etc. I took a photo of the mount that is under the intake manifold, I notice both have a rubber ring on the bottom that is detached and spins freely is this normal?

Can anyone else post a pic of a new mount from EL that I can compare or even on car?



The passenger side one is always good, check the driver's side one too see if it's metal on metal or resting on that rubber seperation pad. I paid about $120 for these square type ones as mentioned above, which were fitted too lates series 2 Hybrid 98 model EL Falcons. These can handle the heat from pacemaker extractors..
Kelpro part # (mount) MT8370, (bracket) MTB8370



_________________

Current ride 2007
ML GLX Dualcab Triton 4x4

Top
 Profile
