 Post subject: El xr6
Posted: Sun Sep 27, 2015 10:52 am
Fordmods Newbie
Offline

Posts: 19

Joined: 25th Dec 2004

Ride: Ford falcon

Location: Rutherglen
VIC, Australia

Hey guys

I'm just about to put my spare el engine into my car

I need to put a head back on the engine before i put it in.

I've got a au xr head to put back on

My question is, where does the cam gear need to be set to take the au head, cam and rockers?

This engine is pre hybrid so still runs the normal timing marks.

Any help would be great
Top
 Profile


 Post subject: Re: El xr6
Posted: Sun Sep 27, 2015 3:03 pm
Getting Side Ways
Offline

Age: 34

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

If using e series cam gear, set it up the same as e series



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: El xr6
Posted: Sun Sep 27, 2015 6:26 pm
Fordmods Newbie
Offline

Posts: 19

Joined: 25th Dec 2004

Ride: Ford falcon

Location: Rutherglen
VIC, Australia

It will be running au cam gear as you cant put e series into a series head.

I know I have to use the au cam gear aswell, but want to make sure of where it has to be set
Top
 Profile


 Post subject: Re: El xr6
Posted: Sun Sep 27, 2015 10:00 pm
Getting Side Ways
Offline

Age: 34

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

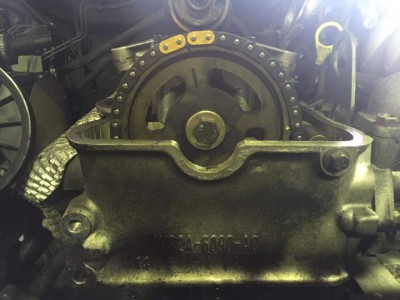

Attachment:
received_803186939799821.jpeg [ 59.87 KiB | Viewed 33 times ]
You can use e series cam gear. Why do you think adjustable camgears are marketed as ea-au. Just use the corresponding bolt. But if you are using the au one, then it has a little dot near the teeth. Use that dot as the e series timing mark. The dot is marked in white on that pic



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: El xr6
Posted: Sun Sep 27, 2015 11:50 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

bgun50 wrote:
It will be running au cam gear as you cant put e series into a series head.
Well you can, but keep the respective rocker gear with each cam, don't mix them: post1436776.html



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion
