Exhaust Mod Idea ...loudness control



Page 3 of 3 [ 44 posts ] Go to page Previous  1, 2, 3


Posted: Wed Dec 21, 2005 10:38 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 1934

Joined: 8th Nov 2004

Ride: BA Falcon XR8

Location: Bunbury
WA, Australia

Another idea for ya? Have the 'Y' valve welded into the exhaust after the cat if you like and have an electrical servo connected to it and then wire the servo into the VSV that controls the butterflies in the intake manifold (assuming you have an EF onward). When you feel like a bit of spirited driving give it a blat and when the revs get to 3500rpm the servo is activated and the exhaust opens right up... Yay? Nay? Lol :D
Top
 Profile


Posted: Wed Dec 21, 2005 10:53 pm
Smokin em up
Offline
User avatar

Age: 31

Posts: 247

Joined: 24th Nov 2005

Location: Brissy
QLD, Australia

Just cut it out and if it drones add a bit of sound deadening carpet in the boot and under the back seat.

Mine drones at 2500rpm but sitting in 4th between 80-115 there is no drone. As long as it is under 2500rpm she runs sweet and no annoying droning on the highway..
Top
 Profile


Posted: Wed Dec 21, 2005 11:12 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 5924

Joined: 5th Nov 2004

Gallery: 7 images

Ride: Ford FPV FG F6 310

Power: 149 rwkw

Location: Brisbane
QLD, Australia

i wouldn't be worried about the drone, unless it's a 3in. exhaust system.
i've got a setup on my ute which you unbolt the exhaust at the headers and tuck it to the side.
so it's mega loud.



_________________

NEW RIDE - FPV FG F6 6spd Auto. 12.26@114MPH, 1.88 60FT on Cheapy Tyres with 38PSI - Stock except K&N filter!

R.I.P. BF XR6 Turbo - You will not be forgotten :( 12.06@120MPH

Top
 Profile


Posted: Thu Dec 22, 2005 9:19 am
Getting Side Ways
Offline

Age: 30

Posts: 708

Joined: 19th Jul 2005

Ride: 08 BF MK11 Fairmont Ghia

Location: Manly west
QLD, Australia

i reckon just turn the music up
Top
 Profile


Posted: Thu Dec 22, 2005 12:32 pm
Smokin em up
Offline
User avatar

Age: 40

Posts: 243

Joined: 9th Nov 2004

Gallery: 3 images

Location: Bayswater
VIC, Australia

i have a v8 fairlane and am having this mod done today. I have extractors, high flow cats etc with redback 2.5 system with 2 mufflers. I have a decent note but too quiet. I am having the plates put in the rear section as seen in the above diagram. i think the idea of being able to change between muffler and straight pipe section should work well as i too do the odd long trip where drone is an issue.
i will let you know how it goes.

my guess is with the i6 single tip the mod would cost around the $100-150 mark at an exaust specialist.



_________________

Pround memeber Team DYNAMIC WHITE

"NFURI8" Fairlane ghia nf2 v8.
Pacemaker p4000
El gt snorkle, K&N filter.
JVC and INFINITY audio system.
EL GT Shadow Chrome alloys


AU3 Falcon Dedicated Gas

Top
 Profile


Posted: Fri Dec 23, 2005 12:31 pm
Parts Gopher
Offline
User avatar

Age: 32

Posts: 83

Joined: 5th Dec 2005

Ride: 95 EF GLi

Location: SE Melbourne
VIC, Australia

Great stuff Neal-50! Be sure to let us know how it all goes.

Any pics of the final thing would be great too. :)



_________________

1995 EF II Falcon GLi,
XR6 bodykit, 16" FTR Rims, Wade 1636 Cam, Pacemaker 4480 "Comp" extractors, Redback hi-flo cat, Redback 2.5" exhaust, AU XR8 tickford snorkel, King Springs Low rear/V8 SL front, Monroe GT Shocks, Kmac Camber/Castor Kit, Custom plates, Tinted windows. GUNMETAL MILITIA

Top
 Profile


Posted: Sun Dec 25, 2005 9:59 am
Smokin em up
Offline
User avatar

Age: 40

Posts: 243

Joined: 9th Nov 2004

Gallery: 3 images

Location: Bayswater
VIC, Australia

its done! and i am happy. the rear muffler fitted redback system sounded ok, but now its got its bark back! The boys at UNIQUE EXAUSTS did a great job, the Plated jont is in a nice easy to get to spot for quick change over when needed. 2 bolts and a few rubber hangers and its done.

I will take some pics today and get them up asap.

merry xmas



_________________

Pround memeber Team DYNAMIC WHITE

"NFURI8" Fairlane ghia nf2 v8.
Pacemaker p4000
El gt snorkle, K&N filter.
JVC and INFINITY audio system.
EL GT Shadow Chrome alloys


AU3 Falcon Dedicated Gas

Top
 Profile


Posted: Sun Dec 25, 2005 10:08 am
Getting Side Ways
Offline

Age: 36

Posts: 9453

Joined: 9th Nov 2004

Gallery: 4 images

Ride: Fordrunner 5.0 Turbo

Location: Wollongong
NSW, Australia

What about a merge pipe that comes off the headers and slightly off to the side, but tith a cap bolten onto it? You want loud? Then just unbolt the cap and its as loud as you'll ever want it.
Top
 Profile


Posted: Sun Dec 25, 2005 11:09 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

If your exhaust is too loud on the highway then your not going fast enough!
Seems like a good idea though, but I wouldn't be stuffed changing them ever myself - too lazy.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Tue Jan 03, 2006 12:56 pm
Smokin em up
Offline
User avatar

Age: 40

Posts: 243

Joined: 9th Nov 2004

Gallery: 3 images

Location: Bayswater
VIC, Australia

Exhaust mods pics.





Attachments:
tips.jpg [ 32.71 KiB | Viewed 28 times ]



_________________

Pround memeber Team DYNAMIC WHITE

"NFURI8" Fairlane ghia nf2 v8.
Pacemaker p4000
El gt snorkle, K&N filter.
JVC and INFINITY audio system.
EL GT Shadow Chrome alloys


AU3 Falcon Dedicated Gas

Top
 Profile


Posted: Tue Jan 03, 2006 12:56 pm
Smokin em up
Offline
User avatar

Age: 40

Posts: 243

Joined: 9th Nov 2004

Gallery: 3 images

Location: Bayswater
VIC, Australia

Exhaust mods pics.





Attachments:
tips.jpg [ 32.71 KiB | Viewed 23 times ]



_________________

Pround memeber Team DYNAMIC WHITE

"NFURI8" Fairlane ghia nf2 v8.
Pacemaker p4000
El gt snorkle, K&N filter.
JVC and INFINITY audio system.
EL GT Shadow Chrome alloys


AU3 Falcon Dedicated Gas

Top
 Profile


Posted: Tue Jan 03, 2006 1:01 pm
Smokin em up
Offline
User avatar

Age: 40

Posts: 243

Joined: 9th Nov 2004

Gallery: 3 images

Location: Bayswater
VIC, Australia

Exhaust mods pics.

approx retail price for plates, bolts, gaskets, pipe work and twin tips $200. The use of a single tip would bring the cost down considering these tips are $50 each.





Attachments:

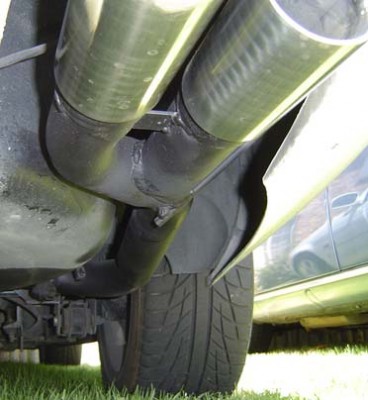

File comment: underside
undertips.jpg [ 48.68 KiB | Viewed 27 times ]

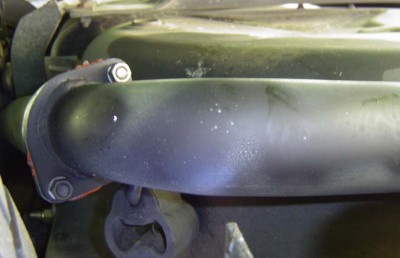

File comment: Joiner
joiner.jpg [ 57.91 KiB | Viewed 33 times ]

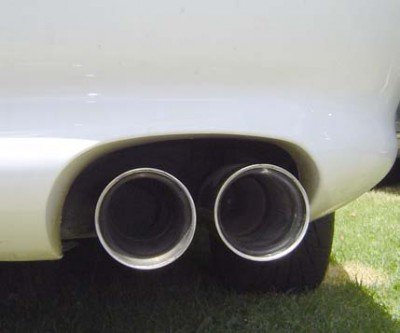

File comment: Twin tips
tips.jpg [ 32.71 KiB | Viewed 30 times ]



_________________

Pround memeber Team DYNAMIC WHITE

"NFURI8" Fairlane ghia nf2 v8.
Pacemaker p4000
El gt snorkle, K&N filter.
JVC and INFINITY audio system.
EL GT Shadow Chrome alloys


AU3 Falcon Dedicated Gas

Top
 Profile


Posted: Tue Jan 03, 2006 1:05 pm
Smokin em up
Offline
User avatar

Age: 40

Posts: 243

Joined: 9th Nov 2004

Gallery: 3 images

Location: Bayswater
VIC, Australia

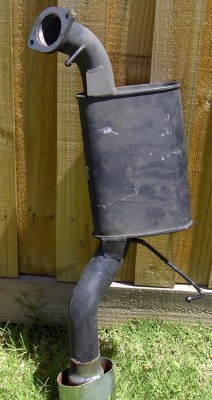

muffler piece ready to bolt on or off.





Attachments:
muffler.jpg [ 125.69 KiB | Viewed 32 times ]



_________________

Pround memeber Team DYNAMIC WHITE

"NFURI8" Fairlane ghia nf2 v8.
Pacemaker p4000
El gt snorkle, K&N filter.
JVC and INFINITY audio system.
EL GT Shadow Chrome alloys


AU3 Falcon Dedicated Gas

Top
 Profile


Posted: Tue Jan 03, 2006 2:13 pm
Parts Gopher
Offline
User avatar

Age: 32

Posts: 83

Joined: 5th Dec 2005

Ride: 95 EF GLi

Location: SE Melbourne
VIC, Australia

Looking great there Neal! I think I might leave this one to the professionals too. Very neat job theyve done.

I'm all pumped to get this done sooner now :D



_________________

1995 EF II Falcon GLi,
XR6 bodykit, 16" FTR Rims, Wade 1636 Cam, Pacemaker 4480 "Comp" extractors, Redback hi-flo cat, Redback 2.5" exhaust, AU XR8 tickford snorkel, King Springs Low rear/V8 SL front, Monroe GT Shocks, Kmac Camber/Castor Kit, Custom plates, Tinted windows. GUNMETAL MILITIA
