 Post subject: Re: FG intake onto BA/F
Posted: Thu Oct 11, 2012 11:43 am
Parts Gopher
Offline
User avatar

Age: 25

Posts: 81

Joined: 16th Sep 2012

Gallery: 3 images

Ride: Ford Falcon BF mkII ES

Location: Melbourne
VIC, Australia

phantom wrote:
Sent you a reply. So everyone knows I drilled a 3.0mm hole in the throttle body because it wouldn't Idle when it warmed up and to stop it hunting. I had also used the FG injectors but will be using BA ones when I install the manifold in my BA XR.

Thanks for the reply mate :]
Top
 Profile


 Post subject: Re: FG intake onto BA/F
Posted: Thu Oct 18, 2012 7:19 pm
Getting Side Ways
Offline

Age: 25

Posts: 1060

Joined: 5th Jan 2011

Gallery: 3 images

Ride: "08 XR6T Ute

Location: Northside - Brisbane
QLD, Australia

this may sound a little redundant, but i am looking to do this in reverse. the fg intake can only take about 10psi (i should mention that i am looking to turbo my car), so i am looking to put the cast BA/BF intake on my car to take the pressures of forced induction.

by the sound of it, its a straight forward swap... just in reverse to what all you guys want to do?
manifold, wiring, fuel rail, map sensor, ??



_________________

"08 XR6T Ute

Top
 Profile


 Post subject: Re: FG intake onto BA/F
Posted: Thu Oct 18, 2012 7:40 pm
Tyre Shredder
Offline

Posts: 333

Joined: 20th Apr 2011

Ride: 1991 eb1 fairmont

Location: townsville
QLD, Australia

FordAUte wrote:
this may sound a little redundant, but i am looking to do this in reverse. the fg intake can only take about 10psi (i should mention that i am looking to turbo my car), so i am looking to put the cast BA/BF intake on my car to take the pressures of forced induction.

by the sound of it, its a straight forward swap... just in reverse to what all you guys want to do?
manifold, wiring, fuel rail, map sensor, ??


why not use the fg turbo manifold?
Top
 Profile


 Post subject: Re: FG intake onto BA/F
Posted: Thu Oct 18, 2012 7:57 pm
Getting Side Ways
Offline

Age: 25

Posts: 1060

Joined: 5th Jan 2011

Gallery: 3 images

Ride: "08 XR6T Ute

Location: Northside - Brisbane
QLD, Australia

cause they are reasonably difficult to come accross, and everyone that has one is asking for ridiculous amounts of money... i was just looking into all my options.



_________________

"08 XR6T Ute

Top
 Profile


 Post subject: Re: FG intake onto BA/F
Posted: Sat Oct 20, 2012 7:16 pm
Parts Gopher
Offline
User avatar

Age: 25

Posts: 81

Joined: 16th Sep 2012

Gallery: 3 images

Ride: Ford Falcon BF mkII ES

Location: Melbourne
VIC, Australia

FordAUte wrote:
this may sound a little redundant, but i am looking to do this in reverse. the fg intake can only take about 10psi (i should mention that i am looking to turbo my car), so i am looking to put the cast BA/BF intake on my car to take the pressures of forced induction.

by the sound of it, its a straight forward swap... just in reverse to what all you guys want to do?
manifold, wiring, fuel rail, map sensor, ??

FordAUte wrote:
cause they are reasonably difficult to come accross, and everyone that has one is asking for ridiculous amounts of money... i was just looking into all my options.


In theory it should work, you would also have to get the manifold bolts. Or cut yours down, as they're shorter haha.
Also the coolant line that runs under the manifold. Not sure how it would work in reverse, the FG one may get in the way.
Because the wiring for the mass sensor is longer you may not actually have to do anything with it, just the Throttle body wiring.
Top
 Profile


 Post subject: Re: FG intake onto BA/F
Posted: Sun Dec 03, 2017 5:54 pm
Fordmods Newbie
Offline

Age: 23

Posts: 4

Joined: 24th Nov 2017

Ride: Ba MkII XR6 Magnet

Location: rockhampton
QLD, Australia

Hey sorry to bump an old thread but I've just finished doing this today and on cold startup it idles quite poorly and get no response from the accelerator. I've got fg fuel rail and reg with ba injectors, fg rocker cover, fg coils, fg throttle body (w/3mm hole drilled as phantom has). Ive soldered every join in the loom so figure its not that and initial start up sounds so close to how it used too but once it drops to idle rpm its terrible.Any ideas where I may have gone wrong? Probably up for a tune but figure it's worth a shot.
Top
 Profile


 Post subject: Re: FG intake onto BA/F
Posted: Mon Dec 04, 2017 10:06 am
Tyre Shredder
Offline
User avatar

Age: 44

Posts: 363

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

tekkendude wrote:
Hey sorry to bump an old thread but I've just finished doing this today and on cold startup it idles quite poorly and get no response from the accelerator. I've got fg fuel rail and reg with ba injectors, fg rocker cover, fg coils, fg throttle body (w/3mm hole drilled as phantom has). Ive soldered every join in the loom so figure its not that and initial start up sounds so close to how it used too but once it drops to idle rpm its terrible.Any ideas where I may have gone wrong? Probably up for a tune but figure it's worth a shot.

I would have used the BA/BF throttle body , I did this on my xg barra 182 fg manifold,fg fuel rail but BA injectors and throttle body and it works really well.



_________________

XG ute now powered with DOHC-BARRA 182/Tiger extractors/20% Underdrive and BA 4-SPEED + Tiptronic shifter
Mods to come AU XR6 3:45.1 LSD/New wheels and full respray
the-garage-f53/project-xg-fpv-dohc-barra-182-t128753-60.html

Top
 Profile


 Post subject: Re: FG intake onto BA/F
Posted: Mon Dec 04, 2017 11:56 am
Fordmods Newbie
Offline

Age: 23

Posts: 4

Joined: 24th Nov 2017

Ride: Ba MkII XR6 Magnet

Location: rockhampton
QLD, Australia

johnnyeHCF wrote:
I would have used the BA/BF throttle body , I did this on my xg barra 182 fg manifold,fg fuel rail but BA injectors and throttle body and it works really well.


Would you happen to have a picture of your setup at all? Need ideas for the adaptor plate. I'm pretty sure it's an air issue causing the idle issues.
Top
 Profile


 Post subject: Re: FG intake onto BA/F
Posted: Mon Dec 04, 2017 11:57 am
Fordmods Newbie
Offline

Age: 23

Posts: 4

Joined: 24th Nov 2017

Ride: Ba MkII XR6 Magnet

Location: rockhampton
QLD, Australia

johnnyeHCF wrote:
I would have used the BA/BF throttle body , I did this on my xg barra 182 fg manifold,fg fuel rail but BA injectors and throttle body and it works really well.


Would you happen to have a picture of your setup at all? Need ideas for the adaptor plate. I'm pretty sure it's an air issue causing the idle issues.
Top
 Profile


 Post subject: Re: FG intake onto BA/F
Posted: Tue Dec 05, 2017 11:29 am
Tyre Shredder
Offline
User avatar

Age: 44

Posts: 363

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

tekkendude wrote:
johnnyeHCF wrote:
I would have used the BA/BF throttle body , I did this on my xg barra 182 fg manifold,fg fuel rail but BA injectors and throttle body and it works really well.


Would you happen to have a picture of your setup at all? Need ideas for the adaptor plate. I'm pretty sure it's an air issue causing the idle issues.

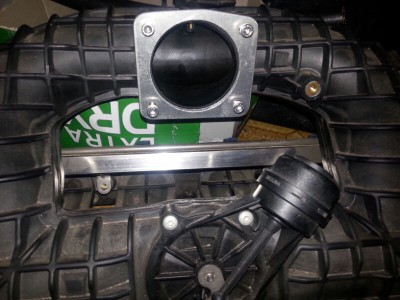

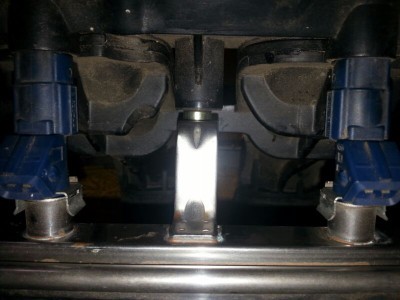

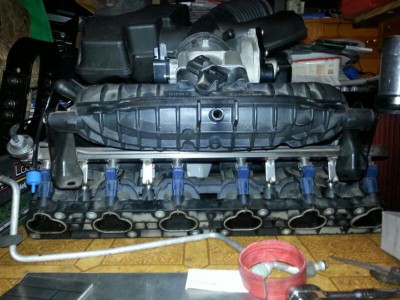

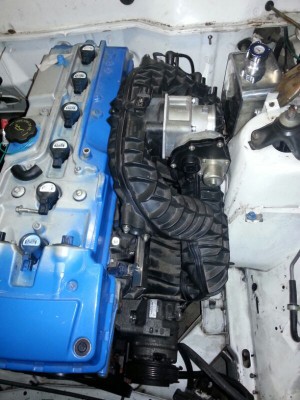

Hi mate heres a couple ,you just have to drill 2 holes in the BA trottle body for it to fit and spacers to fit the BA injectors in the FG rail.





Attachments:
file-10.jpg [ 42.28 KiB | Viewed 4 times ]
file-9.jpg [ 27.89 KiB | Viewed 2 times ]
file-8.jpg [ 42.91 KiB | Viewed 2 times ]
file-7.jpg [ 35.61 KiB | Viewed 2 times ]



_________________

XG ute now powered with DOHC-BARRA 182/Tiger extractors/20% Underdrive and BA 4-SPEED + Tiptronic shifter
Mods to come AU XR6 3:45.1 LSD/New wheels and full respray
the-garage-f53/project-xg-fpv-dohc-barra-182-t128753-60.html

Top
 Profile
