fg manifold lower mounting points & brackets?



Page 1 of 1 [ 3 posts ]


 Post subject: fg manifold lower mounting points & brackets?
Posted: Sun Feb 09, 2014 6:12 pm
Tyre Shredder
Offline
User avatar

Age: 44

Posts: 363

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

Hi guys, have just bought a fg manifold for my ba engine which will be going into my xg ute project with T5 & AU bellhousing, my questions are about the mounting points & lower brackets to mount this to the barra, it looks as though there are two points where it bolts to the manifold, the front one on my manifold is gone-looks like it ripped off in an accident, can anyone verify if there are two brackets for mounting the bottom or if they are for something else,any help would be greatly appreciated, thanks in advance, John.





Attachments:
2014-02-09 17.57.11.png
2014-02-09 17.57.11.png [ 287.89 KiB | Viewed 20 times ]



_________________

XG ute now powered with DOHC-BARRA 182/Tiger extractors/20% Underdrive and BA 4-SPEED + Tiptronic shifter
Mods to come AU XR6 3:45.1 LSD/New wheels and full respray
the-garage-f53/project-xg-fpv-dohc-barra-182-t128753-60.html

Last edited by johnnyeHCF on Tue Feb 11, 2014 10:50 am, edited 2 times in total.

Top
 Profile


 Post subject: Re: fg manifold mounting points & brackets?
Posted: Mon Feb 10, 2014 8:03 pm
Tyre Shredder
Offline
User avatar

Age: 44

Posts: 363

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

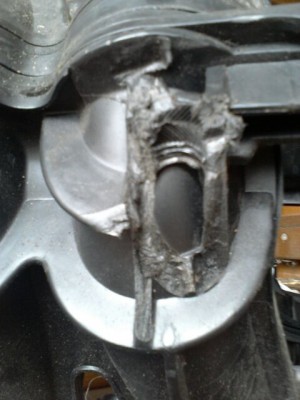

Hi look I'm hoping someone can tell me whether ive paid too much for this manifold, I paid a bit for it but was expecting it undamaged, I need to know what the the front lower mounting bracket- is like is it like the ba and other models where its mounted to the block with steel brackets, does the fg have brackets mounting it to the block under the manifold?,cheers,John.





Attachments:
20140210_194057.jpg [ 474.58 KiB | Viewed 36 times ]



_________________

XG ute now powered with DOHC-BARRA 182/Tiger extractors/20% Underdrive and BA 4-SPEED + Tiptronic shifter
Mods to come AU XR6 3:45.1 LSD/New wheels and full respray
the-garage-f53/project-xg-fpv-dohc-barra-182-t128753-60.html

Top
 Profile


 Post subject: Re: fg manifold lower mounting points & brackets?
Posted: Fri Feb 28, 2014 4:11 pm
Tyre Shredder
Offline
User avatar

Age: 44

Posts: 363

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

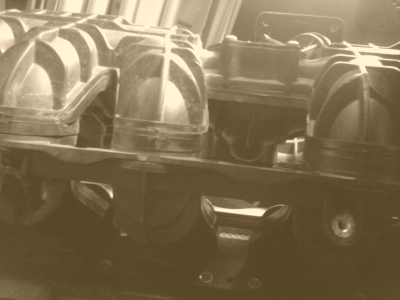

Ok so fg manifold has two steel brackets mounting the it to the block from underneath the manifold, just thought I'd put this up for anyone else , also if by chance you get one with the mounting point missing means it was more than likely ripped off in an accident & if so the manifold is them more than likely leaking and no good.





Attachments:
IMG_2014022851838.jpg [ 28.72 KiB | Viewed 20 times ]
IMG_2014022819400.jpg [ 40.12 KiB | Viewed 17 times ]



_________________

XG ute now powered with DOHC-BARRA 182/Tiger extractors/20% Underdrive and BA 4-SPEED + Tiptronic shifter
Mods to come AU XR6 3:45.1 LSD/New wheels and full respray
the-garage-f53/project-xg-fpv-dohc-barra-182-t128753-60.html
