 Post subject: Ford timing tensioner release tool #SST 303-777
Posted: Mon Jul 01, 2019 11:15 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 653

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

Hey guys,does anyone know where I can find these ford tool's.
#SST 303-777
#SST303778

Cheers Johnny.



_________________

XG ute now powered with DOHC-BARRA 182/Tiger extractors/20% Underdrive and BA 4-SPEED + Tiptronic shifter

the-garage-f53/project-xg-fpv-dohc-barra-182-t128753-60.html

Top
 Profile


 Post subject: Re: Ford timing tensioner release tool #SST 303-777
Posted: Tue Jul 02, 2019 9:50 am
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 869

Joined: 12th Aug 2007

Gallery: 22 images

Ride: AU2 XR8 ute & 91 EA bitsa

Location: Melbourne
VIC, Australia

These tools are probably not for sale any more (although Ford dealereships may still have them in their workshops). Have you tried Bursons? I have a cheaper method.

Use a Bic biro pen and push a metal skewer though the centre of it. Push the tensioner in with the pen casing and turn the skewer anti-clockwise to release the tensioner from its compressed position. Make sure you use a skewer that has 4-6 sides.



_________________

AU2 XR8 with Raptor VL, ported Yella Terra GT40P heads, Scorpion 1.6 RRs, XE264HR-14 Comp Cam, ceramic coated Hurricane Headers, 60lb injectors, Walbro 255, 200cfi cats, 3" exhaust & Snow Performance water methanol injection

Top
 Profile


 Post subject: Re: Ford timing tensioner release tool #SST 303-777
Posted: Tue Jul 02, 2019 10:15 pm
Fordmods Junkie
Offline
User avatar

Posts: 3170

Joined: 22nd Jan 2009

Ride: '03 BA Wagooon & EB Wagooons

Location: Geeelong
VIC, Australia

Shortshift wrote:
These tools are probably not for sale any more (although Ford dealereships may still have them in their workshops). Have you tried Bursons? I have a cheaper method.

Use a Bic biro pen and push a metal skewer though the centre of it. Push the tensioner in with the pen casing and turn the skewer anti-clockwise to release the tensioner from its compressed position. Make sure you use a skewer that has 4-6 sides.



that's differant! ....... i'm going by Timmy A's responce/reply from decades age . . . ...... :?:
Top
 Profile


 Post subject: Re: Ford timing tensioner release tool #SST 303-777
Posted: Wed Jul 03, 2019 5:39 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 653

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

Shortshift wrote:
These tools are probably not for sale any more (although Ford dealereships may still have them in their workshops). Have you tried Bursons? I have a cheaper method.

Use a Bic biro pen and push a metal skewer though the centre of it. Push the tensioner in with the pen casing and turn the skewer anti-clockwise to release the tensioner from its compressed position. Make sure you use a skewer that has 4-6 sides.


Hey Shortshift,that sounds like the SOHC chain tensioner your describing-or is DOHC tensioner set up similar?
Anyway this is the kit I'm getting which has both the tensioner & cam lock/holding tool and comes with a harmonic balancer puller aswell. This kit is from endeavour tools however you cannot order/buy it directly from them you have to order it from either Repco or Bursons as Shortshift said.

Cheers Johnny.





Attachments:

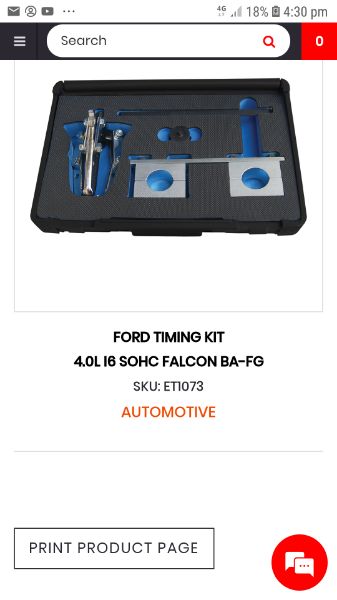

File comment: The original price for this kit was about $1020 but through Repco I got it for $276.
IMG_20190703_38160.jpg [ 24.77 KiB | Viewed 22 times ]



_________________

XG ute now powered with DOHC-BARRA 182/Tiger extractors/20% Underdrive and BA 4-SPEED + Tiptronic shifter

the-garage-f53/project-xg-fpv-dohc-barra-182-t128753-60.html

Top
 Profile


 Post subject: Re: Ford timing tensioner release tool #SST 303-777
Posted: Wed Jul 03, 2019 5:58 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 653

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

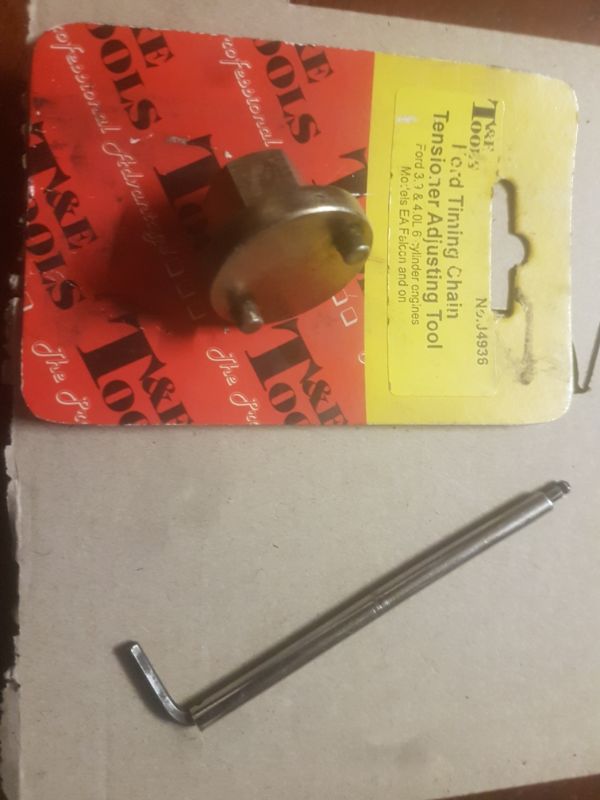

Hey guys, just thought I'd add a pic of the tool (my version anyways) of the SOHC timing chain lock and removal tool's,the tube and Allen key works in the same way as Shortshift said.I made mine from a peice of old aerial cut down and the right size Allen key (I normally use a longer one that's in the tube now) the other tool is for removing the tensioner.

Cheers Johnny.





Attachments:
IMG_20190703_17337.jpg [ 47.47 KiB | Viewed 22 times ]



_________________

XG ute now powered with DOHC-BARRA 182/Tiger extractors/20% Underdrive and BA 4-SPEED + Tiptronic shifter

the-garage-f53/project-xg-fpv-dohc-barra-182-t128753-60.html

Top
 Profile


 Post subject: Re: Ford timing tensioner release tool #SST 303-777
Posted: Thu Jul 04, 2019 3:58 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 653

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

Hey guys,just thought I'd give you a look at the timing kit for the DOHC BA-FG I6,and a closer look at the tensioner locking tool.
Cheers Johnny.





Attachments:

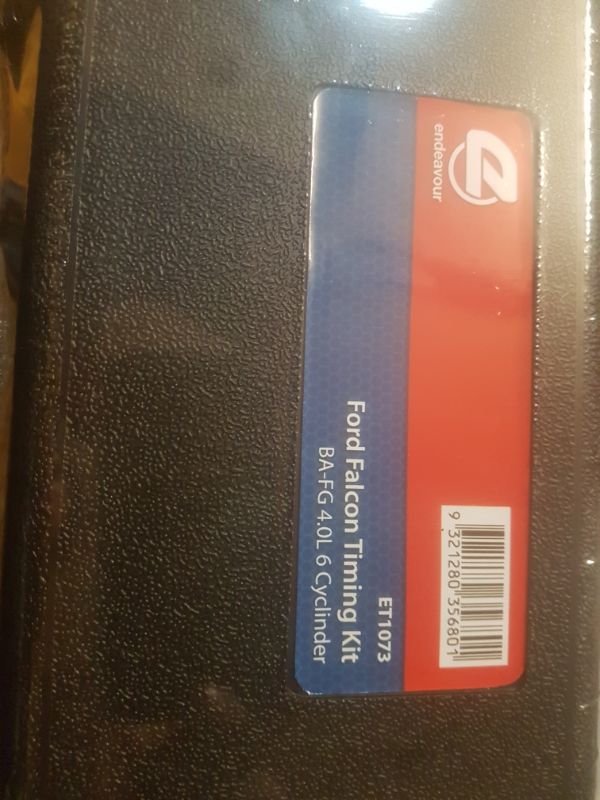

File comment: BA-FG 4.0L timing kit
P/N:ET1073

IMG_20190704_54203.jpg [ 72.41 KiB | Viewed 18 times ]

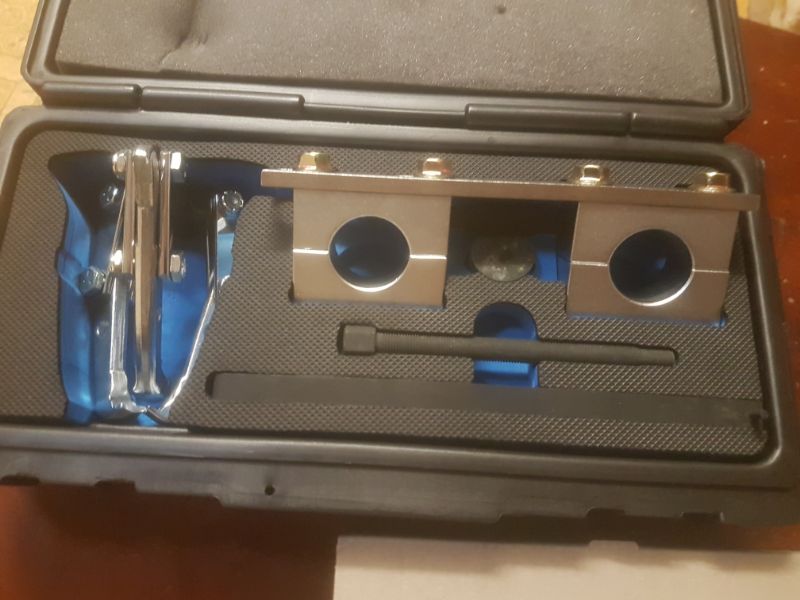

File comment: The kit comes with camshaft holding tool,tensioner locking tool and harmonic balancer puller.
IMG_20190704_36116.jpg [ 59.43 KiB | Viewed 23 times ]

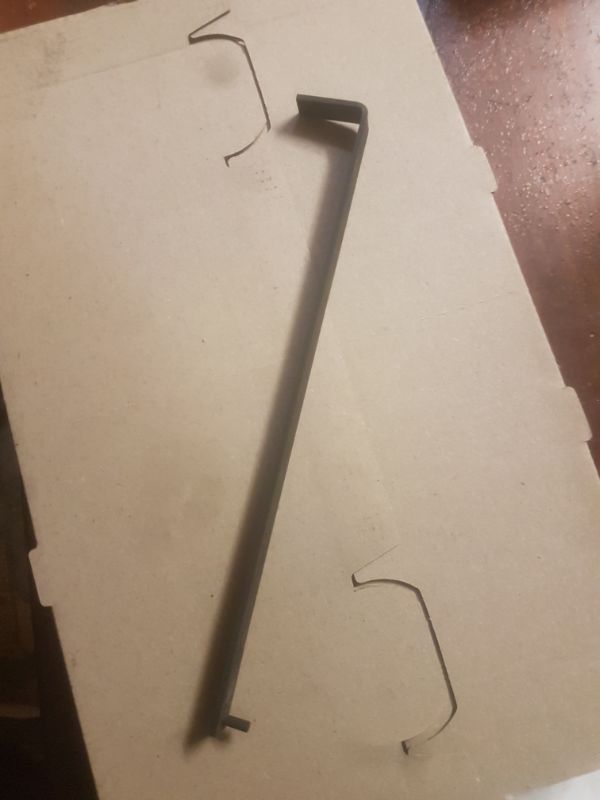

File comment: Tensioner locking tool
This can be used without removing the timing cover aswell.

IMG_20190704_27110.jpg [ 31.31 KiB | Viewed 19 times ]



_________________

XG ute now powered with DOHC-BARRA 182/Tiger extractors/20% Underdrive and BA 4-SPEED + Tiptronic shifter

the-garage-f53/project-xg-fpv-dohc-barra-182-t128753-60.html

Top
 Profile


 Post subject: Re: Ford timing tensioner release tool #SST 303-777
Posted: Mon Jul 22, 2019 7:55 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 653

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

Thought I'd put this up-so you can see the tool in action,push down on the lever (on the side of the tensioner) whilst pushing the guide and the tensioner rod in, hold the guide in release the lever till the holes line up place the tool through the lever hole into the tensioner body which will hold the tensioner in that position to remove the cams or whatever your doing.





Attachments:

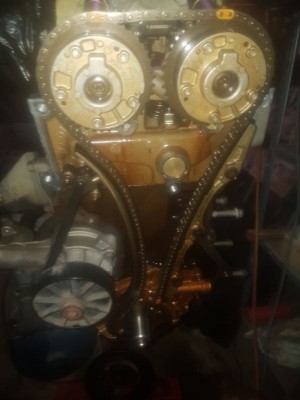

File comment: And the Cam position holding tool.
From the kit.

20190722_193445.jpg [ 76.21 KiB | Viewed 19 times ]

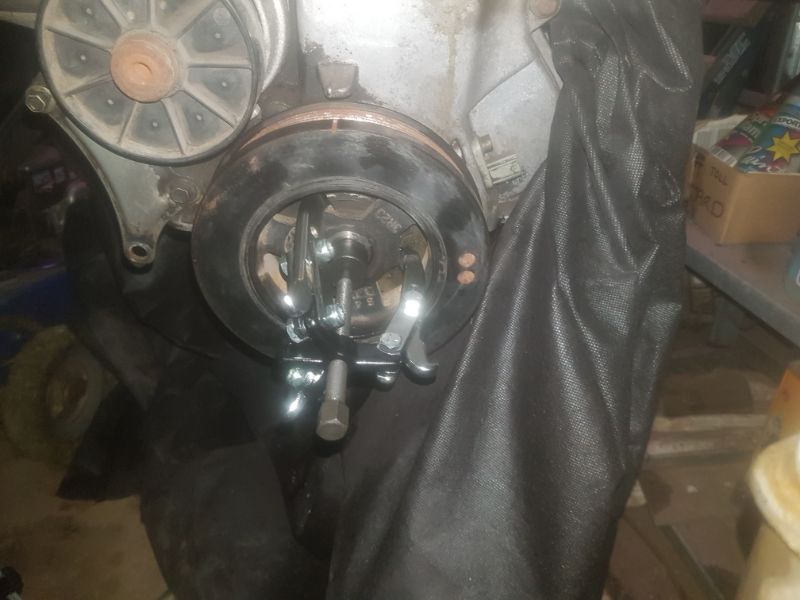

File comment: This is the harmonic balancer puller on.
Comes in the kit.

IMG_20190722_45371.jpg [ 52.64 KiB | Viewed 18 times ]
File comment: Closer look.
IMG_20190722_43388.jpg [ 27.11 KiB | Viewed 16 times ]

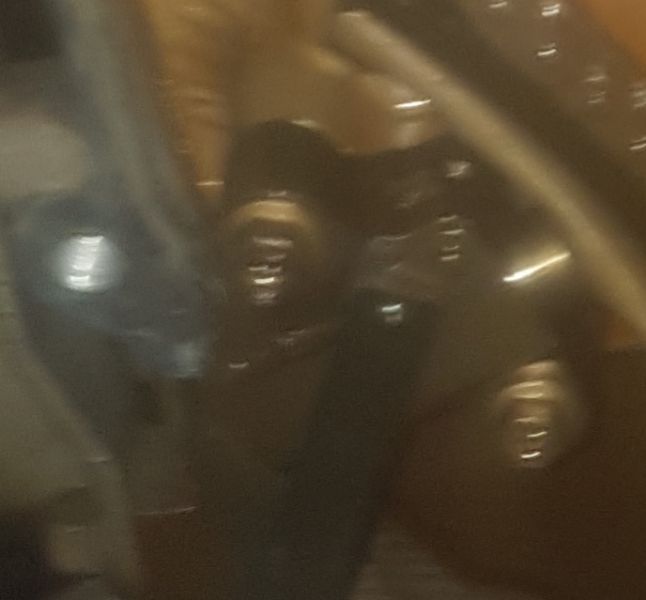

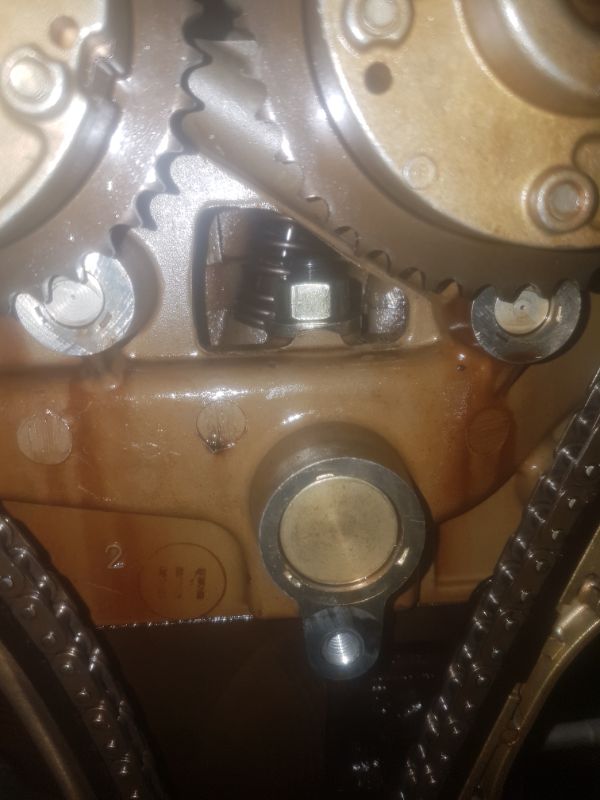

File comment: Tensioner tool in place.
IMG_20190722_31609.jpg [ 45.46 KiB | Viewed 18 times ]



_________________

XG ute now powered with DOHC-BARRA 182/Tiger extractors/20% Underdrive and BA 4-SPEED + Tiptronic shifter

the-garage-f53/project-xg-fpv-dohc-barra-182-t128753-60.html

Top
 Profile


 Post subject: Re: Ford timing tensioner release tool #SST 303-777
Posted: Mon Jul 22, 2019 9:57 pm
Fordmods Junkie
Offline
User avatar

Posts: 3170

Joined: 22nd Jan 2009

Ride: '03 BA Wagooon & EB Wagooons

Location: Geeelong
VIC, Australia

got me glasses on .... but canna see what ya mean............... :mrgreen:
Top
 Profile


 Post subject: Re: Ford timing tensioner release tool #SST 303-777
Posted: Mon Jul 22, 2019 11:44 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 653

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

Mad2 wrote:
got me glasses on .... but canna see what ya mean............... :mrgreen:


Will get some better pics tomoz Mr Madman :mrgreen:



_________________

XG ute now powered with DOHC-BARRA 182/Tiger extractors/20% Underdrive and BA 4-SPEED + Tiptronic shifter

the-garage-f53/project-xg-fpv-dohc-barra-182-t128753-60.html

Top
 Profile


 Post subject: Re: Ford timing tensioner release tool #SST 303-777
Posted: Tue Jul 23, 2019 9:15 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 653

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

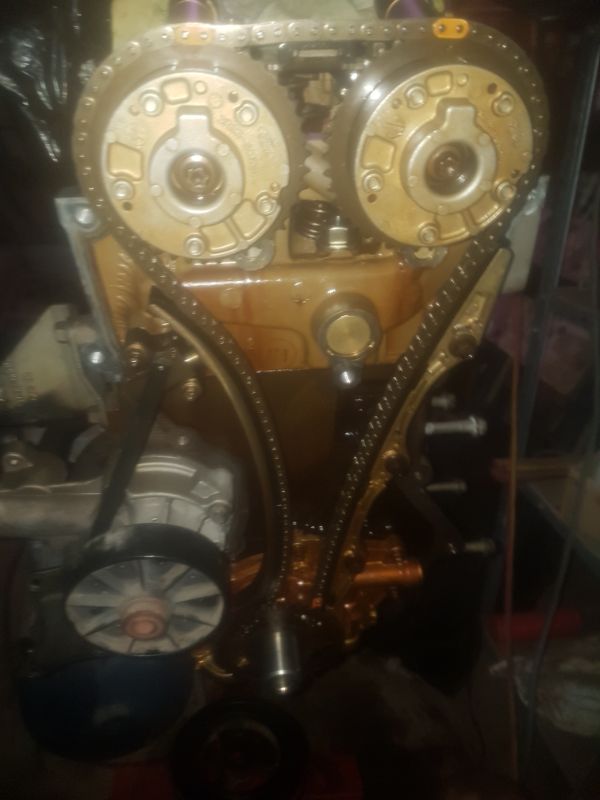

Hopefully these pics are a bit clearer.





Attachments:
IMG_20190723_33383.jpg [ 50.34 KiB | Viewed 19 times ]

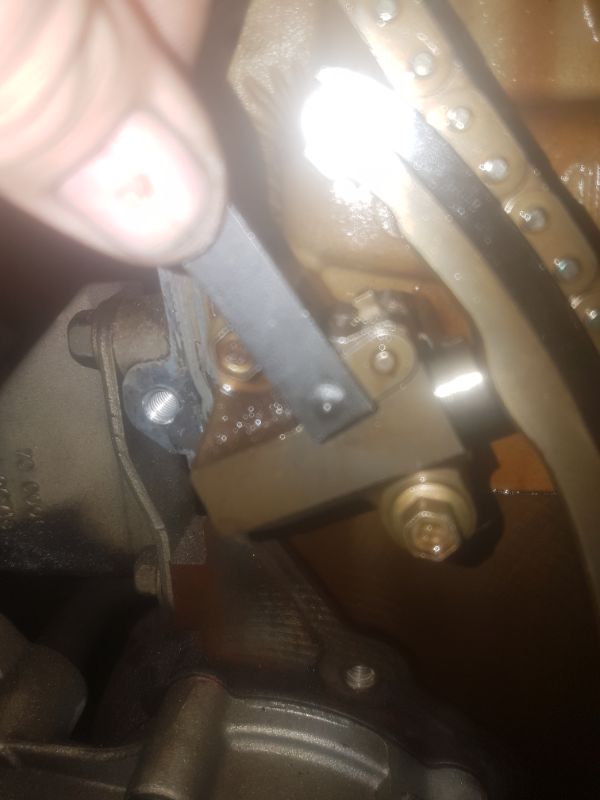

File comment: The part connected to my thumb is the tensioner tool.the lever is directly under it with the tool through the lever hole.
IMG_20190723_20507.jpg [ 37.8 KiB | Viewed 17 times ]

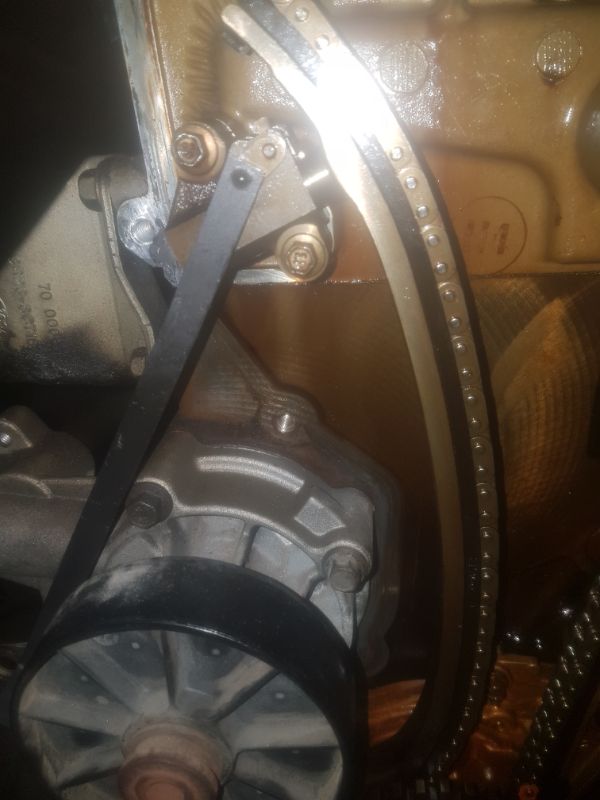

File comment: Here you can see a new spring and how the stud,my own found nuts with the 14mm large size head stud washers.
IMG_20190723_6946.jpg [ 51.3 KiB | Viewed 17 times ]



_________________

XG ute now powered with DOHC-BARRA 182/Tiger extractors/20% Underdrive and BA 4-SPEED + Tiptronic shifter

the-garage-f53/project-xg-fpv-dohc-barra-182-t128753-60.html

Top
 Profile


 Post subject: Re: Ford timing tensioner release tool #SST 303-777
Posted: Tue Jul 23, 2019 9:54 pm
Fordmods Junkie
Offline
User avatar

Posts: 3170

Joined: 22nd Jan 2009

Ride: '03 BA Wagooon & EB Wagooons

Location: Geeelong
VIC, Australia
