Forgot install steel gasket between engine and transmission



Page 1 of 1 [ 5 posts ]


 Post subject: Forgot install steel gasket between engine and transmission
Posted: Sat Jan 17, 2015 11:04 pm
Fordmods Newbie
Offline

Posts: 15

Joined: 15th Dec 2014

Location: sydney
NSW, Australia

I have my BA engine rebuilt because of main/conrod bearings worn.

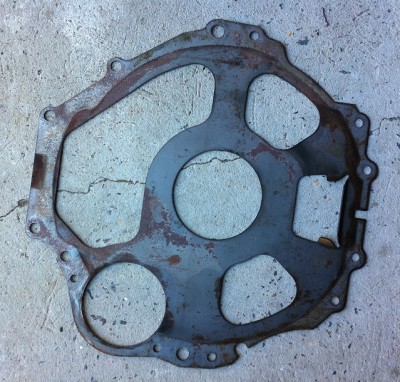

But I forgot to install the steel gasket between engine and transmission case, it's about 1.5mm thick.
It's like the transmission case moves forward for 1.5mm.

Here comes my worries.
So the torque conver input shaft has a 1.5mm displacement to transmission case and same does the
transmission output shaft to the case.
I know there is some free movement for torque conver input shaft and transmission output shaft. But
will the extra 1.5mm displacement cause any problem, like damaging sealing?

It's a big job to put the gasket in place on the driveway. I lost 3+ kg in rebuilding engine....





Attachments:
IMG_3781-1.jpg [ 236.91 KiB | Viewed 48 times ]
Top
 Profile


 Post subject: Re: Forgot install steel gasket between engine and transmission
Posted: Sun Jan 18, 2015 11:33 am
Getting Side Ways
Offline

Posts: 973

Joined: 15th Nov 2004

Ride: el wagon

Location: melbourne
VIC, Australia

All I can say is that it must be there for a reason.................
Top
 Profile


 Post subject: Re: Forgot install steel gasket between engine and transmission
Posted: Sun Jan 18, 2015 12:15 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Thinking the same reason... Ford wouldn't have gone to all the trouble to draw a design and set up a laser cutter to make them if it wasn't required...

I doubt it was clearance on the torque converter but... Probably has something else to do with twisting loads or something weird and wonderful like that...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Forgot install steel gasket between engine and transmission
Posted: Sun Jan 18, 2015 12:45 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

With tha additional 1.5mm, the Torque Convertor is going further into the gearbox.

This additional length can cause the convertor spigot to rub on the pump housing, chewing it out and stuffing the pump and possibly the box.
Top
 Profile


 Post subject: Re: Forgot install steel gasket between engine and transmission
Posted: Wed Jan 21, 2015 5:13 pm
Fordmods Newbie
Offline

Posts: 15

Joined: 15th Dec 2014

Location: sydney
NSW, Australia

thanks for all your comments
would put it back in place, unbolt the transmission should be an easier way than moving the engine
