 Post subject: Help - Starter Relay SCREWED
Posted: Fri Jan 05, 2007 7:08 pm
Getting Side Ways
Offline

Age: 29

Posts: 4182

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

As the title says, my starter relay is screwed, i cant even get the car to turn over... but connecting a wire from the battery to the stater fires it up.... how much effort is this to replace, and does anyone have any idea where the relay is?



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

51TER - DL LTD. Stock.

Top
 Profile


Posted: Fri Jan 05, 2007 9:03 pm
Parts Gopher
Offline
User avatar

Age: 43

Posts: 72

Joined: 9th Sep 2006

Ride: 2010 g6e turbo

Location: Craigmore
SA, Australia

relays are on the feder support right behind the battery they may have a small black plastic cover that is retained by one screw. there is a bank of 4 relays the stater should be the one on the end furthest away from the battery hope this helps



_________________

2010 G6E TURBO

Top
 Profile


Posted: Fri Jan 05, 2007 9:15 pm
Tyre Shredder
Offline
User avatar

Age: 45

Posts: 336

Joined: 2nd Sep 2005

Location: Normzville
WA, Australia

looking at the battery.......there are 6 relays under the header tank and 4 relays alongside the battery. in the 4 bank the one closest to the reservoir is the starter relay. the one furthest from the reservoir in the 4 bank is the horn relay, unplug and swap the two. if your horn still works and the car still doesnt start it's not the relay



_________________

<a href="http://www.spyderbyte.com.au">
<img border="0" src="http://www.spyderbyte.com.au/updated.gif" width="189" height="45"></a>

Top
 Profile


Posted: Sat Jan 06, 2007 4:20 pm
Getting Side Ways
Offline

Age: 29

Posts: 4182

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

Ok, it is not the starter relay... Earthing the starter solenoid while the ignition is in the "ON" position will start the f**k thing... any ideas before i take ot to an auto electrician



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

51TER - DL LTD. Stock.

Top
 Profile


Posted: Sat Jan 06, 2007 4:28 pm
Getting Side Ways
Offline

Age: 29

Posts: 4182

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

hmmm, i have now had a wierd idea that may just work.... using the earth of the starter solenoid, connect that to the battery with a starter button wired in... good or bad idea



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

51TER - DL LTD. Stock.

Top
 Profile


Posted: Sat Jan 06, 2007 4:59 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1643

Joined: 8th Feb 2006

Gallery: 10 images

Ride: Ef Ghiaaaaaargh!

Location: Perth
WA, Australia

How much would it be to get the whole relay unit replaced? (The whole thing near the battery)



_________________

Mercedes 500SEC: -- GONE -- http://www.fordmods.com/the-garage-f53/my-83-mercedes-500sec-buildup-t69837.html
Ef Ghia: -- GONE -- Pacie 4480's, 2.5" Redback, custom grille, FTR's.
AU xr8: BA xr wheels, 2.5" custom exh, leather and woodgrain next.
Chevy Camaro: LHD, Black, all original.

Top
 Profile


Posted: Sat Jan 06, 2007 5:07 pm
Parts Gopher
Offline
User avatar

Age: 43

Posts: 72

Joined: 9th Sep 2006

Ride: 2010 g6e turbo

Location: Craigmore
SA, Australia

have you tried starting it in neutral it could be the safety on your tranny that is stuffed i experienced a similar problem a couple years back



_________________

2010 G6E TURBO

Top
 Profile


Posted: Sat Jan 06, 2007 5:09 pm
Parts Gopher
Offline
User avatar

Age: 43

Posts: 72

Joined: 9th Sep 2006

Ride: 2010 g6e turbo

Location: Craigmore
SA, Australia

nv8351 wrote:
have you tried starting it in neutral it could be the safety on your tranny that is stuffed i experienced a similar problem a couple years back

sorry just noticed you had a 5 speed ignore this post



_________________

2010 G6E TURBO

Top
 Profile


Posted: Sat Jan 06, 2007 5:22 pm
Technical Contributor
Offline
User avatar

Posts: 691

Joined: 1st Jun 2005

Ride: EFII Sedan

Location: Brisbane
QLD, Australia

Jaycar sell the relays for around $10



_________________

EF II Sedan
Ex Chaser, Dual Fuel (Impco LPG)
LSD High, 3.23, Black wheels, other shiny bits.

EB II Sedan <--- R.I.P. (Rest in pieces - gone to the wreckers for $50...... bargain!)

Top
 Profile


Posted: Sat Jan 06, 2007 6:28 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1643

Joined: 8th Feb 2006

Gallery: 10 images

Ride: Ef Ghiaaaaaargh!

Location: Perth
WA, Australia

I mean replacing the whole unit, the thing the relays plug into.



_________________

Mercedes 500SEC: -- GONE -- http://www.fordmods.com/the-garage-f53/my-83-mercedes-500sec-buildup-t69837.html
Ef Ghia: -- GONE -- Pacie 4480's, 2.5" Redback, custom grille, FTR's.
AU xr8: BA xr wheels, 2.5" custom exh, leather and woodgrain next.
Chevy Camaro: LHD, Black, all original.

Top
 Profile


Posted: Sat Jan 06, 2007 8:01 pm
Getting Side Ways
Offline

Age: 29

Posts: 4182

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

All other relays situated there (Horn, High and Low Beam) work fine, i switched the horn and starter relays, and the horn still works, but the starter doesnt, yet earthing the starter and the car starts fine, so i was considering a starter button that earths the starter motor as a way of fixing the f**k thing



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

51TER - DL LTD. Stock.

Top
 Profile


Posted: Sat Jan 06, 2007 8:59 pm
Technical Contributor
Offline
User avatar

Posts: 691

Joined: 1st Jun 2005

Ride: EFII Sedan

Location: Brisbane
QLD, Australia

why do you want to do that?

Is the relay clicking when you turn the key?

You shouldn't need to replace the base, are you missing positive or negative on the relay base? You'll need someone to turn the key with the relay out to test this.

Probe one terminal at a time, with reference to negative, then positive. Then reverse and do the other terminal. On each terminal you should have either positive or negative. Work out what you have.

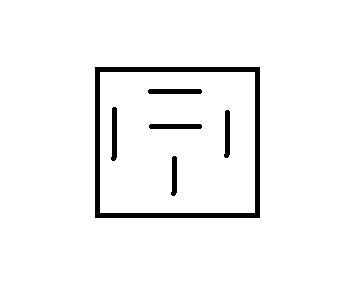

The terminals in question are the ones on the extreme left and right in the crude pic below

Find out whats missing - if its negative, you may have an inhibitor switch problem (not on manual)

If positive is missing - check if your ignition is sending positive to the BEM when cranking, and check if the BEM is outputing this to the relay base on acceptance of the right barrel code.

(I don't think the ECU has any say in cranking - someone correct me if i'm wrong cause i don't have my books in front of me)





Attachments:
base.jpg [ 5.38 KiB | Viewed 5627 times ]



_________________

EF II Sedan
Ex Chaser, Dual Fuel (Impco LPG)
LSD High, 3.23, Black wheels, other shiny bits.

EB II Sedan <--- R.I.P. (Rest in pieces - gone to the wreckers for $50...... bargain!)

Top
 Profile


Posted: Sat Jan 06, 2007 9:05 pm
Technical Contributor
Offline
User avatar

Posts: 691

Joined: 1st Jun 2005

Ride: EFII Sedan

Location: Brisbane
QLD, Australia

when you say earthing the starter motor - do you mean shorting its body to the car with a spanner or something? Or do you mean earthing one of the terminals on the relay base?

One of the terminals should already be earthed (either the left or right in the above pic) and the other gets power when you crank. This connects the top and bottom pins to excite the starter.

So what are you connecting to where to get the car to start?



_________________

EF II Sedan
Ex Chaser, Dual Fuel (Impco LPG)
LSD High, 3.23, Black wheels, other shiny bits.

EB II Sedan <--- R.I.P. (Rest in pieces - gone to the wreckers for $50...... bargain!)

Top
 Profile


Posted: Sat Jan 06, 2007 9:06 pm
Technical Contributor
Offline
User avatar

Posts: 691

Joined: 1st Jun 2005

Ride: EFII Sedan

Location: Brisbane
QLD, Australia

Have you checked your engine earth wire?



_________________

EF II Sedan
Ex Chaser, Dual Fuel (Impco LPG)
LSD High, 3.23, Black wheels, other shiny bits.

EB II Sedan <--- R.I.P. (Rest in pieces - gone to the wreckers for $50...... bargain!)

Top
 Profile


Posted: Sat Jan 06, 2007 10:29 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

67RCE wrote:
hmmm, i have now had a wierd idea that may just work.... using the earth of the starter solenoid, connect that to the battery with a starter button wired in... good or bad idea
Bad idea - fix it properly, this option will take less time.

67RCE wrote:
Ok, it is not the starter relay... Earthing the starter solenoid while the ignition is in the "ON" position will start the f**k thing... any ideas before i take ot to an auto electrician
You need to explain how you're actually 'earthing' the solenoid - I'm picturing earthing the starter body to the car frame, etc. Otherwise people won't understand totally what you're saying.
Sounds like you've already established the 12v side of things is okay.

You can't 'earth' the solenoid on it's own - it's already earthed through the starter motor frame. I'd check as EBgizmo has suggested, the engine earth lead might have crappy connections - check for continuity from the starter motor frame to the car body.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile
