hi wanting to use a NL cluater in a ef fairmount



Page 1 of 1 [ 7 posts ]


Posted: Sat May 19, 2007 10:25 am
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

You will need to change the plug over from the NL or EL, there is one or two wires that are different but pretty minor. The BEM will no longer fit as the plugs on that are different as well.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


 Post subject: hi wanting to use a NL cluater in a ef fairmount
Posted: Sat May 19, 2007 5:26 pm
Stock as a Rock
Offline

Age: 37

Posts: 170

Joined: 28th Mar 2007

Ride: NFturbo,xfturbo

Location: melbourne
VIC, Australia

hi wanting to use a NL dash loom in a EF all plugs up but just the wight plug that is near the orange one near the fuse box any one got any help changing this plug or will it fit

Last edited by eagle performance on Tue May 22, 2007 12:11 am, edited 1 time in total.

Top
 Profile


Posted: Sun May 20, 2007 10:04 am
Stock as a Rock
Offline

Age: 37

Posts: 170

Joined: 28th Mar 2007

Ride: NFturbo,xfturbo

Location: melbourne
VIC, Australia

hey there thanks for the info i have the el high sears bem and have fitted it

do you know what the too wires they are ans where do they go
Top
 Profile


Posted: Sun May 20, 2007 11:45 am
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Check out the tech docos - IIRC there are pin outs for the EF & EL BEM's.

Do realize there will be a fair amount of work rearranging pins into the applicable plugs - but it can be done.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Sun May 20, 2007 5:35 pm
Getting Side Ways
Offline
User avatar

Posts: 3363

Joined: 27th Dec 2004

Gallery: 4 images

Ride: MCMXCV Falcon

Location: G town
VIC, Australia

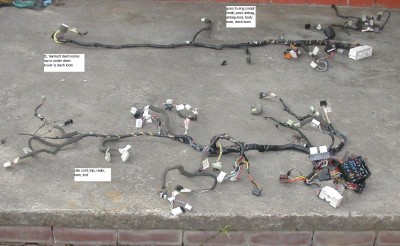

looms





Attachments:
EL fairmont dash looms.jpg
EL fairmont dash looms.jpg [ 160.56 KiB | Viewed 26 times ]



_________________


Top
 Profile


Posted: Sun May 20, 2007 9:04 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

Tim (Rapier) gave me this detail when I did mine
Quote:
the white plug that normally sits in behind the fuse box, is on a bracket with an orange plug, these aree sligtly different the el/nl loom will have and extra wire. all you need to do is attach the extra wire (yellow green/stripe) to the the pink wire on the connecter that sits in the fuse box (the one where you do the diagnostics check.


From memory I think it was the Tach signal that is sourced different between EF and EL. The rest is just moving the pins on the plug to the new position.
I hope this helps.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Tue May 22, 2007 12:02 am
Stock as a Rock
Offline

Age: 37

Posts: 170

Joined: 28th Mar 2007

Ride: NFturbo,xfturbo

Location: melbourne
VIC, Australia

hey i went and got a EF fairmount dash and i am wanting to put the ltd cluster in with the fairmount dash any one done this amd do you have any info
Top
 Profile
