Hose connection of bottom of throttle body



Page 1 of 1 [ 14 posts ]


 Post subject: Hose connection of bottom of throttle body
Posted: Sun Dec 25, 2005 11:15 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

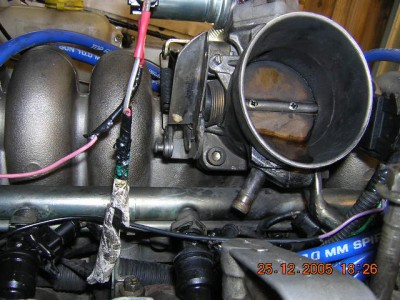

What's ment to be connected to this peice on the bottom of the throttle body? Looks like a hose connection.





Attachments:
DSCN1353.jpg [ 93 KiB | Viewed 24 times ]



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Sun Dec 25, 2005 11:17 pm
Getting Side Ways
Offline

Age: 36

Posts: 7287

Joined: 5th Nov 2004

Gallery: 12 images

Ride: 1994 ED XR8 Sprint

Location: Somewhere in
QLD, Australia

PCV?



_________________

Banned

Top
 Profile


Posted: Sun Dec 25, 2005 11:22 pm
Getting Side Ways
Offline

Age: 31

Posts: 3772

Joined: 5th Nov 2004

Gallery: 33 images

Ride: EL Fairmont Ghia

Location: Hobart
TAS, Australia

yep goes to the back of the rocker cover from memory

Last edited by Rapier on Sun Dec 25, 2005 11:49 pm, edited 1 time in total.

Top
 Profile


Posted: Sun Dec 25, 2005 11:45 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

which isn't the PCV, if I remember right the PCV connects to the intake manifold somewere not to the throttle body.


hmmmm... so what can i use to block it off.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Sun Dec 25, 2005 11:52 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 4307

Joined: 5th Nov 2004

Gallery: 9 images

Ride: EF Falcon XT-T

Location: Mornington Peninsula
VIC, Australia

as Rapier, said it goes to the back of the rocker cover.



_________________

FALCN6 - EF GLi Turbo, 20" Rims, Air Bag Suspension, Straight LPG, 225rwkw
DTHWGN - EA GL Wagon, LTD Interior, Satin Black, 5.0, Turbo
RACER - EF Futura , 5.0, 5 Speed
PROJECT - 83 Thunderbird, Lowered, 18" Billet Wheels
DAILY - BA Fairmont Ghia 5.4 3V

Top
 Profile


Posted: Sun Dec 25, 2005 11:54 pm
Getting Side Ways
Offline

Age: 31

Posts: 3772

Joined: 5th Nov 2004

Gallery: 33 images

Ride: EL Fairmont Ghia

Location: Hobart
TAS, Australia

any way scott y u buy an original ford workshop manual if u aint gonna read it im sure it tells u in there lol
Top
 Profile


Posted: Mon Dec 26, 2005 12:20 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

Rapier wrote:
any way scott y u buy an original ford workshop manual if u aint gonna read it im sure it tells u in there lol


why come to fordmods if i ain't gunna ask :wink:



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Mon Dec 26, 2005 12:22 am
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

be sure to clean that throttle body for christs sake. eeewwww



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Mon Dec 26, 2005 2:00 am
Getting Side Ways
Offline

Age: 36

Posts: 7287

Joined: 5th Nov 2004

Gallery: 12 images

Ride: 1994 ED XR8 Sprint

Location: Somewhere in
QLD, Australia

data_mine wrote:
be sure to clean that throttle body for christs sake. eeewwww
looks about right for a gas barbecue!



_________________

Banned

Top
 Profile


Posted: Mon Dec 26, 2005 8:36 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

data_mine wrote:
be sure to clean that throttle body for christs sake. eeewwww


you can't see the puddle of CRC Clean R Carb lieing there on the bottom? Before that thing was entirely black! I'll do some scrubing once the rocker c cover is back on as I don't want to get much on the shiny new head!


So no ideas on how to block it off, I'm gunna see what blanking plugs we have at work today, but I think they'll be too big.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Mon Dec 26, 2005 9:18 am
Technical Contributor
Offline
User avatar

Posts: 691

Joined: 1st Jun 2005

Ride: EFII Sedan

Location: Brisbane
QLD, Australia

If you're running LPG, (which it looks like you are from the spliced bypass solenoid), don't connect that to anything. It use to go to the back of the rocker cover, but when they convert to LPG it gets plugged, or the pcv sucks LPG vapour from the throttle body, thru your valve cover. One little bit of blow-by or spark and BOOM! No more rocker cover, and a sizeable dent in your bonnet :)



_________________

EF II Sedan
Ex Chaser, Dual Fuel (Impco LPG)
LSD High, 3.23, Black wheels, other shiny bits.

EB II Sedan <--- R.I.P. (Rest in pieces - gone to the wreckers for $50...... bargain!)

Top
 Profile


Posted: Mon Dec 26, 2005 4:47 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

cheers EBGizmo, that makes a lot of sense and explains why they have tapped it into the intake piping in front of the mixer.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Tue Dec 27, 2005 9:45 am
Fordmods Junkie
Offline
User avatar

Posts: 3083

Joined: 22nd Sep 2005

Gallery: 13 images

Ride: EF

Location: Melbourne
VIC, Australia

on my gas car that pipe goes to just inbetween one of the intake runners and just ends, should it be pluged up???


i have seen the same thing that EBGizmo speaks of, from memory a guy on these forums had it happen, a "HUGE" crack the length the rocker cover and the whole front and of his rocker cover came off aswell, looked very japanese, "i can see your cam gear bro".



_________________

latest mod: A Service
MY BUILD THREAD

Top
 Profile


Posted: Tue Dec 27, 2005 1:30 pm
Technical Contributor
Offline
User avatar

Posts: 691

Joined: 1st Jun 2005

Ride: EFII Sedan

Location: Brisbane
QLD, Australia

Depends if it serves the same function or not (re: plugged up)

Its just a clean air source pipe for the rocker, since the PCV valve is trying to scavenge all the blow-by gasses under the rocker cover, it needs air to get in. You just need to connect the vent side to a clean air source, where LPG vapour is not present. On my EB, the throttle body pipe in question, was plugged with a hose that had a ball bearing in it (quite crude). When I did my EF conversion recently, I used a short hose with something else in it, and two hose clamps. I think it was a bolt. No point using caps/plugs etc IMHO, because if you get a backfire, it shoots off, then you are left scratching your head as to why it suddenly won't run on LPG properly :)



_________________

EF II Sedan
Ex Chaser, Dual Fuel (Impco LPG)
LSD High, 3.23, Black wheels, other shiny bits.

EB II Sedan <--- R.I.P. (Rest in pieces - gone to the wreckers for $50...... bargain!)
